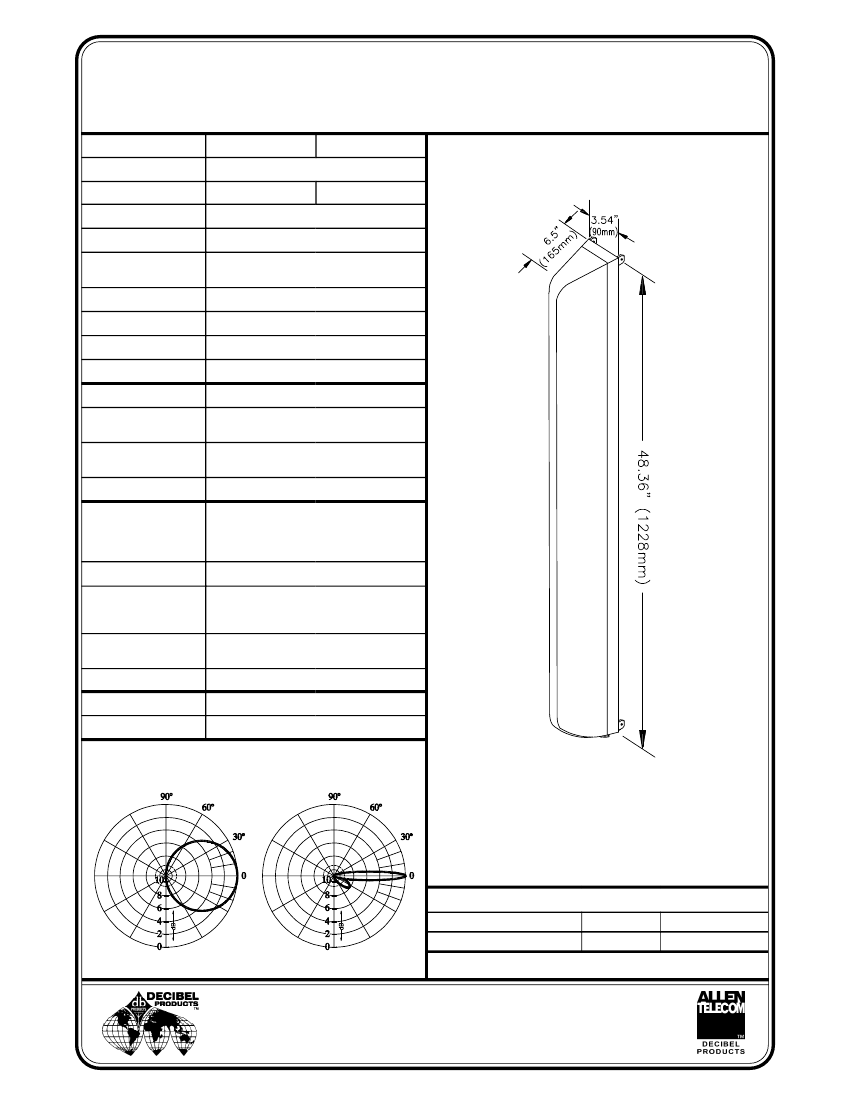

DB948P85E- {
Model Number
Termination
Frequency Range
Gain
VSWR
Beamwidth
(3 dB from max.)
Front-to-Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
(at 100 mph)
Max. Wind Speed
Material
DB948P85E-M
DB948P85E-KL
-M: 1850-1990 MH
Z
-KL: 1710-1880 MH
Z
15 dBd 85° Directional Yagi Antenna
7/16 DIN ("E") Female
1850-1990 MHz
1710-1880 MHz
15 dBd (17.1 dBi)
1.4 : 1
Horizontal:
Vertical:
85° ± 5°
7° ± 1°
> 40 dB
Vertical
250 Watts
DCS 1800, PCS
8.5 lb. (3.9 kg)
Frontal Area:
Lateral Area:
Frontal Thrust:
Lateral Thrust:
1 ft² (0.09 m²)
2.08 ft² (0.19 m²)
40 lbf
83.2 lbf
125 mph (201 km/h)
Radiators:
Back Panel:
Radome:
Mounting Hdw:
PCB
Pass. Aluminum
ABS, UV Stabilized
Galvanized Steel
Color
Mounting
Normal: Gray
DB390 pipe mount kit, included.
DB5094-AZ azimuth bracket, optional.
DB5098 downtilt bracket, optional.
Fully protected by metal and UV stabilized
ABS.
All metal parts grounded.
54" x 9" x 7" (137 x 23 x 18 cm)
16 lbs (7.3 kg)
Weather Protection
Lightning Protection
Packing Size
Shipping Weight
Antenna Patterns
15 dBd (17.1 dBi) gain PCS directional log
periodic antenna with 85° horizontal 3 dB
beamwidth for -M: 1850-1990 MHz or
-KL: 1710-1880 MHz.
Electrical Downtilt (T) Option
Model Number
DB948P85T4E-M/KL
Downtilt
4°
Gain
14.6 dB
Horizontal
Vertical
Specifications are for reference only.
099148-002-PRE 2/99E
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706
