FFC Harness for High-speed Transmission
CONNECTOR
MB-0251-1
October
O t b 2012
JF08 Series
RoHS Compliant

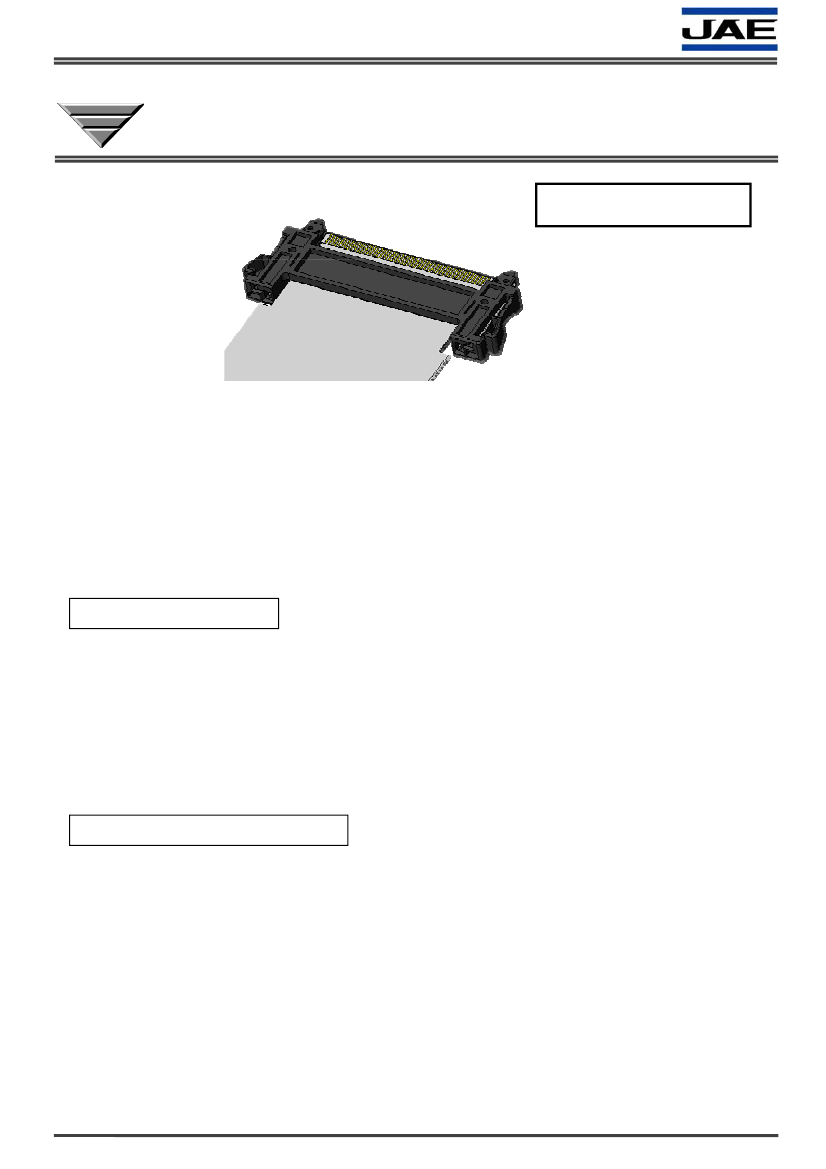

Recently there has been increasing demand for high-speed and high-capacity transmission in
devices as they become higher in performance. The JF08 Series connector harness is
excellent at carrying high-speed serial transmission such as LVDS and PCI-Express, and it is
also ideally suited for the next generation high speed interface
V-by-One®HS
high-speed interface,
V by One®HS.
*V-by-One®HS is the trademark of THine Electronics, Inc.
Features
■ C mate with FI-R Series connectors
Can
t ith FI R S i
t
■ Strong mechanical lock
■ Easy operability with ample mating guides and large side lock buttons
■ Ideally suited for the next generation high-speed transmission, V-by-One®HS
■ EMI control with shield layer on the FFC and metal shell on the co ecto
co t o w t s e d aye o t e C a d eta s e o t e connector
General Specification
■Number of Contacts： 41, 51 positions
■Rated Current： AC, DC each 0.3 Amps/contact
■Contact Resistance： Maximum 40M ohm
■Insulation Resistance： Minimum of 100M ohm
■Dielectric Withstanding Voltage： AC250Vr.m.s per minute
■Pitch： 0.5mm
■Operating Temperature： -40℃ ∼ +80℃
■Impedance
Connector: 100 ohm±15%
FFC: 100 ohm ±10%
JAE PMK Div. Proprietary. Copyright © 2012, Japan Aviation Electronics Industry, Ltd.
1/4
MB-0251-1
Materials and Finishes
Component
FFC
Material / Finishes
One-side shield FFC / Au plating
Signal wire： Copper
Shield： Aluminum / Copper
Insulation: PET
Copper alloy/ Sn plating
Heat resistant plastic / None
Stainless steel / None
Shell
Insulator
Lock Spring
Ordering Information
*FI-R Type
JF08 R 0 R 0 ** *** **
Series
Connector Type
R： FI-R
Modification Code
Connector Type
R： FI-R
Modification Code
*Connectors are not sold individually.
Modification Code
Cable Length
No. of Contacts:
41, 51 pos.
JAE PMK Div. Proprietary. Copyright © 2012, Japan Aviation Electronics Industry, Ltd.
2/4
MB-0251-1
Part N b
P t Number
JF08R0R041***MA
JF08R0R051***MA
SJ Drawing
D i
SJ110607
SJ110607
Remarks
R
k
41 pos / Aluminum Shield
51 pos / Aluminum Shield

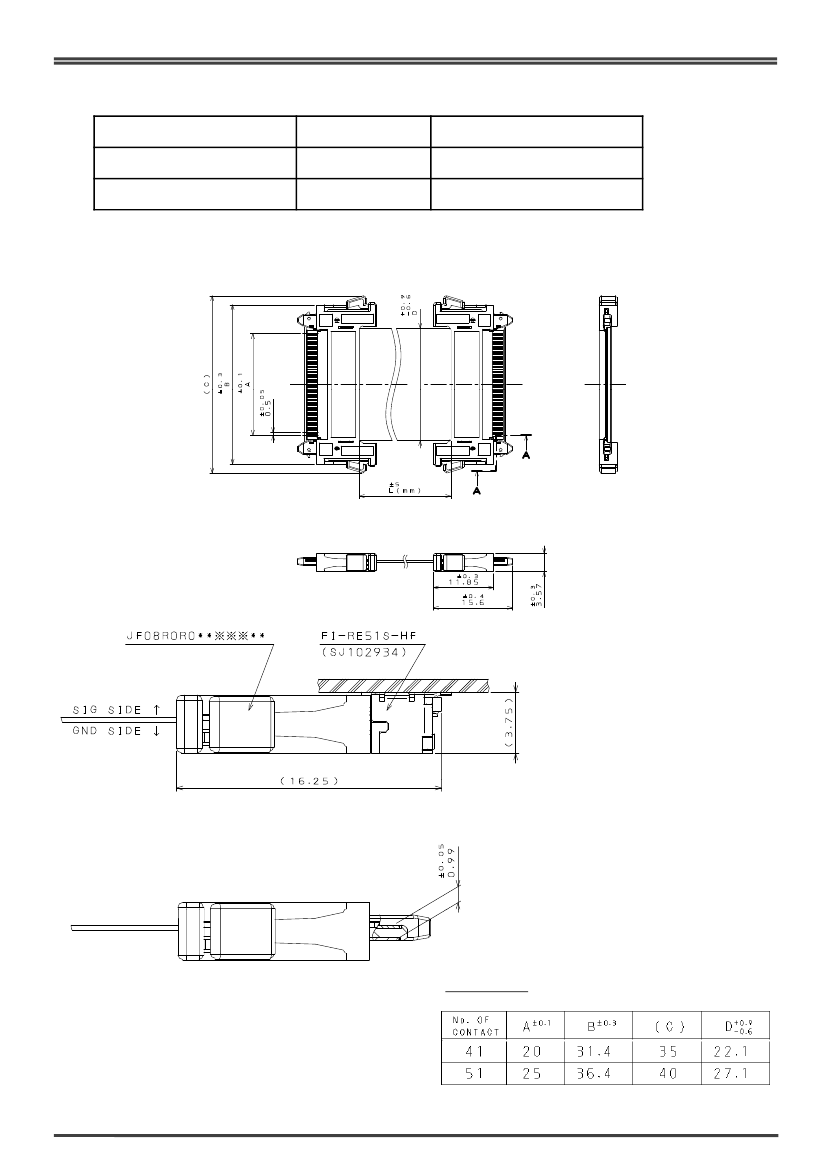

Dimensions
Unit：mm
JAE PMK Div. Proprietary. Copyright © 2012, Japan Aviation Electronics Industry, Ltd.
3/4
MB-0251-1
Product Line-up
No. of
Contacts
41
FFC
Length
10cm
20cm
30cm
40cm
50cm
80cm
100cm
FFC
Length
10cm
20cm
30cm
40cm
50cm
50
80cm
100cm
Part Number
JF08R0R041010MA
JF08R0R041020MA
JF08R0R041030MA
JF08R0R041040MA
JF08R0R041050MA
JF08R0R041080MA
JF08R0R041100MA
No. of
Contacts
51
Part Number
JF08R0R051010MA
JF08R0R051020MA
JF08R0R051030MA
JF08R0R051040MA
JF08R0R051050MA
JF08R0R051080MA
JF08R0R051100MA
Note: Above shows the standard lengths.
Please contact us concerning lengths not listed.
Notice:
Products shown in this brochure are made
for the applications listed below. However, if the
above-mentioned products are to be used in aerospace
devices, marine cable-connection devices, atomic
power control systems, medical equipment for life-
support systems, or any other specific application
requiring extremely high reliability, please contact
JAE for further information.
Recommended applications: Computers, Office
machines, Measuring devices, Telecommunication
hi
M
i d i
T l
i i
devices (Terminals, Mobile devices), AV devices,
Household applications, FA devices, etc.
Product Marketing Division
Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539
Phone: +81-3-3780-2787 FAX: +81-3-3780-2946
* The specifications in this brochure are subject to change without notice. Please contact JAE for information.
JAE PMK Div. Proprietary. Copyright © 2012, Japan Aviation Electronics Industry, Ltd.
4/4
