LTV-3150
0.6A Output Current, High CMR,
Gate Drive Optocoupler
Apr 2011
Description
The LTV-3150 optocoupler is ideally suited
for driving power IGBTs and MOSFETs
used in motor control inverter applications
and inverters in power supply system. It
contains an AlGaAs LED optically coupled to
an integrated circuit with a power output
stage. The 0.6A peak output current is
capable of directly driving most IGBTs with
ratings up to 1200 V/50 A. For IGBTs with
higher ratings, the LTV-3150 series can be
used to drive a discrete power stage which
drives the IGBT gate.
Features
•
•
•
•
•
•
•
•
0.6A maximum peak output current
15 kV/us minimum Common Mode Rejection
(CMR) at VCM = 1500 V
3.5 mA maximum supply current (I
CC
)
Under Voltage Lock-Out protection (UVLO) with
hysteresis
Wide operating range: 15 to 30 Volts (V
CC
)
Guaranteed performance over temperature
o
o
-40 C ~ +100 C.
Fast switching speed, 500ns max propagation
delay
Safety approval: Pending
The Optocoupler operational parameters
are guaranteed over the temperature range
from -40
o
C ~ +100
o
C.
Application
•
•
IGBT/MOSFET gate drive
Uninterruptible power supply (UPS)
Industrial Inverter
Induction heating

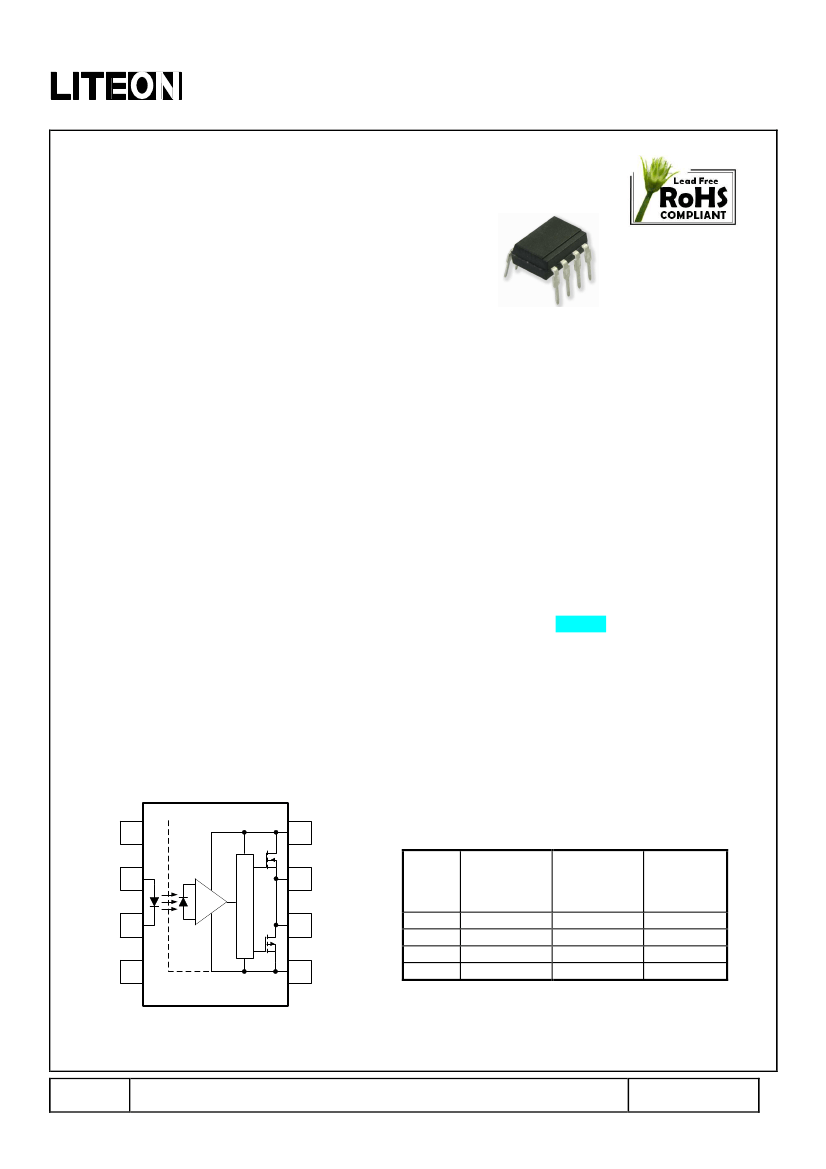

Functional Diagram
•
•
NC
1
8
Vcc
Truth Table
LED
OFF
ON
ON
ON
V
CC
-GND
(Turn-ON,
+ve going)
0 - 30 V
0 – 11.5 V
11.5 - 13.5 V
13.5 - 30 V
V
CC
-GND
(Turn-OFF,
-ve going)
0 - 30 V
0 – 10 V
10 - 12 V
12 - 30 V
V
O
Low
Low
Transition
High
Anode
2
7
Vo
Cathode
3
6
Vo
NC
4
Shield
5
GND
A 0.1µF bypass Capacitor must be connected
between Pin 5 and 8. (Note 8)
Part No. :
LTV-3150 series (REV. 1, MAY 18,2011 )
Page 1
of
18
L IT E - O N T E CH NO L O G Y CO RP O RAT IO N
Property of Lite-on Only
Ordering Information
Part
Option
Remarks
DIP-8
M
LTV-3150
S
S-TA
S-TA1
Wide Lead Spacing, DIP-8
Surface Mount, SMD-8
Surface Mount, SMD-8, Pin 1 location at lower right of the reel
Surface Mount, SMD-8, Pin 1 location at upper left of the reel
Part No. :
LTV-3150 series (REV. 1, MAY 18,2011 )
Page 2
of
18
L IT E - O N T E CH NO L O G Y CO RP O RAT IO N
Property of Lite-on Only
Package Dimensions

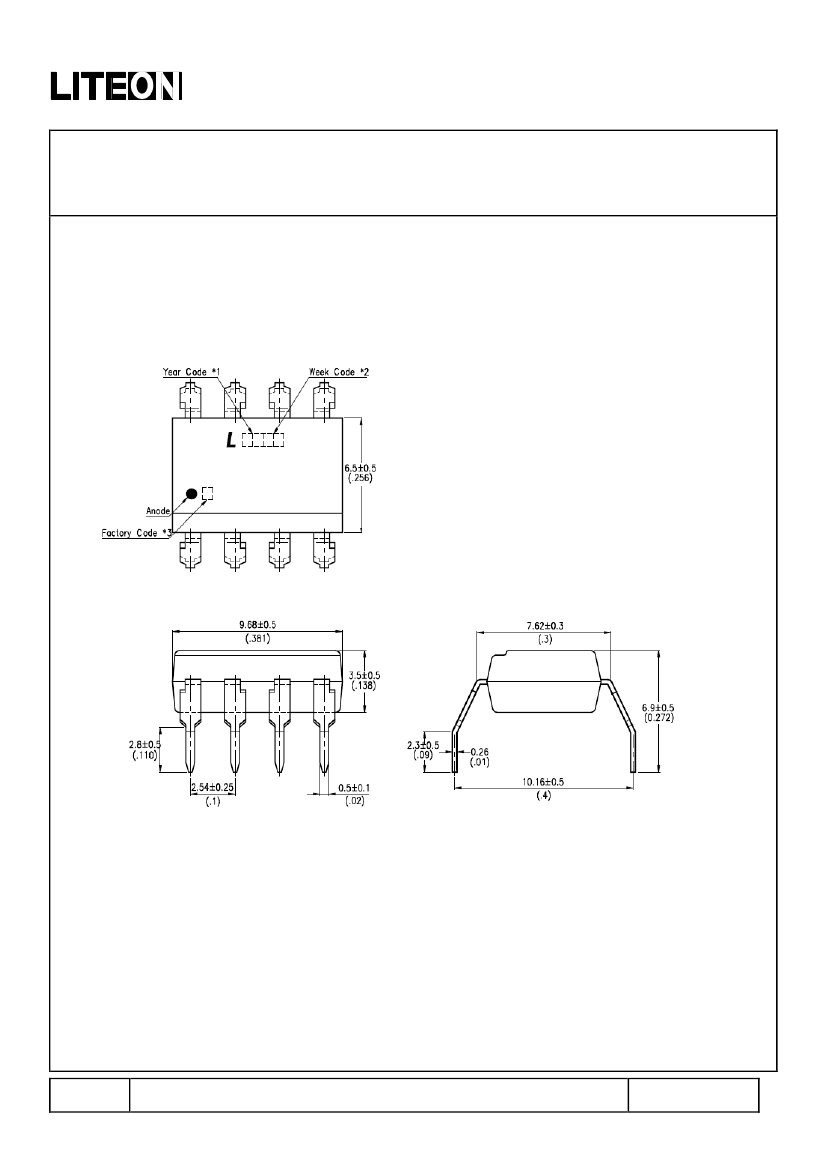

8-pin DIP Package (LTV-3150)
LTV3150
*1. Year date code.
*2. 2-digit work week.
*3. Factory identification mark
(Y : Thailand).
Dimensions are in Millimeters and (Inches).
Part No. :
LTV-3150 series (REV. 1, MAY 18,2011 )
Page 3
of
18
L IT E - O N T E CH NO L O G Y CO RP O RAT IO N
Property of Lite-on Only
Package Dimensions

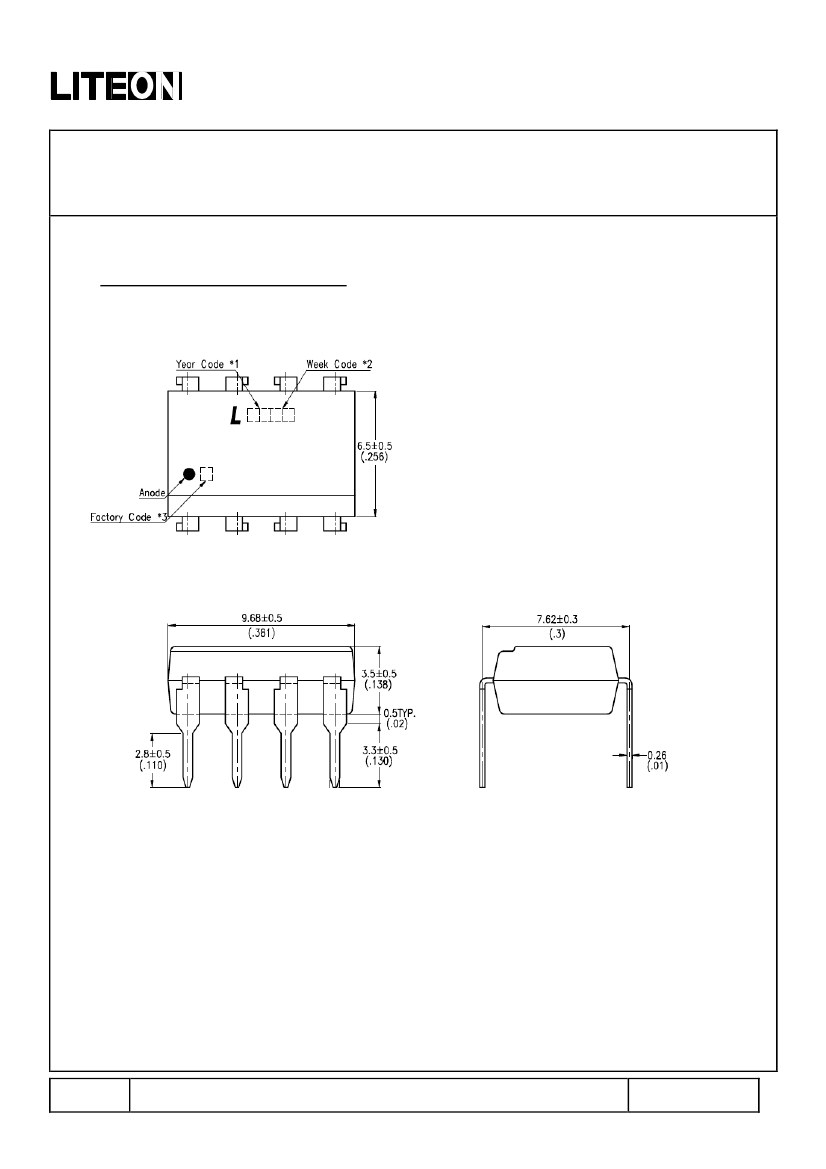

8-pin DIP Wide Lead Spacing Package (LTV-3150M)
LTV3150
*1. Year date code.
*2. 2-digit work week.
*3. Factory identification mark
(Y : Thailand).
Dimensions are in Millimeters and (Inches).
Part No. :
LTV-3150 series (REV. 1, MAY 18,2011 )
Page 4
of
18
L IT E - O N T E CH NO L O G Y CO RP O RAT IO N
Property of Lite-on Only
Package Dimensions

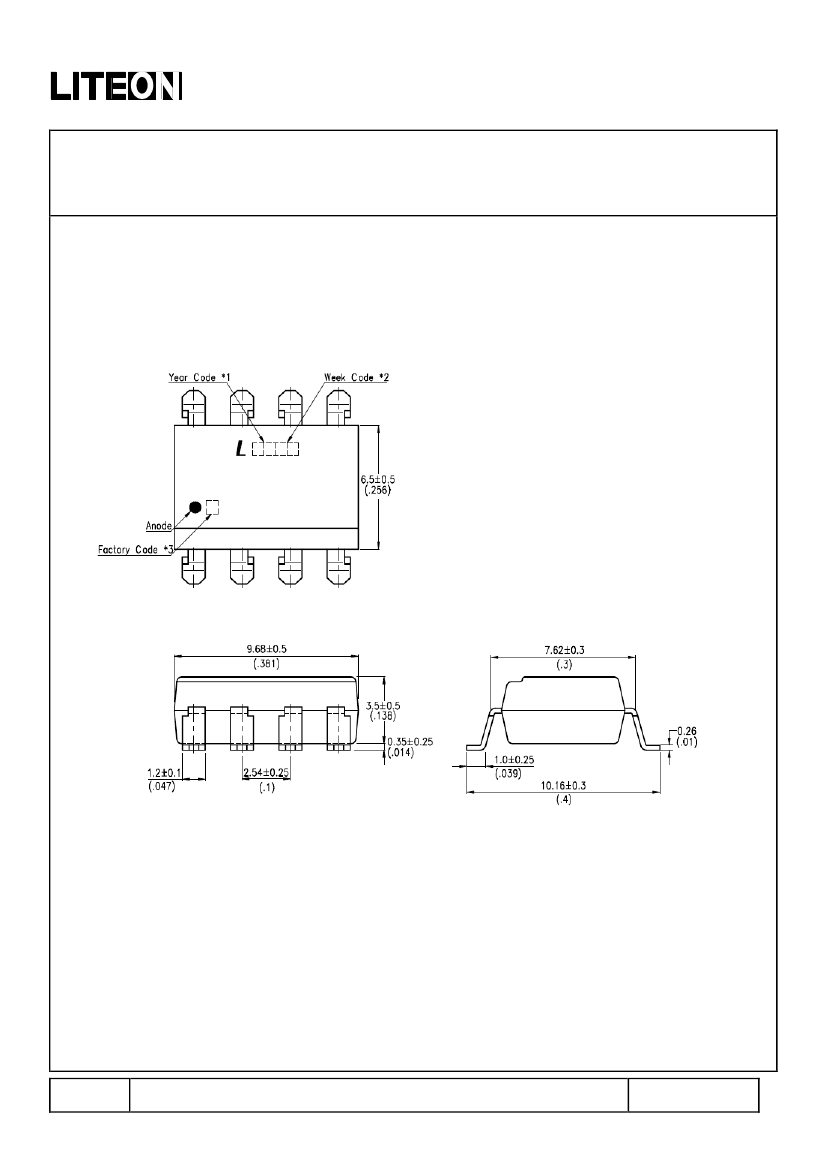

8-pin DIP Surface Mount Package (LTV-3150S)
LTV3150
*1. Year date code.
*2. 2-digit work week.
*3. Factory identification mark
(Y : Thailand).
Dimensions are in Millimeters and (Inches).
Part No. :
LTV-3150 series (REV. 1, MAY 18,2011 )
Page 5
of
18
