Designed for aerospace and high reliability space applications
Packaging – Hermetic ceramic SOIC
- 16-pin, .417"L x .300"W x .105"Ht
- Weight - 0.8 grams max
Aeroflex Plainview’s Radiation Hardness Assurance Plan is DLA Certified to MIL-PRF-38534, Appendix G.
> 1 Mrad(Si); Dose rate = 50 - 300 rads(Si)/s
> 100 MeV-cm
2
/mg
> 10
14
neutrons/cm
2
GENERAL DESCRIPTION
Aeroflex’s RHD5910 is a radiation hardened, single supply, high speed, quad comparator in a 16-pin SOIC
package. The RHD5910 design uses specific circuit topology and layout methods to mitigate total ionizing
dose effects and single event latchup. These characteristics make the RHD5910 especially suited for the
harsh environment encountered in Deep Space missions. It is guaranteed operational from -55°C to
+125°C. Available screened in accordance with MIL-PRF-38534 Class K, the RHD5910 is ideal for
demanding military and space applications.
ORGANIZATION AND APPLICATION
The RHD5910 quad comparator is intended for operation with dynamic signals on either or both inputs.
Comparison is ’continuous’, that is, the circuit functions as high gain open loop amplifiers with a digital
output. For slow input signals with small input differences the comparators can be expected to respond to
small noise signals at the inputs. Feedback hysteresis is the responsibility of the user to avoid ’chattering’
on system noise.
The comparator will accept signals anywhere in the included power supply range. The circuit delay is
specified for a half-volt single ended or differential input step of either polarity ending in an input polarity
reversal of 10mV. See Switching Diagrams.
CMOS device drive has a negative temperature coefficient and the devices are therefore inherently tolerant
to momentary shorts, although on chip thermal shutdown is not provided. All inputs and outputs are diode
protected.
The devices will not latch with SEU events above 100 Mev-cm
2
/mg. Total dose degradation is minimal to
above 1 Mrad(Si). Displacement damage environments to neutron fluence equivalents in the mid 10
14
neutrons per cm
2
range are readily tolerated. There is no sensitivity to low-dose rate (ELDRS) effects. SEU
effects are application dependent.
SCD5910 Rev F
VCC
OUT_B
OUT_A
NC
VCC
-IN_A
+IN_A
-IN_B
+IN_B
1
2
3
4
5
6
7
8
16
15
14
OUT_C
OUT_D
NC
GND
+IN_D
-IN_D
+IN_C
-IN_C
+IN_A
-IN_A
6
A
5
8
B
4
2
OUT_A
+IN_B
-IN_B
5910
13
12
11
10
9
1
OUT_B
7
+IN_C
10
-IN_C
C
9
16
OUT_C
+IN_D
12
D
15
13
16-Pin SOIC
PACKAGE PINOUTS
-IN_D
11
OUT_D
Notes:
1. Package and lid are electrically isolated from signal pads.
2. It is recommended that NC or no connect pins (pins 3 and 14) and lid be grounded. This eliminates or minimizes any ESD or static buildup.
BLOCK DIAGRAM
Pin #s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Signal
OUT_B
OUT_A
NC
VCC
-IN_A
+IN_A
-IN_B
+IN_B
-IN_C
+IN_C
-IN_D
+IN_D
GND
NC
OUT_D
OUT_C
Definitions
Output of Comparator B.
Output of Comparator A.
It is recommended tying this pin to ground
DC Supply Voltage
Inverting Input to Comparator A
Non-Inverting Input to Comparator A
Inverting Input to Comparator B
Non-Inverting Input to Comparator B
Inverting Input to Comparator C
Non-Inverting Input to Comparator C
Inverting Input to Comparator D
Non-Inverting Input to Comparator D
DC Supply Return
It is recommended tying this pin to ground
Output of Comparator D.
Output of Comparator C.
PIN DESCRIPTIONS
SCD5910 Rev F 12/23/13
2
Aeroflex Plainview
ABSOLUTE MAXIMUM RATINGS
Parameter
Case Operating Temperature Range
Storage Temperature Range
Junction Temperature
Supply Voltage
+V
CC
Input Voltage
Lead Temperature (soldering, 10 seconds)
ESD (MIL-STD-883, Method 3015, Class 2)
Power @ 25°C
Rating
-55 to +125
-65 to +150
+150
+6.0
V
CC
+0.4
GND -0.4
300
2,000 to 3,999
250
Units
°C
°C
°C
V
V
V
°C
V
mW
NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress rating only;
functional operation beyond the "Operation Conditions" is not recommended and extended exposure beyond the "Operation Conditions" may affect
device reliability.
RECOMMENDED OPERATING CONDITIONS
Symbol
+V
CC
V
CM
Power Supply Voltage
Input Common Mode Range
Parameter
Typical
3.3 to 5.0
V
CC
to GND
Units
V
V
ELECTRICAL PERFORMANCE CHARACTERISTICS
(T
C
= -55°C
TO
+125°C, +V
CC
= +5.0V -- U
NLESS OTHERWISE SPECIFIED
)
Parameter
Quiescent Supply Current 1/
Input Offset Voltage 1/
Input Offset Current 1/, 3/
Input Bias Current 1/, 3/
Common Mode Rejection
Ratio 2/
Power Supply Rejection Ratio
2/
Output Voltage High 1/
Output Voltage Low 1/
Gain 2/
Short Circuit
Output Current 2/
Symbol
I
CCQ
V
OS
I
OS
I
B
CMRR
PSRR
V
OH
V
OL
A
I
O
(
SINK
)
I
O
(
SOURCE
)
R
LOAD
= 2 K
R
LOAD
= 2 K
No Load
V
OUT
to V
CC
V
OUT
to V
EE
5
-130
130
-220
200
No Load
-60
-1
-1
50
50
4.9
0.1
Conditions
Min
Max
15
60
1
1
Units
mA
mV
nA
nA
dB
dB
V
V
V/mV
mA
Notes:
1/ Specification derated to reflect Total Dose exposure to 1 Mrad(Si) @ 25°C.
2/ Not tested. Shall be guaranteed by design, characterization or correlation to other test parameters.
3/ Subgroup 3 for these parameters is guaranteed, but not production tested.
SCD5910 Rev F 12/23/13
3
Aeroflex Plainview
(T
C
= -55°C
TO
+125°C, +V
CC
= +5.0V -- U
NLESS OTHERWISE SPECIFIED
)
Parameter
Output Delay
SWITCHING CHARACTERISTICS
Symbol
T
OUT
Conditions
R
LOAD
= 2 K 1/
Min
Max
200
Units
ns
Note:
1/ The circuit delay is specified for a half-volt single ended or differential input step, of either polarity, ending in an input polarity reversal of 10mV.
-IN
INPUT
+IN
V
OH
OUTPUT
V
OL
T
OUT
SWITCHING DIAGRAM
APPLICATION NOTE 1
Comparator with Hysteresis
V
CC
Threshold Voltage
R2
V
TH
= Vcc --------------------
-
R1 + R2
R1
V
O
R3
Hysteresis Calculation
R2
-
HYS = V
O
--------------------
R2 + R3
V
TH
R2
SCD5910 Rev F 12/23/13
4
Aeroflex Plainview
ORDERING INFORMATION
Model
RHD5910-7
RHD5910-S
RHD5910-201-1S
RHD5910-201-2S
RHD5910-901-1S
RHD5910-901-2S
DLA SMD #
Screening
Commercial Flow, +25°C testing only
Military Temperature, -55°C to +125°C
Screened in accordance with the individual Test Methods
of MIL-STD-883 for Space Applications
In accordance with DLA SMD
In accordance with DLA Certified RHA Program Plan to
RHA Level "H", 1Mrad(Si)
16-pin SOIC
Package
-
-
5962-1024201KXC
5962-1024201KXA
5962H1024201KXC
5962H1024201KXA
Note: Package and lid are electrically
isolated from signal pads.

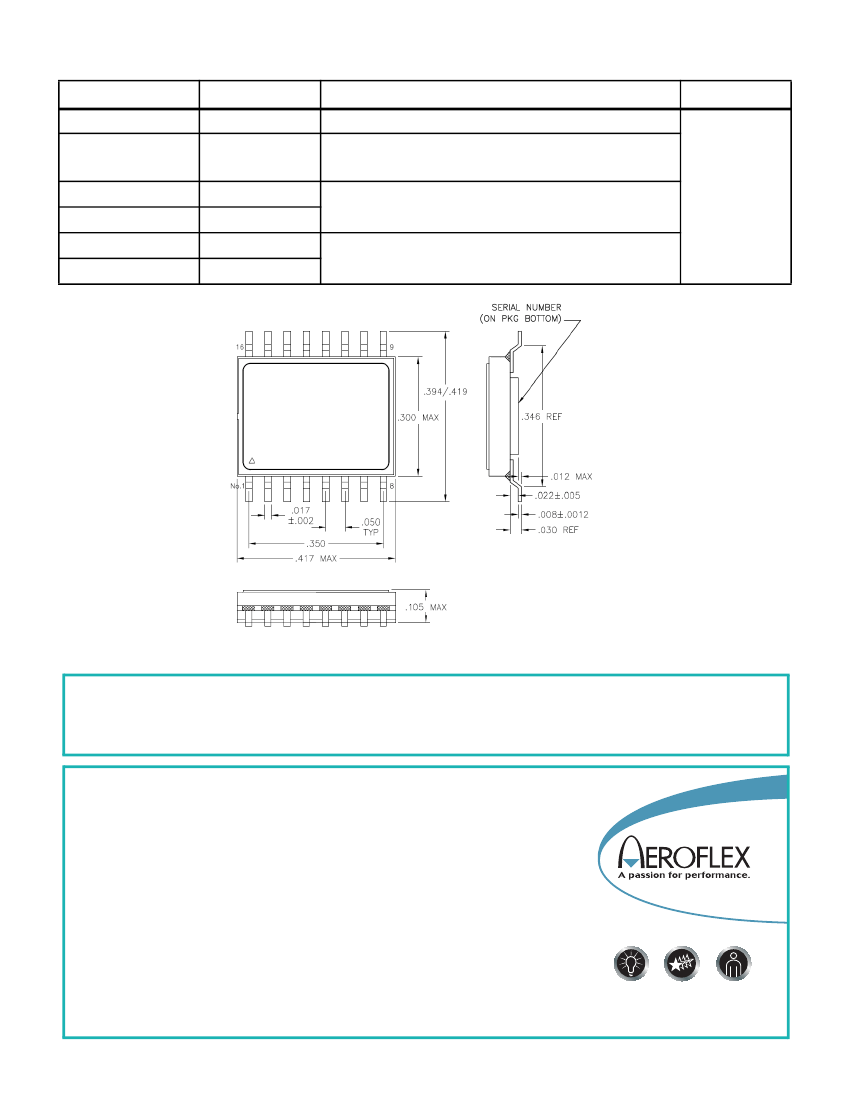

PACKAGE OUTLINE
EXPORT CONTROL:
This product is controlled for export under the International Traffic in
Arms Regulations (ITAR). A license from the U.S. Department of
State is required prior to the export of this product from the United
States.
EXPORT WARNING:
Aeroflex’s military and space products are controlled for export under
the International Traffic in Arms Regulations (ITAR) and may not be
sold or proposed or offered for sale to certain countries. (See ITAR
126.1 for complete information.)
PLAINVIEW, NEW YORK
Toll Free: 800-THE-1553
Fax: 516-694-6715
SE AND MID-ATLANTIC
Tel: 321-951-4164
Fax: 321-951-4254
INTERNATIONAL
Tel: 805-778-9229
Fax: 805-778-1980
WEST COAST
Tel: 949-362-2260
Fax: 949-362-2266
NORTHEAST
Tel: 603-888-3975
Fax: 603-888-4585
CENTRAL
Tel: 719-594-8017
Fax: 719-594-8468
www.aeroflex.com
info-ams@aeroflex.com
Aeroflex Microelectronic Solutions reserves the right to
change at any time without notice the specifications, design,
function, or form of its products described herein. All
parameters must be validated for each customer's application
by engineering. No liability is assumed as a result of use of
this product. No patent licenses are implied.
SCD5910 Rev F 12/23/13
