SD2065-E00-5C202N: DescriptionCABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG; Categorysemiconductor Other integrated circuit (IC); File Size99KB，1 Pages; ManufacturerWinchester Interconnect; Websitehttps://www.winconn.com/

Download Datasheet Compare View All

SD2065-E00-5C202N Overview

CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG

Preview

Download Datasheet

View All

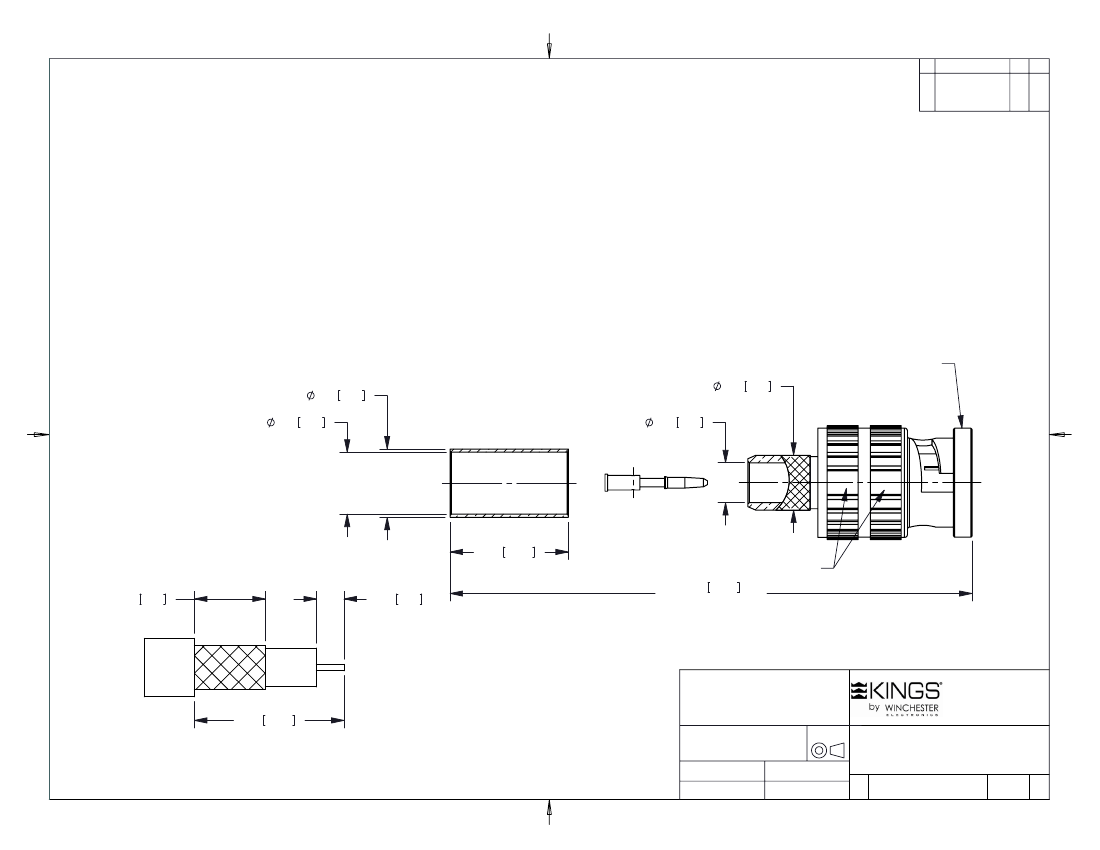

NOTES: UNLESS OTHERWISE SPECIFIED

1. FOR GENERAL SERIES SPECIFICATIONS, SEE SDPRF-206.

2. MATERIAL SPECIFICATIONS:

BAYONET SLEEVE, BODY, CONTACT, FERRULE: BRASS PER ASTM B16

INSULATOR: TEFLON PER ASTM D1710

SPRING WASHER, OUTER CONTACT: BERYLLIUM COPPER, ASTM-B-194

GASKET: SILICONE RUBBER

3. FINISH SPECIFICATIONS:

BAYONET SLEEVE, BODY, FERRULE: .000100MIN NICKEL PER AMS-QQ-N-290

OVER COPPER FLASH PER ASTM B734 (ROHS)

CONTACT: .000030 MIN. GOLD PER ASTM B488, OVER NICKEL PER AMS-QQ-N-290 (ROHS)

SPRING WASHER: .000200 MIN SILVER PER QQ-S-365 OVER COPPER PER ASTM B734 (ROHS)

ALL OTHER METAL PARTS: .000050 MIN NICKEL PER AMS-QQ-N290 OVER

.000050 MIN COPPER PER ASTM B734 (ROHS)

4. CONTACT AND FERRULE SHIPPED LOOSE.

5. FOR USE WITH TACHII CABLE TCX-5C2V & TCX-5C2VS OR EQUIVALENT.

6. FOR CRIMPING USE KINGS KTH-5000 & KTH-5005 (.301 HEX, .054 SQUARE FLAT).

7. ASSEMBLE TO CABLE USING CAP-E01.

8. THESE AREA DON'T HAVE WHITE MARKING.

9. ELECTRIC SPECIFICATIONS:

IMPEDANCE: 75 OHMS

FREQUENCY RANGE: DC TO 3 GHz

RETURN LOSS: 25 dB MIN (DC TO 3 GHz)

REV

DESCRIPTION

REVISED PER

ECR-ER22654

APPD

DATE

03/15/10

CTC

MARKING:

KINGS + 2065 + CABLE CODE +

DATE CODE + LOCATION CODE

.342 8.69

.199 5.05

.274 6.96

.310 7.87

.591 15.01

SEE NOTE 8

.354 8.99

.138 3.51

(

1.372 34.85

)

WHEN ASSEMBLED

CATALOG P/N:2065-E00-5C202N

PER ASME Y14.5M-1994

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

DECIMAL: .XX [X.X] ± .01 [0.3]

.XXX [X.XX] ± .005 [0.13]

.XXXX [X.XXX] ± .XXXX

ANGLES: ± 2°

SCALE: 2:1

THIRD

ANGLE

.748 19.00

RECOMMENDED CABLE

TRIMMING DIMENSIONS

Winchester Electronics Corporation

62 Barnes Industrial Road North

Wallingford, Connecticut 06492

CUSTOMER

SALES DRAWING

DRAWN

APPROVED

XXX

DATE APPROVED

04/13/09

CTC

DATE APPROVED

XX/XX/XX XXX

DATE

04/13/09

DATE

XX/XX/XX

BNC 75 PLUG

FOR TACHII TCX-5C2V(S)

(ROHS COMPLIANT)

SD2065-E00-5C202N

SHT

DMF026 B

REV
