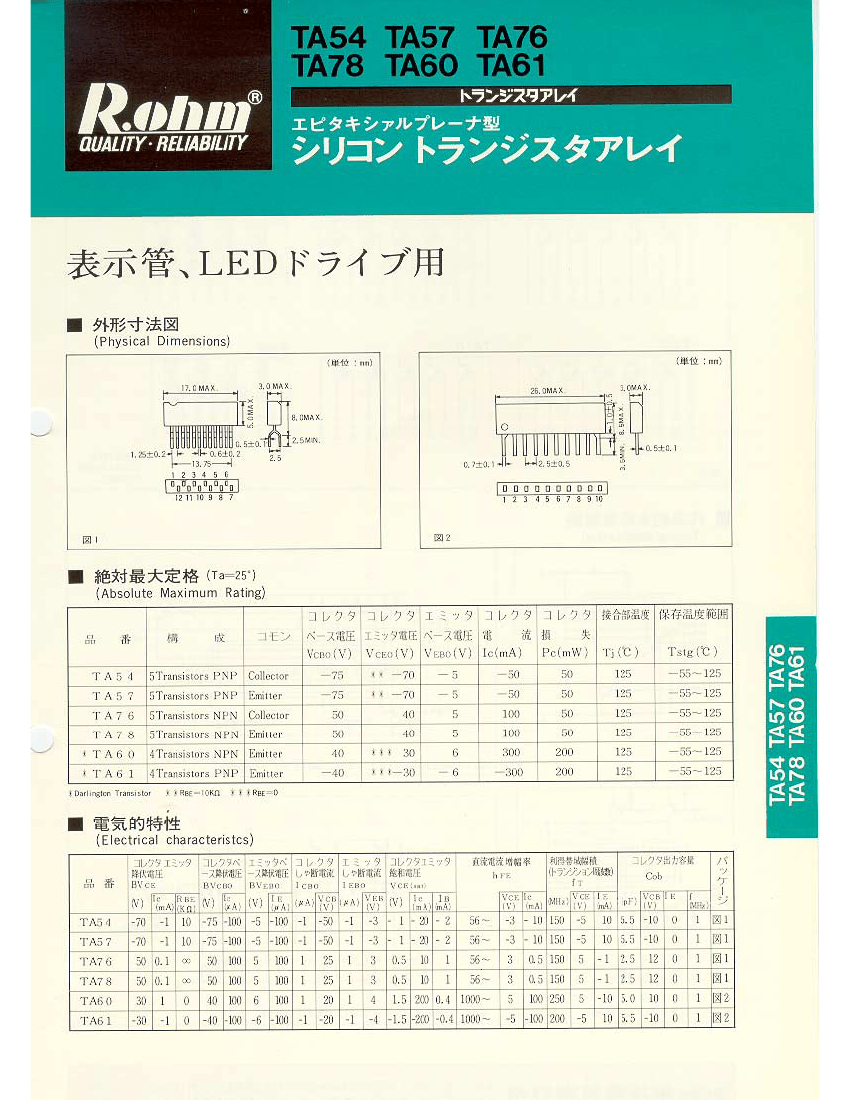

TA54: DescriptionSmall Signal Bipolar Transistor, 0.05A I(C), 70V V(BR)CEO, 5-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size124KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

TA54 Overview

Small Signal Bipolar Transistor, 0.05A I(C), 70V V(BR)CEO, 5-Element, PNP, Silicon

TA54 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
package instruction	IN-LINE, R-PZIP-T12
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-based maximum capacity	5.5 pF
Collector-emitter maximum voltage	70 V
Configuration	COMMON COLLECTOR, 5 ELEMENTS
Minimum DC current gain (hFE)	56
JESD-30 code	R-PZIP-T12
JESD-609 code	e0
Number of components	5
Number of terminals	12
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
VCEsat-Max	1 V

Preview

Download Datasheet

View All

TA54 Related Products

	TA54	TA60	TA57
Description	Small Signal Bipolar Transistor, 0.05A I(C), 70V V(BR)CEO, 5-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.3A I(C), 32V V(BR)CEO, 4-Element, NPN, Silicon	Small Signal Bipolar Transistor, 0.05A I(C), 70V V(BR)CEO, 5-Element, PNP, Silicon
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	IN-LINE, R-PZIP-T12	IN-LINE, R-PSIP-T10	IN-LINE, R-PZIP-T12
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.3 A	0.05 A
Collector-based maximum capacity	5.5 pF	5 pF	5.5 pF
Collector-emitter maximum voltage	70 V	32 V	70 V
Configuration	COMMON COLLECTOR, 5 ELEMENTS	COMPLEX	COMMON EMITTER, 5 ELEMENTS
Minimum DC current gain (hFE)	56	1000	56
JESD-30 code	R-PZIP-T12	R-PSIP-T10	R-PZIP-T12
JESD-609 code	e0	e0	e0
Number of components	5	4	5
Number of terminals	12	10	12
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	PNP	NPN	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	ZIG-ZAG	SINGLE	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	250 MHz	150 MHz
VCEsat-Max	1 V	1.5 V	1 V
Maker	ROHM Semiconductor	-	ROHM Semiconductor
