BAS70-04: Description0.07A,70V,Surface Mount Small Signal Schottky Diodes, Diode, 70V, 0.07A, 1V, 0.015A, 0.1A, 0.1uA; CategoryDiscrete semiconductor; File Size533KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BAS70-04 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS70-04	-	-	View	Buy Now

BAS70-04 Overview

0.07A,70V,Surface Mount Small Signal Schottky Diodes, Diode, 70V, 0.07A, 1V, 0.015A, 0.1A, 0.1uA

BAS70-04 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOT-23
Reach Compliance Code	unknown
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
category
VRRM (V) max	70
IF (A) max	0.07
VF (V) max	1
Condition1_IF (A)	0.015
IFSM (A) max	0.1
IR (uA) max	0.1
Condition2_VR (V)	50
trr (ns) max	5
AEC Qualified	No
Maximum operating temperature	125
Minimum operating temperature	-55
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-23

Preview

Download Datasheet

View All

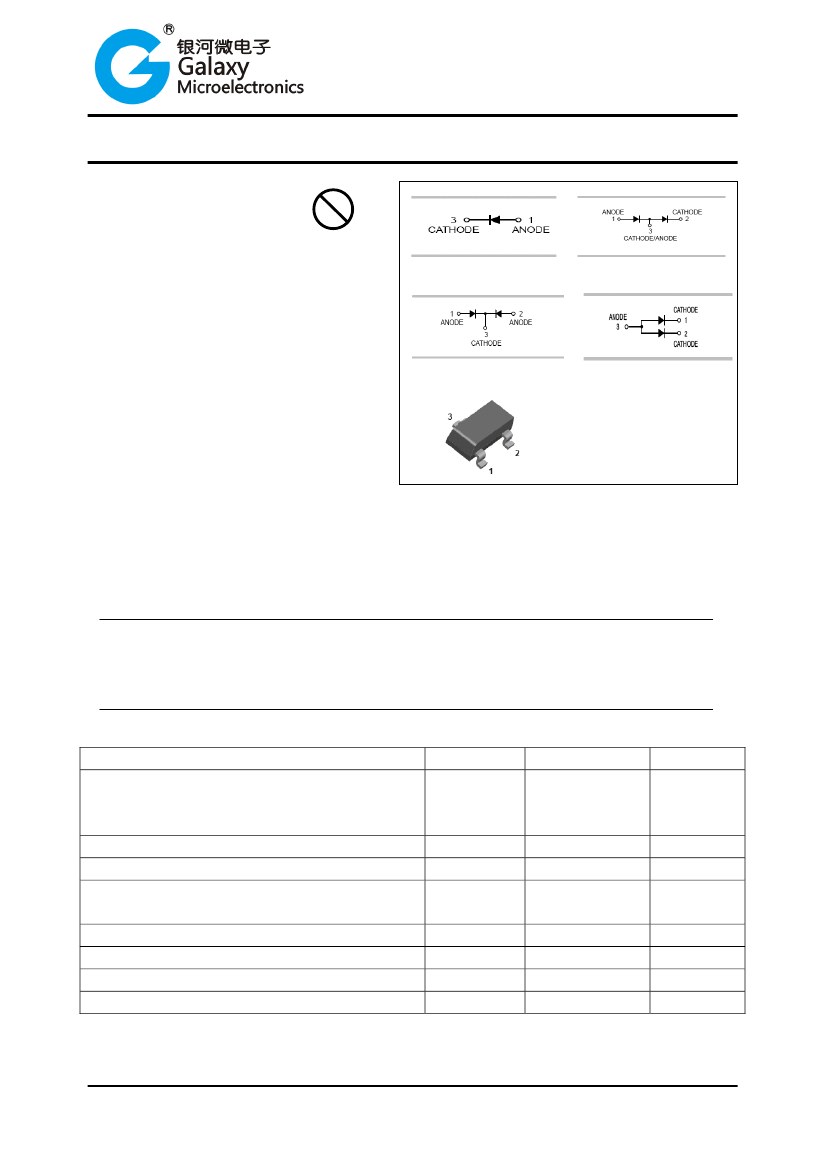

Production specification

Surface mount schottky barrier diode

FEATURES



Low turn-on voltage.

Fast switching.

BAS70/-04/-05/-06

Pb

Lead-free

BAS70

BAS70-04

PN Junction guard ring for transient and

ESD protection.



Ultra-small surface mount package.

Also available in lead free version.

BAS70-05

BAS70-06

APPLICATIONS



High speed switching applications.

Circuit protecting.

Voltage clamping.

SOT-23

ORDERING INFORMATION

Type No.

BAS70

BAS70-04

BAS70-05

BAS70-06

Marking

73

74

75

76

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Reverse Voltage

RMS Reverse voltage

Forward Continuous Current

Non-Repetitive Peak Forward Surge Current

@t

p

<1.0s

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Operating Junction Temperature Range

Storage Temperature Range

Symbol

V

RRM

V

RWM

V

R

V

R(RMS)

I

F

I

FSM

P

d

R

θjA

T

j

T

STG

Limits

70

49

70

100

200

625

-55 to +125

-65 to +150

Unit

V

mA

mW

℃/W

℃

C030

Rev.A

www.gmesemi.com

1
