BC108 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC108

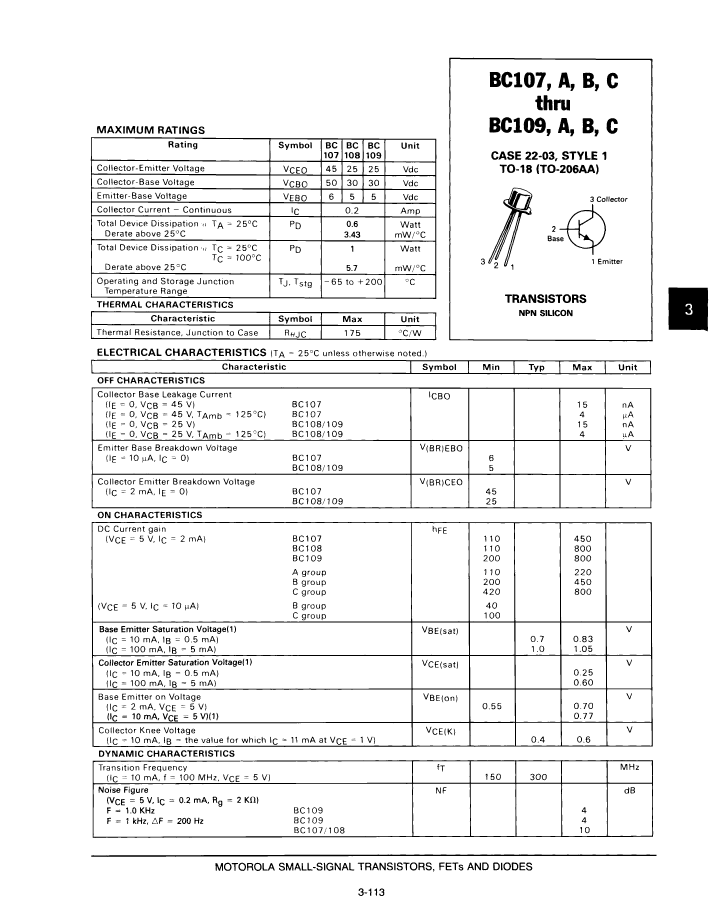

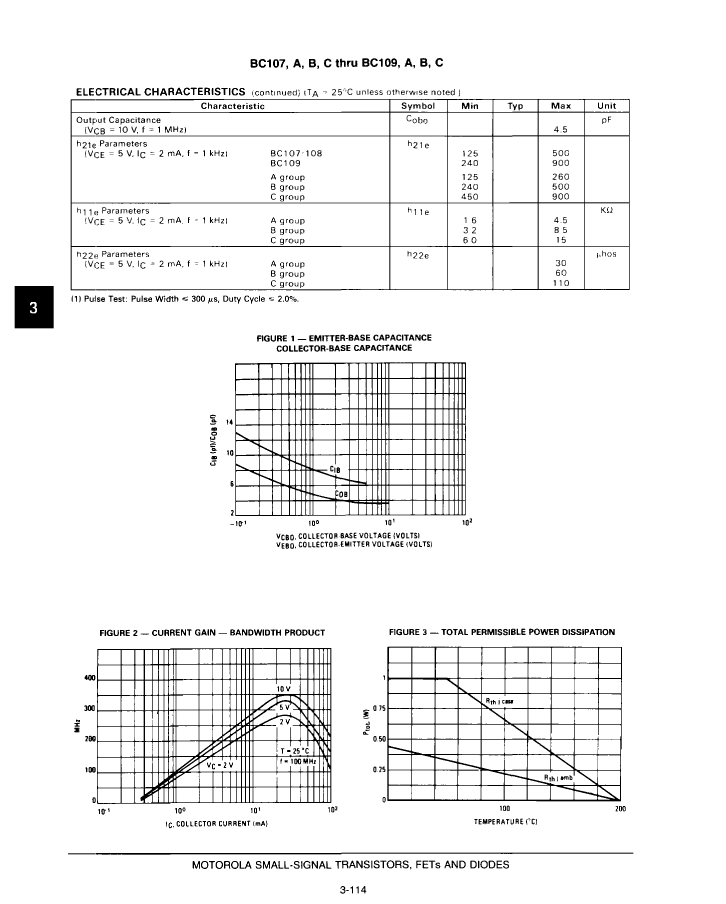

BC108: Description200mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA; CategoryDiscrete semiconductor The transistor; File Size71KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BC108 Overview

200mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA

BC108 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-based maximum capacity	4.5 pF
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	110
JEDEC-95 code	TO-206AA
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power consumption environment	1 W
Maximum power dissipation(Abs)	0.6 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz
VCEsat-Max	0.6 V

Preview

Download Datasheet

View All

BC108 Related Products

	BC108	BC109C	BC107A	BC107C	BC109A
Description	200mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA	200mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA	200mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA	200mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA	200mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-206AA
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Collector-based maximum capacity	4.5 pF	4.5 pF	4.5 pF	4.5 pF	4.5 pF
Collector-emitter maximum voltage	25 V	25 V	45 V	45 V	25 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	110	420	110	420	110
JEDEC-95 code	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Maximum power consumption environment	1 W	1 W	1 W	1 W	1 W
Maximum power dissipation(Abs)	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz
VCEsat-Max	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V
Maker	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )
ECCN code	EAR99	EAR99	EAR99	-	-
