D-181-3224-90/9: DescriptionCOAXIAL SOLDERSLEEVE DEVICE WITH PRE-INSTALLED LEAD; File Size110KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Compare View All

D-181-3224-90/9 Overview

COAXIAL SOLDERSLEEVE DEVICE WITH PRE-INSTALLED LEAD

Preview

Download Datasheet

View All

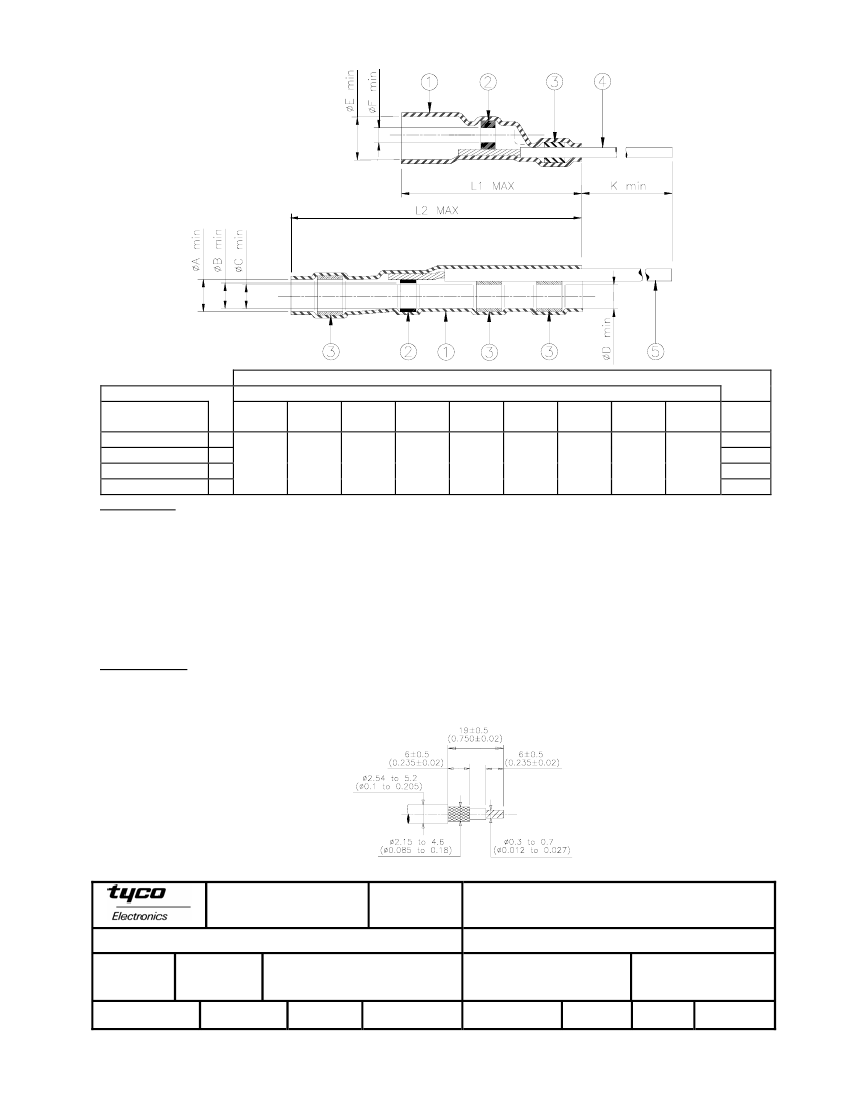

SPECIFICATION CONTROL DRAWING

Product Revision

Product Name

øA

min

øB

min

øC

min

‘XY’ = WIRE GAUGE (AWG)

Product Dimensions

øD

øE

øF

min

max

min

AWG

D-181-3220-90/9

D-181-3222-90/9

5.20

4.70

4.45

3.95

4.00

1.30

17.00

21.5

150

D-181-3224-90/9

F (0.205) (0.185) (0.175) (0.155) (0.160) (0.055) (0.670) (0.850) (5.900)

D-181-3226-90/9

MATERIALS

1. INSULATION SLEEVES: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.

2. SOLDER PREFORMS WITH FLUX:

SOLDER: TYPE Sn63 per ANSI-J-STD-006.

FLUX:

TYPE ROL1 per ANSI-J-STD-004.

3. MELTABLE RINGS: Thermally stabilized thermoplastic. Color: gray.

4. GROUND LEAD: Raychem 55A0111-XY in accordance with MIL-W-22759/32, AWG XY (see table), stranded tin plated.

Color: white.

5. GROUND LEAD: Raychem 55A0111-XY in accordance with MIL-W-22759/32, AWG XY (see table), stranded tin plated.

Color: white with black strip.

APPLICATION

1. These parts are designed to provide an environment protected coaxial termination on cables, rated for 125°C minimum, meeting the

dimensional criteria listed, and having a tin or silverplated shields.

2. Temperature range: -55°C to +150°C. Install using Raychem-approved convection or infrared heating tools in accordance with

Raychem process standard RCPS-200-36.

For best results, prepare the cable as shown:

SolderSleeve is a trademark of Tyco Electronics Corporation.

Tyco Electronics Corporation

300 Constitution Drive,

Menlo Park, CA. 94025, U.S.A.

TITLE:

Raychem

DATE:

COAXIAL SOLDERSLEEVE DEVICE

WITH PRE-INSTALLED LEAD

DOCUMENT NO

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.

INCHES DIMENSIONS ARE BETWEEN BRACKETS.

Tyco Electronics reserves the right to amend

ANGLES: N/A

TOLERANCES:

this drawing at any time. Users should

0.00 N/A

evaluate the suitability of the product for their

ROUGHNESS IN

0.0 N/A

application.

MICRON

0 N/A

DRAWN BY:

CAGE CODE:

REPLACES:

DCR NUMBER:

D-181-32XX-90/9

DOC ISSUE:

Jun. 23, 1998

PROD. REV.:

SCALE:

SIZE:

SHEET:

M. FORONDA

06090

D18132XX

D981031

SEE TABLE

None

1 of 1

If this document is printed it becomes uncontrolled. Check for the latest revision.
