ASE6-25.0MHZ-E-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASE6-25.0MHZ-E-T

ASE6-25.0MHZ-E-T: DescriptionCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size767KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASE6-25.0MHZ-E-T Overview

CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN

ASE6-25.0MHZ-E-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	ASE6
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	3 ns
Maximum supply voltage	1.05 V
Minimum supply voltage	0.95 V
Nominal supply voltage	1 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

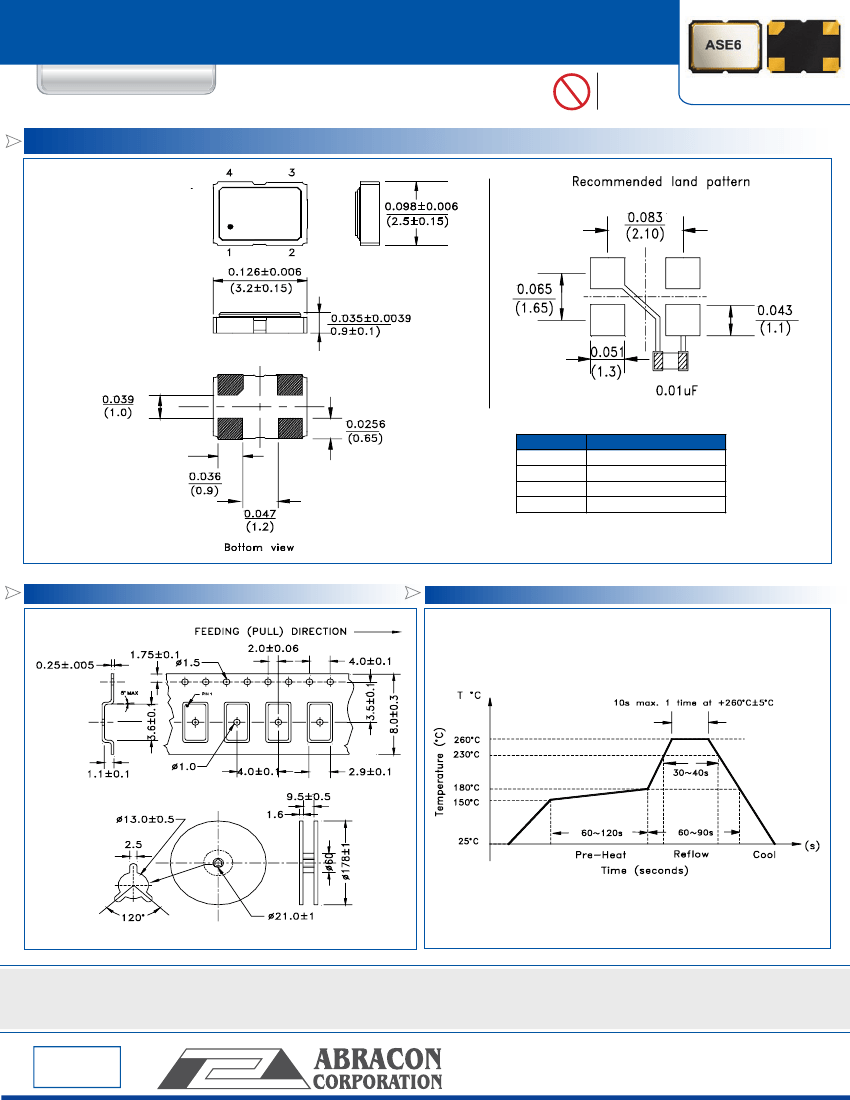

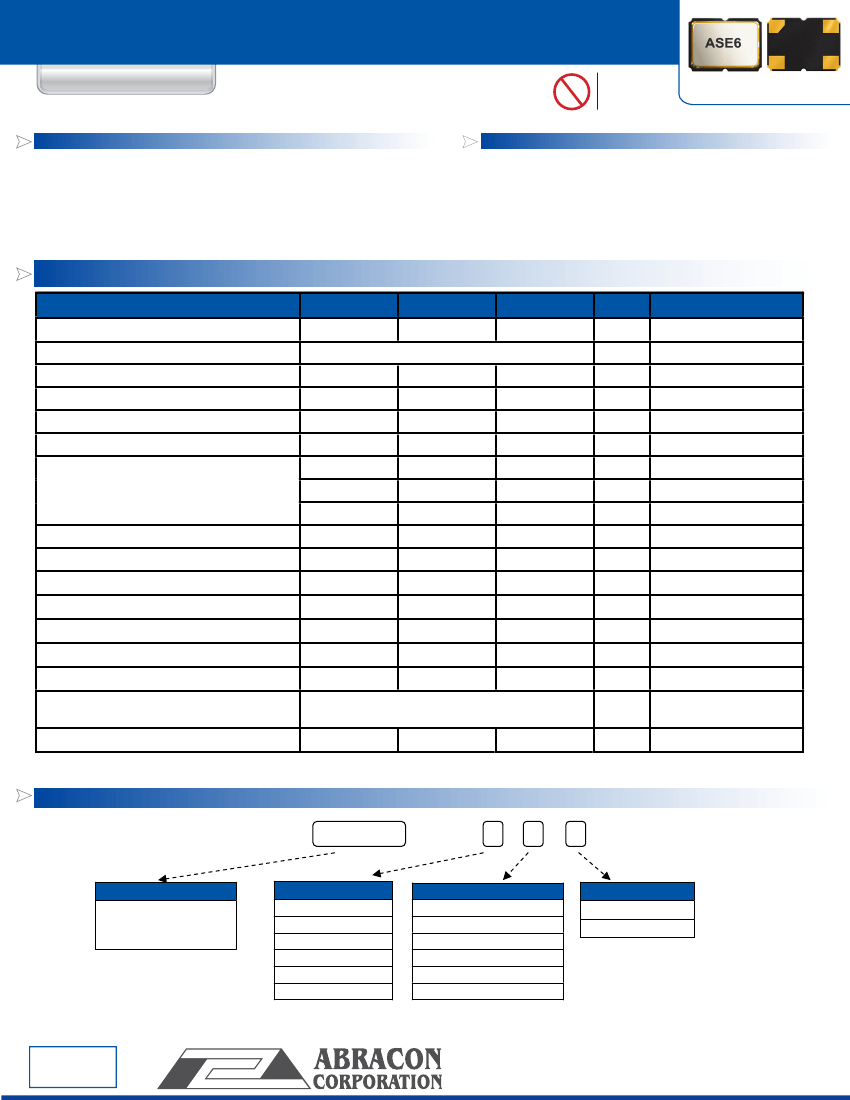

1.0Vdc LOW VOLTAGE CMOS OUTPUT 3.2 x 2.5mm

SMD CRYSTAL CLOCK OSCILLATOR

ASE6 SERIES

RoHS

Compliant

• Low current consumption

1.0mA typ for 20MHz

• IR reflow capable

• Tight stability option

APPLICATIONS:

• CCD clock for VTR camera

• Computer peripherals

• Digital camera, MP3 player

• Mobile communications

• PDA

3.2 x 2.5 x 0.9 mm

| | | | | | | | | | | | | | |

FEATURES:

• 3.2 x 2.5 x 0.9mm

miniature package

• Low current consumption

• 10uA standby current

STANDARD SPECIFICATIONS:

Parameters

Frequency Range

Standard Frequencies:

Operating Temperature:

Storage Temperature:

Overall Frequency Stability:

Supply Voltage (Vdd):

Input Current:

Symmetry:

Rise and Fall Time (Tr/Tf):

Output Load:

Output Voltage (VOH):

Output Voltage (VOL):

Start-up Time:

RMS Jitter:

Tri-state function (Stand-by) :

Disable Current:

Minimum

-10

-55

-100

+0.95

-----

0.9* Vdd

-----

Typical

-----

25.000

-----

1.00

1.0

1.5

2.0

-----

1.3

-----

1.0

Maximum

+70

+155

+100

+1.05

1.5

2.0

2.5

3.0

-----

0.1* Vdd

2.0

Units

MHz

°C

ppm

See options

1.00 – 20.00MHz

20.01 – 40.00MHz

40.01 – 50.00MHz

@ 1/2Vdd

CMOS

See options

Notes

3.3

-----

5.0

"1" (VIH≥0.7*Vdd) or Open: Oscillation;

"0" (VIH<0.3*Vdd) : Hi Z

µA

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASE6 -

Operating Temp.

I: 0°C ~ +50°C

D: -10°C ~ +60°C

E: -20°C ~ +70°C

F: -30°C ~ +70°C

N: -30°C ~ +85°C

L: -40°C ~ +85°C

MHz -

Packaging

Blank: Bulk

T: Tape & Reel

* Temp. option I,D,E and -10°C

~ +70°C only

Please contact Abracon for wider

temp. range.

Frequency in MHz

Please specify the

frequency in MHz.

e.g. 14.31818MHz

Overall Freq. Stability

J(*): ±20ppm

R: ±25ppm

K: ±30ppm

H: ±35ppm

B: ±40ppm

C: ±50ppm

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 09.22.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
