KUHP-11D11-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> KUHP-11D11-24

KUHP-11D11-24: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.051A (COIL), 24VDC (COIL), 1200mW (COIL), 20A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size42KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

KUHP-11D11-24 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.051A (COIL), 24VDC (COIL), 1200mW (COIL), 20A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

KUHP-11D11-24 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
body width	35.71 mm
body height	50 mm
Body length or diameter	38.89 mm
Maximum coil current (DC)	0.051 A
Coil operating voltage (DC)	18 V
Coil power	1200 mW
Coil resistance	472 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	20A@240VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	20 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-45 °C
physical size	38.89mm x 35.71mm x 50mm
Guideline	CSA; UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	20 ms
seal	DUST PROOF
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

KUHP

series

30 Amp Power Relays

File E22575

File LR15734-123

Coil Data

Nominal

Voltage

Coils

110

120

240

277

Resistance

in Ohms

± 10%*

32.1

120

472

1,800

10,000

4.2

1,700

,200

10,250

Must

Operate

Voltage

4.5

9.0

18.0

36.0

82.5

5.1

10.2

20.4

102.0

204.0

235.5

Nominal

Coil

Current

(mA)

187

100

26.7

460

230

115

Features

• AC coils 6-277VAC 50/60 Hz., DC 6-110VDC.

• Contact arrangement up to DPDT.

• .250" combination push-on/solder terminals or PC terminals.

• Side flange and top flange mounting.

• Designed to meet VDE space requirements.

• Class B coil insulation.

Contact Data @ 25°C

Arrangements:

1 Form C (SPDT) and 2 Form C (DPDT).

Material:

Silver or silver-cadmium oxide.

Expected Mechanical Life:

10 million operations.

Coils

*±15% for AC coils.

Contact Ratings

Contact

Arrangement

1 Form C

Single Pole

Double Throw

2 Form C

Double Pole

Double Throw

UL/CSA Ratings

30A 120/240VAC

1 HP @ 120VAC,

1 1/2 HP @ 240VAC

25A @ 28VDC

20A @ 120/240VAC

3/4 HP @ 120VAC

1 1/2 HP @ 240VAC

20A @ 28VDC

7A @ 120VAC (Tungsten)*

Expected

Life

100,000

ops.

100,000

ops.

Operate Data @ 25°C

Must Operate Voltage:

DC Coils:

75% of nominal.

AC Coils:

85% of nominal.

Operate Time (Excluding Bounce):

20 milliseconds, typical, at nominal

voltage.

Release Time (Excluding Bounce):

20 milliseconds, typical, at nominal

voltage.

*NO contacts only.

Initial Dielectric Strength

Between Open Contacts:

1,200V rms.

Between Adjacent Contacts:

3,750V rms.

Between Contacts and Coil:

3,750V rms.

Between Coil and Frame:

2,000V rms.

Environmental Data

emperature Range: (Operating)

DC Coils:

-45°C to +70°C.

AC Coils:

-45°C to +45°C.

Shock:

15g’s, 11 ms (non-operating).

Vibration:

.065" double amplitude, 10-55 Hz.

Coil Data @ 25°C

Voltage:

6-110VDC and 6-277VAC.

Nominal Power:

DC Coils:

1.2 Watts.

AC Coils:

2.7VA.

Duty Cycle:

Continuous.

Initial Insulation Resistance:

100 megohms, min.

Insulation:

Class B, 130°C.

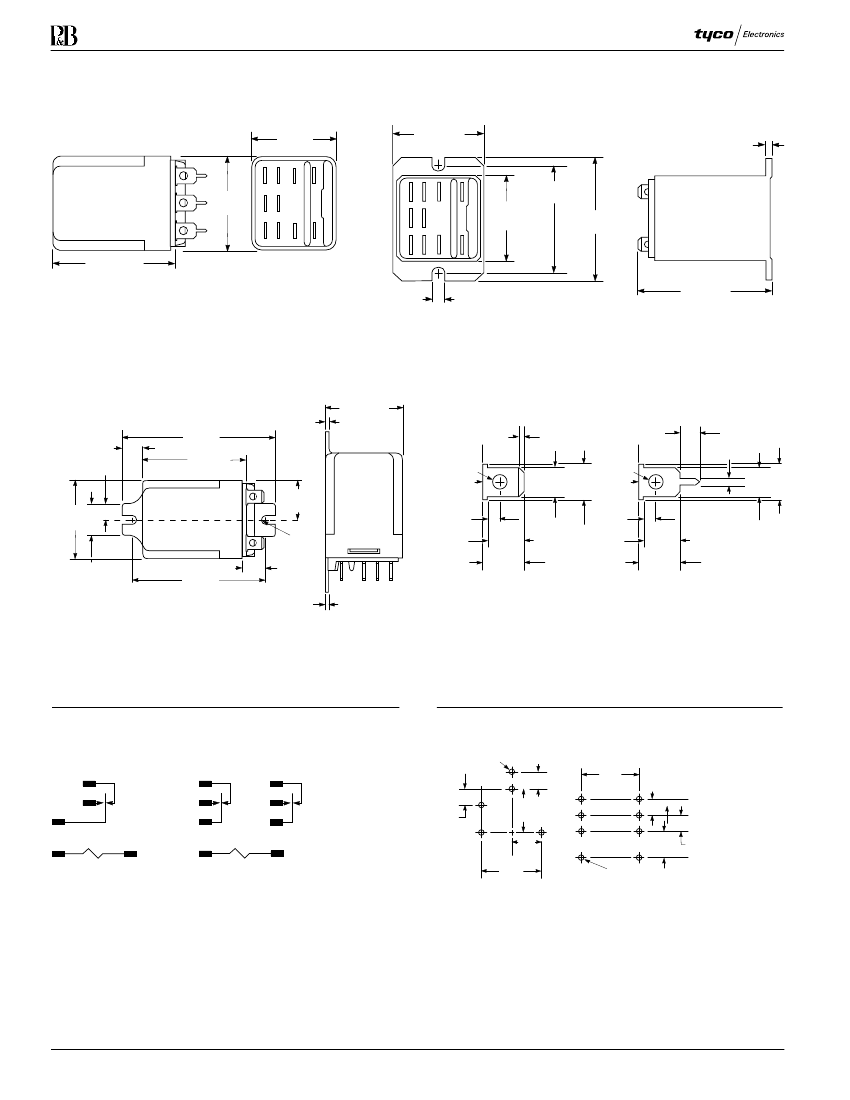

Mechanical Data

Termination:

.250" quick connect/solder; and PC board.

Enclosure:

Polycarbonate dust cover.

Weight:

3.2 oz. (92g) approximately.

Ordering Information

Typical Part No

1. Basic Series and Type:

KUHP = Enclosed 20/30 amp relay.

2. Contact Arrangement and Rating:

5 = 1C (SPDT); 30 amps.

11 = 2C (DPDT); 20 amps.

3. Coil Input:

A = AC, 50/60 Hz.

D = DC

4. Mountings:

1 = PLAIN CASE

5 = BRACKET MOUNT CASE

5. Terminals and Contact Materials:

1 = .250" (6.35mm) quick connect/solder; silver-cadmium oxide.

6. Coil Voltage:

AC coils to 277VAC, 50/60 Hz.

DC coils to 110VDC.

NOTE: No sockets are available for this relay.

KUHP- 11

-120

T = TOP FLANGE CASE

7 = .047" (1.19mm) printed circuit; silver-cadmium oxide.

Stock Items – The following items are normally maintained in stock for immediate delivery.

KUHP-5A51-24

KUHP-5A51-120

KUHP-5AT1-120

KUHP-5D51-12

KUHP-5D51-24

KUHP-5DT1-12

KUHP-5DT1-24

KUHP-11A51-24

KUHP-11A51-120

KUHP-11AT1-120

KUHP-11D51-12

KUHP-11D51-24

KUHP-11DT1-12

KUHP-11DT1-24
