CYLINDER TYPE PAS CAPACITOR
WAVE
■
FEATURES
◦
AS can store a large number of ions into its amorphous structure
P
(doping), therefore PAS capacitor has much larger capacitance than
conventional electric double layer capacitors.
◦
uick-charge with ampere measure is possible with its Low internal
Q
resistance.
◦
o s s i b l e to c h a r g e /d i s c h a r g e m o r e t h a n 100,000 t i m e s w i t h
P
less deterioration caused by charging/discharging compared to
secondary battery which involves chemical reaction, and that enables
to more than 100,000 times charge/discharge and large excellence of
durability for over charge/discharge.
◦
AS capacitor is environmentally friendly power source, which does
P
not contain any heavy metals such as Cd,Hg and Pb.
(RoHS compliant)
■
APPLICATIONS
◦
ack-up power source for CPU, microcomputer, and flash memory writing
B
when shutting off the power.
◦
oad change leveling (life lengthening of main power source such as
L
dry battery, Lithium primary battery)
◦
ower source storage combined with solar cell, fuel cell, generator,
P
and so on.
◦
ain power source for small devices
M
(Measuring equipments, toys and so on).
■
ORDERING CODE
P
PAS
A
❶
S
0
❷
8
1
❸
5
❸Dimensions/
L [mm]
15
15
16
16
20
20
35
35
40
40
L
❹
R
2
R
❺
3
1
0
❻
example
5
❶Type
Polyacene Capacitors
❷Dimensions/
φD
[mm]
08
8.0
10
10.0
12
12.5
18
18
❹Characteristic
Spec
LR
Low ESR type
LA High Capacitance type
❺Maximum
Usable
Voltage
〔V〕
2R3
2.3
3R0
3.0
※R=decimal
point
❻Nominal
Capacitance
〔F〕
105
∼
566
10×10
5
μF=1F
∼
56×10
6
μF=56F
■
EXTERNAL DIMENSIONS
Part Number
Low ESR type
(LR series)
PAS0815LR2R3105
PAS1016LR2R3205
PAS0815LA2R3185
PAS1020LA2R3475
PAS1220LA2R3106
PAS1235LA2R3226
Large Capacitance
PAS1840LA2R3566
type (LA series)
PAS1020LA3R0405
PAS1220LA3R0905
PAS1235LA3R0206
PAS1840LA3R0506
φD
8.0
10.0
8.0
10.0
12.5
12.5
18.0
10.0
12.5
12.5
18.0
L
15.0
16.0
15.0
20.0
20.0
35.0
40.0
20.0
20.0
35.0
40.0
φd
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.6
0.6
0.6
0.8
P
3.5
5.0
3.5
5.0
5.0
5.0
8.0
5.0
5.0
5.0
8.0
Unit : mm
＋
−
■
PART NUMBERS
Part Number
Low ESR type
(LR series)
PAS0815LR2R3105
PAS1016LR2R3205
PAS0815LA2R3185
PAS1020LA2R3475
PAS1220LA2R3106
PAS1235LA2R3226
PAS1840LA2R3566
PAS1020LA3R0405
PAS1220LA3R0905
PAS1235LA3R0206
PAS1840LA3R0506
Maximum Usable Voltage
(V)
2.3
Nominal Capacitance (F)
1
2
1.8
4.7
10
22
56
4
9
20
50
Internal Resistance (mΩ)
70
50
1000
300
200
150
50
300
200
100
70
2.3
Large Capacitance type
(LA series)
3.0
＊
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) or CD catalogs.
202
1
2
capacitor02_e-01
LR Series
■

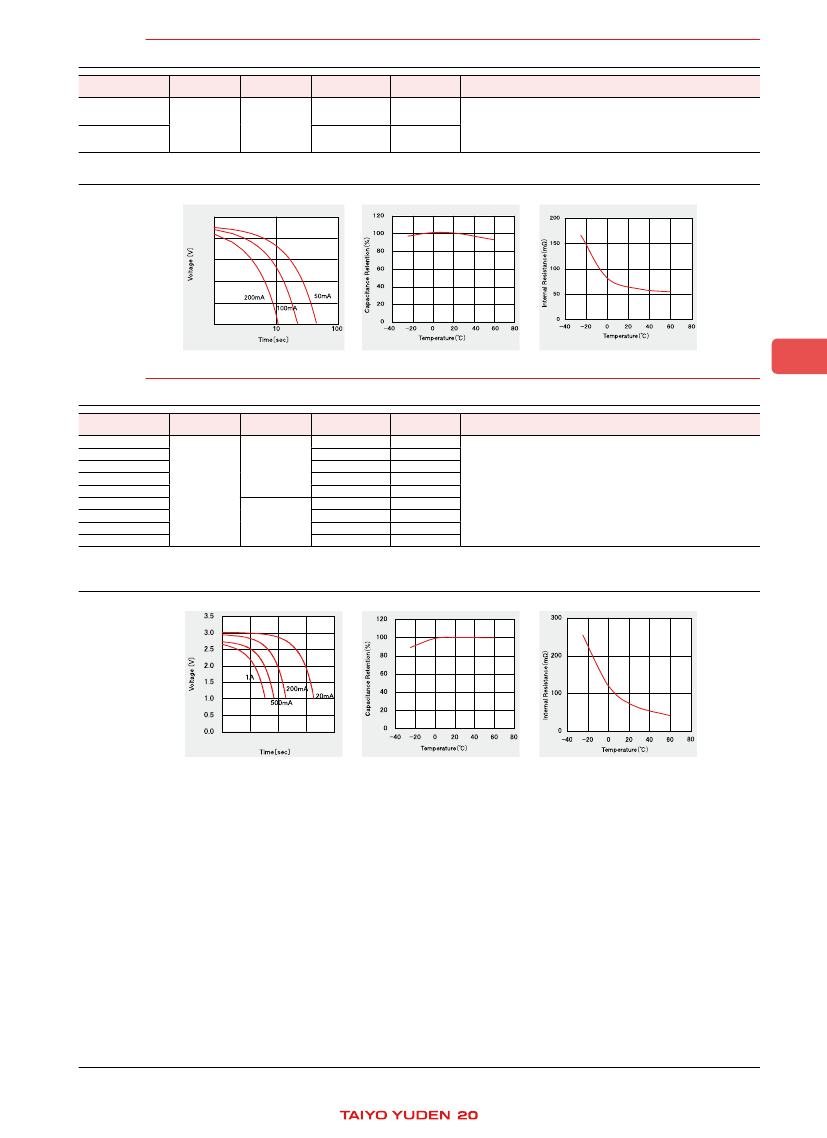

SPECIFICATIONS
Part Number
PAS0815LR2R3105
－25½＋60
PAS1016LR2R3205
2.3
2.0±20%
Under 50
Operating Temp.
Range (℃)
Max. Usable
Voltage (V)
Initial Capacitance
Initial Internal
Resistance (mΩ)
(F)
1.0±20%
Under 70
Temperature Characteristics
Lowest temperature (－25℃)
Capacitance
: Over 70% of initial spec.
Internal Resistance : Within 4 times of initial spec.
Highest temperature (60℃)
Capacitance, Internal Resistance : Within initial spec.
■
ELECTRICAL CHRACTERISTICS
PAS0815LR2R3105
◦
ischarging Characteristics
D
2.5
2.0
1.5
1.0
0.5
0.0
1
◦
emperature Characteristics (Capacitance)
T
◦
emperature Characteristics (Internal Resistance)
T
LA Series
■
SPECIFICATIONS
Part Number
PAS0815LA2R3185
PAS1020LA2R3475
PAS1220LA2R3106
PAS1235LA2R3226
PAS1840LA2R3566
PAS1020LA3R0405
PAS1220LA3R0905
PAS1235LA3R0206
PAS1840LA3R0506
Operating Temp.
Range (℃)
Max. Usable
Voltage (V)
Initial Capacitance
Initial Internal
Temperature Characteristics
Resistance (mΩ)
(F)
1.8±20%
Under 1000
4.7±20%
Under 300
10±20%
Under 200
Lowest temperature (－25℃)
22±20%
Under 150
Capacitance
: Over 70% of initial spec.
Internal Resistance : Within 4 times of initial spec.
56±20%
Under 50
Highest temperature (60℃)
4.0±20%
Under 300
Capacitance, Internal Resistance : Within initial spec.
9.0±20%
Under 200
20±20%
Under 100
50±20%
Under 70
ENERGY DEVICES SUPER CAPACITORS
2.3
－25½＋60
︵
3.0
■
ELECTRICAL CHRACTERISTICS
PAS1235LA3R0206
◦
ischarging Characteristics
D
◦
emperature Characteristics (Capacitance)
T
◦
emperature Characteristics (Internal Resistance)
T
︶
1
10
100
1000 10000
＊
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) or CD catalogs.
capacitor02_e-01
1
2
203
■
PACKAGING
①Minimum
Packing Unit (Plastic Bag)
Item
PAS0815
PAS1016
PAS1020
PAS1220
PAS1235
PAS1840
180
250
Minimum
Packing
Unit
200
200
100
100
50
10
Standard Inner
Packing Box
quantity
10bags
2000
10bags
2000
15bags
1500
10bags
1000
10bags
500
20bags
200
Standard Inner Packing Box
200mm(W)×330mm(L)×140mm(H)
■
RELIABILITY DATA
Specifications
LR Series
LA Series
1. Operating Temperature range
－25½＋60℃
2.3V
3.0V
2. Max. Usable Voltage
2.3V
Capacitance
: Over 70% of initial spec.
3. Floating Charge Characteristics Internal Resistance : Within 4 times of initial spec.
Appearance
: No noticeable abnormality
Capacitance
: Over 70% of initial spec.
4. Charge/Discharge Cycle
Internal Resistance : Within 4 times of initial spec.
Characteristics
Appearance
: No noticeable abnormality
Capacitance
: Within initial spec.
5. Thermal Durability
Internal Resistance : Within initial spec.
Appearance
: No noticeable abnormality
Capacitance
: Within initial spec.
6. Humidity Durability
Internal Resistance : Within 4 times of initial spec.
Appearance
: No noticeable abnormality
No exterior abnormality observed :
7. Impact Durability
initial spec. values retained
No exterior abnormality observed :
8. Vibration Durability
initial spec. values retained
Items
9. Solder Heat Resistance
Capacitance
: Within initial spec.
Internal Resistance : Within initial spec.
Appearance
: No noticeable abnormality
Test Conditions, Remark
Apply a max. usable voltage to capacitor for 1000 hours at max. operating temp.
and measure the floating charge characteristics after returning to normal tem-
perature and humidity.
Measure the charge/discharge cycle characteristics after 10000 charge/discharge
cycle at 25±5℃ with under mentioned charge/discharge cycle test condition for
each parts.
Leave the capacitor in an atmosphere of 60℃±2℃ and
ー25±2℃
consecutively
for 96 hours each, and return to normal temperature and humidity.
Temperature : 40±2℃, Humidity : 90½95%RH Leave the capacitor for 500 hours,
and return to normal temperature and humidity.
Accorging to JIS C 0041
Sine half wave A=294
Apply a sine wave vibration of 1.5mm amplitude and frequency 10½55Hz,
for 2 hours per each direction (X, Y and Z), total 6 hours.
Material
: Sn-3Ag-0.5Cu
Solder bath temperature : 260±5℃
Dipping time : 10±1 sec.
Dipping depth : 1.5½2mm from cell body
◦
Charge/Discharge Cycle Test Condition
Part Number
Charging Voltage (V)
Charging Time (s)
Max. Charging Current (A)
Discharging Current (A)
Cut off Voltage (V)
PAS0815
LR2R3105
2.3
10
1
1
1.5
PAS1016
LR2R3205
2.3
10
1
1
1.5
PAS0815
LA2R3185
2.3
10
1
1
1.5
PAS1020
LA2R3475
2.3
10
1
1
1.5
PAS1220
LA2R3106
2.3
10
1
1
1.5
PAS1235
LA2R3226
2.3
10
1
1
1.5
PAS1840
LA2R3566
2.3
30
5
5
1.5
PAS1020
LA3R0405
3.0
30
2
0.5
1.5
PAS1220
LA3R0905
3.0
30
3
1.0
1.5
PAS1235
LA3R0206
3.0
30
5
1
1.5
PAS1840
LA3R0506
3.0
30
10
2
1.5
＊
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) or CD catalogs.
cap02_reli-RP1
1
2
cap02_reli_e-01
■
PRECAUTIONS
1. Use under the maximum usable voltage
If over maximum usable voltage is applied, it might cause abnormal current flow,
which shorten lifetime and sometimes damage PAS capacitor.
2. Use under maximum operating temperature
Not only shorter life time but also leakage and damage will happen by increasing
internal pressure if PAS capacitor use in over max operating temperature.
3. Limited life time
Lifetime of PAS capacitor is greatly affected by surrounding temperature. 10℃
drop in temperature extend its expected lifetime approximately twice as much. De-
sign a circuit under consideration of deterioration of electrical characteristics after
long time usage, decreasing in capacitance and increasing in internal resistance.
4. The electrical characteristics of capacitors vary with respect to temperature
The electrical characteristics of PAS capacitors temporarily vary with respect to
temperature separately from secular change mentioned above. Design a circuit
under consideration of temperature characteristics.
5. PAS capacitor has polarity
PAS capacitor has polarity. Please check the polarity before use. It will be dam-
aged if it is reversely charged.
6. Mind high ripple current or rapid charge / discharge
In circuit with high ripple current or rapid charge / discharge, the lifetime of PAS
capacitors might be shortened by self-heating.
7. Mind voltage drop when discharging
When back-up (discharging) starts, voltage drop because of active current and
internal resistance.
8. Series connection
In case of using PAS capacitor in series connection, the voltage of each capacitor
is not always equal and it may be occurred excessive voltage in a part of capaci-
tor, which may lead to shortening lifetime and breakdown. Take a margin against a
rated voltage or add a balancing resister.
9. PAS capacitor has the pressure release vent
In case of inside pressure of capacitor excessively rising, the pressure release vent
will be opened in order to release inner gas. Following clearance (Diameter<φ
18：over 2mm, Diameter≧φ18：over 3mm) should be made above the pressure
release vent.
Don’ set up wiring or a pattern in the upper part of the pressure release vent, so
t
that the high temperature gas is gushed when the pressure release vent open.
The product which open the pressure release vent can not use.
10. The sleeve of the PAS capacitor is not guaranteed insulation
Short circuit might happen if circuit pattern is set underneath of PAS capacitor or
it fixed by a metal or it contact with other component.
11. Environmental of usage
In case PAS capacitor is used in the high humidity, alkaline or acid air, it may cause
deterioration of its performance, electrolyte leak and short circuit by corrosion of
outer can or lead terminal.
In addition, used in sudden temperature change or high humidity, it may cause
deteriorating of its performance and electrolyte leak by dew condensation.
12. Don’ apply shock and vibration or pressure
t
PAS capacitor is sensitive to shock. Don’ drop PAS capacitor and not apply
t
strong pressure to a body, terminals and lead. Soldering part or lead terminal
might be damaged if applying vibration, shock and stress such as pinch, tip, push
and twist after installed.
13. Soldering
If next each item is not minded, it may cause deteriorating of its performance,
leakage, shortening lifetime.
◦
Don’ contact solder iron to a cell body.
t
◦
Don’ solder over solder conditions in the spec sheet.
t
14. Cleaning condition when cleaning circuit-board after soldering
Cleaning may affect PAS capacitor. Consult us about cleaning conditions before-
hand. Some cleaning conditions cause detrimental influence.
15. Storage
Keep following cautions for storage of PAS capacitor.
◦
Don’ store in the high temperature, the high humidity condition and a place
t
where receiving direct sunlight. Storing PAS capacitor in the room condition of
10℃ - 35℃ and less than 65% relative humidity is recommended. Sudden tem-
perature change or high humidity may cause deteriorating of its characteristics
and Soldering.
◦
Don’ store PAS capacitor near water, salt water or oil, and it the dew conden-
t
sation, gasified oil or salinity filled place.
◦
Don’ store PAS capacitor in the hazardous gas (hydrogen sulfide, sulfurous,
t
chlorine , ammonia, bromine, methyl bromine and etc).
◦
Don’ fumigate by halogen fumigant.
t
◦
Don’ store PAS capacitor near acid or alkaline solvent.
t
◦
Don’ store PAS capacitor in a place where exposed to ozone, ultraviolet or
t
x-ray.
◦
Don’ store PAS capacitor in a place where vibration and shock might occur in.
t
16. Disposal
Dispose PAS capacitor in accordance with local and country rules and regulations.
17. Usage
PAS capacitor is developed on the assumption of the memory-backup & RTC for
usage of information & communication equipment, home electronics, audio & visu-
al equipment, office equipment and etc. Consult us about using high reliability and
safety required products such as medical equipment, transportation equipment,
industrial equipment, flight / space equipment and emergency equipment.
18. Other Notice
◦
Don’ heat or throw PAS capacitor into fire.
t
◦
Don’ short.
t
◦
Don’ solder directly to a cell body.
t
◦
Don’ open a body
t
◦
Don’ deform.
t
◦
Don’ apply pressure.
t
＊
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) or CD catalogs.
cap02_reli-RP2
1
2
cap02_reli_e-01
Embedded System
京公网安备 11010802033920号
EEWORLD
