FXLA104 — Low-Voltage Dual-Supply 4-Bit Voltage Translator

July 2012

FXLA104

Low-Voltage Dual-Supply 4-Bit Voltage Translator with

Configurable Voltage Supplies and Signal Levels,

3-State Outputs, and Auto Direction Sensing

Features



Bi-Directional Interface between Two Levels:

from 1.1V to 3.6V

Fully Configurable: Inputs and Outputs Track V

Non-Preferential Power-Up; Either V

May Be

Powered Up First

Outputs Switch to 3-State if Either V

is at GND

Power-Off Protection

Bus-Hold on Data Inputs Eliminates the Need for

Pull-Up Resistors; Do Not Use Pull-Up Resistors on

A or B Ports

Control Input (/OE) Referenced to V

CCA

Voltage

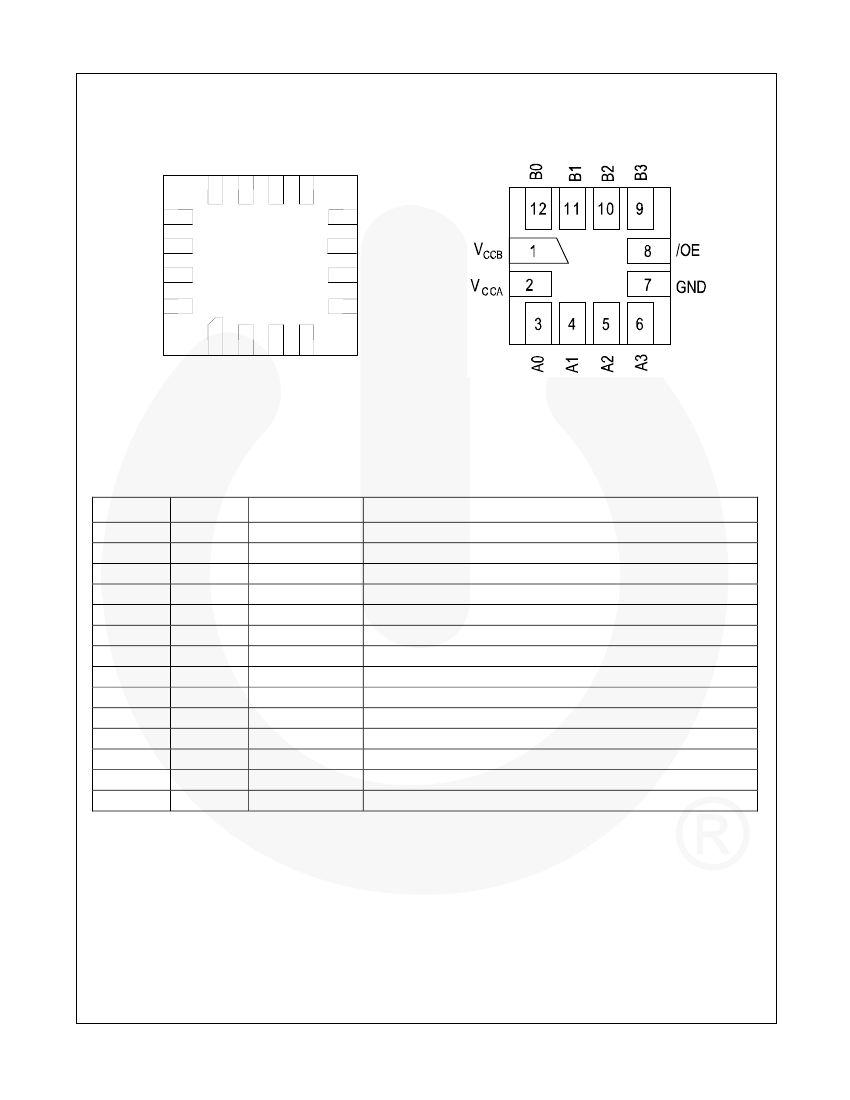

Available in 16-Terminal UMLP (1.8mm x 2.6mm)

and 12-Terminal, Quad UMLP, 1.8 x 1.8mm

Packages

Direction Control Not Necessary

100Mbps Throughput when Translating Between

1.8V and 2.5V

ESD Protection Exceeds:

- 8kV HBM (per JESD22-A114 & Mil Std 883e

3015.7)

- 2kV CDM (per ESD STM 5.3)

Description

The FXLA104 is a configurable dual-voltage supply

translator for both uni-directional and bi-directional

voltage translation between two logic levels. The device

allows translation between voltages as high as 3.6V to

as low as 1.1V. The A port tracks the V

CCA

level and the

B port tracks the V

CCB

level. This allows for bi-directional

voltage translation over a variety of voltage levels: 1.2V,

1.5V, 1.8V, 2.5V, and 3.3V.

The device remains in three-state as long as either

=0V, allowing either V

to be powered up first.

Internal power-down control circuits place the device in

3-state if either V

is removed.

The /OE input, when HIGH, disables both the A and B

ports by placing them in a 3-state condition. The /OE

input is supplied by V

CCA

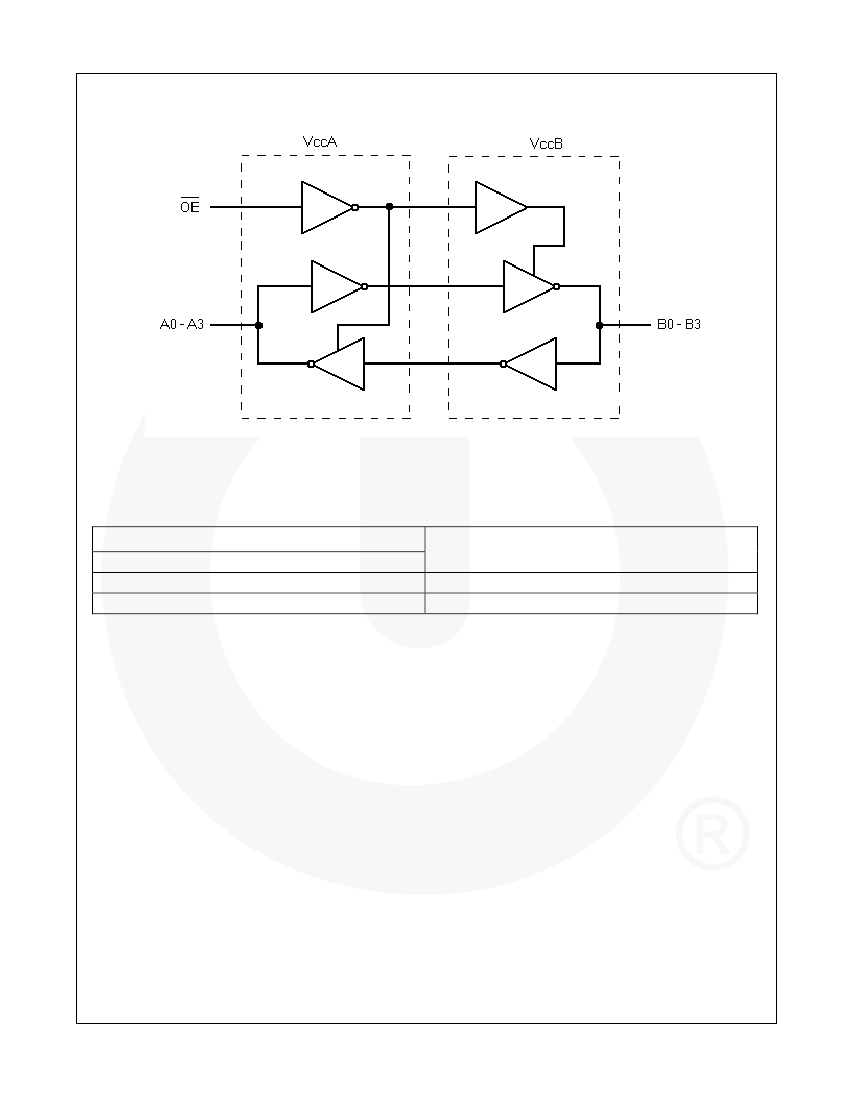

The FXLA104 supports bi-directional translation without

the need for a direction control pin. The two ports of the

device have auto-direction sense capability. Either port

may sense an input signal and transfer it as an output

signal to the other port.

Applications



Cell Phone, PDA, Digital Camera, Portable GPS

Ordering Information

Part Number

FXLA104UMX

FXLA104UM12X

Operating

Temperature

Range

-40 to 85°C

Top Mark

Package

16-Terminal UMLP 1.8 x 2.6mm Package

12-Terminal, Quad UMLP, 1.8 x 1.8mm Package

Packing

Method

5K Units Tape

and Reel

FXLA104 • Rev. 1.0.9

www.fairchildsemi.com
