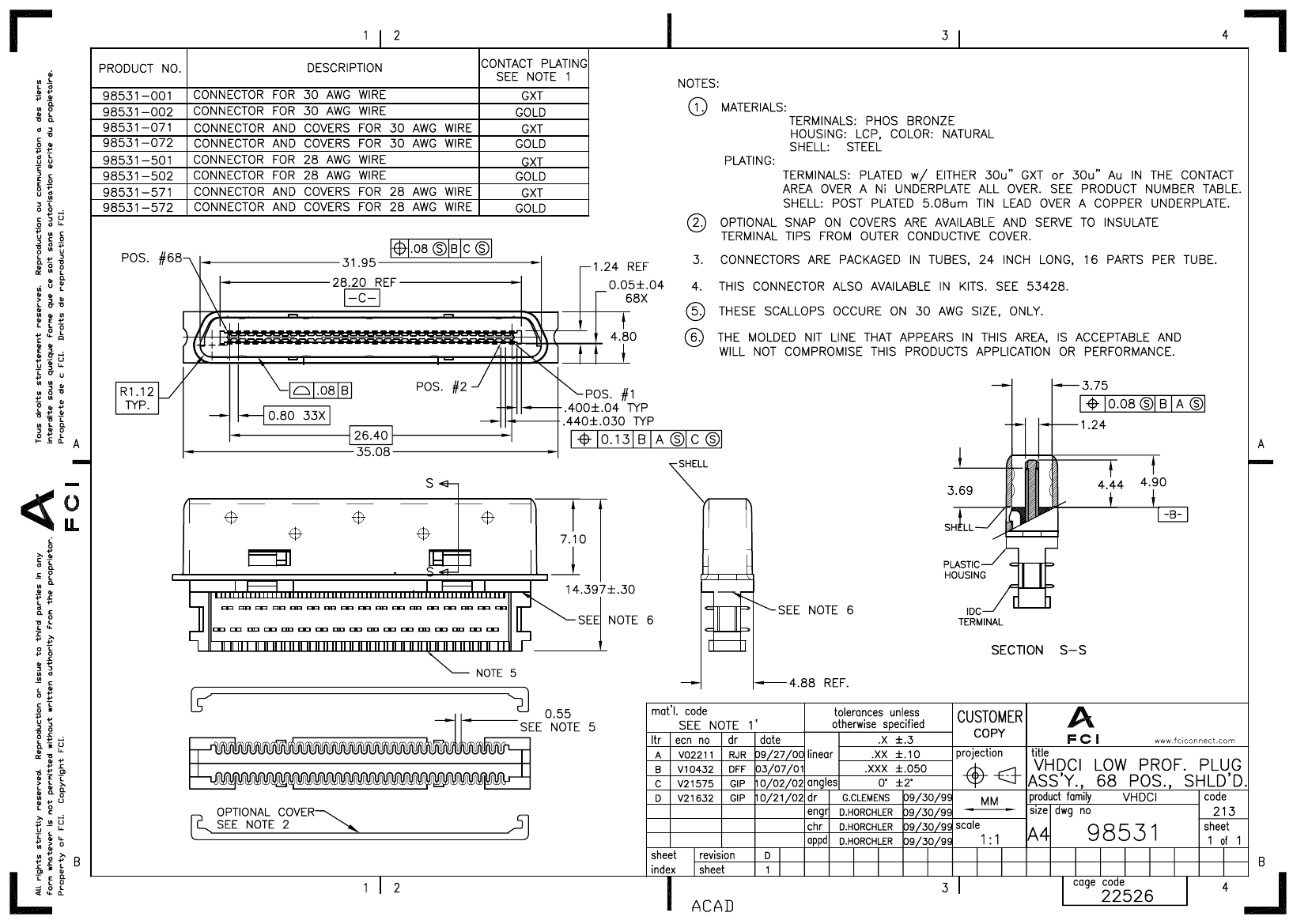

Preview

98531-071: DescriptionTelecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

98531-071 Overview

Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug

98531-071 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	SHIELDED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	98531
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	TIN LEAD
Shell material	STEEL
Termination type	IDC
Total number of contacts	68

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Oct 30, 2002

98531-071 Related Products

	98531-071	98531-001	98531-002	98531-072	98531-501	98531-502	98531-571	98531-572
Description	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, Plug
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	98531	98531	98531	98531	98531	98531	98531	98531
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	68	68	68	68	68	68	68	68
