D09P33E4PV00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D09P33E4PV00LF

D09P33E4PV00LF: DescriptionD Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, LEAD FREE; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D09P33E4PV00LF Overview

D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, LEAD FREE

D09P33E4PV00LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
body width	0.495 inch
subject depth	0.496 inch
body length	1.213 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (50)
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	1/E
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

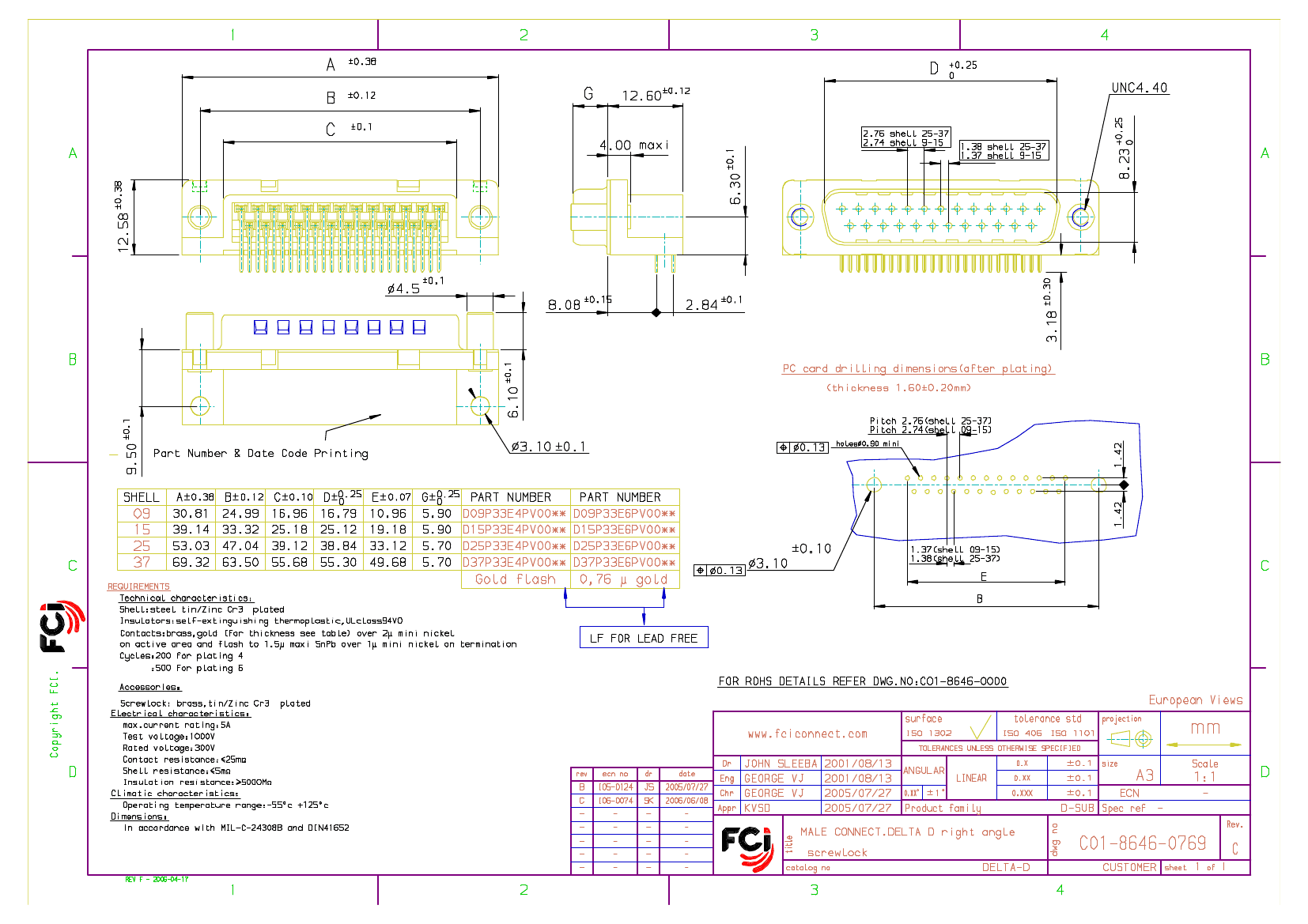

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

D09P33E4PV00LF Related Products

	D09P33E4PV00LF	D37P33E4PV00LF	D37P33E4PV00	D37P33E6PV00	D09P33E4PV00	D15P33E4PV00LF
Description	D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, LEAD FREE	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, LEAD FREE	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40	D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40	D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.495 inch	0.495 inch	0.495 inch	0.495 inch	0.495 inch	0.495 inch
subject depth	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch
body length	1.213 inch	2.729 inch	2.729 inch	2.729 inch	1.213 inch	1.541 inch
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (50)	MATTE TIN (79) OVER NICKEL (50)	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	MATTE TIN (79) OVER NICKEL (50)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	4.8928 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e0	e0	e0	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D	D	D
Plug contact pitch	0.108 inch	0.109 inch	0.109 inch	0.109 inch	0.108 inch	0.108 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	30u inch	FLASH inch	FLASH inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	4/C	4/C	4/C	1/E	2/A
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.7432 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7432 mm	2.7432 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	37	37	37	9	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N
