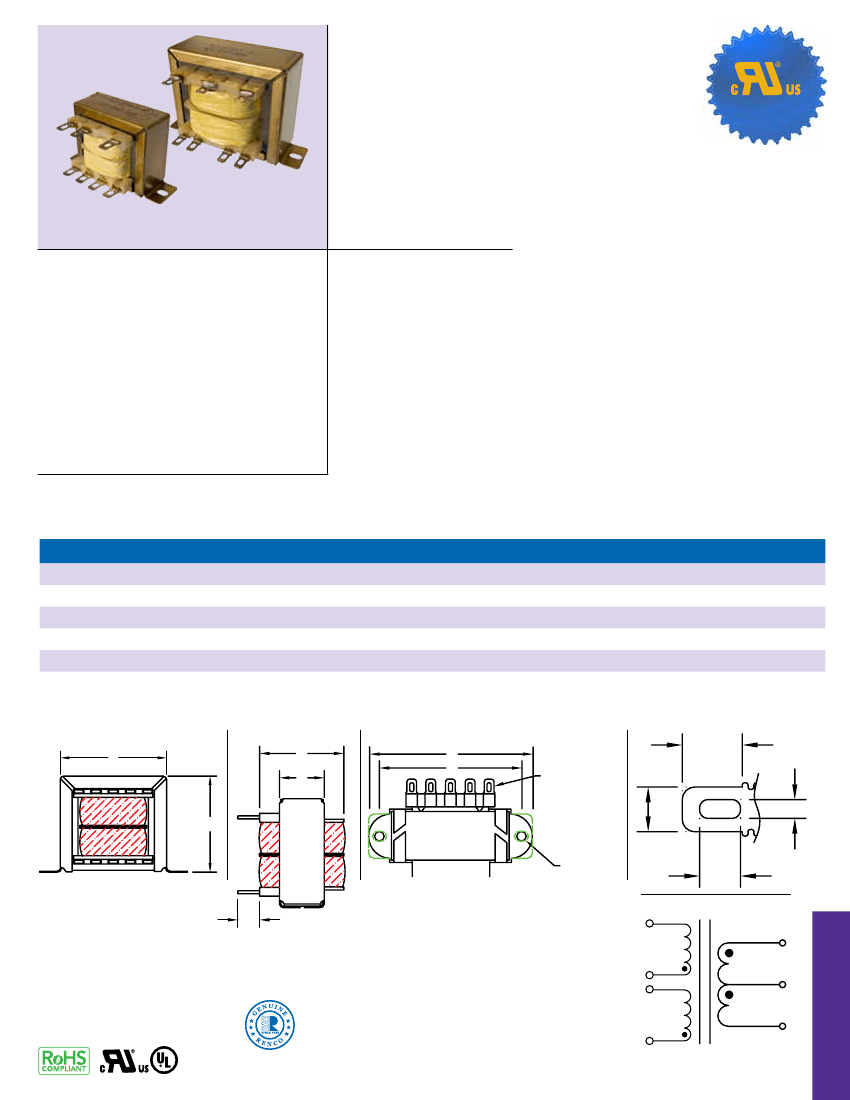

SAFETY
RLD-2270
Terminal lay-out for
-6, -7 and -8 Series
Terminal lay-out
for -4 and -5 Series
AGENCY
APPROVED
TWO IN ONE™
POWER TRANSFORMERS
CHASSIS MOUNT
DESCRIPTION
• Chassis Mount Linear Transformers
FEATURES & APPLICATIONS
•
•
•
•
•
•
•
Provide superior isolation and low capacitive coupling
Available in ratings of 6 VA to 100 VA
Available with dual primaries (115/230 V - 50/60 Hz)
and a single center tapped secondary
Split bobbin construction eliminates the need for
electrostatic shielding
Designed with solder lug/quick connect type terminals
Hipot tested at 2500 VRMS
Manufactured to class B (130°C) insulation
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 499
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER SIZE
RLD-2270
RLD-2270
RLD-2270
RLD-2270
RLD-2270
4
5
6
7
8
VA
6
12
30
56
100
A (MAX.)
1.68 (42.67)
1.93 (49.02)
2.31 (58.67)
2.68 (68.07)
3.06 (77.72)
B (MAX.)
1.37 (34.79)
1.62 (41.14)
1.93 (49.02)
2.25 (57.15)
2.56 (65.02)
C (MAX.)
1.25 (31.75)
1.37 (34.79)
1.68 (42.67)
1.81 (45.97)
2.25 (57.15)
D (MAX.)
0.68 (17.27)
0.81 (20.57)
1.06 (26.92)
1.06 (26.92)
1.31 (33.27)
E (MAX.)
2.00 (50.80)
2.37 (60.19)
2.81 (71.37)
3.12 (79.34)
3.50 (88.89)
F (MAX.)
2.37 (60.19)
2.81 (71.37)
3.25 (82.55)
3.68 (93.47)
4.03 (102.36)
FRONT VIEW
SECONDARY TERMINALS
A
ST
TAP
FN
SIDE VIEW
C
D
BOTTOM VIEW
F
E
QUICK-CONNECT TERMINALS
0.250
0.188 (4.78)
QUICK-
CONNECT OR
SOLDER LUG
TERMINALS
0.188 (4.78)
DIA. MTG.
HOLES (2X)
0.187
0.094
B
ST FN ST FN
0.156
PRIMARY TERMINALS
0.38 (9.65)
FN
115 V
50/60 Hz
ST
FN
SCHEMATIC
ST
RENCO ELECTRONICS INC.
115 V
50/60 Hz
ST
FN
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
457
TRANSFORMERS
CT
RLD-2270
PART NUMBER
Dual 115/230V
RLD-2270-4-10
RLD-2270-5-10
RLD-2270-6-10
RLD-2270-7-10
RLD-2270-8-10
RLD-2270-4-12
RLD-2270-5-12
RLD-2270-6-12
RLD-2270-7-12
RLD-2270-8-12
RLD-2270-4-16
RLD-2270-5-16
RLD-2270-6-16
RLD-2270-7-16
RLD-2270-8-16
RLD-2270-4-20
RLD-2270-5-20
RLD-2270-6-20
RLD-2270-7-20
RLD-2270-8-20
RLD-2270-4-24
RLD-2270-5-24
RLD-2270-6-24
RLD-2270-7-24
RLD-2270-8-24
PART NUMBER
Secondary RMS
Rating
10VCT @ 0.60 A
10VCT @ 1.20 A
10VCT @ 3.00 A
10VCT @ 5.00 A
10VCT @ 10.00 A
12.6VCT @ 0.50 A
12.6VCT @ 1.00 A
12.6VCT @ 2.50 A
12.6VCT @ 4.00 A
12.6VCT @ 8.00 A
16VCT @ 0.40 A
16VCT @ 0.80 A
16VCT @ 2.00 A
16VCT @ 3.50 A
16VCT @ 6.25 A
20VCT @ 0.30 A
20VCT @ 0.60 A
20VCT @ 1.50 A
20VCT @ 2.80 A
20VCT @ 5.00 A
24VCT @ 0.25 A
24VCT @ 0.50 A
24VCT @ 1.25 A
24VCT @ 2.40 A
24VCT @ 4.00 A
Dual 115/230V
RLD-2270-4-28
RLD-2270-5-28
RLD-2270-6-28
RLD-2270-7-28
RLD-2270-8-28
RLD-2270-4-36
RLD-2270-5-36
RLD-2270-6-36
RLD-2270-7-36
RLD-2270-8-36
RLD-2270-4-48
RLD-2270-5-48
RLD-2270-6-48
RLD-2270-7-48
RLD-2270-8-48
RLD-2270-4-56
RLD-2270-5-56
RLD-2270-6-56
RLD-2270-7-56
RLD-2270-8-56
RLD-2270-4-120
RLD-2270-5-120
RLD-2270-6-120
RLD-2270-7-120
RLD-2270-8-120
Secondary RMS
Rating
28VCT @ 0.20 A
28VCT @ 0.42 A
28VCT @ 1.10 A
28VCT @ 3.00 A
28VCT @ 3.60 A
36VCT @ 0.17 A
36VCT @ 0.35 A
36VCT @ 0.85 A
36VCT @ 1.50 A
36VCT @ 2.80 A
48VCT @ 0.125 A
48VCT @ 0.25 A
48VCT @ 0.63 A
48VCT @ 1.20 A
48VCT @ 2.00 A
56VCT @ 0.11 A
56VCT @ 0.22 A
56VCT @ 0.54 A
56VCT @ 1.00 A
56VCT @ 1.80 A
120VCT @ 0.05 A
120VCT @ 0.10 A
120VCT @ 0.25 A
120VCT @ 0.50 A
120VCT @ 0.85 A
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
PART NUMBER
RLD-2270-4
RLD-2270-5
RLD-2270-6
RLD-2270-7
RLD-2270-8
PART WEIGHT
188.0g (6.63oz)
316.0g (11.15oz)
552.0g (19.47oz)
784.0g (27.65oz)
1,294.0g (45.64oz)
