UCD1V101MCL1GS6 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> UCD1V101MCL1GS6

UCD1V101MCL1GS6: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size66KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

UCD1V101MCL1GS6 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT

UCD1V101MCL1GS6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 2626
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.035 mA
Manufacturer's serial number	CD
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	145 mA
size code	2626
surface mount	YES
Delta tangent	0.12
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT

Preview

Download Datasheet

View All

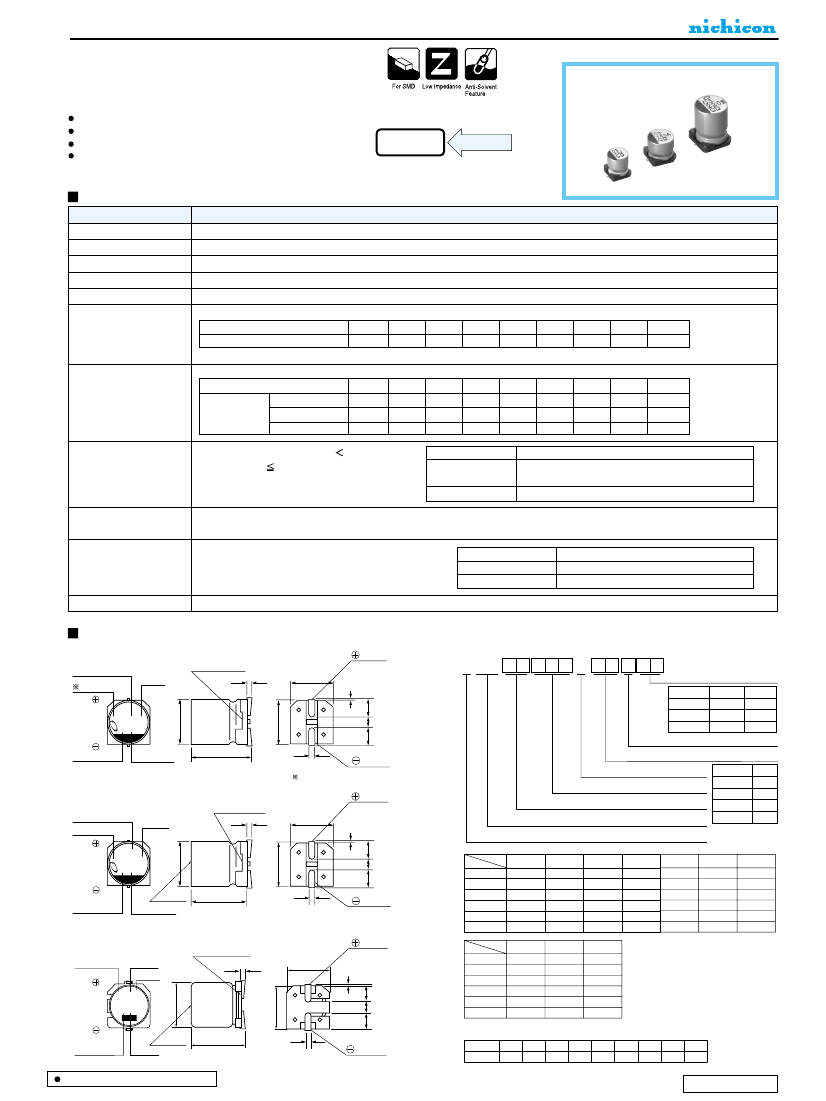

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Low Impedance

series

Chip type, low impedance temperature range up to +105°C.

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine using carrier tape.

Adapted to the RoHS directive (2002/95/EC).

Low Impedance

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

– 55 ~ +105°C

6.3 ~ 100V

1 ~ 3300µF

20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01 CV or 3 (µA), whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

tan

Rated voltage (V)

tan

(MAX.)

6.3

0.26

0.19

0.16

0.14

0.12

0.10

0.08

100

0.07

Performance Characteristics

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Measurement frequency : 120Hz

Rated voltage (V)

Stability at Low Temperature

Impecance ratio

Z—40°C / Z+20°C

ZT / Z20 (MAX.)

Z—55°C / Z+20°C

After 5000 hours' (2000 hours for L

Endurance

or less, and for L

Z—25°C / Z+20°C

6.3

100

10 mm: 50V

10mm: 63V or more) application of

Capacitance Change

tan

Leakage current

Within

30% of initial value for capacitors

200% or less initial specified value

300% or less initial specified value for 63V or more

Initial specified value or less

rated voltage at 105°C, capacitors meet the characteristics

requirements listed at right.

Shelf Life

After storing the capacitors under no load at 105°C for 1000 hours, and after performing voltage treatment based on JIS C 5101-4 clause 4.1 at

20°C, they will meet the specified value for endurance characteristics listed above.

The capacitors shall be kept on the hot plate maintained at 250°C

Capacitance Change

tan

Leakage current

Within

10% of initial value

Initial specified value or less

Resistance to soldering

heat

Marking

for 30 seconds. After removing from the hot plate and restored

at room temperature, they meet the characteristics requirements

listed at right.

Black print on the case top.

Chip Type

Voltage ( j : 6.3V )

Type numbering system (Example : 16V 100µF)

Positive

Series

Plastic platform

0.3 MAX.

0.2

0.5 MAX.

(

φ4

φ8 ×

6.2)

1 Trade mark

10 11 12 13 14

UCD 1 C 1 0 1 M C L 1 GS

Package code

0.2 A

0.2

φD

0.5

0.2

47 j

Size

Package

Taping

12.5

Taping

12.5

Tray

Code

Size code

Lot No.

Capacitance

0.3

Negative

Configuration

Capacitance tolerance (±20%)

Rated Capacitance (100µF)

Code

4 ~ 6.3

8 (6.2L)

8 (10L)

•

10 NL

12.5~18

1: Size

φ8 ×

6.2 only

(

φ8 ×

10,

φ10 ×

10)

Voltage ( E : 25V )

Positive

Plastic platform

0.3 MAX.

0.2

0.5 MAX.

Rated voltage (16V)

Series name

Trade mark

Series

φD

0.5

0.2 A

0.2

Type

(mm)

220E

0.2

Lot No.

Pressure

relief vent

Capacitance

0.5

Negative

5.8

5.8 6.3

7.7 8

6.2

2.9

3.2

3.3

1.8

2.1

2.4

8.3

10.3

8.3

4.3

5.3

6.6

8.3

10.3

8.3

4.3

5.3

6.6

3.1

4.5

2.3

1.0

1.3

2.2

6.2

5.8

7.7

0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.8 ~ 1.1 0.8 ~ 1.1

12.5

13.5 16

16.5 18

16.5

4.8

5.4

6.4

13.6

17.1

19.1

13.6

17.1

19.1

4.0

6.3

13.5

16.5

1.0 ~ 1.4 1.0 ~ 1.4 1.0 ~ 1.4

Plastic platform

Voltage

Lot No.

0.5

0.5 MAX.

(

φ12.5

φ18

)

Trade mark

Positive

0.3 MAX.

0.2

0.2 A

0.2

nichicon

330

µF

CD 50V

H0515

Pressure

relief vent

Capacitance

Series

1.0

Voltage

Negative

Code

6.3

100

Dimension table in next page.

CAT.8100V-3
