MRH-20FDG: DescriptionBoard Connector, 20 Contact(s), 3 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric Compare View All

MRH-20FDG Overview

Board Connector, 20 Contact(s), 3 Row(s), Female, Straight, Solder Terminal,

MRH-20FDG Parametric

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

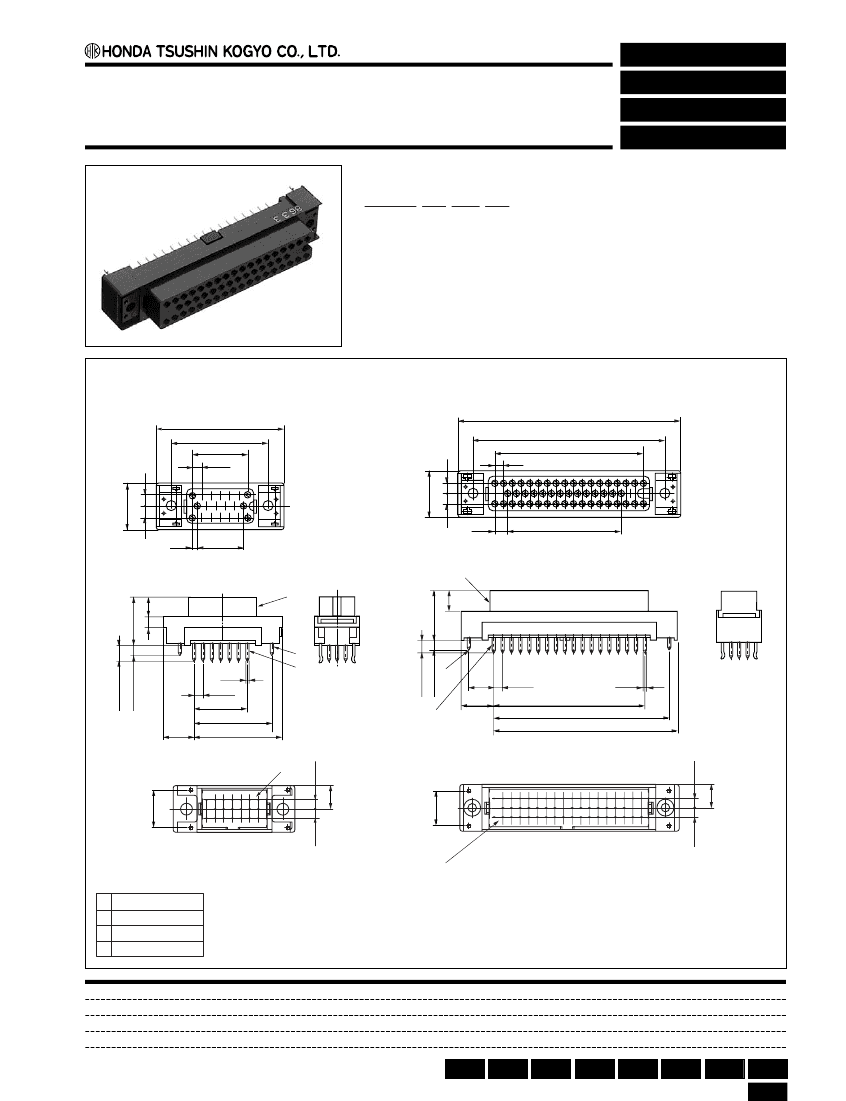

Rectangular connector

Straight DIP type female connector for PCBs

MRH-( )FD( )

●

Configuration of product Part No.

For PCBs

Straight DIP

MRH- ( ) FD ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 20 or 50

➂

Form of contact: Straight DIP, female

➃

Contact plating:

None: Silver plate

: Gold plate

27.8

15.6

2.6

12.6

63.6

56.4

44.2

2.6

12.6

3.9

33.8

1.3

14.8

6.2

14.8

6.2

3.1 REF.

2.9 REF.

3.1 REF.

2.9 REF.

9.67

œ0.5

2.54

15.24

22.86

25.33 REF.

7.63

10.21

2.54

43.18

50.81

53.39 REF.

œ0.5

™

10.16

1 2 3 4 5 6 7

8 9 10 11 12 13

14 15 16 17 18 19 20

2.54

6.3

10.16

1 2 3 4 5 6 7 8 9 10 11 12 43 14 15 16 17 18

19 20 21 22 23 24 25

26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

2.54

MRH-20FD( )

™

●

Components

➀

Insulator A

➁

Insulator B

➂

Contacts

➃

Locking piece

MRH-50FD( )

Note: These connectors are compatible with the MR series of connectors.

Mating connectors:

MRH-( )MD( ) and MRH-( )MA( )

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

2.54

SMT

6.3

DIP
