REVISION J
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
LSEM-1XX-XX-X-DH-A-X-X-TR
No OF POSITIONS
-20, -30, -40, -50
LEAD STYLE
-01:
PACKAGING
-TR: TAPE & REEL
(SEE NOTE 6)
OPTION
-K: POLYIMIDE FILM (SEE SHT 2, FIG3)
(USE K-DOT-.217-.313-.005)
SHIELD
* -S: WITH SHIELD (SEE SHT 2, FIG2)
-N: NO SHIELD
OPTION
-A: ALIGNMENT PIN
TAIL OPTION
-DH: DUAL HORIZONTAL
*= NOT RELEASED FOR PRODUCTION
C
DO NOT
SCALE FROM
THIS PRINT
PLATING SPECIFICATION
(VALUES GIVEN ARE IN MICRO-INCHES)
F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
"G" REF
C
LSEM-20-01-DH-A
C
0.866±0.10 .034±.004
0.670±0.10 .026±.004
"A"
01
(SEE NOTE 4)
(SEE NOTE 4)
02
5.13 .202 REF
0.10[.004]
PIN N
C
1.40 .055 REF
0.25 .010 REF
C
C
"A"
0.80 .031 TYP
WT-50-T
"F"
C
4.15 .163 REF
0.50 .020
REF
7.80 .307 REF
0.80 .031
REF
2.45 .096
1.05 .041 REF
1.45 .057
4.23 .167
1.12 .044 REF
1.32 .052 REF
"J"
1.10 .043 REF
1.32 .052 REF
NOTES:
SECTION "A"-"A"
3.65 .144
REF
4.80 .189
REF
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .038[.0015] .
3. MINIMUM PUSHOUT FORCE: 2.22 N [.5 LBS].
4. WHEN MATING WITH ANOTHER LSEM-DH, 01 WILL MATE WITH CONTACT 02 ON MATING CONNECTOR
WHEN MATING WITH A LSEM-DV, PIN 01 WILL MATE WITH PIN N, WHERE N = TOTAL NUMBER OF POSITIONS.
5. MEASURE FROM TOP OF VERTICAL WALL.
6. FOR QUANTITIES UP TO 49 PCS., NO LEADER , TRAILER OR REEL WILL BE SUPPLIED.
FOR QUANTITIES OF 50-124 PCS., NO LEADER OR TRAILER WILL BE SUPPLIED.
(No OF POSITIONS X .80[.031]) -.80[.031]
0.20 .008 (TYP)
REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS[INCHES].
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.

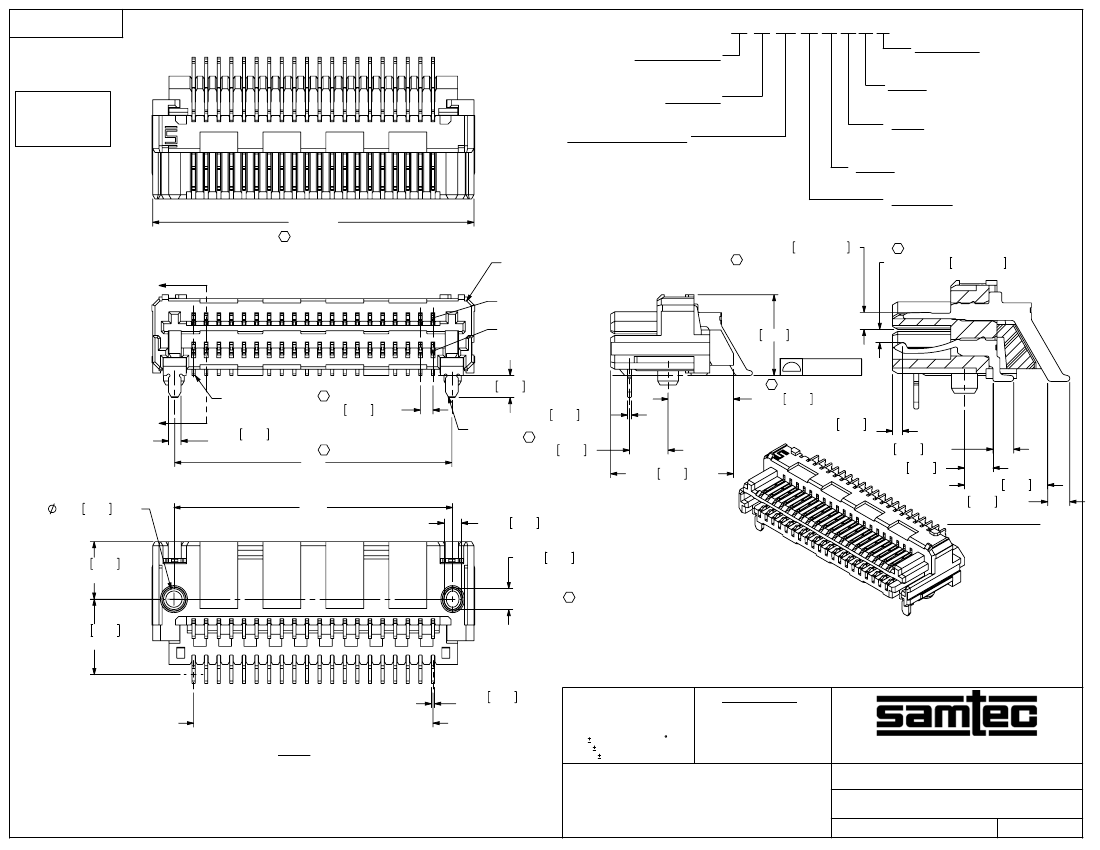

(LSEM-120-XX-DH-A-S-XX SHOWN)
FIG 1
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
INSULATOR: BLACK, LCP, UL 94 VO
CONTACT: PHOS BRONZE
SHIELD: STAINLESS STEEL
WELD TAB: COPPER
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
fromparent+PHONE: 812-944-6733
FAX: 812-948-5047
DESCRIPTION:
DWG. NO.
0.8mm HERMAPHRODITIC HORIZONTAL FOR LSEM -DH
F:\DWG\MISC\MKTG\LSEM-1XX-XX-X-DH-A-X-X-TR-MKT.SLDDRW
BY:
CHADP
LSEM-1XX-XX-X-DH-A-X-X-TR
04/08/2009
SHEET
1
OF
3
REVISION J
"B"
2.75 .108
REF
SH40-01-DH-N
4.98 .196 REF
0.10[.004]
C
"B"
"H" REF
"K"
"J" REF
0.80 .031
REF
1.10 .043 REF
1.32 .052 REF
1.95 .077 REF
1.32 .052 REF
SHIELD OPTION
LSEM-120-01-XX-DH-A-S-X SHOWN
(SAME AS FIG1 DIFFERENT AS SHOWN)
(*= NOT RELEASED FOR PRODUCTION)

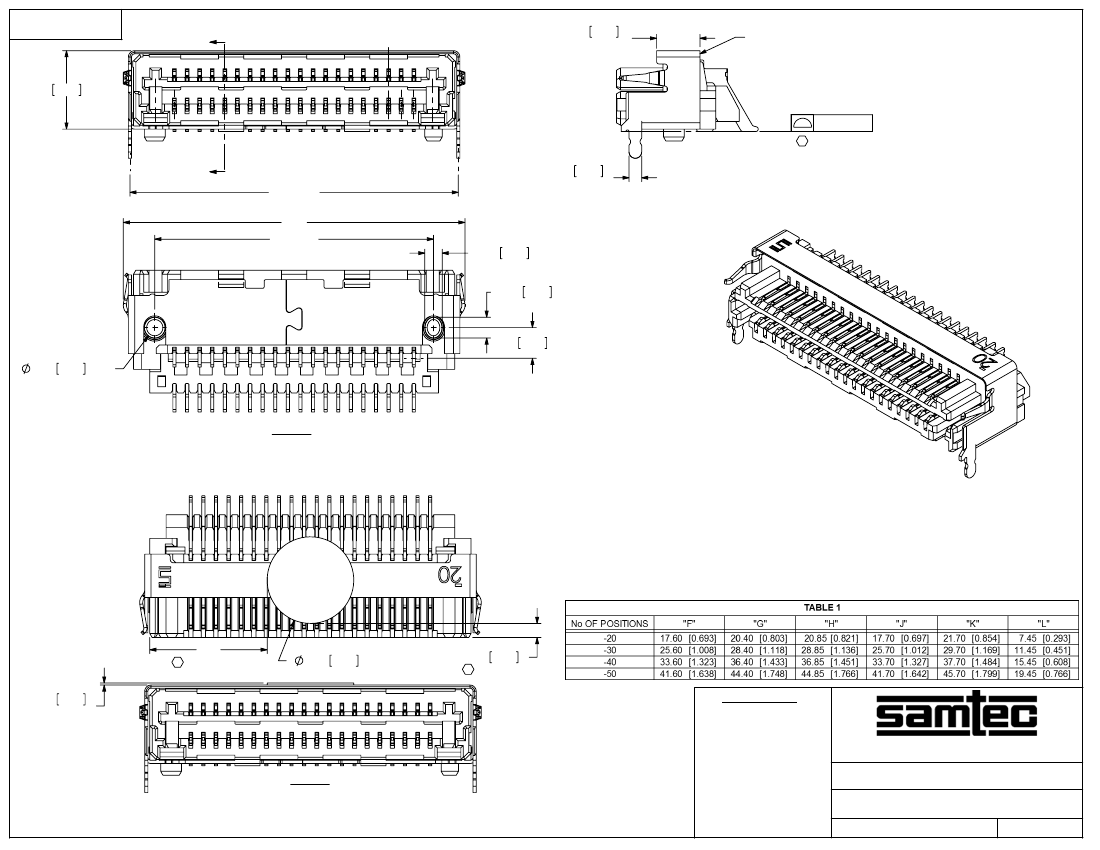

*FIG 2
C
"L"
5.50 .217 REF
C
0.90 .035
PROPRIETARY NOTE
0.13 .005
REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
fromparent+PHONE: 812-944-6733
FAX: 812-948-5047
DESCRIPTION:
DWG. NO.
-K KAPTON OPTION
LSEM-120-01-XX-DH-A-S-K SHOWN
(SAME AS FIG1 DIFFERENT AS SHOWN)
(*= NOT RELEASED FOR PRODUCTION)
*FIG 3
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.2
0.8mm HERMAPHRODITIC HORIZONTAL FOR LSEM -DH
LSEM-1XX-XX-X-DH-A-X-X-TR
BY:
CHADP
F:\DWG\MISC\MKTG\LSEM-1XX-XX-X-DH-A-X-X-TR-MKT.SLDDRW
04/08/2009
SHEET
2
OF
3
REVISION J
"C"
C-261-02-X
C
6.15±0.08 .242±.003
"C"
C
0.150 .006
C

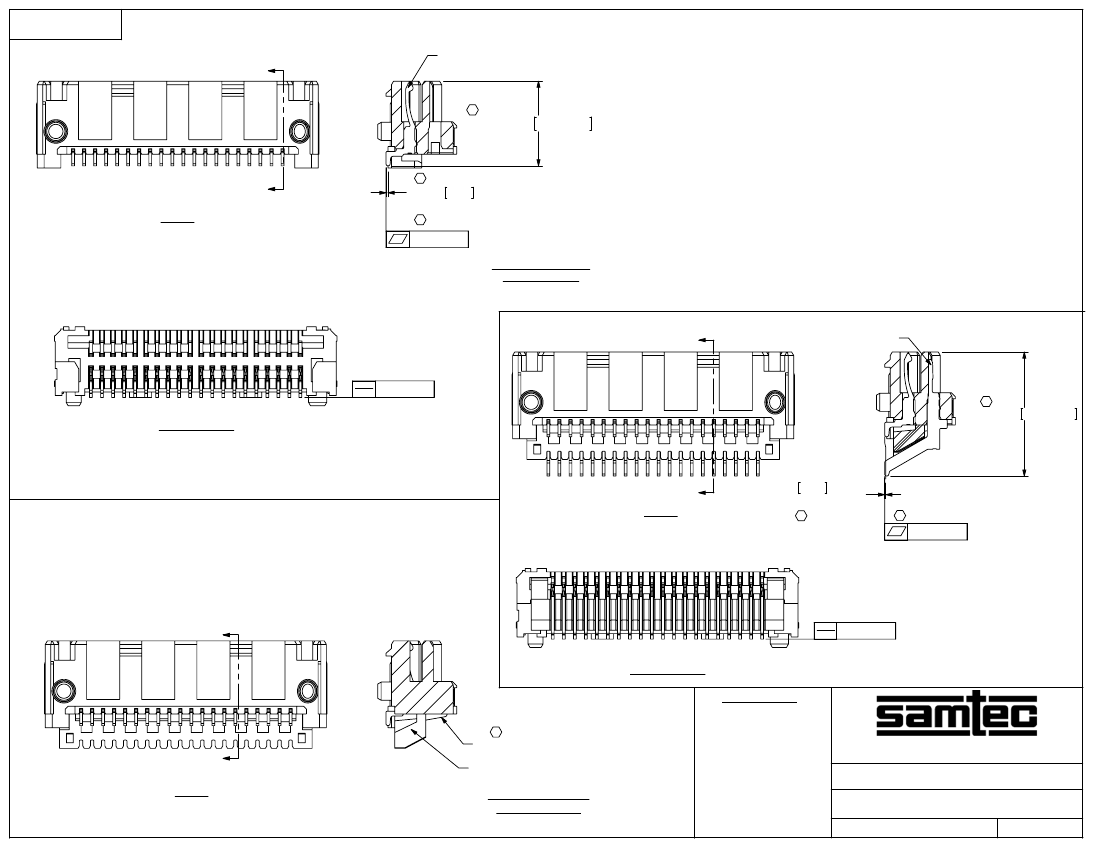

FIG 4
