REVISION A
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
LSEM-1XX-XX-XX-DH-A-X-X-TR
No OF POSITIONS
-20, -30, -40, -50
PACKAGING
-TR: TAPE & REEL
(SEE NOTE 6)
OPTION
-K: POLYIMIDE FILM (SEE SHT 2, FIG.3)
(USE K-500-300)
SHIELD
* -S: WITH SHIELD (SEE SHT 2, FIG.2)
-N: NO SHIELD
LEAD STYLE
-01:
A
PLATING SPECIFICATION
-L: 10u"(0.25u"m)GOLD (MATTE TIN TAILS)
-F: GOLD FLASH (MATTE TIN TAILS)
A
OPTION
-A: ALIGNMENT PIN
TAIL OPTION
-DH: DUAL HORIZONTAL
*= NOT RELEASED FOR PRODUCTION
C
"G" REF
A
"A"
C
LSEM-20-01-DH-A
C
0.866±0.10 .034±.004
0.670±0.10 .026±.004
01
(SEE NOTE 4)
(SEE NOTE 4)
1.40 .055 REF
0.25 .010 REF
02
5.13 .202 REF
0.10[.004]
C
"A"
0.80 .031
REF
"F"
C
C
0.80 .031 TYP
4.15 .163 REF
0.50 .020
REF
7.80 .307 REF
1.05 .041 REF
1.45 .057
A
C
WT-50-T
2.45 .096
4.23 .167
1.12 .044 REF
1.32 .052 REF
"J"
1.10 .043 REF
SECTION "A"-"A"
3.65 .144
REF
1.32 .052 REF
4.80 .189
REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .038[.0015] .
3. MINIMUM PUSHOUT FORCE: 2.22 N [.5 LBS].
4. 01 WILL MATE WITH CONTACT 02 ON MATING CONNECTOR,
5. MEASURE FROM TOP OF VERTICAL WALL.
6. FOR QUANTITIES UP TO 49 PCS., NO LEADER , TRAILER OR REEL WILL BE SUPPLIED.
FOR QUANTITIES OF 50-124 PCS., NO LEADER OR TRAILER WILL BE SUPPLIED.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS[INCHES].
TOLERANCES ARE:
DECIMALS
(No OF POSITIONS X .80[.031]) -.80[.031]
0.20 .008 (TYP)
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.

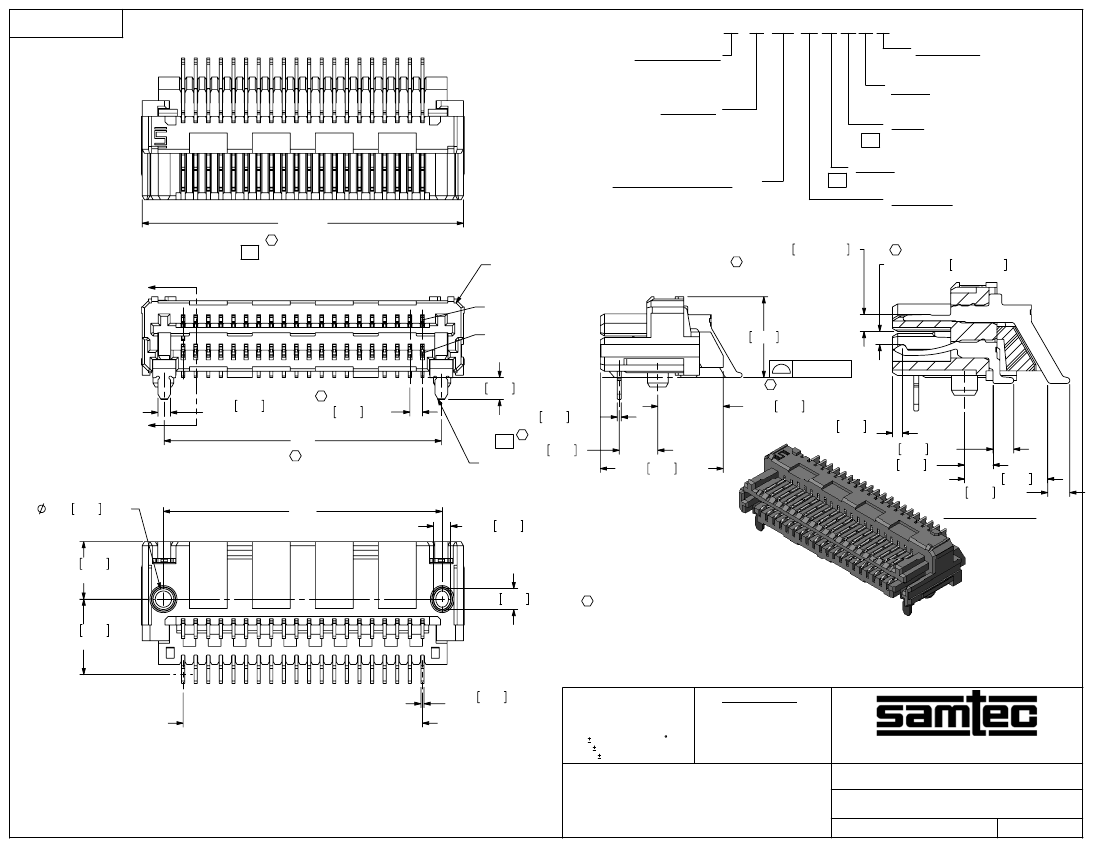

LSEM-120-01-XX-DH-A-X-X SHOWN
FIG.1
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
INSULATOR: BLACK LCD
CONTACT OR TERMINAL: PHOS BRONZE
SHIELD: STAINLESS STEEL
WELD TAB: COPPER
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
fromparent+PHONE: 812-944-6733
FAX: 812-948-5047
DESCRIPTION:
DWG. NO.
0.8mm HERMAPHRODITIC HORIZONTAL FOR LSEM -DH
F:\DWG\MISC\MKTG\LSEM-1XX-XX-XX-DH-A-X-X-TR-MKT.SLDDRW
BY:
CHADP
LSEM-1XX-XX-XX-DH-A-X-X-TR
04/08/2009
SHEET
1
OF
3

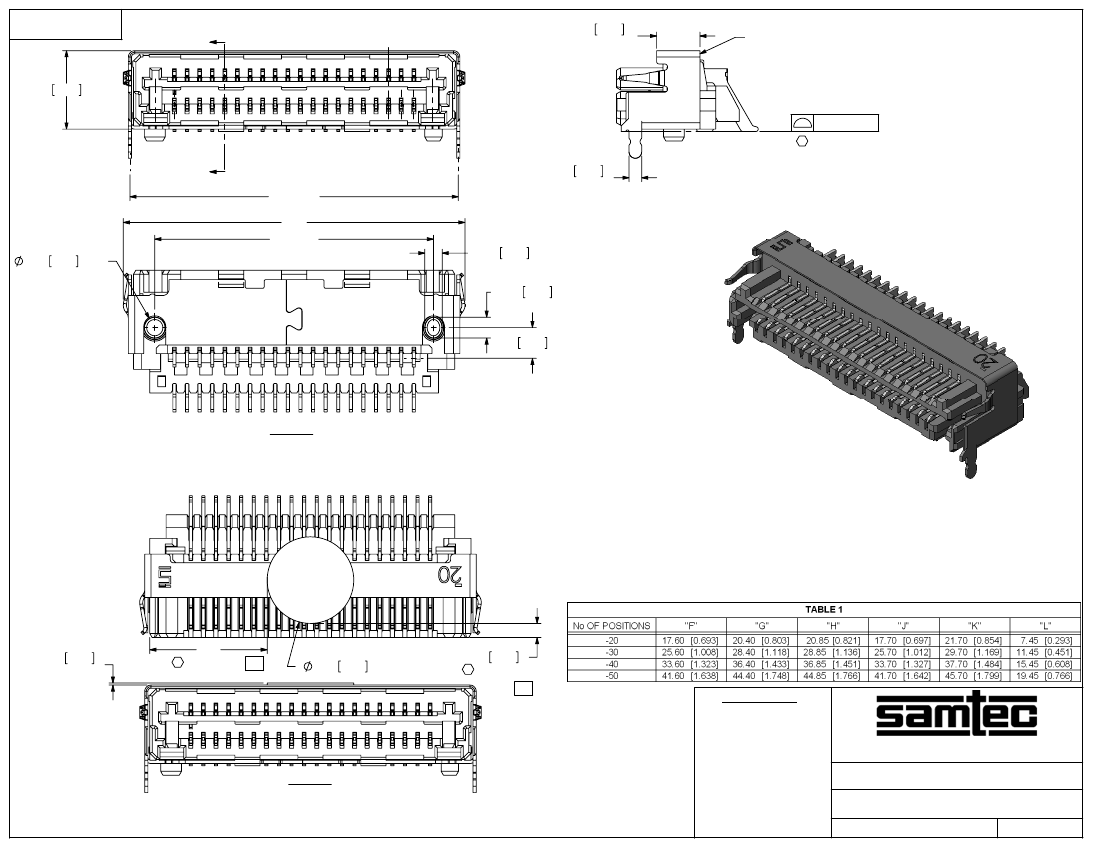

REVISION A
"B"
2.75 .108
REF
SH40-01-DH-N
4.98 .196 REF
0.10[0.004]
C
"B"
"H" REF
"K"
"J" REF
1.32 .052 REF
0.80 .031
REF
1.10 .043 REF
1.32 .052 REF
1.95 .077 REF

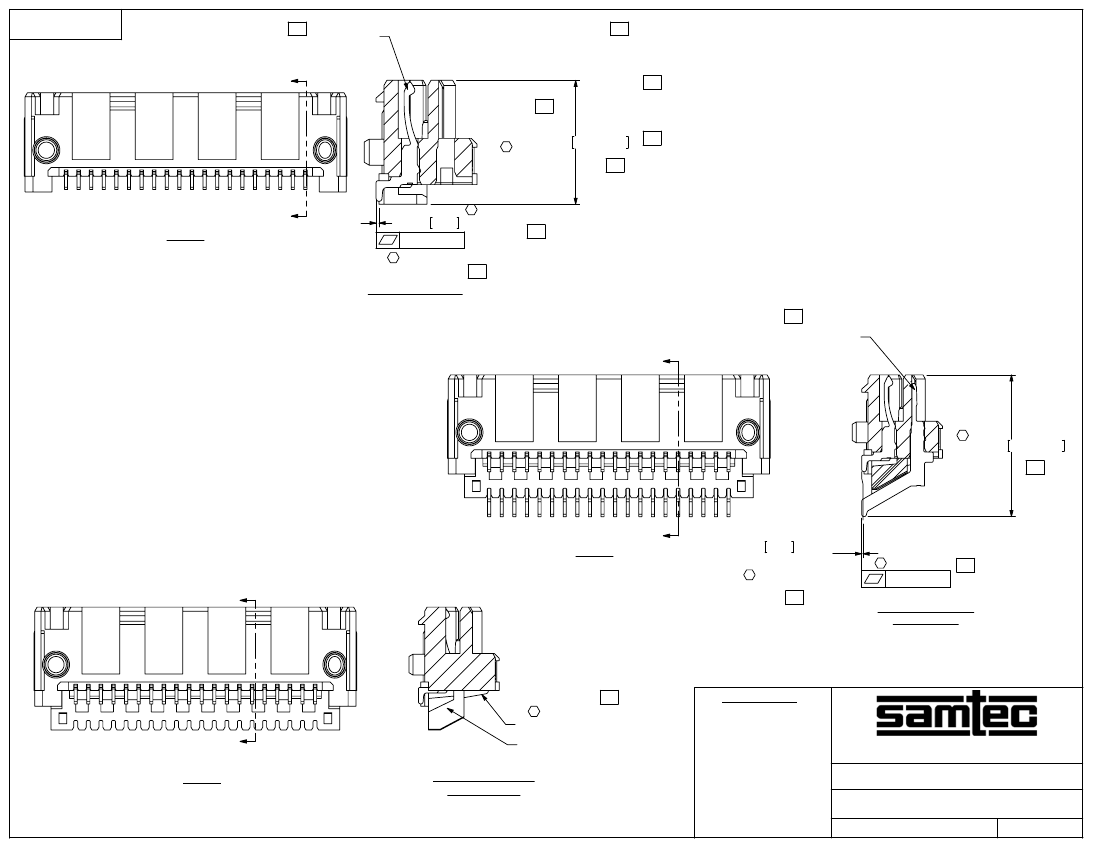

SHIELD OPTION
LSEM-120-01-XX-DH-A-S-X SHOWN
(SAME AS FIG.1 DIFFERENT AS SHOWN)
(*= NOT RELEASED FOR PRODUCTION)
*FIG. 2
0.13 .005
REF
C
"L"
A
5.50 .217
C
0.90 .035
A
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
PROPRIETARY NOTE
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
fromparent+PHONE: 812-944-6733
FAX: 812-948-5047
DESCRIPTION:
DWG. NO.
-K KAPTON OPTION
LSEM-120-01-XX-DH-A-S-K SHOWN
(SAME AS FIG.1 DIFFERENT AS SHOWN)
(*= NOT RELEASED FOR PRODUCTION)
*FIG. 3
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.2
0.8mm HERMAPHRODITIC HORIZONTAL FOR LSEM -DH
LSEM-1XX-XX-XX-DH-A-X-X-TR
BY:
CHADP
F:\DWG\MISC\MKTG\LSEM-1XX-XX-XX-DH-A-X-X-TR-MKT.SLDDRW
04/08/2009
SHEET
2
OF
3
REVISION A
A
"C"
C-316-02-X
A
A
A
C
6.30±0.08 .248±.003
A
A
"C"
C
C
(IN PROCESS 1)
FIG. 4
0.150 .006
0.10[0.004]
A
A
A
"D"
SECTION "C"-"C"
C-316-03-X
9.00±0.08 .354±.003
C
A
(IN PROCESS 3)
"E"
FIG. 6
"D"
0.08 .003 MAX
BOTTOM ROW
C
C
0.10[0.004]
A
A
SECTION "D"-"D"
SCALE 4 : 1
C
A
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
"E"
MUST LATCH INTO BODY
LSEM-XX-DH
(IN PROCESS 2)
FIG. 5
SECTION "E"-"E"
SCALE 4 : 1
F:\DWG\MISC\MKTG\LSEM-1XX-XX-XX-DH-A-X-X-TR-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
fromparent+PHONE: 812-944-6733
FAX: 812-948-5047
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
0.8mm HERMAPHRODITIC HORIZONTAL FOR LSEM -DH
LSEM-1XX-XX-XX-DH-A-X-X-TR
04/08/2009
SHEET
3
OF
3
BY:
CHADP
