TSA5521M-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> TSA5521M-T

TSA5521M-T: DescriptionIC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size501KB，24 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

TSA5521M-T Overview

IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit

TSA5521M-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	LSSOP,
Reach Compliance Code	unknown
Other features	ALSO REQUIRES 4.5V TO 13.5V SUPPLY
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16
length	5.2 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.5 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

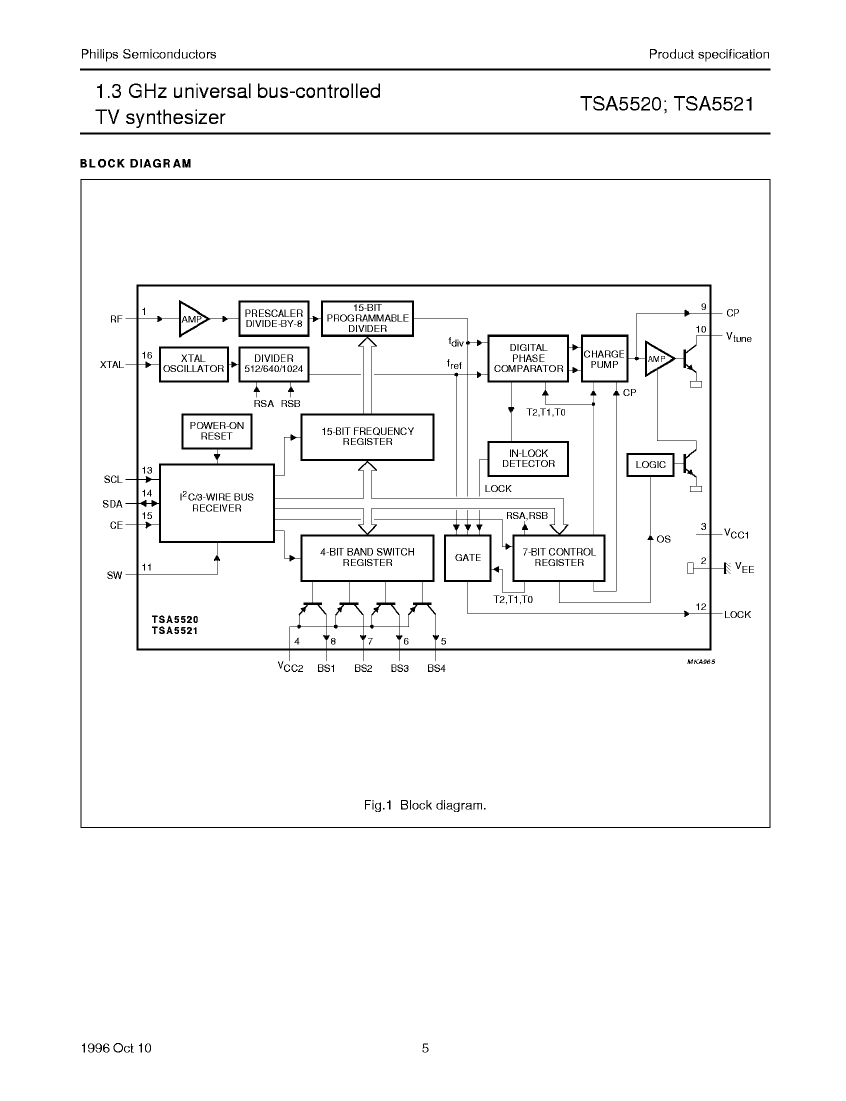

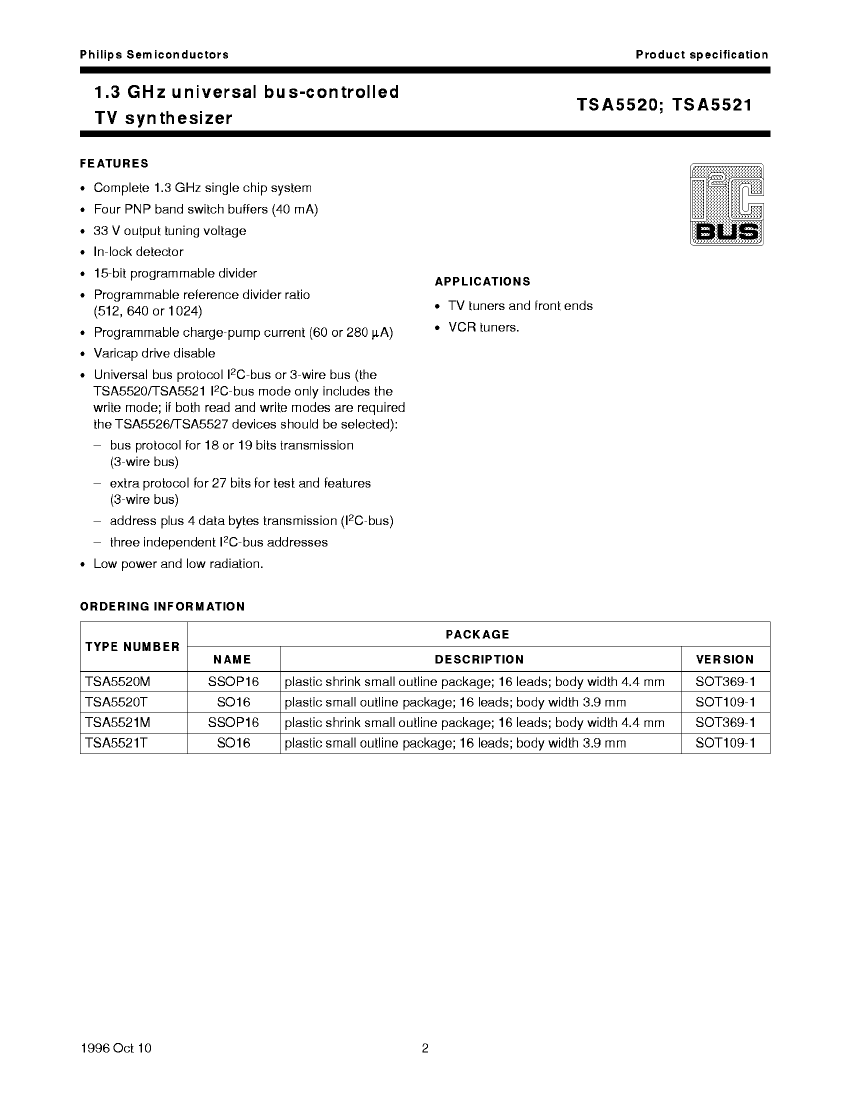

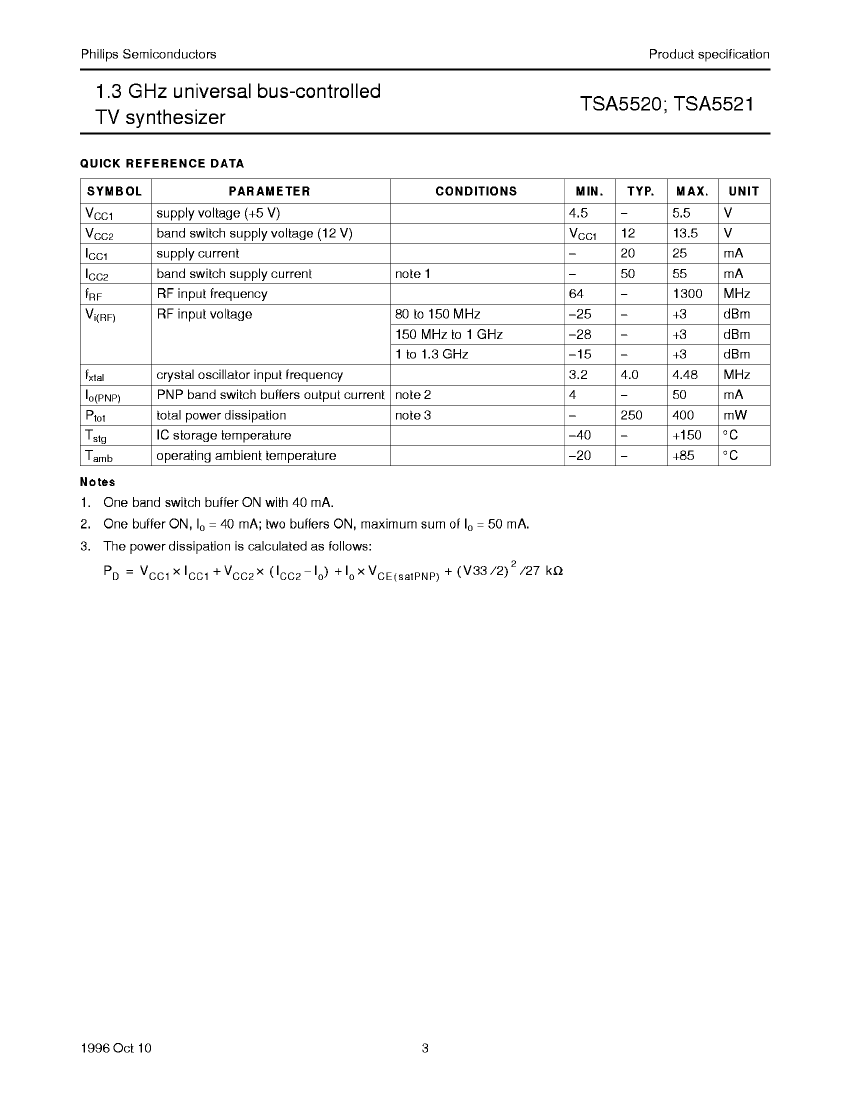

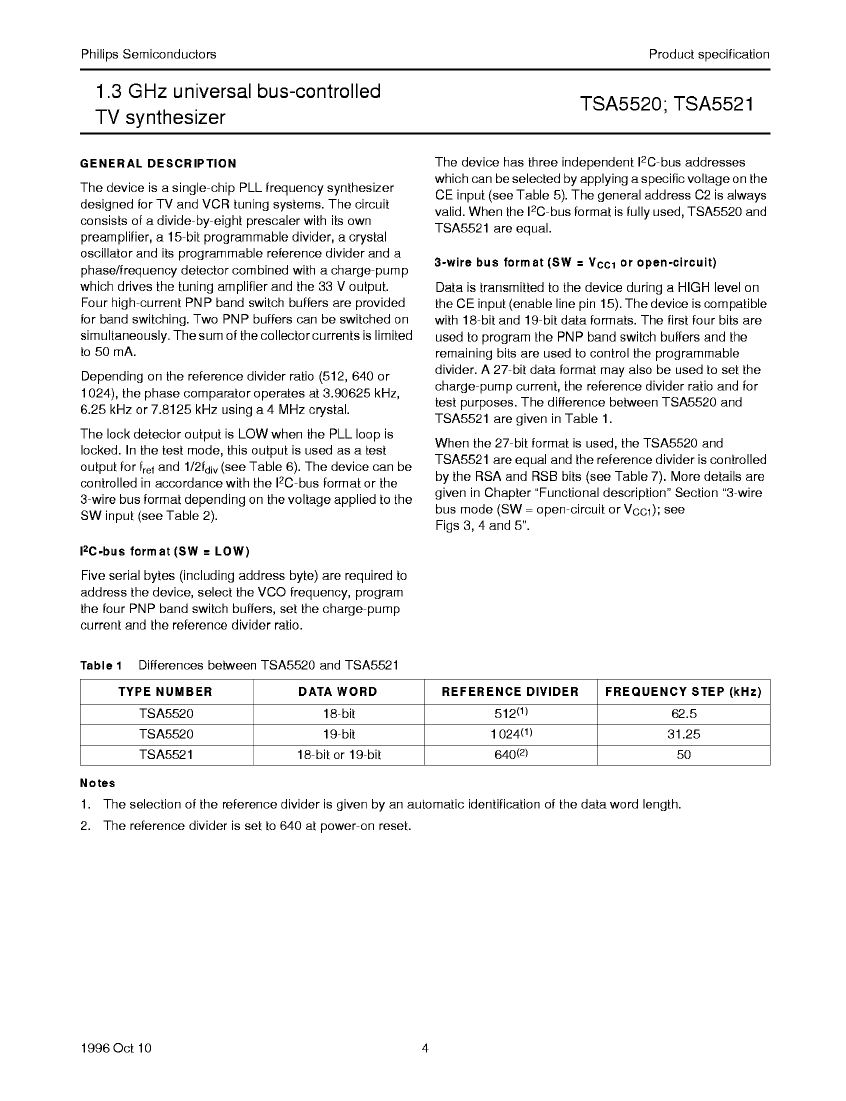

Preview

Download Datasheet

View All

TSA5521M-T Related Products

	TSA5521M-T	TSA5520TD-T	TSA5521TD-T	TSA5520MDK-T	TSA5521T-T	TSA5520M-T	TSA5520T-T	TSA5521MDK-T
Description	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1300 MHz, PDSO16, PLL or Frequency Synthesis Circuit
package instruction	LSSOP,	SOP,	SOP,	LSSOP,	SOP,	LSSOP,	SOP,	LSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY	ALSO REQUIRES 4.5V TO 13.5V SUPPLY
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	5.2 mm	9.9 mm	9.9 mm	5.2 mm	9.9 mm	5.2 mm	9.9 mm	5.2 mm
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	SOP	SOP	LSSOP	SOP	LSSOP	SOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.5 mm	1.75 mm	1.75 mm	1.5 mm	1.75 mm	1.5 mm	1.75 mm	1.5 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	0.65 mm	1.27 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	3.9 mm	3.9 mm	4.4 mm	3.9 mm	4.4 mm	3.9 mm	4.4 mm
Maker	NXP	-	-	NXP	NXP	NXP	NXP	NXP
