RN1903FE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN1903FE

RN1903FE: DescriptionSwitching, Inverter Circuit, Interface Circuit and Driver Circuit Applications; CategoryDiscrete semiconductor The transistor; File Size538KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RN1903FE Overview

Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications

RN1903FE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F6
Contacts	6
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	70
JESD-30 code	R-PDSO-F6
Number of components	2
Number of terminals	6
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.1 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

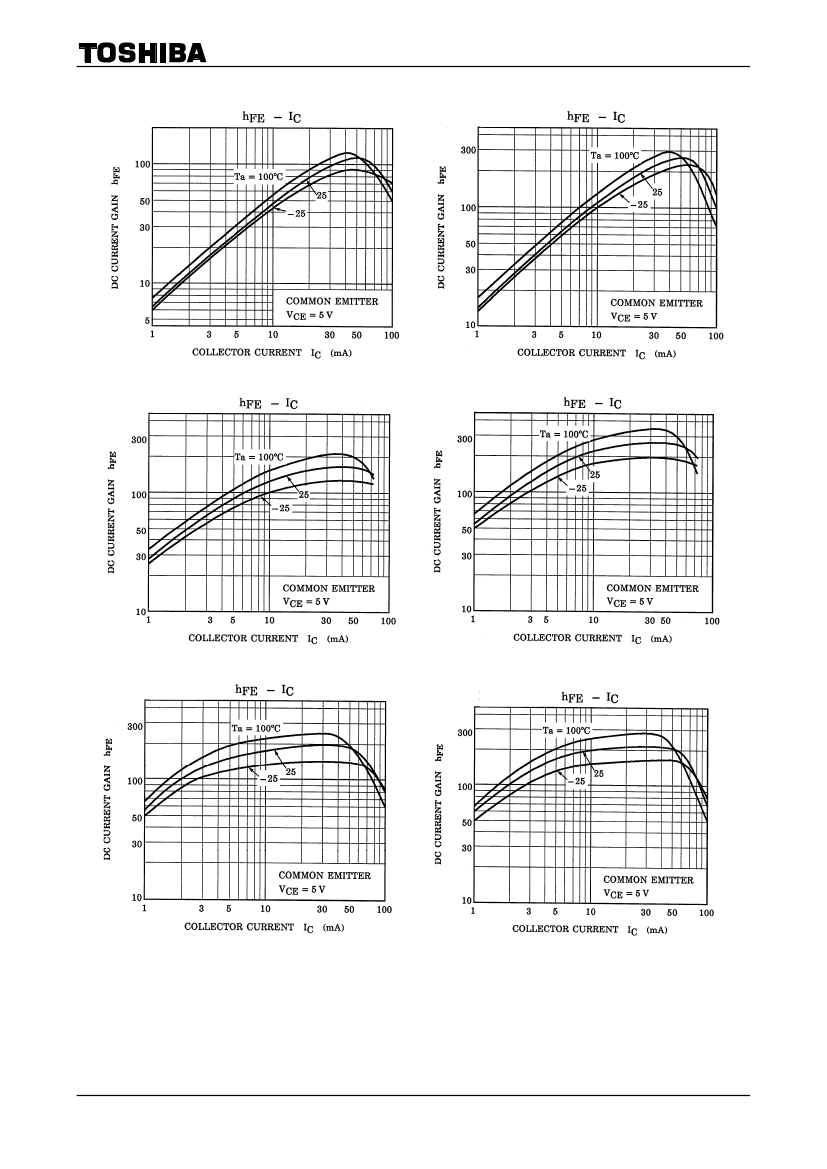

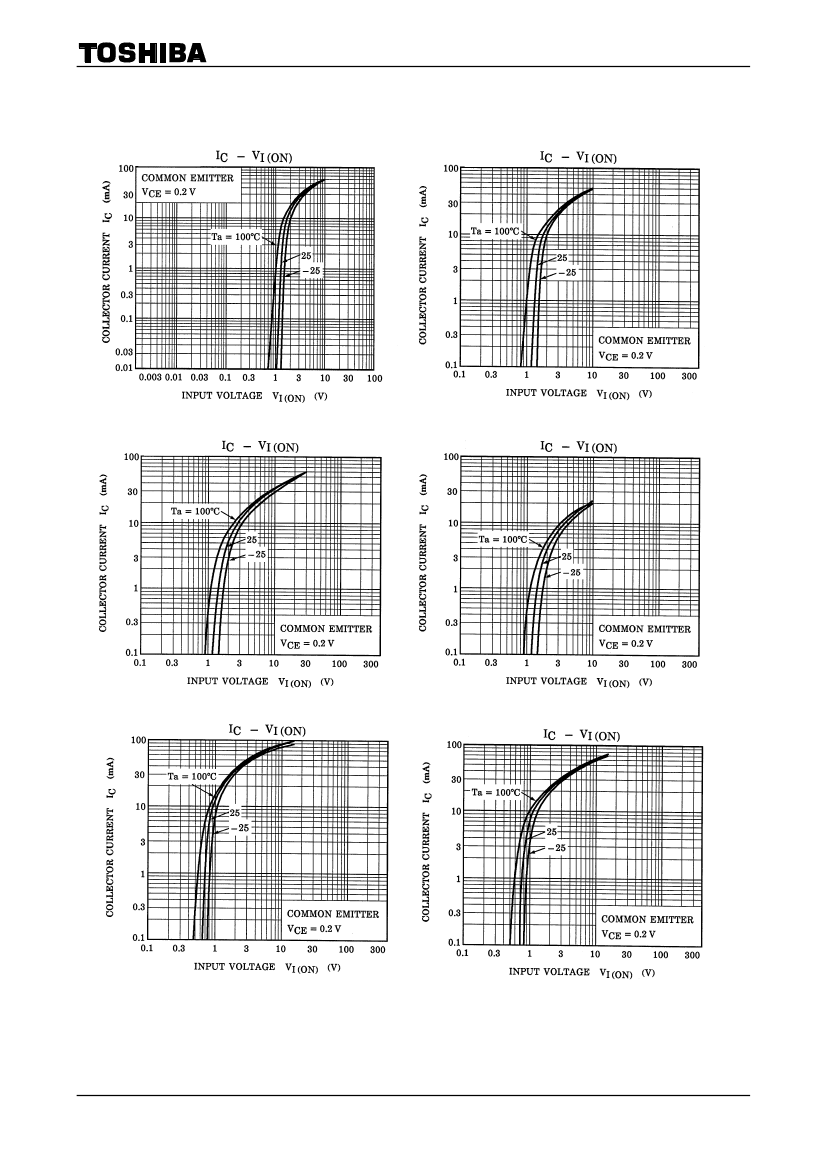

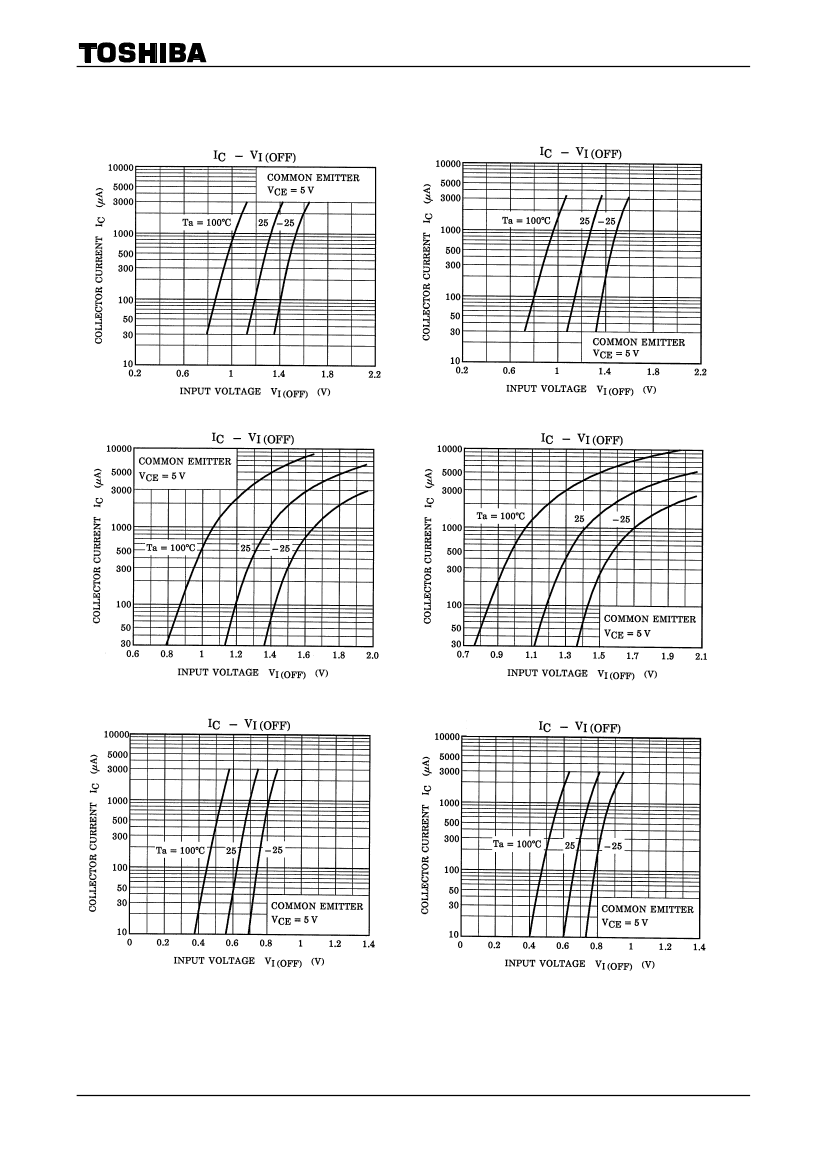

Preview

Download Datasheet

View All

RN1901FE~RN1906FE

TOSHIBA Transistor

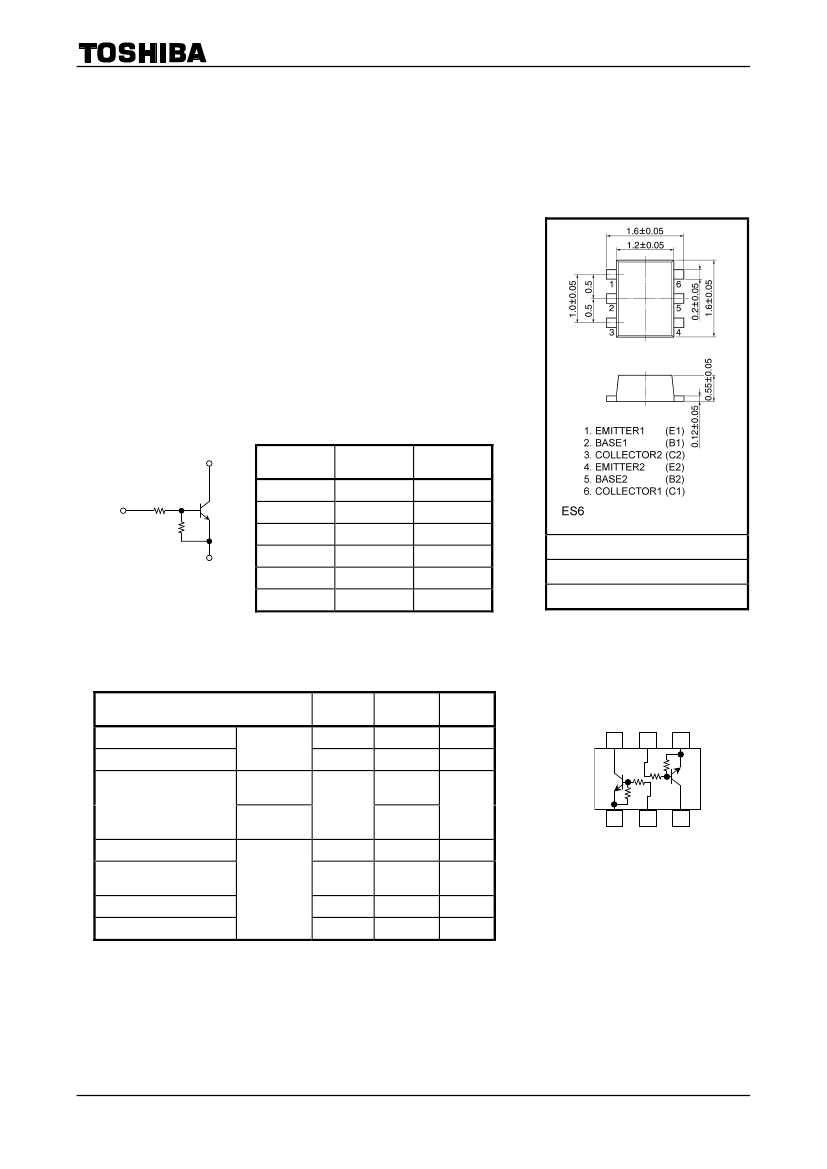

Silicon NPN Epitaxial Type (PCT process) (Bias Resistor Built-in Transistor)

RN1901FE, RN1902FE, RN1903FE

RN1904FE, RN1905FE, RN1906FE

Switching, Inverter Circuit, Interface Circuit and

Driver Circuit Applications

•

Two devices are incorporated into an Extreme-Super-Mini (6-pin)

package.

Incorporating a bias resistor into a transistor reduces parts count.

Reducing the parts count enables the manufacture of ever more compact

equipment and lowers assembly cost.

•

Complementary to RN2901FE to RN2906FE

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN1901FE

RN1902FE

RN1903FE

RN1904FE

RN1905FE

RN1906FE

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

JEDEC

JEITA

TOSHIBA

―

2-2N1G

Weight: 3 mg (typ.)

Absolute Maximum Ratings

(Ta = 25°C)

(Q1, Q2 common)

Equivalent Circuit

Symbol

RN1901FE to

RN1906FE

RN1901FE to

RN1904FE

RN1905FE,

RN1906FE

CBO

CEO

Rating

EBO

Unit

Characteristics

Collector-base voltage

Collector-emitter voltage

(top view)

Emitter-base voltage

(Note

stg

100

150

−55

to 150

°C

Collector current

Collector power dissipation RN1901FE to

RN1906FE

Junction temperature

Storage temperature range

Note:

Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly

even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute

maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

Note 1: Total rating

2010-05-14

RN1903FE Related Products

	RN1903FE	RN1901FE	RN1902FE	RN1904FE	RN1905FE	RN1906FE
Description	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6
Contacts	6	6	6	6	6	6
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 21.37	BUILT IN BIAS RESISTOR RATIO IS 10
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	70	30	50	80	80	80
JESD-30 code	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6
Number of components	2	2	2	2	2	2
Number of terminals	6	6	6	6	6	6
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.1 W	0.1 W	0.1 W	0.1 W	0.1 W	0.1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	-
