RN2101MFV: DescriptionSwitching, Inverter Circuit, Interface Circuit and Driver Circuit Applications; CategoryDiscrete semiconductor The transistor; File Size195KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric View All

RN2101MFV Overview

Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications

RN2101MFV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PDSO-F3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-F3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

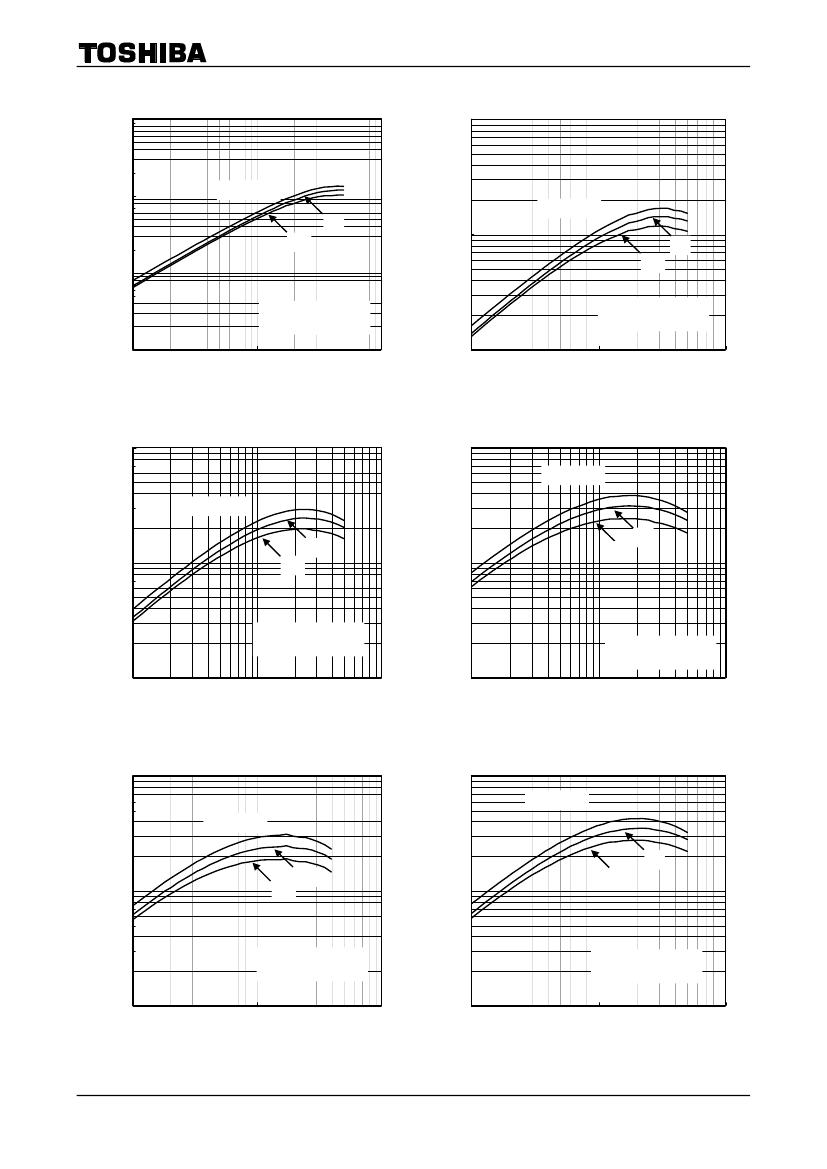

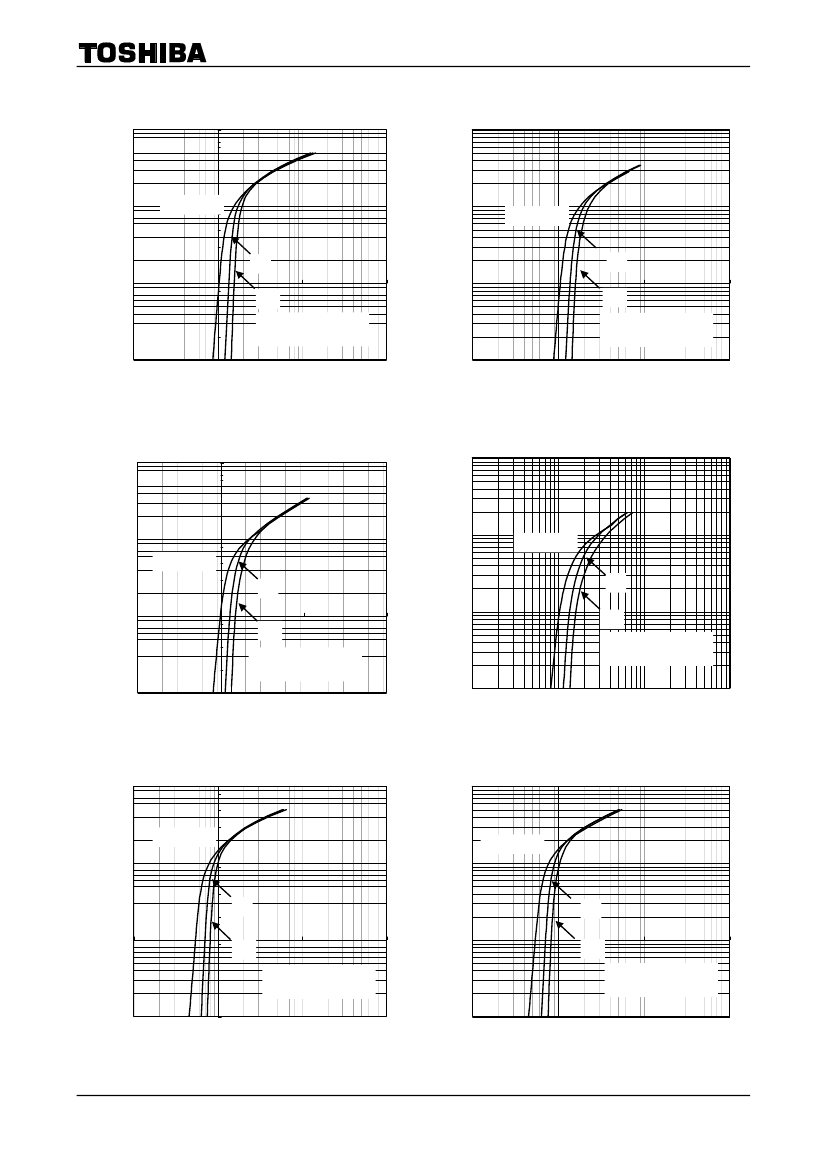

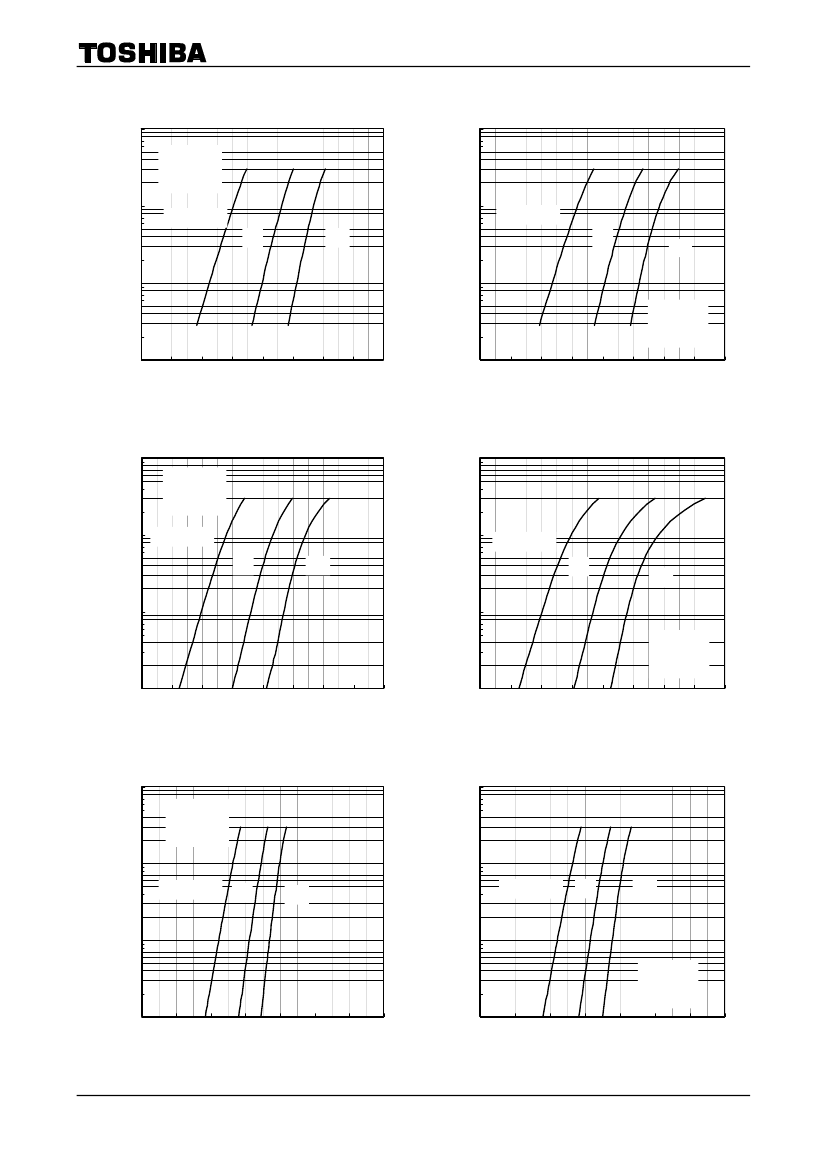

Preview

Download Datasheet

View All

RN2101MFV∼RN2106MFV

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)

RN2101MFV,RN2102MFV,RN2103MFV

RN2104MFV,RN2105MFV,RN2106MFV

Switching, Inverter Circuit, Interface Circuit and

Driver Circuit Applications

0.22 ± 0.05

Unit: mm

1.2 ± 0.05

0.32 ± 0.05

0.80 ± 0.05

Ultra-small package, suited to very high density mounting

Incorporating a bias resistor into the transistor reduces the number of parts,

so enabling the manufacture of ever more compact equipment and lowering

assembly cost.

A wide range of resistor values is available for use in various circuits.

Complementary to the RN1101MFV to RN1106MFV

0.8 ± 0.05

1.2 ± 0.05

0.4

0.13 ± 0.05

Equivalent Circuit and Bias Resistor Values

Type No.

RN2101MFV

RN2102MFV

RN2103MFV

RN2104MFV

RN2105MFV

RN2106MFV

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

0.5 ± 0.05

1. BASE

VESM

2. EMITTER

3. COLLECTOR

Absolute Maximum Ratings

(Ta = 25°C)

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN2101MFV to 2106MFV

RN2101MFV to 2104MFV

RN2105MFV, 2106MFV

Symbol

CBO

CEO

EBO

(Note 1)

stg

Rating

−50

−10

−5

−100

150

−55

to 150

JEDEC

―

JEITA

―

TOSHIBA

2-1L1A

Weight: 1.5 mg (typ.)

Unit

°C

Note:

Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly

even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute

maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

Note 1: Mounted on an FR4 board (25.4 mm

25.4 mm

1.6 mm)

0.5

0.45

Land Pattern Example

Unit:mm

1.15

0.4

0.45

0.4

2010-04-06
