UDZS3V6BRR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UDZS3V6BRR

UDZS3V6BRR: DescriptionZener Diode, 3.6V V(Z), 3.36%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size393KB，5 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

UDZS3V6BRR Overview

Zener Diode, 3.6V V(Z), 3.36%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2

UDZS3V6BRR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-F2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.2 W
Nominal reference voltage	3.6 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Maximum voltage tolerance	3.36%
Working test current	5 mA

UDZS3V6BRR Preview

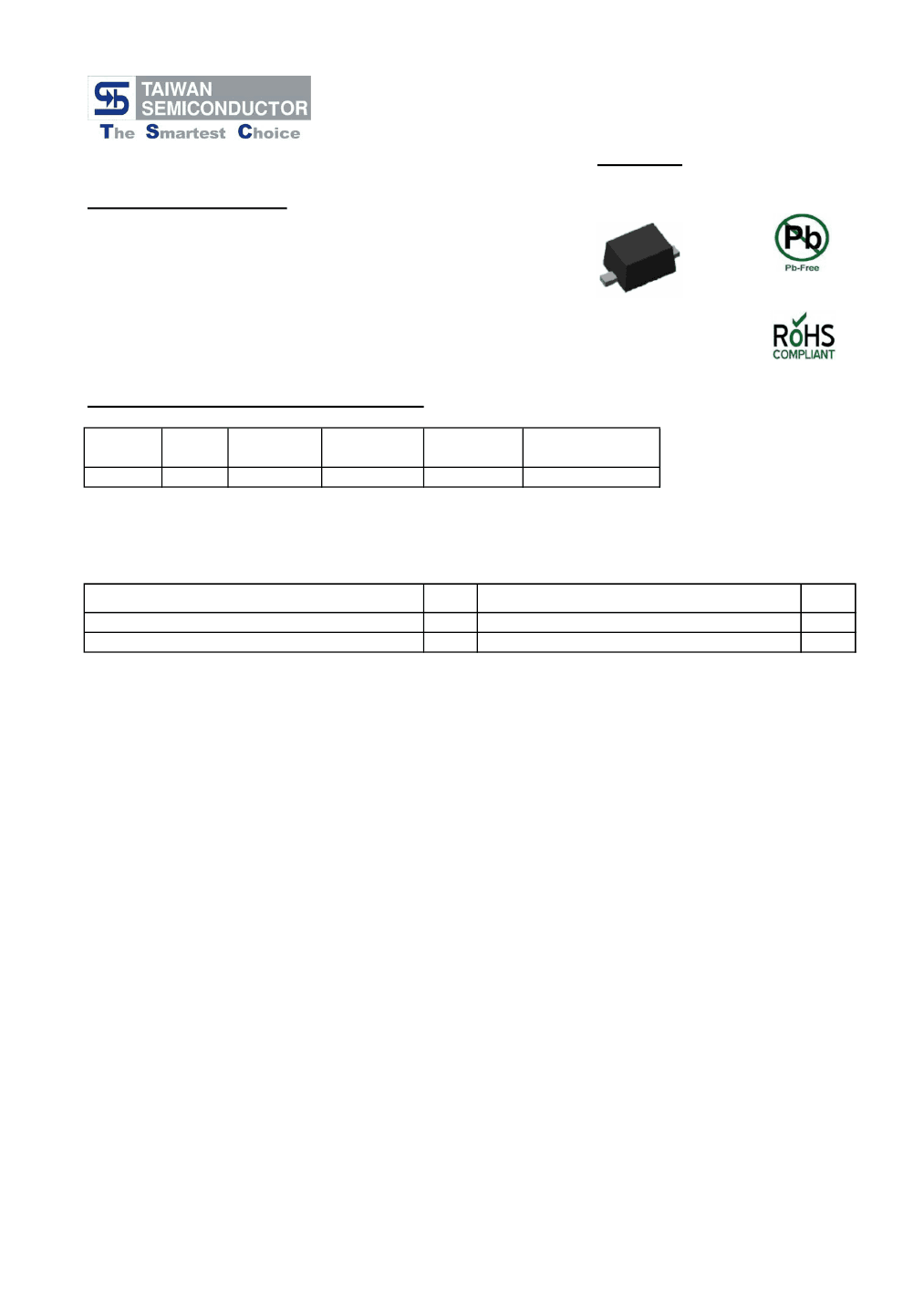

CREAT BY ART

UDZS3V6B - UDZS36B

200mW Surface Mount Flat Lead

Plastic Package Zener Diode

SOD-323F

Small Signal Product

Features

◇

Zener voltage range selection, 3.6V to 36V

◇

Flat lead SOD-323F small outline plastic package.

◇

Surface device type mounting.

◇

Moisture sensitivity level 1

◇

Clip bonding construction, good thermal capability

◇

RoHS compliant

◇

Matte Tin(Sn) lead finish

◇

Band indicates cathode

Ordering Information (example)

Part No.

Package

Packing

3K / 7" REEL

Packing code

(Green)

RRG

Manufacture code

UDZS5V6B SOD-323F

Note：Detail please see "Ordering Information(detail, example)" below.

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Power Dissipation

Operating and Storage Temperature Range

Symbol

, T

STG

Value

200

-55 to +150

Unit

℃

These ratings are limiting values above which the serviceability of the diode may be impaired.

Version:C13

Small Signal Product

ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted)

Device

Marking

Code

Min.

UDZS3V6B

UDZS3V9B

UDZS4V3B

UDZS4V7B

UDZS5V1B

UDZS5V6B

UDZS6V2B

UDZS6V8B

UDZS7V5B

UDZS8V2B

UDZS9V1B

UDZS10B

UDZS11B

UDZS12B

UDZS13B

UDZS15B

UDZS16B

UDZS18B

UDZS20B

UDZS22B

UDZS24B

UDZS27B

UDZS30B

UDZS33B

UDZS36B

Notes：

1. The zener Voltage (VZ) is tested under pulse condition of 40ms

2. For detailed information on price, availability and delivery of nominal zener voltages between the

voltages shown and tighter voltage tolerances

3. The zener impedance is derived from the 60-cycle ac voltage, which results when anac

current having an ms value equal to 10% of the dc zener current (I

or I

) is superimpossed to I

or I

3.60

3.89

4.17

4.55

4.98

5.49

6.06

6.65

7.28

8.02

8.85

9.77

10.76

11.74

12.91

14.34

15.85

17.56

19.52

21.54

23.72

26.19

29.19

32.15

35.07

@ I

Max

3.85

4.16

4.43

4.75

5.20

5.73

6.33

6.93

7.60

8.36

9.23

10.21

11.22

12.24

13.49

14.98

16.51

18.35

20.39

22.47

24.78

27.53

30.69

33.79

36.87

@ I

Ω

Max.

100

1.0

0.5

@ I

Ω

Max

600

500

300

150

160

190

220

240

300

310

330

Max.

4.50

2.70

1.80

0.90

2.70

1.80

0.90

0.63

0.45

0.18

0.09

0.045

Version:C13

Small Signal Product

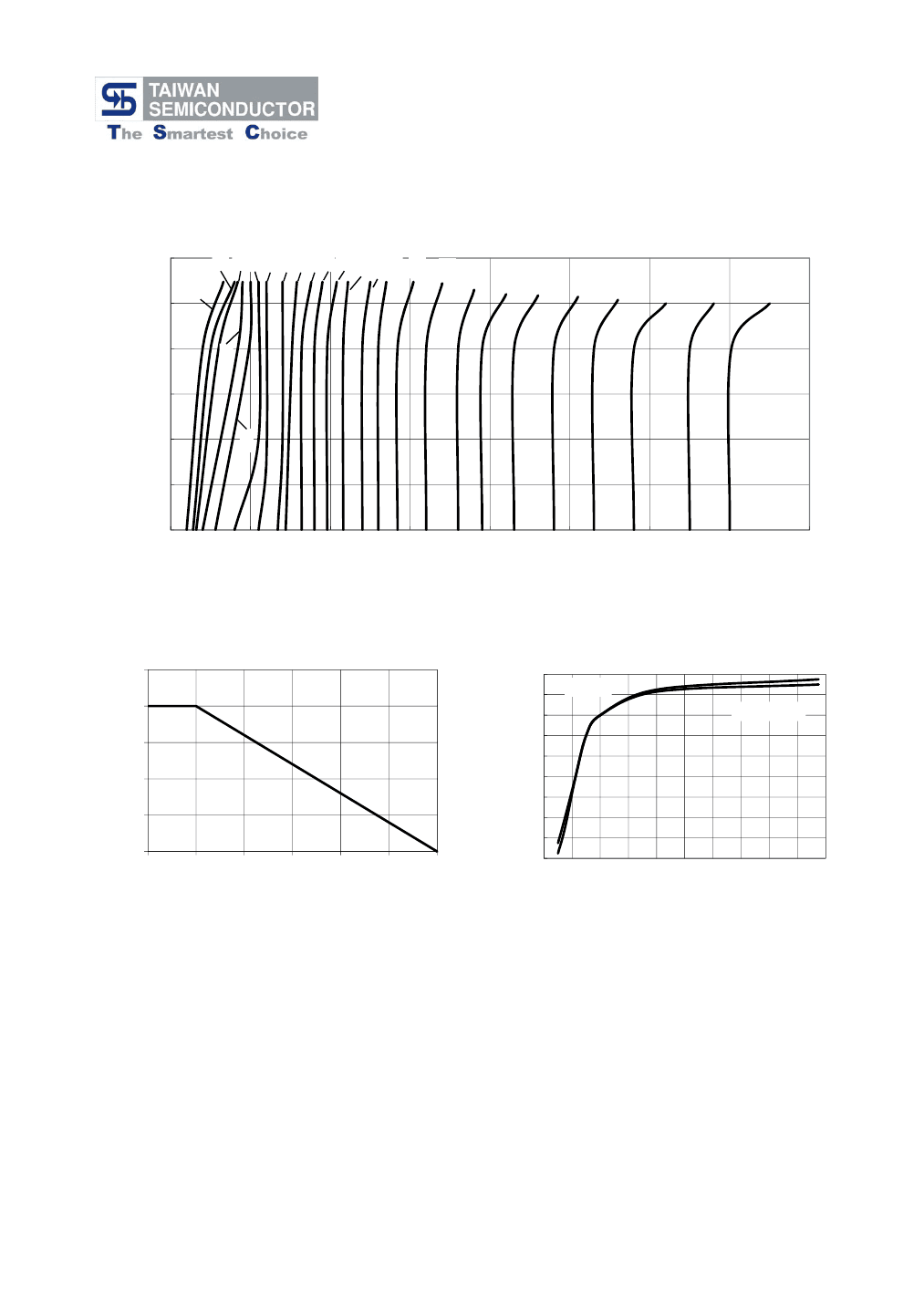

RATINGS AND CHARACTERISTIC CURVES (UDZS3V6B - UDZS36B)

FIG. 1 ZENER VOLTAGE CHARACTERISTICS

3.9

4.3

5.6

6.8

7.5

8.2

9.1

6.2

100

3.6

ZENER CURRENT, Iz (mA)

0.1

0.001

0.0001

5.1

0.01

4.7

ZENER VOLTAGE Vz (V)

FIG.2 DERATING CURVE

250

TEMP. COEFFICIENT CHARACTERISTICS

(%/℃)

200

150

100

125

150

AMBIENT TEMPERATURE(

0.10

0.08

0.06

0.04

0.02

0.00

-0.02

-0.04

-0.06

-0.08

FIG. 3 ZENER VOLTAGE-TEMP.

COEFFICIENT CHARACTERISTICS

Iz=5mA

Iz=0.5mA

POWER DISSIPATION (mW)

ZENER VOLTAGE(V)

Version:C13

Small Signal Product

Ordering information (Detail, example)

Part No.

UDZSxxxB

(Note1)

Package

SOD-323F

Packing

3K / 7" REEL

Packing code

(Green)

RRG

Manufacture code

(Note 2)

UDZS5V6B SOD-323F

3K / 7" REEL

UDZS5V6B SOD-323F

Note 1: "xxx" is Device Code from "3V6" thru "36".

Note 2: Manufacture special control, if empty means no special control requirement.

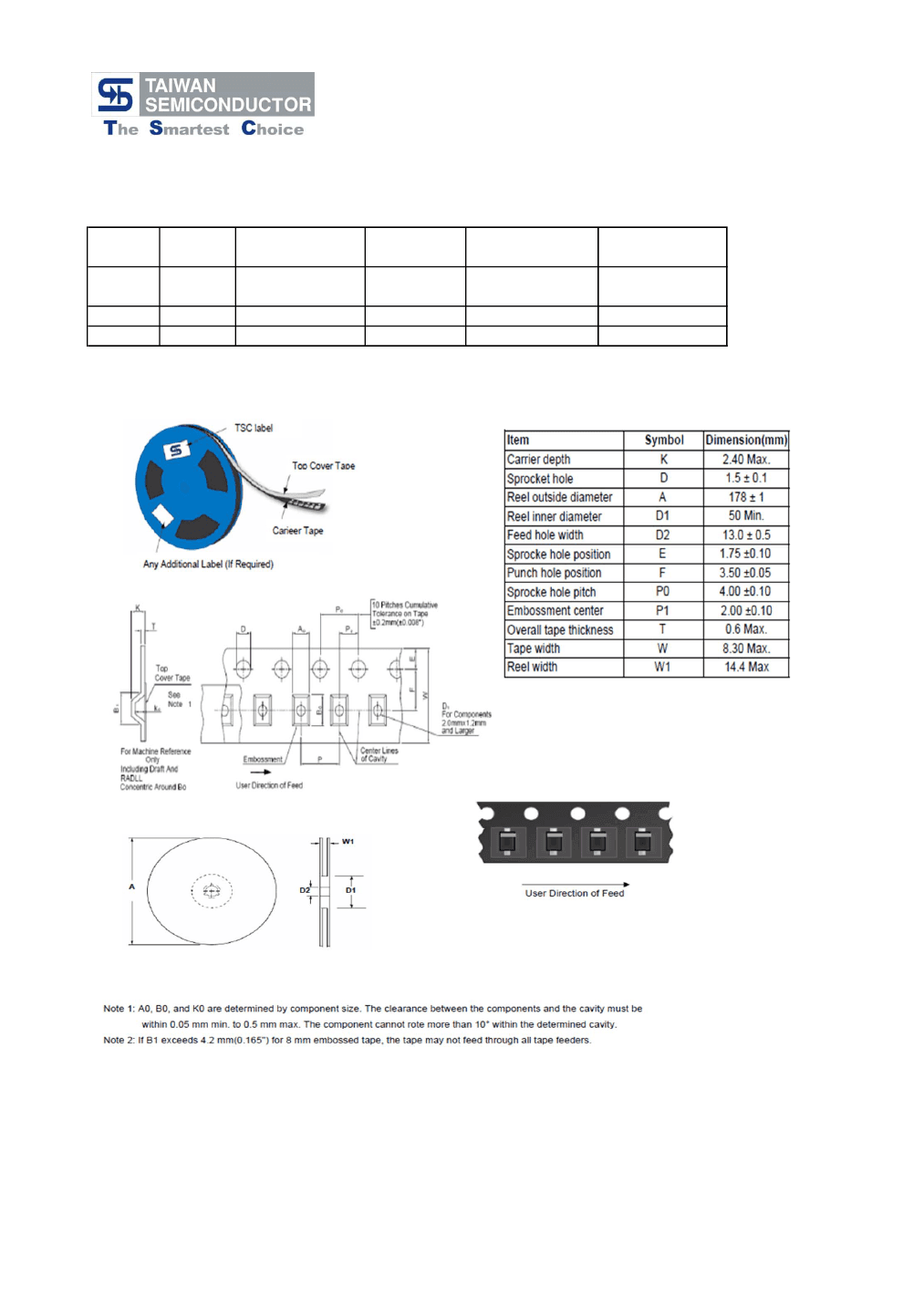

Tape & Reel specification

Version:C13

Small Signal Product

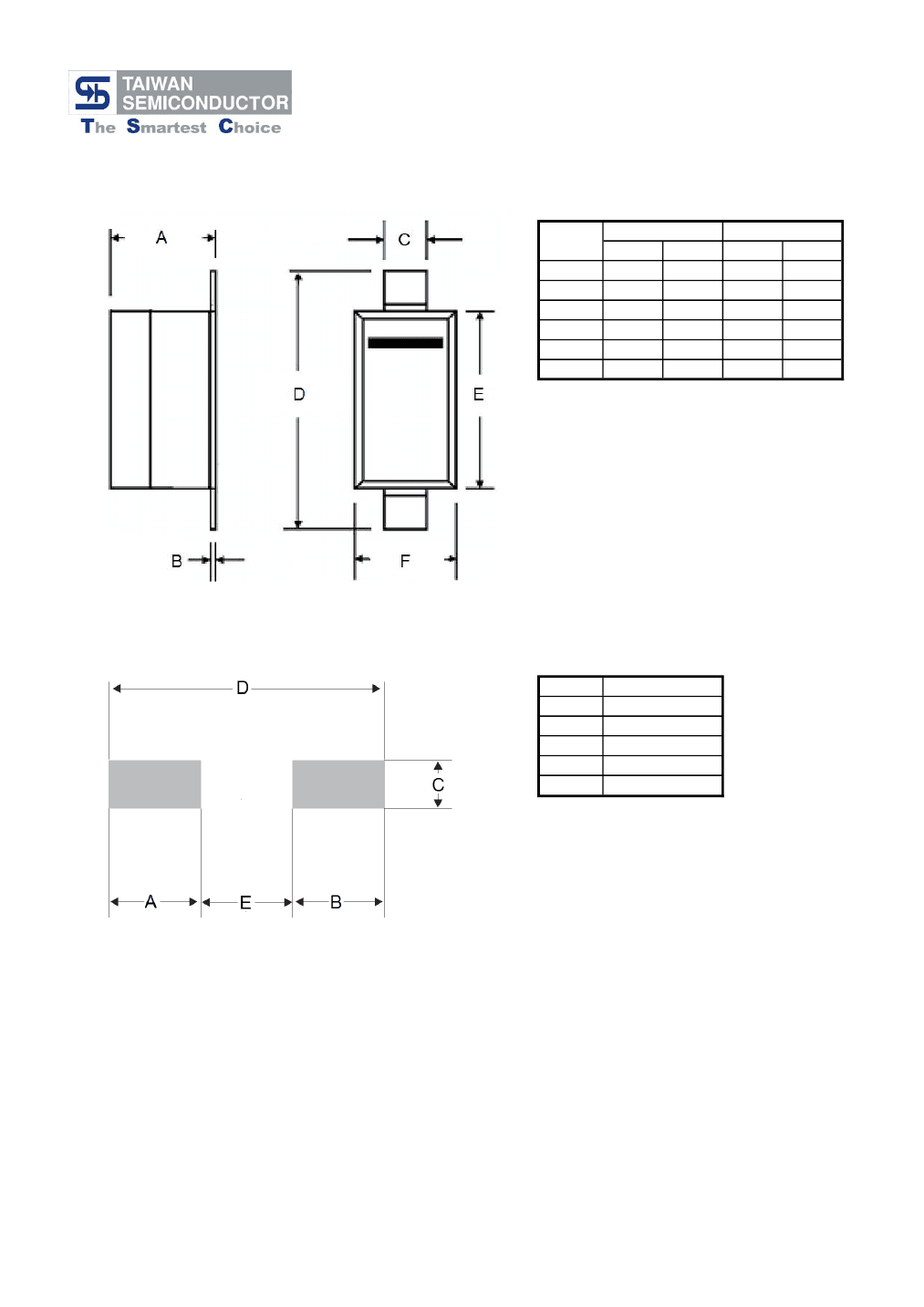

Package Outline Dimensions

DIM.

Unit(mm)

Min

0.80

0.05

0.25

2.30

1.60

1.15

Max

1.03

0.25

0.40

2.70

1.80

1.35

Unit(inch)

Min

0.031

0.002

0.010

0.091

0.063

0.045

Max

0.041

0.010

0.016

0.106

0.071

0.053

Suggested PAD Layout

Symbol

Unit(mm)

1.06

0.54

3.2

1.08

Version:C13
