CERAMIC CHIP CAPACITORS
CATALOG 5001
REV. F
PRESIDIO COMPONENTS, INC.
OUTSTANDING
CUSTOMER SERVICE
AND
EXPERIENCE YOU CAN TRUST
Presidio Components has been an industry leader in
the manufacture of ceramic capacitors since 1980. We
are dedicated to excellence in manufacturing, process
control and customer service. All products are
manufactured and tested in our state-of-the-art, 40,000
square foot facility in San Diego, California, allowing for
immediate response to your business needs. We have
numerous patents, and hundreds of years of combined
engineering experience, and we can formulate the right
product for your application. At Presidio Components
we work hard to build positive, long term relationships
with our customers and we will go the extra distance to
ensure customer satisfaction.
Diverse Markets
Presidio Components provides ceramic capacitors for
high quality commercial, military, space and implant
medical applications. Our customers manufacture
products such as aircraft, missile guidance systems,
switch mode power supplies, phased array radar, high
frequency transponders and receivers, ring laser gyros,
and cochlear implants.
QPL Products & DSCC Approved Test Lab
Presidio Components was initially qualified to MIL-
PRF-55681 in 1984. Since then we have upgraded
our processing line to obtain the highest established
reliability rating of “S” level. We are also qualified on
two additional space level specifications, MIL-PRF-
123 and MIL-PRF-49470 “T” level. And, Presidio
Components is proud to be the first QPL supplier to
MIL-PRF-49467, the high voltage ceramic capacitor
specification. All QPL testing per MIL-STD-202 is
done on site at our DSCC approved test lab. For a list
of environmental test capability, consult the factory.
Standard & Custom Products
If you cannot find a part anywhere else, call Presidio
Components. With more than 70 million parts in
inventory, we have many commercial and military parts
in stock. If you have a custom application, call the
factory. Our custom products include nonstandard part
sizes and voltages, including high voltage, high
temperature, high “Q”, custom leads,
cryogenic ceramics, negative and positive
temperature characteristic ceramics and
piezoelectric formulations. We have a series
of patented microwave and radio frequency
products including patented single layer and
broadband DC blocking caps.
For more information about
Presidio’s products or the name of
your local sales representative
visit our website at:
www.presidiocomponents.com

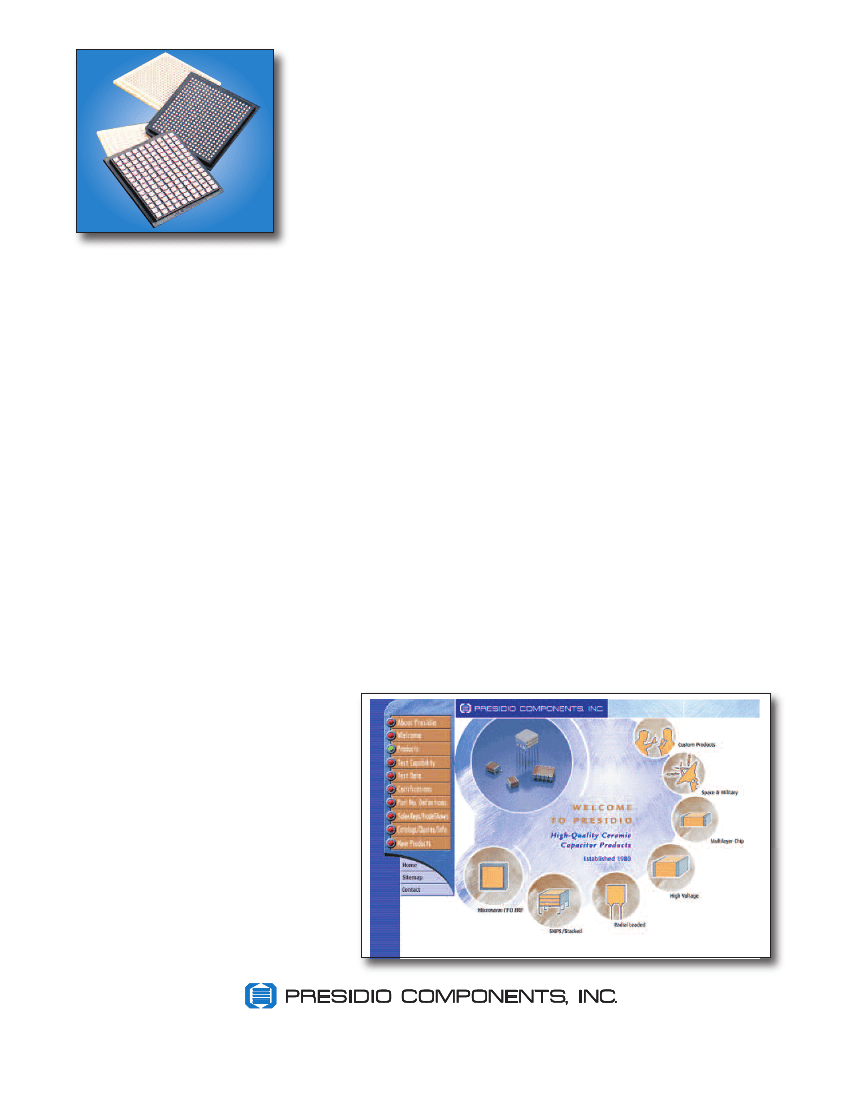

Presidio’s Website Home Page
2
7169 Construction Court, San Diego, CA 92121 • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225
www.presidiocomponents.com • email: info@presidiocomponents.com
TABLE OF CONTENTS
Commercial and High Reliability “HR” Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
High Reliability “CR” Capacitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
High Reliability “SR” Capacitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Extended Range Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Low Inductance Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
NPQ – High Q Dielectric Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
High Voltage “HV” Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Other Available Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
MIL-PRF-55681 CDR Chip Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
HOW TO ORDER A STANDARD PART
EXAMPLE: HR0805BX103K2P3A
HR
Prefix
SR
HV
HT
No prefix required
for commercial parts.
See part number
examples on
following pages.
HR
CR
0805
BX
103
K
2
P
3
A
Special
Code
Add "A" for
non-standard
dimensions.
Size Code
See tables
for sizes..
Example 100 = 10 pF
101 = 100 pF
102 = 1000 pF
104 = .10
μF
105 = 1.0
μF
Two significant
figures followed by
the number of zeros.
Capacitance
Code
Dielectric
Code
NPQ
NPO
N2T
BX
X7R
Y5V
10V = 10 VDC
12V = 12 VDC
16V = 16 VDC
1 = 25 VDC
2 = 50 VDC
3 = 100 VDC
4 = 200 VDC
5 = 300 VDC
6 = 500 VDC
7 = 600 VDC
8 = 750 VDC
9 = 1000 VDC
10 = 1500 VDC
11 = 2000 VDC
12 = 2500 VDC
13 = 3000 VDC
14 = 4000 VDC
15 = 5000 VDC
Voltage
Code
Marking and Packaging
Reel, 7", plastic tape, unmarked
Reel, 7", plastic tape, marked
Bulk, unmarked
Bulk, marked
Waffle, unmarked
Waffle, marked
Reel, 13", plastic tape, unmarked
Reel, 13", plastic tape, marked
Reel, 7", paper, unmarked
(0402 & 0603 only)
D. Reel, 13", paper, marked
(0402 & 0603 only)
1.
2.
3.
4.
5.
6.
A.
B.
C.
Tolerance
Code
B =
±
.10 pF < 10 pF (NPO only)
C =
±
.25 pF < 10 pF (NPO only)
D =
±
.50 pF < 10 pF (NPO only)
F =
±
1% (NPO only)
G =
±
2% (NPO only)
J =
±
5%
K =
±
10%
M =
±
20%
Z = + 80% / - 20%
P = + 100% / - 0%
Termination
Code
P = Palladium Silver
NT 9 = 90/10
Tin/Lead over Nickel
NG = Gold over Nickel
Consult
website
for electrical
characterics.
Consult factory for other voltages, capacitance options and parts outside a given range.
EXAMPLE: CDR01BX472BKMR
HOW TO ORDER A MILITARY PART
BX
472
B
K
M
R
FAILURE RATE
TERMINATION FINISH
CAPACITANCE TOLERANCE
RATED VOLTAGE
CDR01
MILITARY STYLE
VOLTAGE TEMPERATURE LIMITS
CAPACITANCE
See MIL-PRF-55681 on pages 14-15 for details.
7169 Construction Court, San Diego, CA 92121 • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225
www.presidiocomponents.com • email: info@presidiocomponents.com
3
COMMERCIAL CAPACITORS
Presidio provides high quality ceramic capacitors for a wide variety of commercial applications. Every component
must pass the test criteria listed below.
QUALITY ASSURANCE PROVISIONS
Every lot undergoes the following inspection and tests:
a) Capacitance —
All parts are tested at 25°C and
1VACRMS in accordance with Method 305 of MIL-STD-
202. Y5V and low voltage parts follow EIA guidelines.
b) Dissipation Factor (DF) —
See following table:
Voltage Rating
10
16/25
≥
50
NPO
N/A
.15%
.15%
BX
2.5%
2.5%
2.5%
X7R
5%
3.5%
2.5%
Y5V
10%
7%
5%
d) Insulation Resistance (IR @ 25°C) —
All parts are tested
at 25°C and rated voltage in accordance with Method 302
of MIL-STD-202. The minimum IR required is 100,000
megohms or 1,000 megohm-microfarads.
e) Visual —
Performed on pieces in accordance with
Presidio internal workmanship criteria.
f) Mechanical —
Level 1 AQL 1% in accordance with
this catalog.
g) Operating Temperature Range:
–55°C to +125°C
EXAMPLE PART NUMBER
c) Dielectric Withstanding Voltage (DWV) —
All parts are
tested to EIA/MIL standards.
0805BX103K2P3
See Page 3
“HOW TO ORDER A STANDARD PART”
HIGH RELIABILITY “HR” CAPACITORS
For applications where reliability, but not full military screening is required, Presidio recommends its high reliability
“HR”
capacitors. The “HR” code signifies use of the test program below, or the use of a customer Source Control
Document (SCD) that includes voltage conditioning.
QUALITY ASSURANCE PROVISIONS
Every lot undergoes the following inspection and tests:
a) Voltage Conditioning —
All parts receive a voltage
conditioning at 2X rated voltage and 125°C for a minimum
of 8 hours. An accelerated voltage conditioning, following
MIL-PRF-55681 guidelines, may be used at Presidio’s
discretion.
b) Capacitance —
All parts are tested at 25°C and
1VACRMS in accordance with Method 305 of MIL-STD-
202.
c) Dissipation Factor (DF) —
See following table:
Voltage Rating
10
16/25
≥
50
NPO
N/A
.15%
.15%
BX
2.5%
2.5%
2.5%
X7R
5%
3.5%
2.5%
Y5V
10%
7%
5%
d) Dielectric Withstanding Voltage (DWV) —
All parts are
tested at 2.5X rated voltage in accordance with Method
301 of MIL-STD-202, or according to EIA/MIL Standards.
e) Insulation Resistance (IR @ 25°C) —
All parts are tested
at 25°C and rated voltage in accordance with Method 302
of MIL-STD-202. The minimum IR required is 100,000
megohms or 1,000 megohm-microfarads.
f) Visual —
Performed on pieces in accordance with
Presidio internal workmanship criteria.
g) Mechanical —
Level 1 AQL 1% in accordance with this
catalog.
h) Element Evaluation (optional) —
A MIL-PRF-38534
Appendix C Passive Element Class H element evaluation
is available where the customer requires this testing.
Element evaluation is not required on each lot, and must
be specified on the purchase order.
i) Operating Temperature Range:
–55°C to +125°C
EXAMPLE PART NUMBER
CERTIFICATE OF COMPLIANCE
A Certificate of Compliance will be sent with each shipment.
HR
0805BX103K2P3
Add “HR” to the beginning of the standard
Presidio part number. See Page 3
“HOW TO ORDER A STANDARD PART”
Visit Presidio’s website for additional
technical information on these products.
4
7169 Construction Court, San Diego, CA 92121 • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225
www.presidiocomponents.com • email: info@presidiocomponents.com
COMMERCIAL AND HIGH RELIABILITY “HR” CAPACITORS
