0216.315MXEP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0216.315MXEP

0216.315MXEP: DescriptionFAST BLOW ELECTRIC FUSE, 0.315A, 250VAC, 1500A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size1MB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

0216.315MXEP Overview

FAST BLOW ELECTRIC FUSE, 0.315A, 250VAC, 1500A (IR), THROUGH HOLE

0216.315MXEP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Fusing characteristics	FAST
body height	22.5 mm
Body length or diameter	6 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
JESD-609 code	e3
Joule integral nominal
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	6mm x 22.5mm
Pre-discharge rating	0.01 A2/s
Rated breaking capacity	1500 A
Rated current	0.315 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; IEC; SEMKO; UL; VDE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

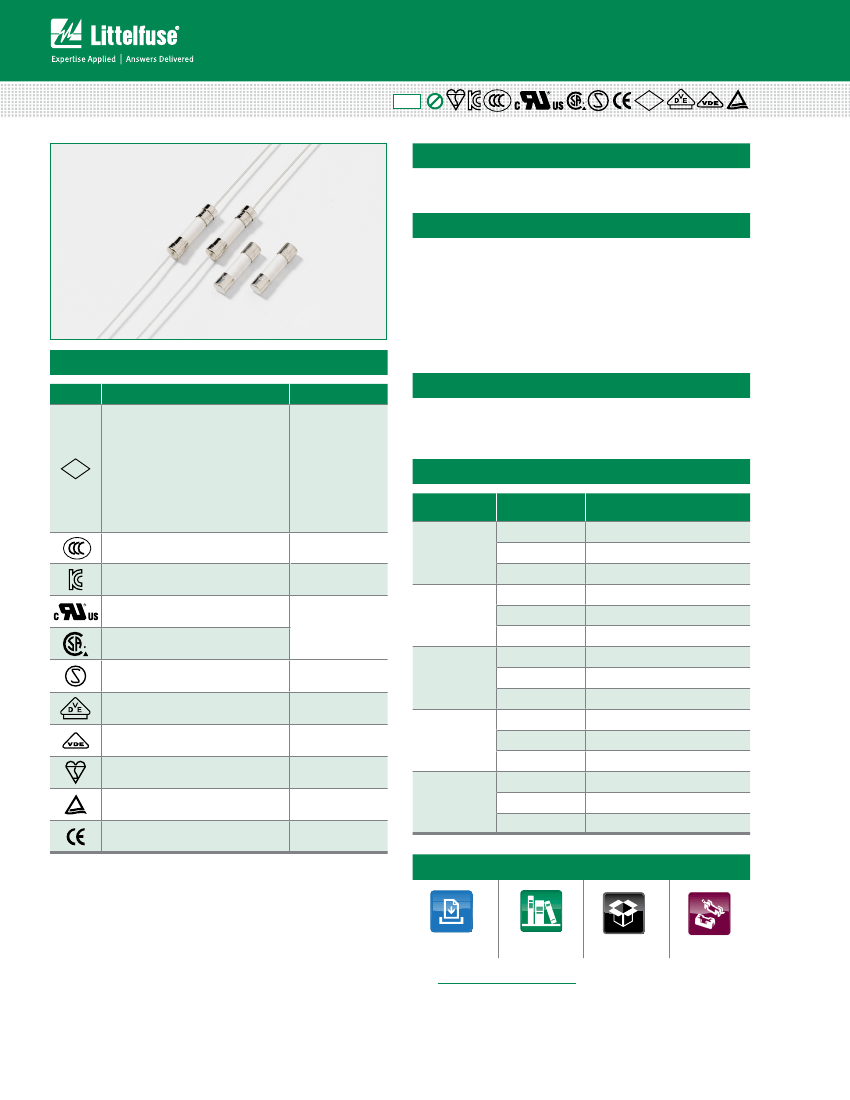

Axial Lead & Cartridge Fuses

5×20 mm > Fast-Acting > 216 Series

216 Series, 5×20 mm, Fast-Acting Fuse

RoHS

Description

5×20mm fast-acting ceramic body cartridge fuse designed

to IEC specification.

Features

• Designed to International

(IEC ) Standards for use

globally

• Meets the IEC 60127-2,

sheet 1 specification for

fast-acting fuses

Agency Approvals

Agency

Agency File Number

Ampere Range

• Available in cartridge and

axial lead form

• RoHS compliant and

lead-free

Applications

Used as supplementary protection in appliance or

utilization equipment to provide individual protection for

components or internal circuits.

Cartridge:

1-5A

6.3A-10A

12.5A

16A

Leaded:

1-5A

6.3A-10A

12.5A

16A

NBK 090205-E10480A

NBK 250702-E10480E

NBK 240108-JP1021C

NBK 240108-JP1021E

NBK 090205-E10480B

NBK 250702-E10480F

NBK 240108-JP1021D

NBK 240108-JP1021F

1A – 16A

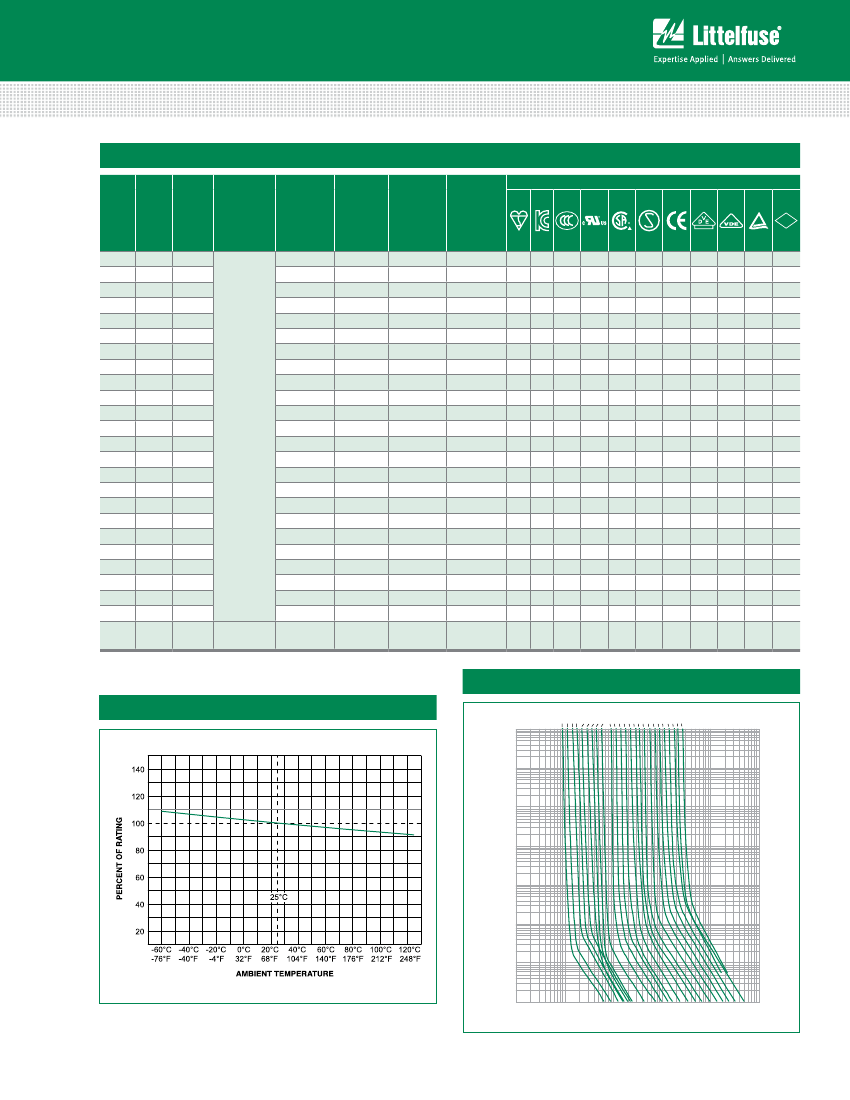

Electrical Characteristics for Series

% of Ampere

Rating

Ampere Rating

0.05A – 4A

Opening Time

60 minutes, Minimum

30 minutes, Minimum

30 minutes, Maximum

0.01 sec.., Min.; 2 sec. Max.

0.01 sec.., Min.; 3 sec. Max.

0.04 sec., Min.; 20 sec. Max.

.003 sec., Min.; 0.3 sec. Max.

.01 sec.., Min.; 1.0 sec. Max.

.02 seconds, Maximum

.03 sec.onds, Maximum

2003010207079960

SU05001-2013

E10480

0.05A – 6.3A

1A – 10A

150%

5A – 6.3A

8A – 16A

0.05A – 4A

0.05A – 16A

29862

1706869

40013834

40016442

KM41462

J50248090

N/A

*Approval for Cartridge versions only

210%

5A – 6.3A

8A – 16A

0.05A – 4A

0.05A - 10A, 16A

0.05A – 6.3A

*8A, *10A

*12.5A

1A – 6.3A

8A – 16A

0.05A – 16A

275%

5A – 6.3A

8A – 16A

0.05A – 4A

400%

5A – 6.3A

8A – 16A

0.05A – 4A

1000%

5A – 6.3A

8A – 16A

Additional Information

Datasheet

Resources

Samples

Accessories

For recommended fuse accessories for this product series,

see ‘Recommended

Accessories’

section.

Application testing is strongly recommended. Specifications are subject to change without notice.

Revised: 04/12/17
