DSCC 05003
www.vishay.com
Vishay Vitramon

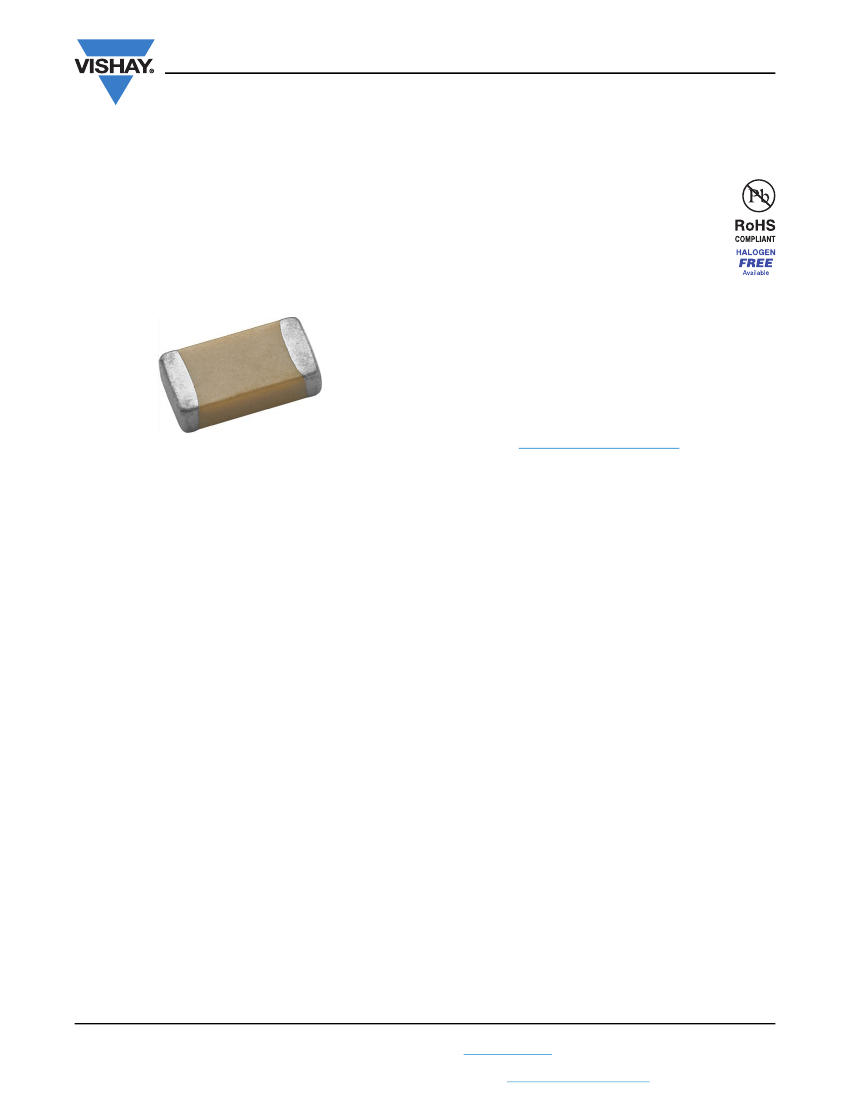

Surface Mount Multilayer Ceramic Chip Capacitors
High Frequency DSCC Qualified Type 05003
FEATURES
• US Defense Supply Center approved
• Federal stock control number,
CAGE CODE SHV71
• Case size 0402
• High frequency
• Excellent aging characteristics
• Tin/lead termination code “Z”
• Lead (Pb)-free terminations code “M”
• Surface mount, wet build process
• Reliable Noble Metal Electrode (NME) system
• Made with a combination of design, materials and tight
process control to achieve very high field reliability
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
APPLICATIONS
• Broadband wireless communication
• Satellite communication
• WiFi (802.11) and WiMax (802.16)
• VolP networks and cellular base stations
• Subscriber based wireless devices
ELECTRICAL SPECIFICATIONS
Note
•
Electrical characteristics at 25 °C unless otherwise specified
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
1.0 pF to 27 pF
Voltage Rating:
50 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
BP: 0 ppm/°C ± 30 ppm/°C from - 55 °C to + 125 °C with
zero (0) V
DC
applied
Dissipation Factor (DF):
BP: 0.05 % max. at 1.0 V
RMS
and 1 MHz
Aging Rate:
0 % maximum per decade
Insulation Resistance (IR):
At + 25 °C and rated voltage 100 000 MΩ minimum or
1000
ΩF,
whichever is less
At + 125 °C and rated voltage 10 000 MΩ minimum or
100
ΩF,
whichever is less
Dielectric Strength Test:
Performed per method 103 of EIA-198-2-E.
Applied test voltages
≤
250 V
DC
-rated: 200 % of rated voltage
Revision: 16-Apr-12
Document Number: 45070
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DSCC 05003
www.vishay.com
QUICK REFERENCE DATA
DIELECTRIC
BP
CASE CODE
0402
MAXIMUM VOLTAGE
(V)
100
CAPACITANCE
MINIMUM
1.0 pF
MAXIMUM
27 pF
Vishay Vitramon
ORDERING INFORMATION
05003-
DSCC
NUMBER
0603
Case size
High
Frequency
1R0
CAPACITANCE
NOMINAL CODE
Expressed in
picofarads (pF) The
first two digits are
significant, the third
is a multiplier. An
“R” indicates a
decimal point.
Examples:
1R0 = 1.0 pF
B
DC
VOLTAGE
RATING
(1)
A = 50 V
B = 100 V
C
CAPACITANCE
TOLERANCE
Z
TERMINATION
-
GROUP C
(2)
TESTING OPTION
C
PACKAGING
C = Full Group C
M = Silver Palladium
B = ± 0.1 pF
C = ± 0.25 pF Z = Ni barrier with tin/lead plate L = 2000 h life test only
D = ± 0.50 pF
min. 4 % lead
M = 1000 h life test only
F=±1%
H = Low voltage humidity
G=±2%
test only
J=±5%
- = Group A test only
K = ± 10 %
M = ± 20 %
Note:
B, C, D
≤
6.2 pF
B, C, J, K, M
C = 7" reel/paper tape
6.8 pF to 9.1 pF
O = 7" reel/flamed paper tape
F, G, J, K, M
J = 7" reel (low quantity)
≥
10 pF
P = 11 1/4"/13" reel/paper tape
I = 11 1/4"/13" reel/flamed paper tape
B = Bulk
Note:
“I” and “O” is used for “M”
termination code
Notes
(1)
DC voltage rating should not be exceeded in application
(2)
Selecting one of the group C options with life testing may extend the delivery time
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
PART ORDERING
NUMBER
05003-
LENGTH
(L)
0.040 ± 0.004
(1.00 ± 0.10)
WIDTH
(W)
0.020 ± 0.004
(0.50 ± 0.10)
MAXIMUM
THICKNESS (T)
0.024
(0.60)
TERMINATIONS PAD (P)
MINIMUM
0.004
(0.10)
MAXIMUM
0.016
(0.41)
Revision: 16-Apr-12
Document Number: 45070
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DSCC 05003
www.vishay.com
SELECTION CHART
DIELECTRIC
STYLE
CASE CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
1R0
1R1
1R2
1R3
1R5
1R6
1R7
1R8
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
180
200
220
240
270
Note
•• paper carrier tape
CAP.
1.0 pF
1.1 pF
1.2 pF
1.3 pF
1.5 pF
1.6 pF
1.7 pF
1.8 pF
2.0 pF
2.1 pF
2.2 pF
2.4 pF
2.7 pF
3.0 pF
3.3 pF
3.6 pF
3.9 pF
4.3 pF
4.7 pF
5.1 pF
5.6 pF
6.2 pF
6.8 pF
7.5 pF
8.2 pF
9.1 pF
10 pF
11 pF
12 pF
13 pF
15 pF
18 pF
20 pF
22 pF
24 pF
27 pF
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
B, C
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, J, K, M
B, C, J, K, M
B, C, J, K, M
B, C, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
50
A
05003
0402
100
B
TOLERANCE
BP
Vishay Vitramon
Revision: 16-Apr-12
Document Number: 45070
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DSCC 05003
www.vishay.com
DSCC PACKAGING QUANTITIES
CASE
CODE
TAPE
SIZE
PACKAGING CODE
“C”/”O”
4000
(1)
Vishay Vitramon
11 1/4" AND 13" REEL QUANTITIES
PAPER TAPE
PACKAGING CODE
“P”/“I”
10 000
BULK
VIAL
PACKAGING CODE
“B”
100
7" REEL QUANTITIES
PACKAGING CODE
“J”
1000
0402
8 mm
Note
(1)
Reference: EIA Standard RS 481 - “Taping of Surface Mount Components for Automatic Placement”
STORAGE AND HANDLING CONDITIONS
(1) Store the components at 5 °C to + 40 °C ambient temperature and
≤
70 % related humidity conditions.
(2) The product is recommended to be used within a time-frame of 2 years after shipment.
Check solderability in case extended shelf life beyond the expiry date is needed.
Precautions:
a. Do not store products in an environment containing corrosive elements, especially where chloride gas, sulfide gas, acid, alkali, salt or
the like are present. This may cause corrosion or oxidization of the terminations, which can easily lead to poor soldering.
b. Store products on the shelf and avoid exposure to moisture or dust.
c. Do not expose products to excessive shock, vibration, direct sunlight and so on.
Revision: 16-Apr-12
Document Number: 45070
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
