UFS115SJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UFS115SJ

UFS115SJ: DescriptionRectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN; CategoryDiscrete semiconductor diode; File Size153KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFS115SJ Overview

Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN

UFS115SJ Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214BA
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	C BEND
Terminal location	DUAL

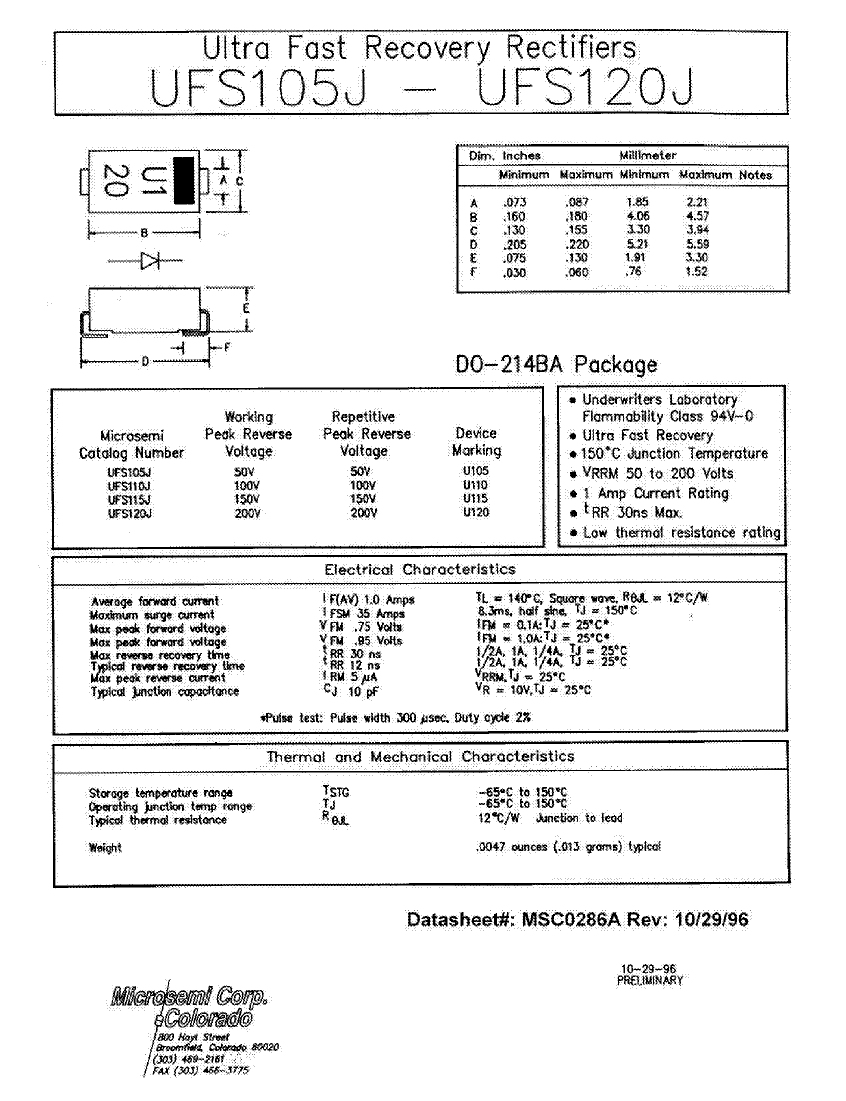

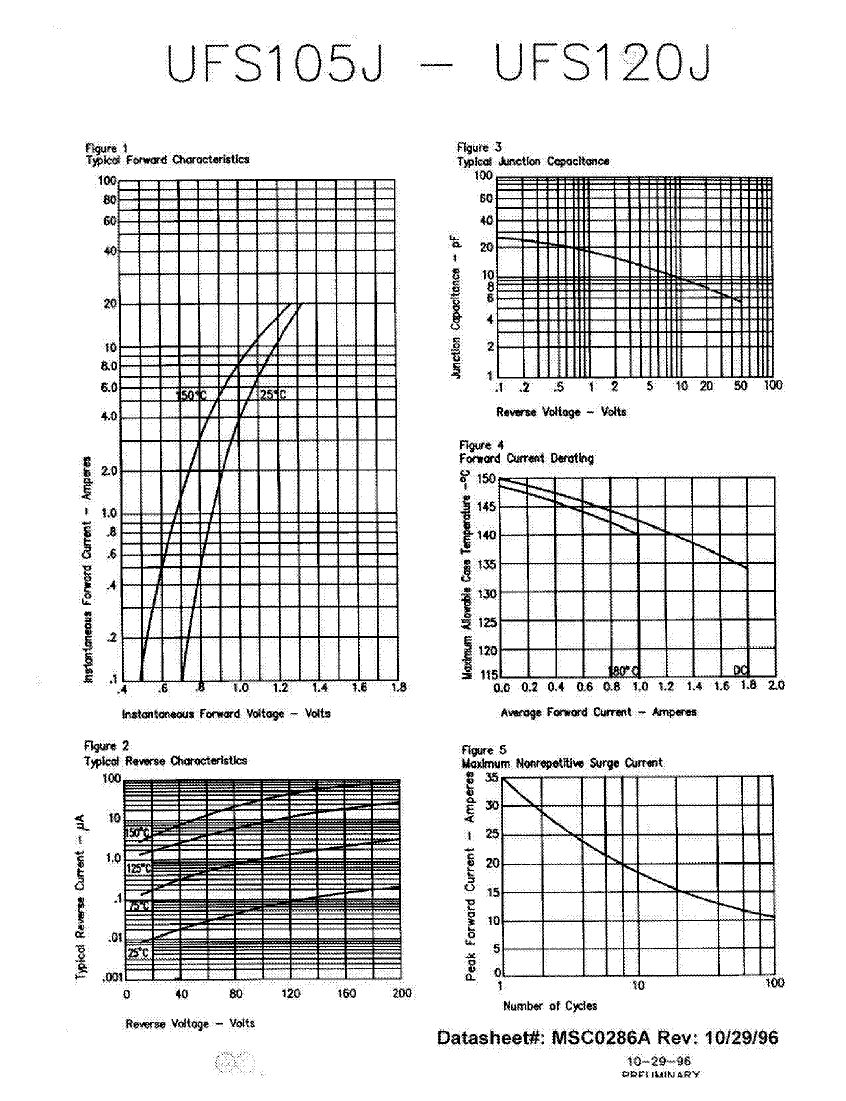

UFS115SJ Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UFS115SJ Related Products

	UFS115SJ	UFS120SJ	UFS105SJ	UFS110SJ
Description	Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN
Maker	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	DO-214BA, 2 PIN
Reach Compliance Code	compliant	unknown	unknown	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214BA	DO-214BA	DO-214BA	DO-214BA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V	50 V	100 V
Maximum reverse recovery time	0.03 µs	0.03 µs	0.03 µs	0.03 µs
surface mount	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
