UF4005-GT3: DescriptionRectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, LEAD FREE, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size118KB，3 Pages; ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

UF4005-GT3 Overview

Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, LEAD FREE, PLASTIC PACKAGE-2

UF4005-GT3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Sangdest Microelectronics (Nanjing) Co., Ltd.
package instruction	O-PALF-W2
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

Date Sheet 4806, Rev. -

UF4001-G – UF4007-G

1.0A ULTRAFAST RECOVERY RECTIFIER

Green Products

Features

Diffused Junction

Low Forward Voltage Drop

High Current Capability

High Reliability

High Surge Current Capability

Green Products in Compliance with the RoHS Directive

Mechanical Data

Case: Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.34 grams (approx.)

Mounting Position: Any

Marking: Type Number

DO-41

Max

Dim

Min

Max

25.4

—

4.06 5.21

0.71 0.864

2.00 2.72

In mm

1.000

—

0.159 0.205

0.028 0.034

0.079 0.107

In inch

Maximum Ratings and Electrical Characteristics

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

=25°C unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

(Note 1)

= 55°C

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave superimposed on

rated load (JEDEC Method)

Max. Forward Voltage

= 1.0A

Symbol

RRM

RWM

R(RMS)

4001-G 4002-G 4003-G 4004-G

100

200

140

400

280

1.0

4005-G 4006-G 4007-G

600

420

800

560

1000

700

Unit

FSM

ΘJA

ΘJL

STG

1.0

1.3

5.0

100

-55 to +125

-55 to +150

1.7

µA

°C/W

°C

Peak Reverse Current

= 25°C

At Rated DC Blocking Voltage @T

= 100°C

Reverse Recovery Time (Note 2)

Typical Junction Capacitance (Note 3)

Typical Thermal Resistance, Junction to Ambient

Typical Thermal Resistance, Junction to Lead at

L= 0.375” (9.53mm)

Operating Temperature Range

Storage Temperature Range

*Glass passivated forms are available upon request

Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case

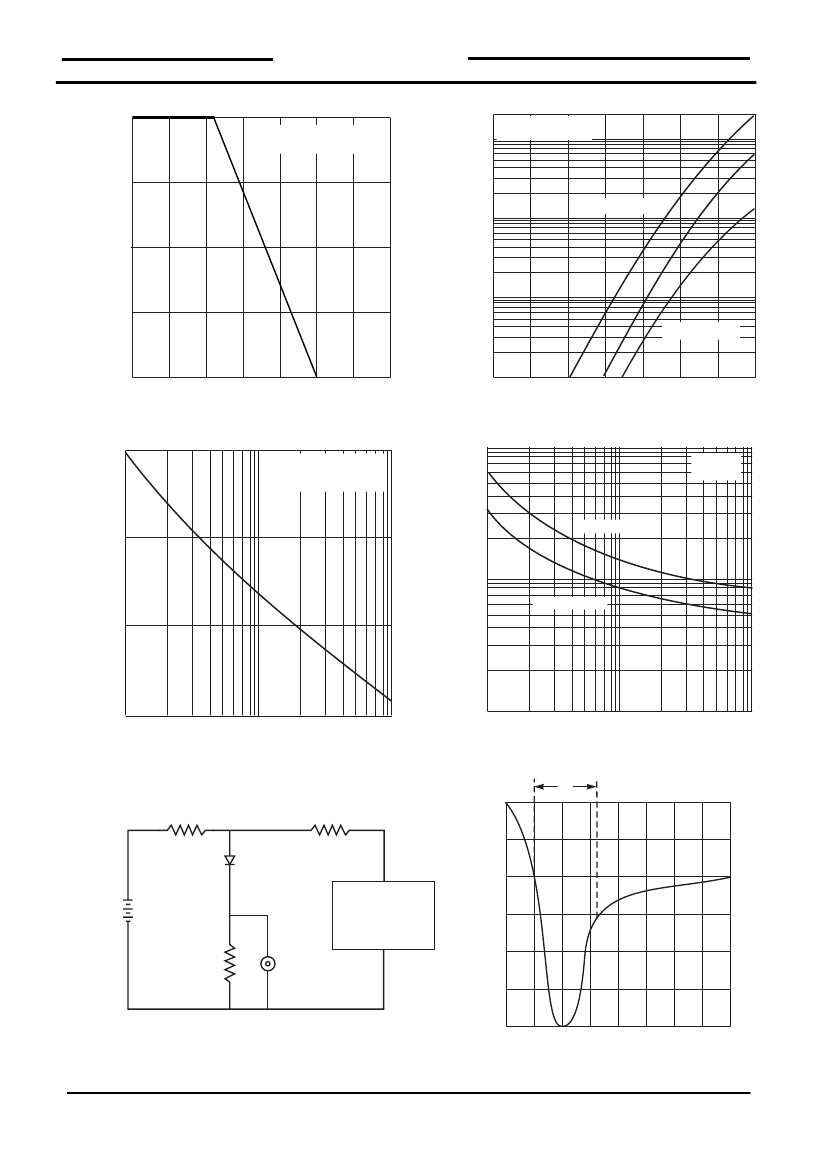

2. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 1.

3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

•

!!"#$•

•

% & '(&)*+,,---. &

./0•12&%#

%3 &

./0•

SENSITRON

SEMICONDUCTOR

Data Sheet 4806, Rev. –

1.0A ULTRA FAST RECOVERY RECTIFIER

UF4001-G-UF4007-G

Green Products

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to improve

product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest

version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at

a value

exceeding the

absolute maximum

rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed writ ten permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
