CM04A-8DP8S-030 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CM04A-8DP8S-030

Preview

CM04A-8DP8S-030: DescriptionInterconnection Device; CategoryThe connector The connector; File Size109KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

CM04A-8DP8S-030 Overview

Interconnection Device

CM04A-8DP8S-030 Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	NO. OF CONTACTS: 8, CABLE LENGTH: 3000M, MALE-FEMALE, PLUG-JACK SHIELDED, 22AWG, 94V-0
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

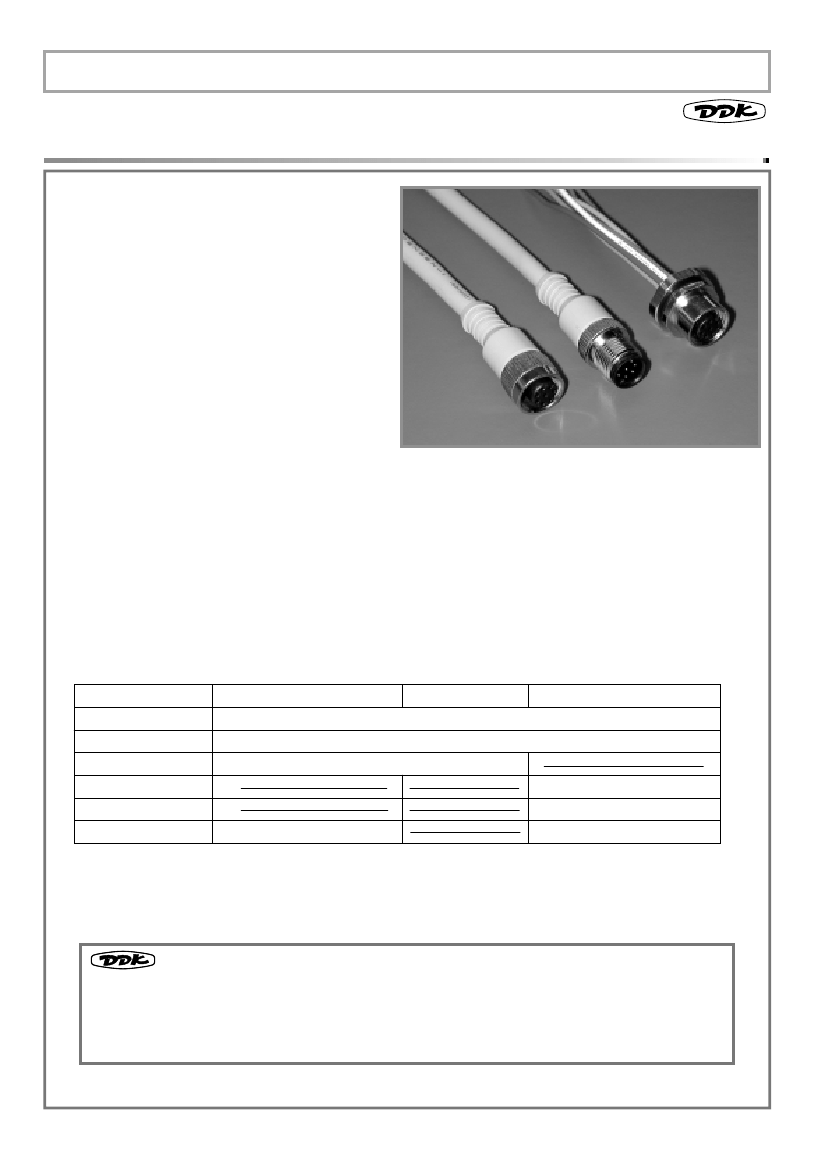

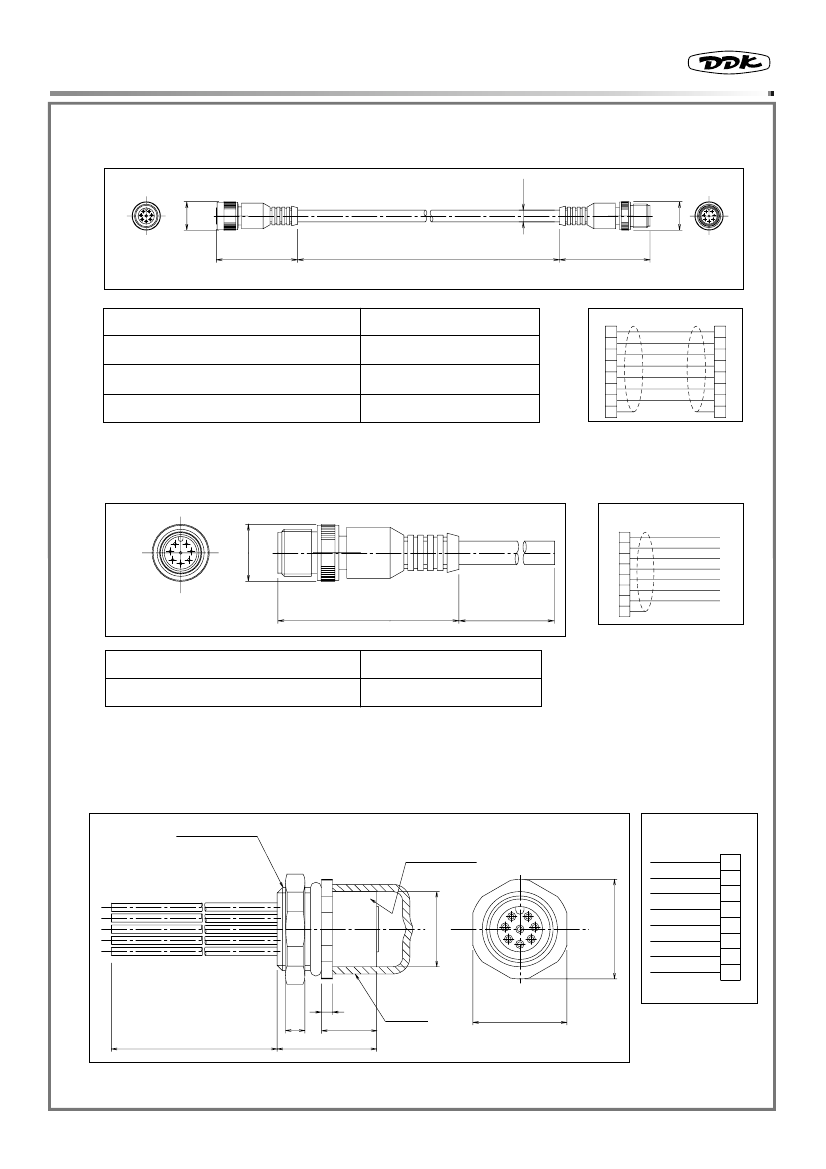

Small Sized & Sealed Circular Connectors

CM04

Series

■APPLICATION

actuators).

8-Pole/M12-Size

CM04-E-01

・Various

kinds of industrial devices (sensors,

・Also

available for heavy duty device,

having sealed type design.

■FEATURES

・Sealed

type design : IP67

・UL94V−0

insulator flammability rating

・Small

size & high density : 8−pole/M12 size

・Overmold

style cable assembly

■SPECIFICATIONS

・Voltage

rating : 30V AC / 36V DC

・Current

rating : 1.5A / contact

・Insulation

resistance : 100MΩ min. at 250V DC

・Dielectric

withstanding voltage : 1000V AC (r.m.s) 1min.

・Operating

temperature range :

−40∼＋85℃

・Number

of contacts : 8 (size : AWG 22)

・Cable

for plug & jack cable assembly : Shielded cable with 7−conductor, AWG22

・Wire

for plug receptacle wire assembly : UL1007, 0.3mm sq

■MATERIAL

/ FINISH

ITEM

Insulator

Contact

Coupling ring

Shell

Nut

0-ring

Synthetic rubber / black

PLUG

JACK

Plastic(UL94V-0) / black

Copper alloy / gold plating

Zinc alloy / nickel plating

Copper alloy / nickel plating

Synthetic rubber / black

PLUG RECEPTACLE

SA LE S OF F I C E

.

http:/ / www.ddkconnec to rs .c o m/

: Tel

81-285-84-7861

66-2-529-1428

44-1959-561224

1-408-980-8344

65-271-1151

852-2369-7028

Fax 81-285-82-9036

Fax 66-2-529-1427

Fax 44-1959-561034

Fax 1-408-980-9750

Fax 65-271-2345

Fax 852-2369-7392

DDK LT D. ( JA PA N )

DDK ( T H AIL A N D ) LTD

F UJI K U R A D D K E LEC TRO NICS (E UROP E ) LTD (U K )

FAI D DK C O N N . D IV. ( U S A)

FAL D D K C O N N . D IV. ( S' P ORE )

FHL D D K C O N N . D IV. ( HK )

Sp ec i fi c a tio n s a r e s u b je c t to c h an g e with o u t n o tic e f o r p u r p o se o f p ro d u ct m o difi cc at io n.

CM04A-8DP8S-030 Related Products

	CM04A-8DP8S-030	CM04A-8DP8S-010	CM04A-8DP8S-050	CM04-8DJ8P-005	CM04-8DPR8S-H
Description	Interconnection Device	Interconnection Device	Interconnection Device	Circular Connector, 8 Contact(s), Female, Jack	Circular Connector, 8 Contact(s), Zinc Alloy, Female, Plug
Maker	DDK	DDK	DDK	DDK	DDK
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
Other features	NO. OF CONTACTS: 8, CABLE LENGTH: 3000M, MALE-FEMALE, PLUG-JACK SHIELDED, 22AWG, 94V-0	NO. OF CONTACTS: 8, CABLE LENGTH: 1000M, MALE-FEMALE, PLUG-JACK, SHIELDED, 22AWG, 94V-0	NO. OF CONTACTS: 8, CABLE LENGTH: 5000MM, MALE-FEMALE, PLUG-JACK, SHIELDED, 22AWG, 94V-0	HIGH DENSITY	HIGH DENSITY
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
