RF Coaxial Connector
Push-On

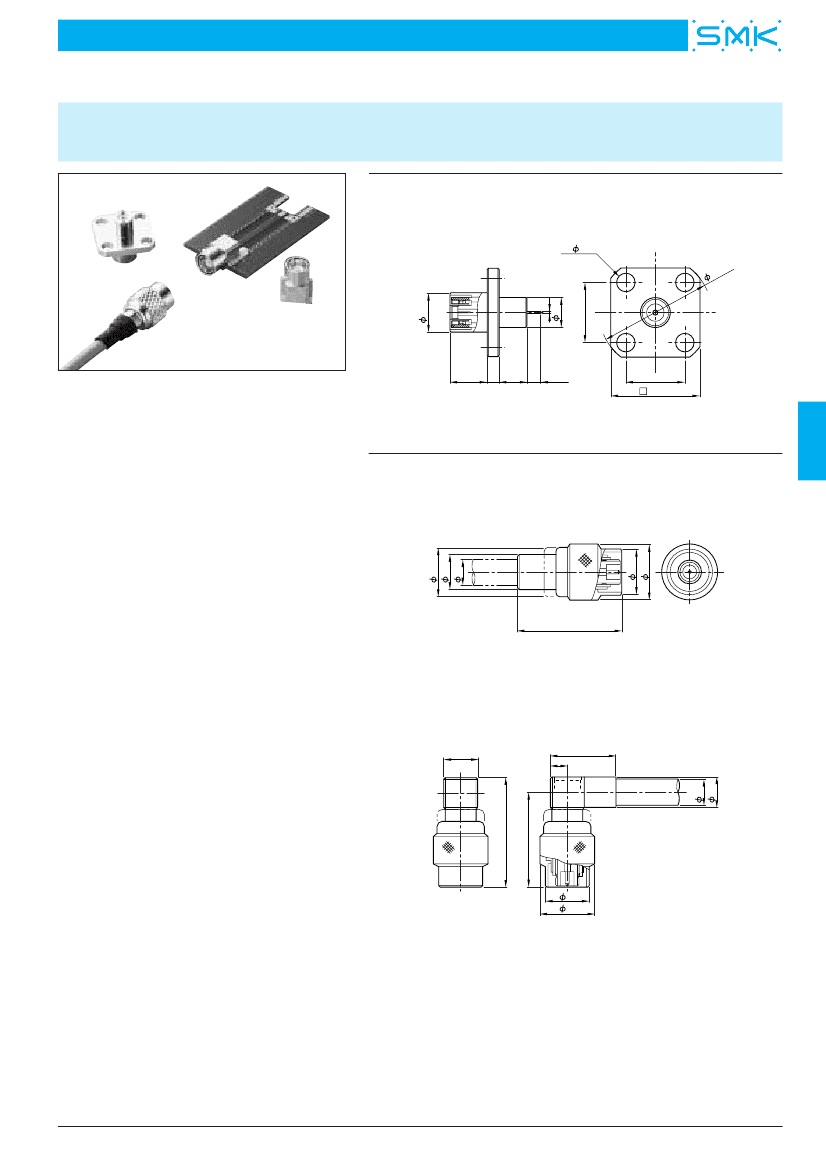

Coaxial Connector, TC-11 Series <12.5GHz>
●
Receptacle
CRS5001-2101F
4- 2.6
16
5.5
0.3
4.2
.0
5.4
1.7 4.0
2.0
8.6
■
Features
1. A coaxial connector of high matching performance
for equipment for broad area coverage systems
such as base station systems.
2 Good frequency characteristics to cover a DC to
12.5GHz range.
3. A small coaxial connector of a push-on mating
system with a locking provision, with the
receptacle being SMT-ready (edge mounting)
and panel-mountable type.
4. Accepts 50Ω coaxial cables equivalent to the 1.5D
type (3.0mm O.D.), or 50Ω semi-flexible coaxial
cables (equivalent to the 085’ and 141’) or 50Ω
semi-rigid coaxial cable (equivalent to the 085’
and 141’).
5. A lead-free product (receptacle).
8.6
12.7
■
Specifications
1. Rated Voltage : 250V AC
2. Frequency Range : DC to 12.5GHz
3. Characteristic Impedance : 50Ω
4. V.S.W.R. Receptacle : 1.3 max.
Straight Plug : 1.2 max.
Right-Angle Plug : 1.3 max.
5. Operating Temperature Range : –65˚C to +125˚C
(15.0)
CRC9001-2901G ( Right-Angle)
■
Material and Plating
●
Receptacle Shell : Copper Alloy, Nickel Plating
Terminal : Copper Alloy, Gold Plating
●
Plug Shell : Copper Alloy, Gold Plating
Contact : Copper Alloy, Gold Plating
5.0
9.5
2.5
3.6
4.4
(15.9)
13.7
6.4
( 8.0)
■
Note
Please contact our sales agent for lead-free product.
RF Coaxial Connectors
●
Plug
CRC9001-3001G ( Straight)
6.9
4.8
3.6
6.4
8.0
