S600/S601
ENGINEERING DATA SHEET

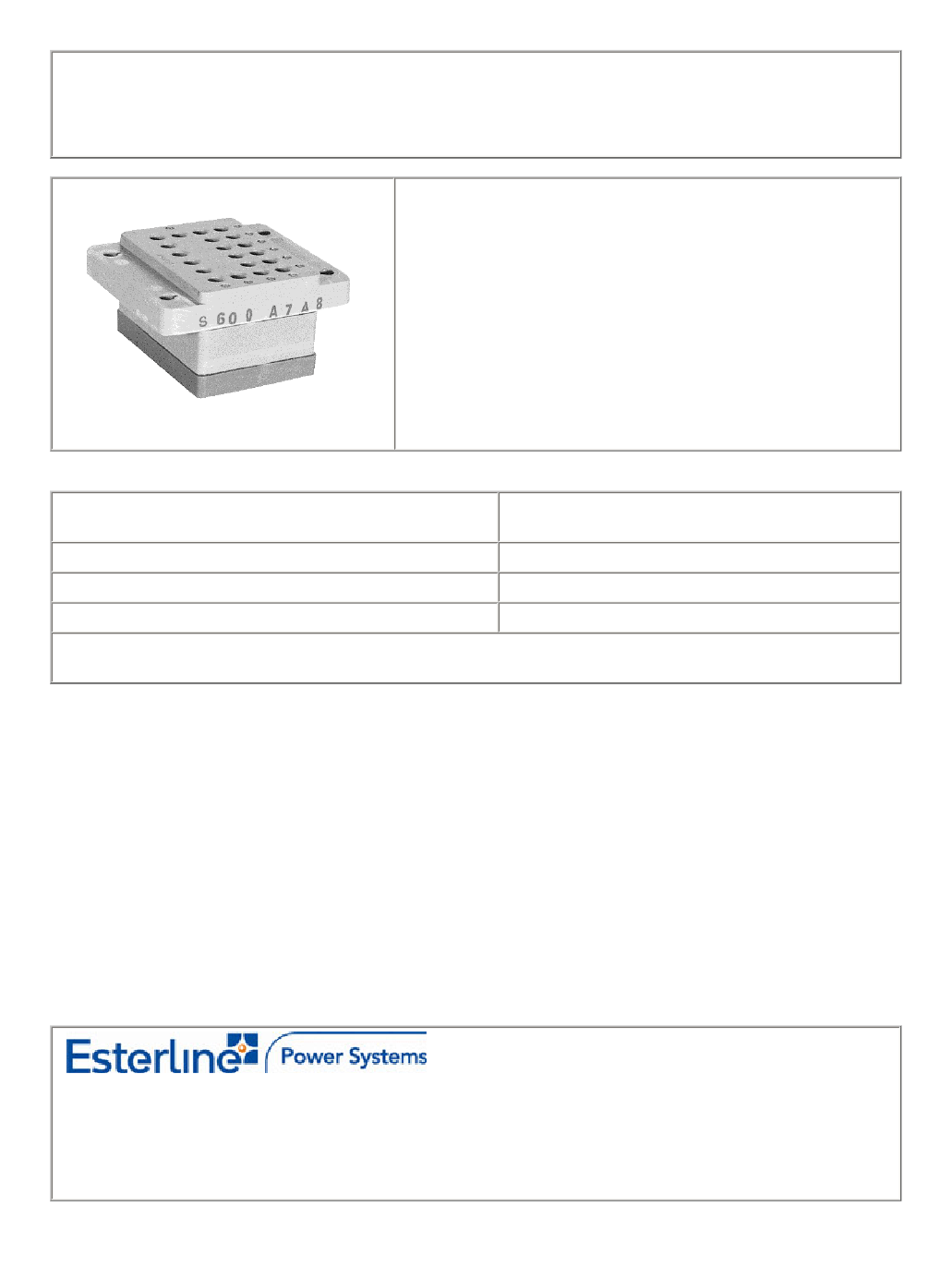

SOCKET FOR 6 POLE RELAY
10 AMP
BASIC SOCKET SERIES DESIGNATION FOR:
SERIES F600, F601
Meets the Requirements of:
For relays 6 PDT/10A
MATERIALS
Socket body
Grommet
Hardware
Thermoset plastic per MIL-M-14,
SDG-F
Silicone rubber per ZZ-R-765
Stainless Steel
MIL-DTL-12883
MIL-PRF-6106/8-CECC16101-020
GENERAL CHARACTERISTICS
Crimp tool for 16 gauge contacts
Insertion and extraction tool
Weight
Temperature range
M22520/1-01 or 7-0l; with positioner, M22520/1-02
or 7-03
M81969/14-03
65g max.
-70C to +125°C
This connection is designed to the standards and requirements of Mil-S-12883/47 Contacts and hardware are
provided disassembled in a plastic bag. Tolerances are ±0.25mm unless otherwise noted.
Featuring
LEACH
©
power and control solutions
www.esterline.com
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (33) 3 87 97 31 01 Tel: (852) 2 191 3830
Fax: (33) 3 87 97 96 86 Fax: (852) 2 389 5803
EUROPE
2 Rue Goethe
57430 Sarralbe
France
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 8/09
-2-
Page 1 of 3

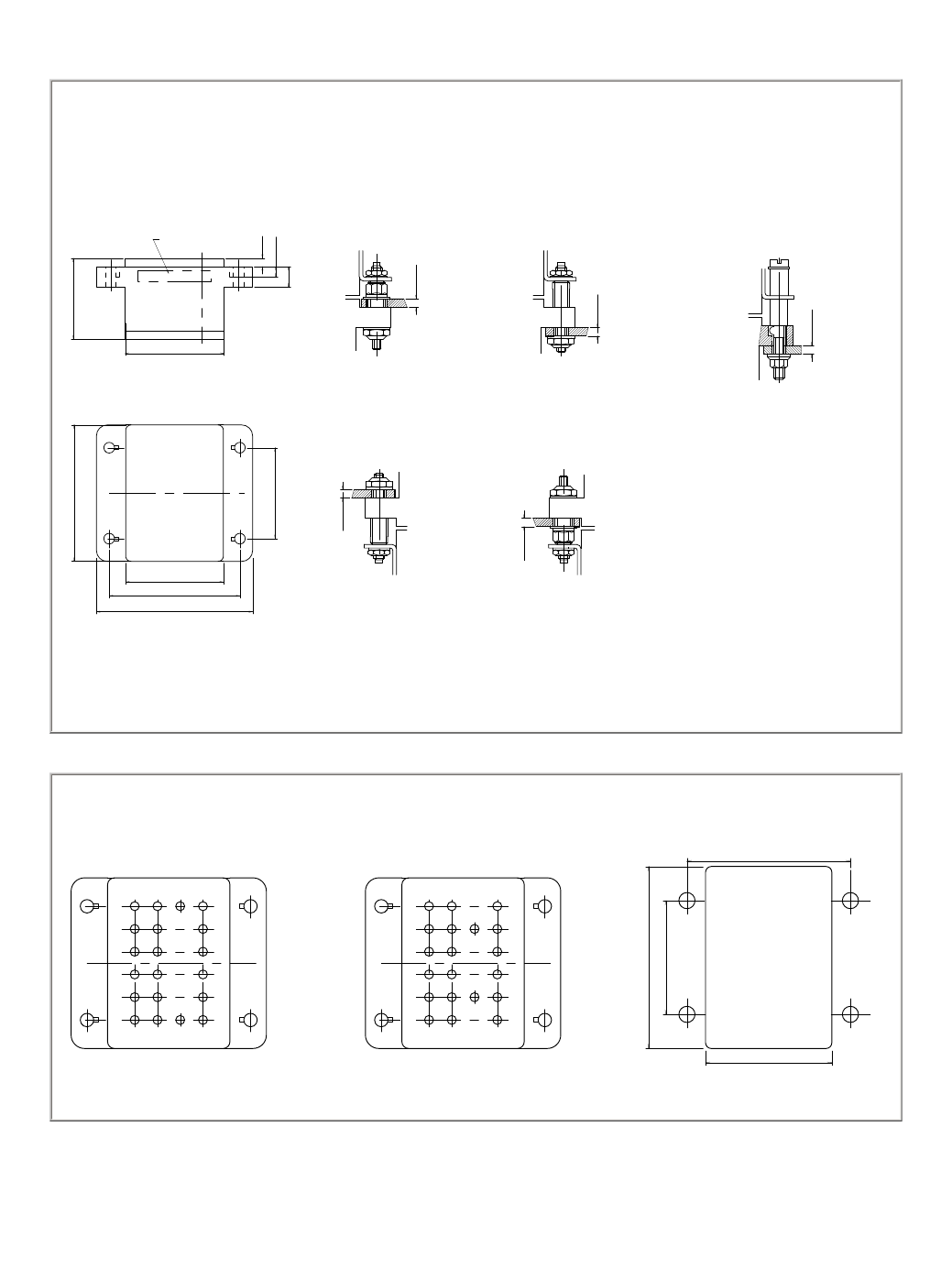

MOUNTING HARDWARE DIMENSIONS
S600/S601
CODE 8
LOOSE UNC STUDS PER MIL-S-12883/47
2.36
2.8
±
0.1
CODE 7:
(05-284-15)
LOOSE METRIC HARDWARE
TOP MOUNT
LEACH P/N
BOTTOM MOUNT
2.4 MAX
5.58
TOP MOUNT
22.6 MAX
2.4
MAX
27.6 MAX
MOUNTING HOLE:5,3 mm
MOUNTING HOLE:3,6 mm
FOR RELAYS WITH CODE B TERMINALS
MOUNTING HOLE:3,6 mm
MOUNTING TORQUE
NUT 4,8: 2 Nm
NUT 2,8: 0,45 Nm
CODE 9
FIXED UNC STUDS PER MIL-S-12883/47
BOTTOM MOUNT
25.40
38.1
TOP MOUNT
27.3
36.5
43.7
MOUNTING HOLE:5,3 mm
MOUNTING HOLE:3,6 mm
MOUNTING TORQUE
NUT 4,8: 2 Nm
NUT 2,8: 0,45 Nm
Unless otherwise specified tolerances are ±0.13mm
TERMINAL LAYOUT
MOUNTING HOLE LAYOUT
36.5
CODE A S600
CODE B S601
A
B
C
D
E
F
3
2
X1
1
A
B
C
D
E
3
2
X1
1
40.64
X2
F
X2
28.2
Date of issue:
8/09
-3-
25.4
2.4 MAX
2.4
MAX
2.4 MAX
Page 2 of 3
WIRE GAUGE TO BE SEALED BY THE GROMMET
Code A
Contact size 16-16
1.65mm to 2.76mm
S600/S601
CONTACT SIZE AND STYLE
Code 0
Contacts not supplied
Code 8
Coil Contacts
(11-16-533)
Insertion side: AWG 16-18-20
relay side: AWG 16
In accordance with Mil-C-39029-533
Quantity: 20
S600
A
9
A
8
1-Basic Series Designation________________________|
|
|
|
|
2-Terminal Types (A,B)_________________________________|
|
|
|
3-Mounting Hardware (4,7,8,9)______________________________|
|
|
4-Grommet To Seal On Wire Insulation (A)_______________________|
|
5-Contacts Size And Styles (0,8)___________________________________|
MS NUMBER CROSS REFERENCE
MS REFERENCE
M12883/47-001
M12883/47-002
M12883/47-004
M12883/47-005
S600/S601 REFERENCE
S600-A8A8
S601-B8A8
S600-A9A8
S601-B9A8
Date of issue:
8/09
-4-
Page 3 of 3
