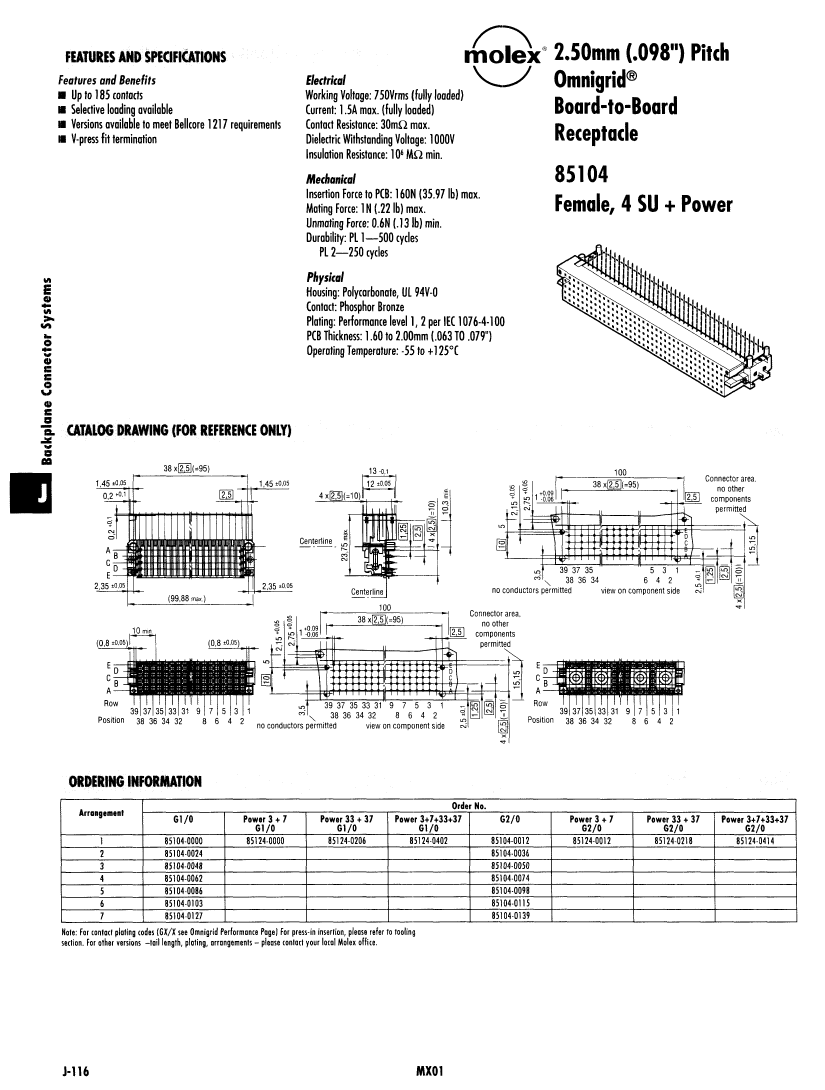

Board Connector, 148 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Board mount options | LOCATING POSTS |
| body width | 0.512 inch |
| subject depth | 0.935 inch |
| body length | 3.932 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.0008 N |
| Insulation resistance | 1000000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYCARBONATE |
| MIL compliance | NO |
| Manufacturer's serial number | 85104 |
| Plug contact pitch | 0.098 inch |
| Match contact row spacing | 0.098 inch |
| Mixed contacts | NO |
| Installation option 1 | GUIDE SLOT |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.4892 mm |
| Plating thickness | 80u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2.5 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 148 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .5838 N |
