941-005RD15PB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 941-005RD15PB

Preview

941-005RD15PB: DescriptionCircular Connector Adapter,; CategoryThe connector The connector; File Size126KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

941-005RD15PB Overview

Circular Connector Adapter,

941-005RD15PB Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector type	CIRCULAR CONNECTOR ADAPTER

Preview

Download Datasheet

View All

Sav-Con

®

Connector

Savers

Sav-Con

®

Connector Savers

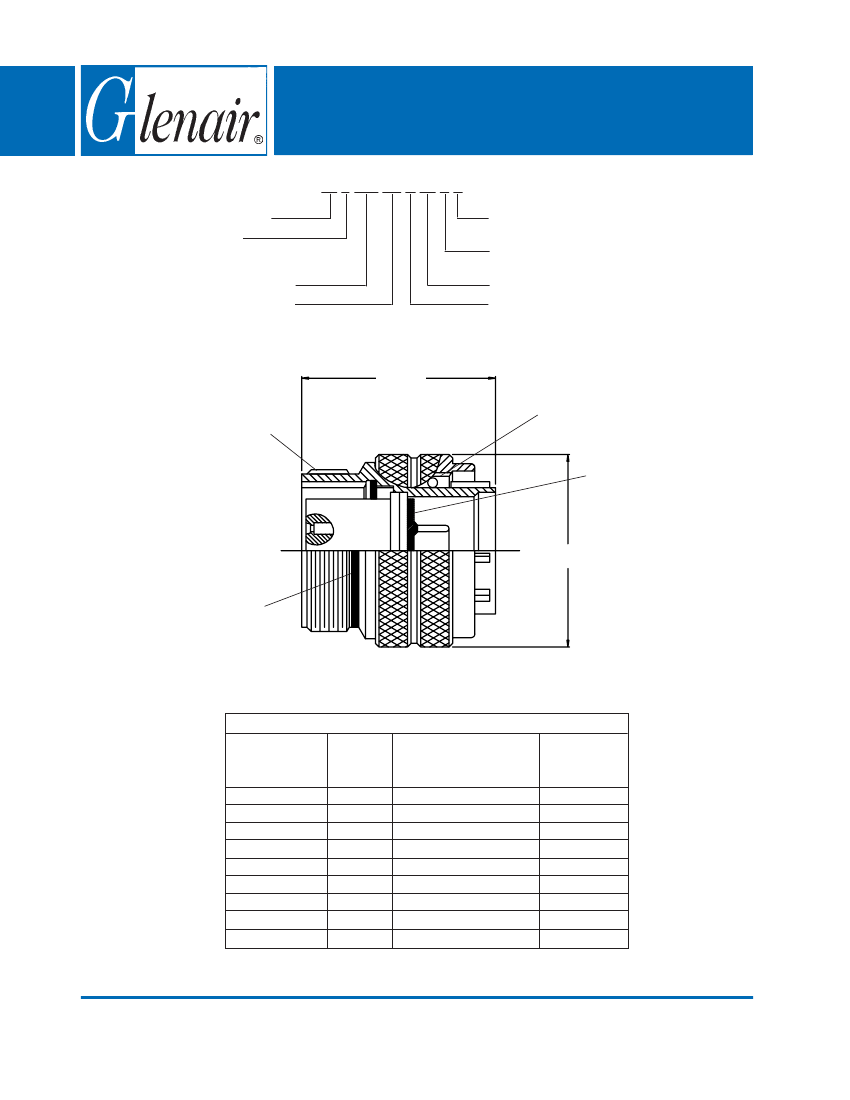

MIL-DTL-38999 Series III

94 1-005 NF B 98 P A

Series No.

Class

1 = Environmental

2 = Hi Rel

Basic Part No.

Finish Symbol

(See Page G-6)

1.875

(47.6)

MAX

A Thread

Class 2A

A Thread

Class 2B

Alternate Position

A, B, C, D, E (Omit for Normal)

P = Pins, Plug Side

S = Sockets, Plug Side

Insert Arrangement

Shell Size Code

Interfacial Seal

RECEPTACLE END

B

Red Color Band

for visual indication

of full mate

B

PLUG END

TABLE I

Shell Size/

Insert

Arrangement

A-1

B-1

C-1

D-1

E-1

F-1

G-1

H-1

J-1

Shell

Size Ref

9

11

13

15

17

19

21

23

25

A Thread

Class 2*

.6250-0.1P-0.3L-TS-2

.7500-0.1P-0.3L-TS-2

.8750-0.1P-0.3L-TS-2

1.0000-0.1P-0.3L-TS-2

1.1875-0.1P-0.3L-TS-2

1.2500-0.1P-0.3L-TS-2

1.3750-0.1P-0.3L-TS-2

1.5000-0.1P-0.3L-TS-2

1.6250-0.1P-0.3L-TS-2

B

Max

.859 (21.8)

.969 (24.6)

1.141 (29.0)

1.266 (32.2)

1.391 (35.3)

1.500 (38.1)

1.625 (41.3)

1.750 (44.5)

1.875 (47.6)

Metric Dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

G-16
