K99X-15S-K-BLU-30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> K99X-15S-K-BLU-30

K99X-15S-K-BLU-30: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size298KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K99X-15S-K-BLU-30 Overview

D Subminiature Connector

K99X-15S-K-BLU-30 Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	K99X

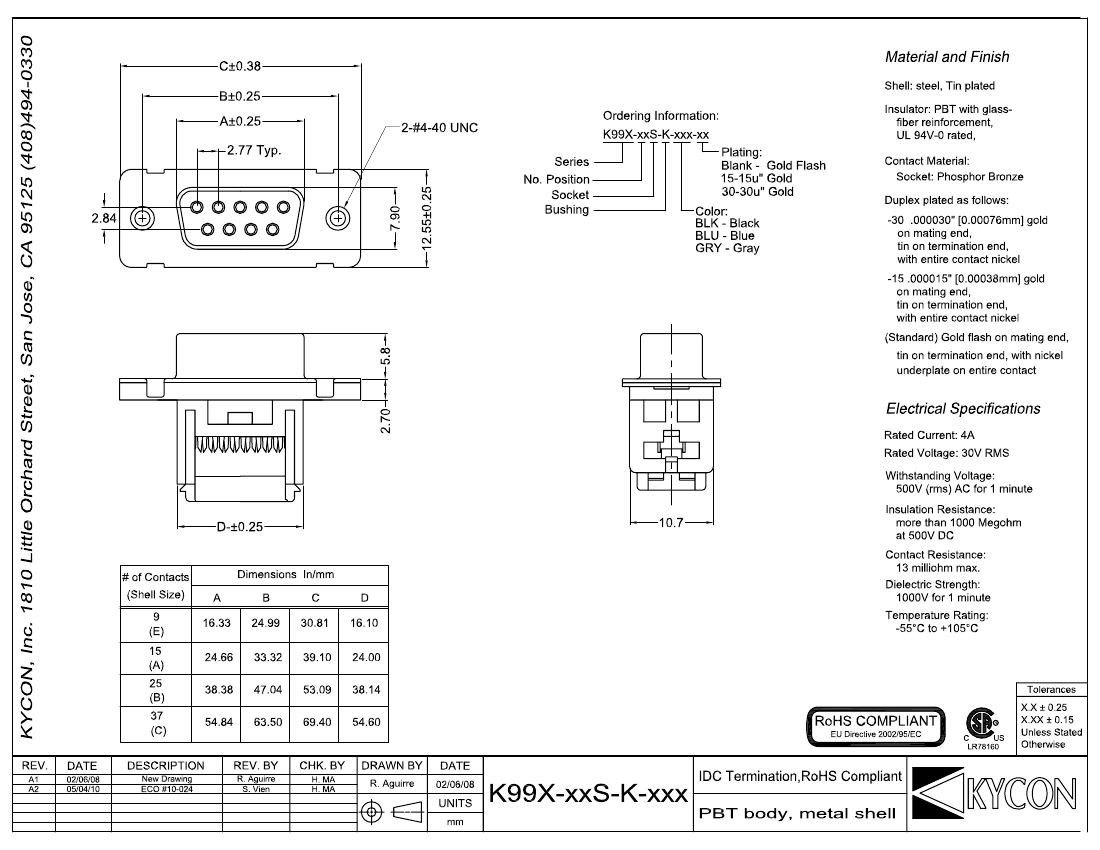

Preview

Download Datasheet

View All

K99X-15S-K-BLU-30 Related Products

	K99X-15S-K-BLU-30	K99X-25S-K-BLU-30	K99X-15S-K-BLK-30	K99X-15S-K-BLK-15	K99X-25S-K-BLK-30	K99X-25S-K-BLK-15	K99X-37S-K-BLK-30	K99X-37S-K-BLK-15	K99X-9S-K-BLK-15	K99X-9S-K-BLK-30
Description	D Subminiature Connector	D Subminiature Connector	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	K99X	K99X	K99X	K99X	K99X	K99X	K99X	K99X	K99X	K99X
body width	-	-	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
body length	-	-	0.994 inch	0.994 inch	1.534 inch	1.534 inch	2.182 inch	2.182 inch	0.666 inch	0.666 inch
Body/casing type	-	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	-	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	-	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	-	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	-	-	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ
Contact style	-	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	-	-	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	-	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	-	-	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Plug contact pitch	-	-	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Installation option 1	-	-	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	-	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	-	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	-	-	2	2	2	2	2	2	2	2
Maximum operating temperature	-	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	-	-	30u inch	15u inch	30u inch	15u inch	30u inch	15u inch	15u inch	30u inch
Rated current (signal)	-	-	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	-	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	-	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	-	-	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	-	-	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	-	-	15	15	25	25	37	37	9	9
