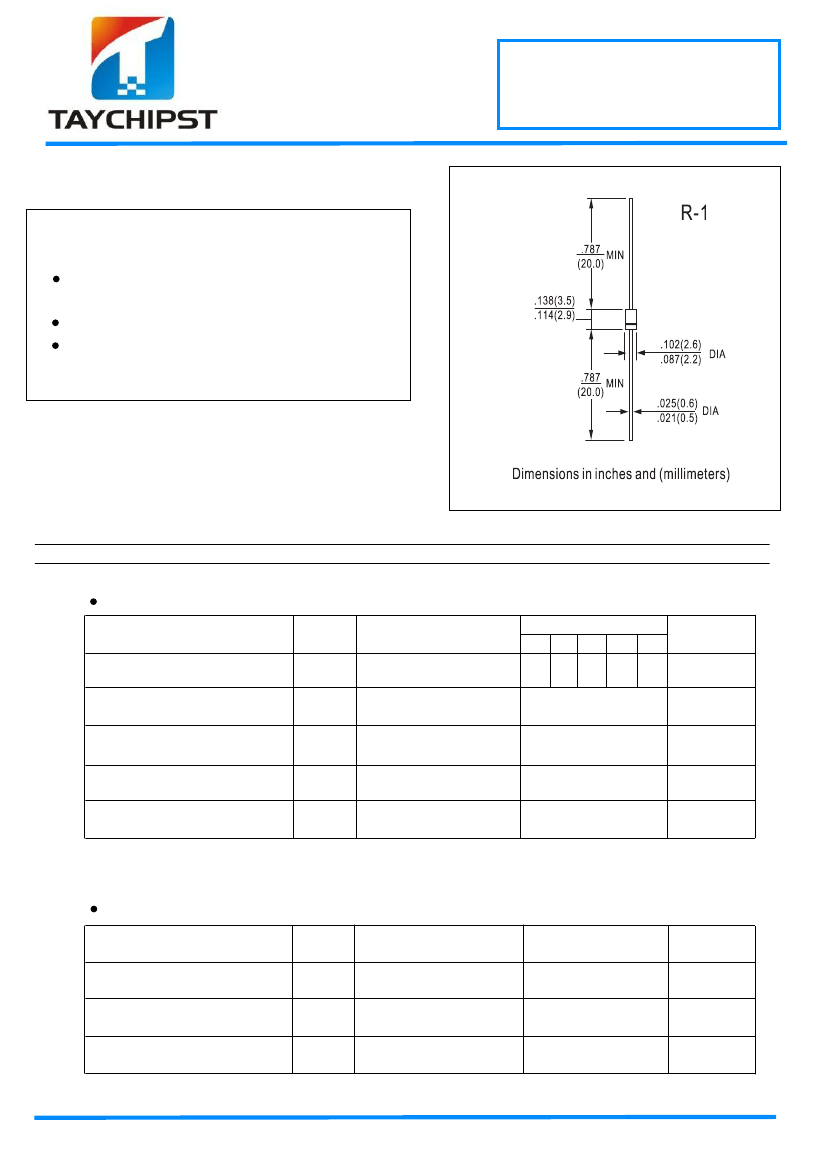

ERA12-02 THRU ERA22-10

FAST RECOVERY DIODE

200V-1000V 0.5A

FEATURES

Ultra small package, possible for 5mm pitch automatic

insertion

High voltage by mesa design

High reliability

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Absolute maximum ratings

Item

Repetitive peak reverse voltage

Average forward current

Surge current

Operating junction temperature

Storage temperature

Symbol

V

RRM

I

F(AV)

I

FSM

T

j

T

stg

Resistive load (Ta=40°C)

Sine wave 10ms

Conditions

Rating

-02 -04 -06 -08 -10

200 400 600 800 1000

0.5

10

-40 to +140

Unit

V

A

°C

Electrical characteristics (Ta=25°C Unless otherwise specified )

Item

Forward voltage drop

Reverse current

Reverse recovery time

Symbol

V

FM

I

RRM

t

rr

Conditions

I

FM

=0.5A

V

R

=V

RRM

I

F

=0.1A, I

R

=0.1A

Max.

1.5

10

0.4

Unit

V

µA

µs

E-mail: sales@taychipst.com

1 of 2

Web Site: www.taychipst.com
