MIC29203BUT&R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MIC29203BUT&R

MIC29203BUT&R: DescriptionAdjustable Positive LDO Regulator, 1.24V Min, 26V Max, 0.75V Dropout, BIPolar, PSSO5, TO-263, 5 PIN; CategoryPower/power management The power supply circuit; File Size357KB，9 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC29203BUT&R Overview

Adjustable Positive LDO Regulator, 1.24V Min, 26V Max, 0.75V Dropout, BIPolar, PSSO5, TO-263, 5 PIN

MIC29203BUT&R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	D2PAK
package instruction	TO-263,
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	0.75 V
JESD-30 code	R-PSSO-G5
JESD-609 code	e0
length	10.287 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.4 A
Maximum output voltage 1	26 V
Minimum output voltage 1	1.24 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	4.8 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.7 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
width	9.144 mm

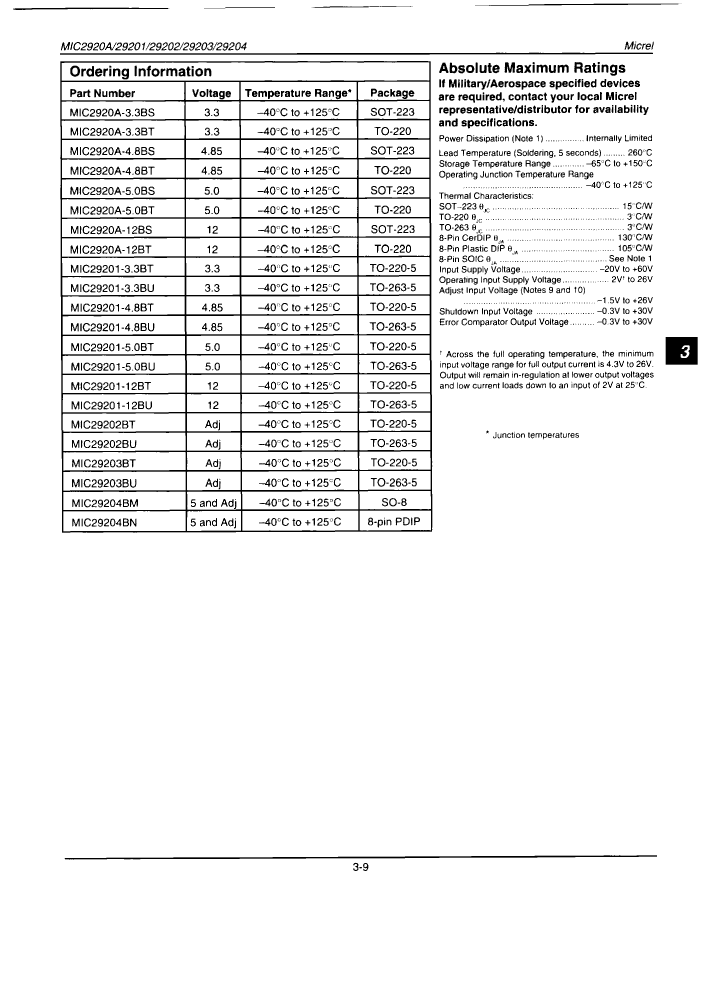

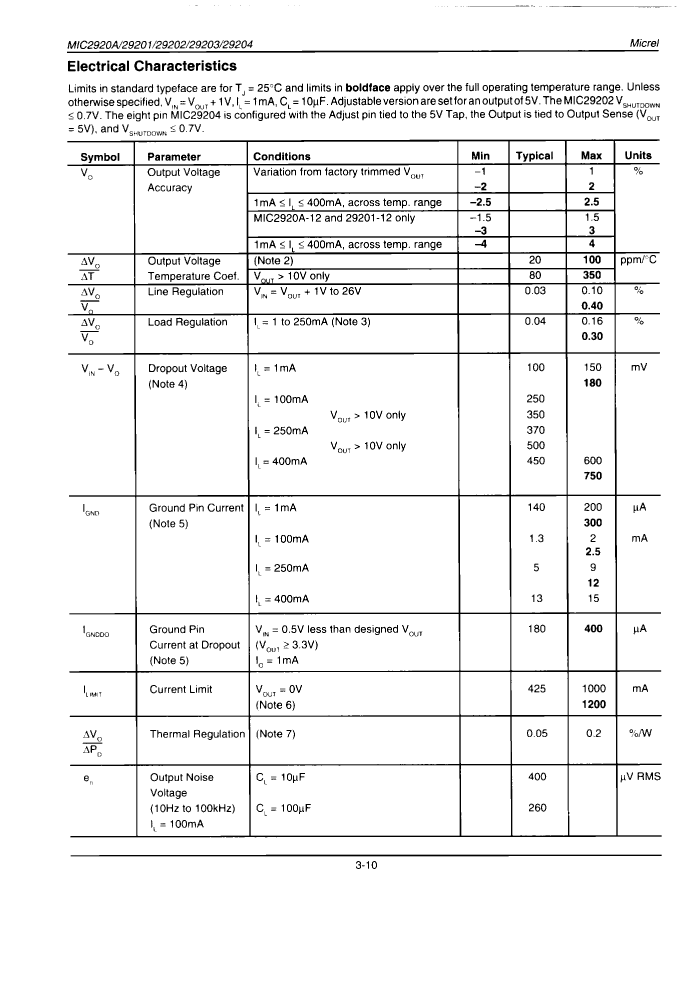

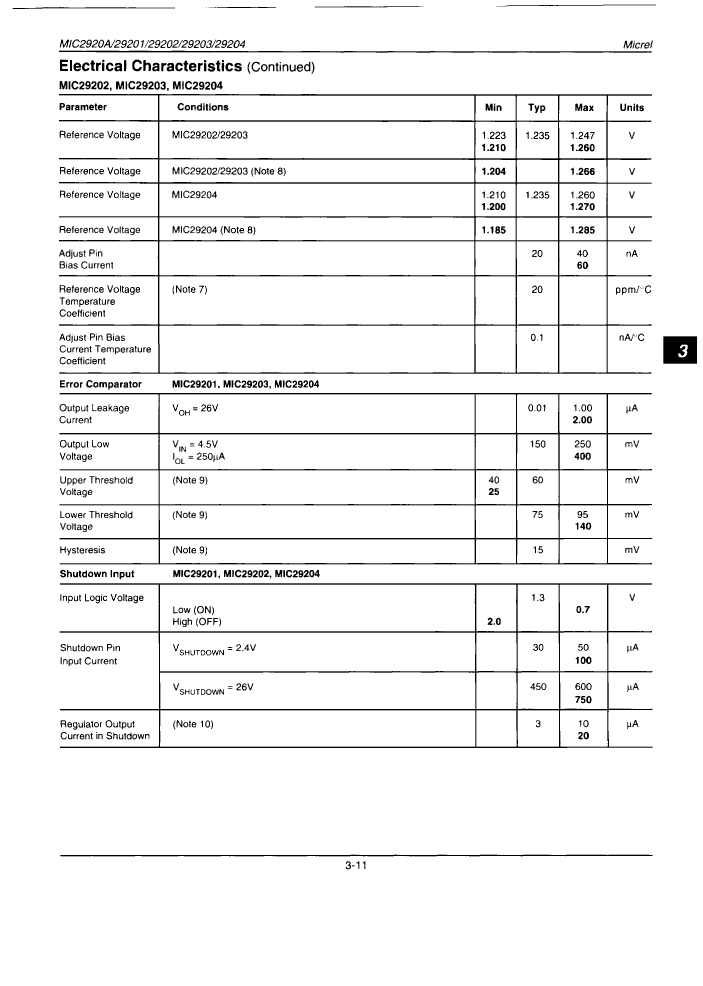

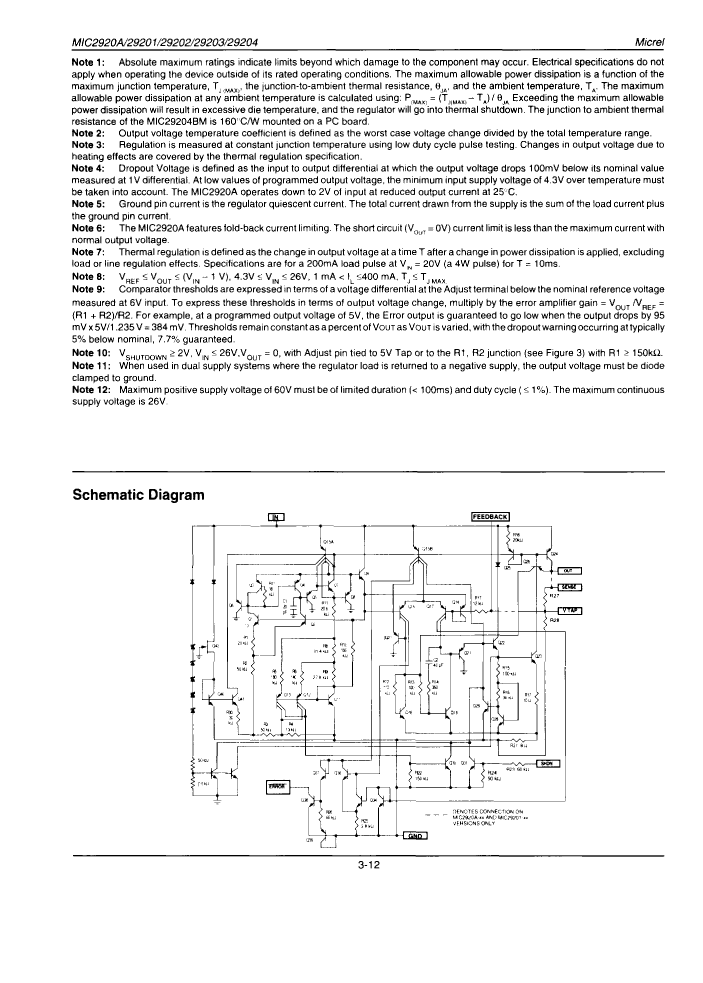

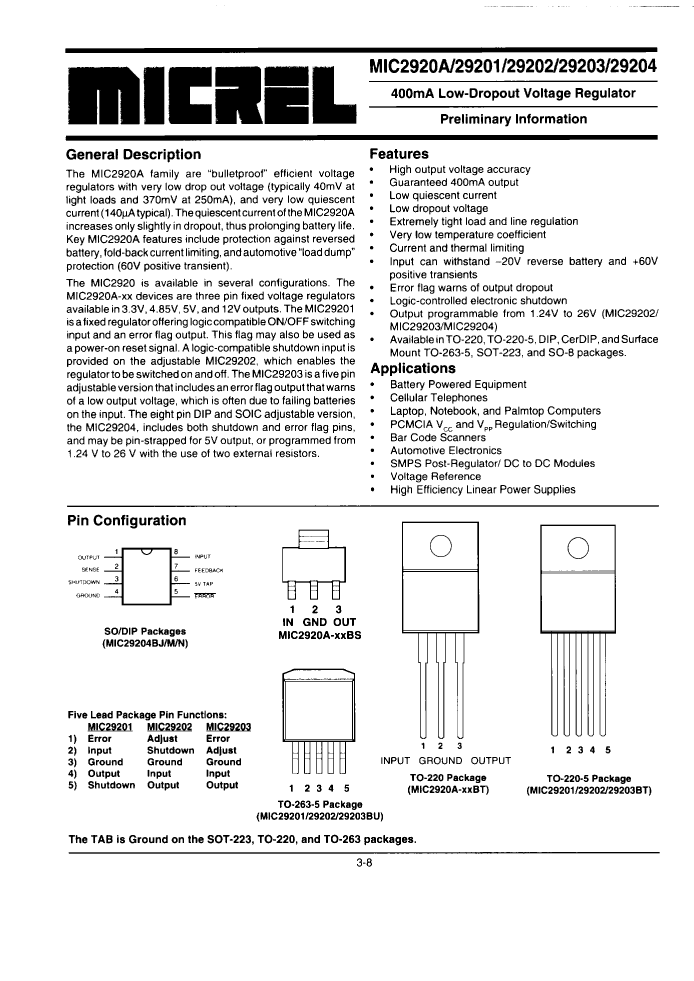

Preview

Download Datasheet

View All

MIC29203BUT&R Related Products

	MIC29203BUT&R	MIC29203BT	MIC29203BU
Description	Adjustable Positive LDO Regulator, 1.24V Min, 26V Max, 0.75V Dropout, BIPolar, PSSO5, TO-263, 5 PIN	Adjustable Positive LDO Regulator, 1.24V Min, 26V Max, 0.75V Dropout, BIPolar, PSFM5, TO-220, 5 PIN	Adjustable Positive LDO Regulator, 1.24V Min, 26V Max, 0.75V Dropout, BIPolar, PSSO5, TO-263, 5 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Microchip	Microchip	Microchip
Parts packaging code	D2PAK	SFM	D2PAK
package instruction	TO-263,	TO-220, 5 PIN	TO-263, 5 PIN
Contacts	4	3	4
Reach Compliance Code	compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.75 V	0.75 V	0.75 V
JESD-30 code	R-PSSO-G5	R-PSFM-T5	R-PSSO-G5
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Number of terminals	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.4 A	0.4 A	0.4 A
Maximum output voltage 1	26 V	26 V	26 V
Minimum output voltage 1	1.24 V	1.24 V	1.24 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-263	TO-220	TO-263
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.7 mm	1.7 mm	1.7 mm
Terminal location	SINGLE	SINGLE	SINGLE
length	10.287 mm	-	10.287 mm
Humidity sensitivity level	3	-	3
Peak Reflow Temperature (Celsius)	240	240	-
Maximum seat height	4.8 mm	-	4.8 mm
Maximum time at peak reflow temperature	30	30	-
width	9.144 mm	-	9.144 mm
Adjustability	-	ADJUSTABLE	ADJUSTABLE
Nominal dropback voltage 1	-	0.6 V	0.6 V
Maximum grid regulation rate (%/V)	-	0.017	0.017
Maximum load regulation (%)	-	0.3%	0.3%
Output times	-	1	1
Maximum operating temperature	-	125 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C
Encapsulate equivalent code	-	SIP5,.1,67TB	SMSIP5H,.6,67TB
