5962-86716012X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962-86716012X

5962-86716012X: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size293KB，9 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-86716012X Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch

5962-86716012X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-20
Contacts	20
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Maximum negative supply voltage (Vsup)	-16.5 V
Negative supply voltage minimum (Vsup)	-13.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	20
Nominal off-state isolation	72 dB
On-state resistance matching specifications	3 Ω
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	50 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	8.89 mm
Base Number Matches	1

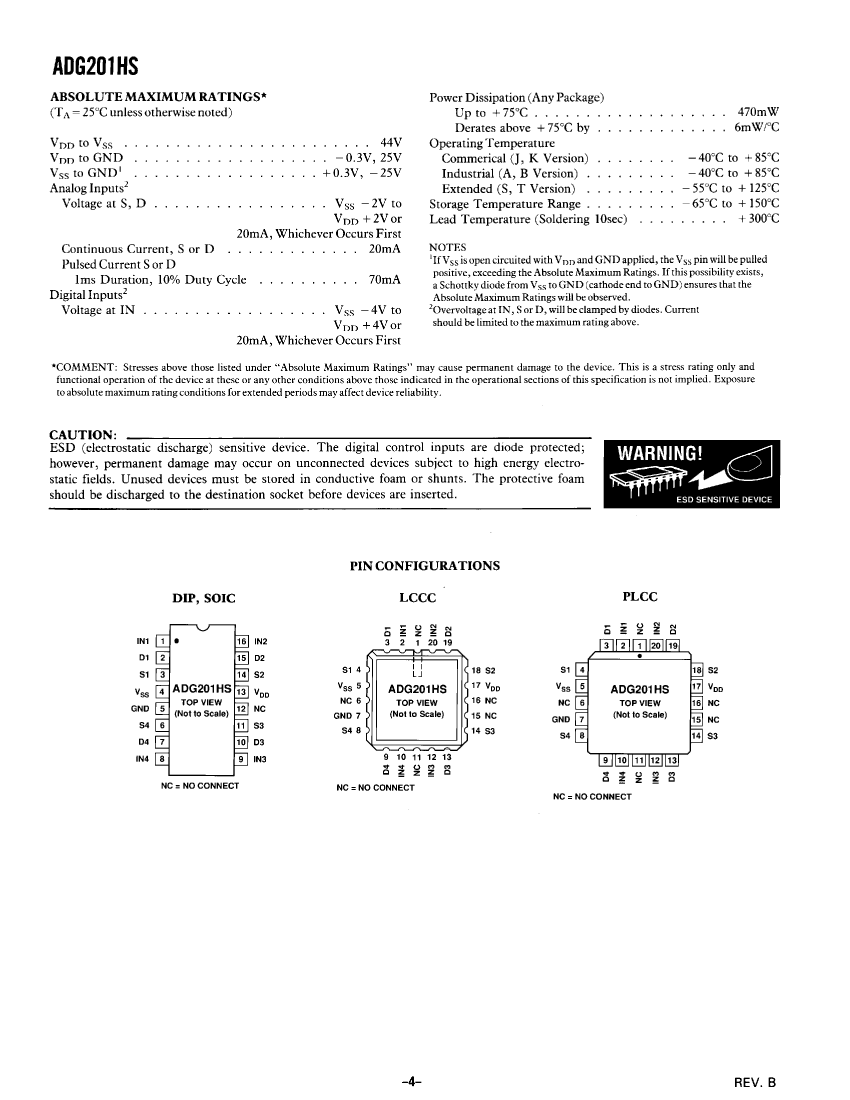

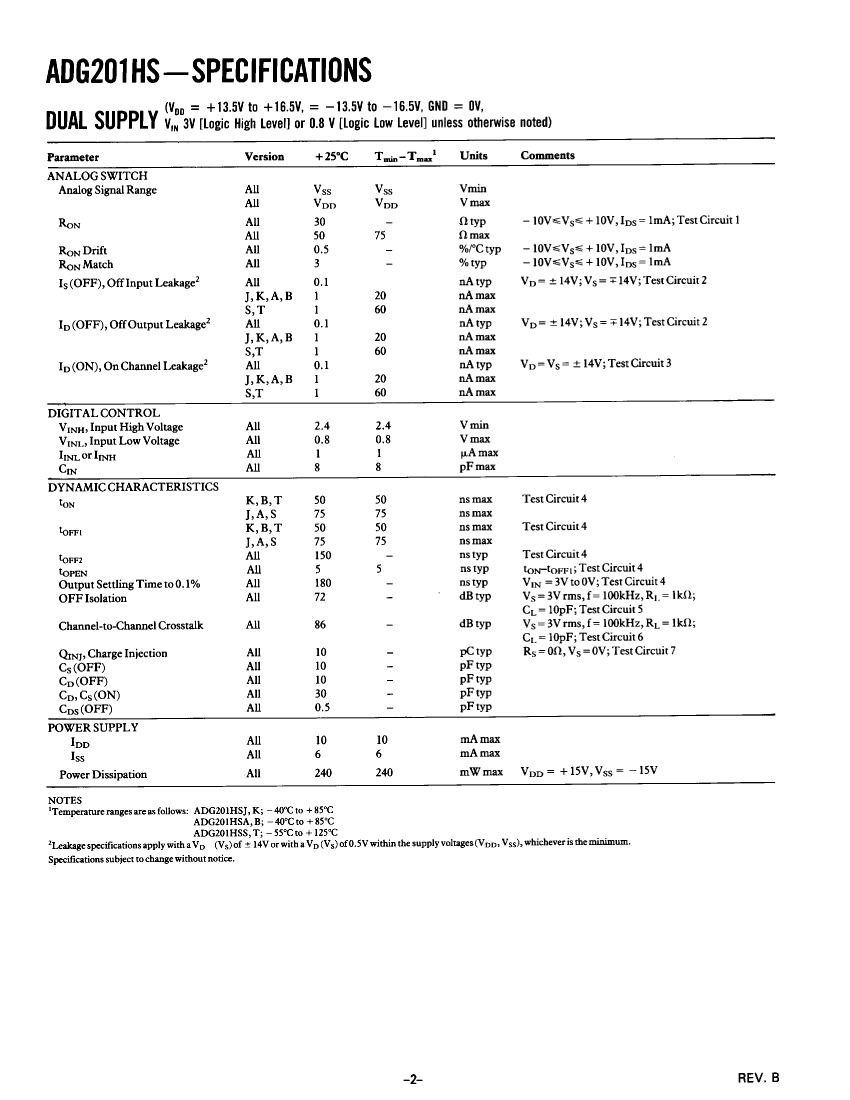

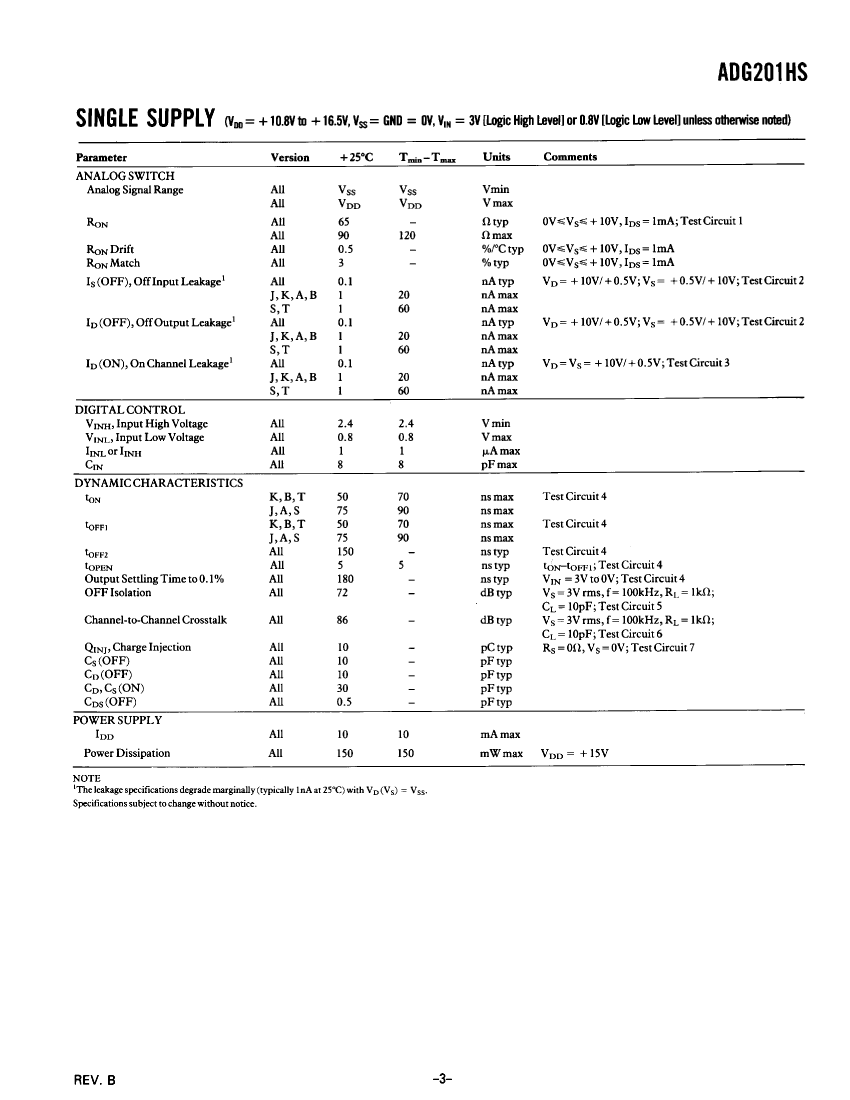

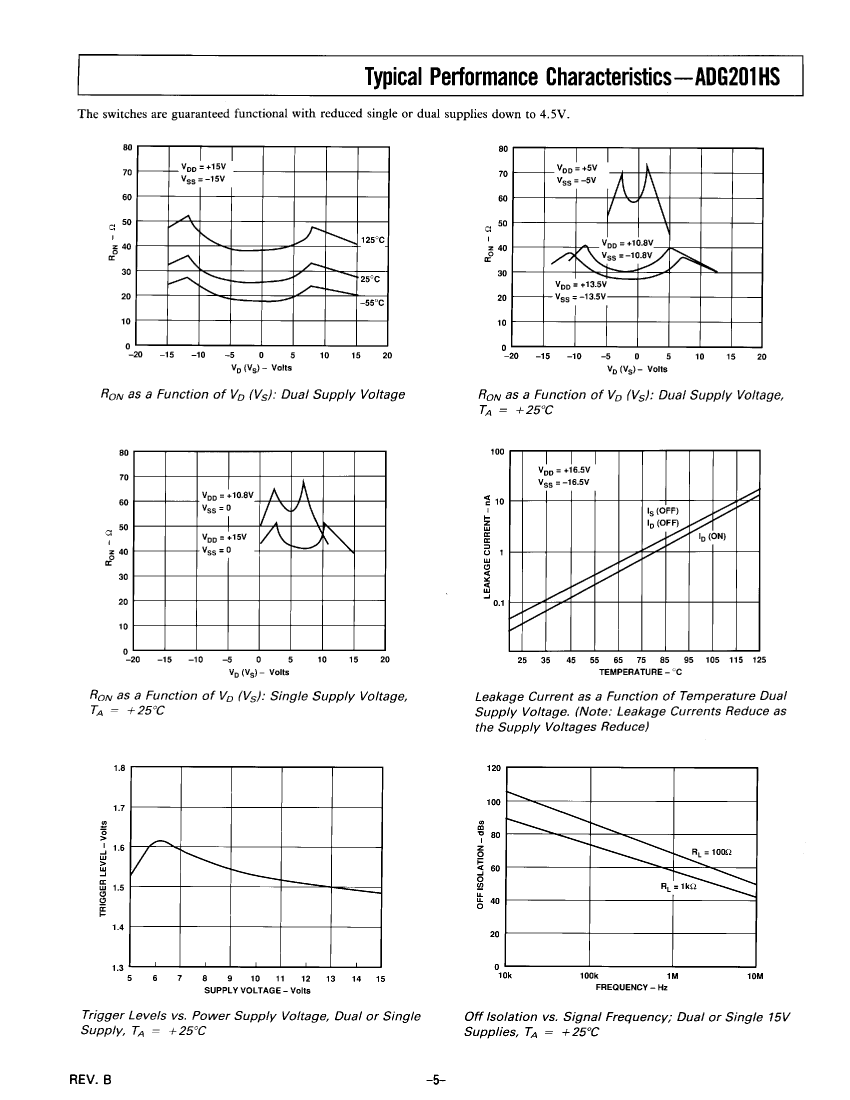

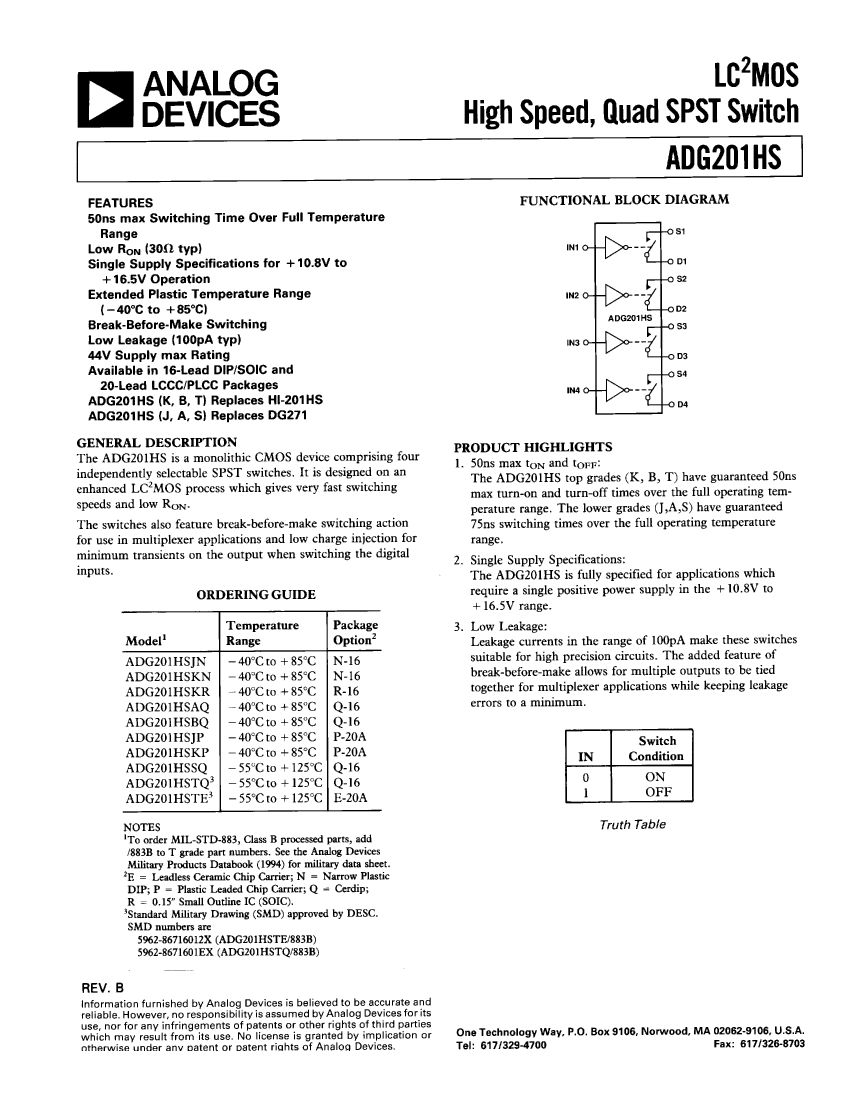

Preview

Download Datasheet

View All

5962-86716012X Related Products

	5962-86716012X	5962-8671601EX
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP20, CERDIP-16, Multiplexer or Switch
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	QLCC	DIP
package instruction	CERAMIC, LCC-20	DIP,
Contacts	20	16
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	S-CQCC-N20	R-GDIP-T20
JESD-609 code	e0	e0
length	8.89 mm	19.495 mm
Maximum negative supply voltage (Vsup)	-16.5 V	-16.5 V
Negative supply voltage minimum (Vsup)	-13.5 V	-13.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	1	1
Number of functions	4	4
Number of terminals	20	20
Nominal off-state isolation	72 dB	72 dB
On-state resistance matching specifications	3 Ω	3 Ω
Maximum on-state resistance (Ron)	50 Ω	50 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	220	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	4.572 mm
Maximum supply voltage (Vsup)	16.5 V	16.5 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	NO
Maximum disconnect time	50 ns	50 ns
Maximum connection time	50 ns	50 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED
width	8.89 mm	7.62 mm
Base Number Matches	1	1
