SFI9644 datasheet, PDF - EEWORLD Datasheet

SFI9644: DescriptionPower Field-Effect Transistor, 8.6A I(D), 250V, 0.8ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, I2PAK-3; CategoryDiscrete semiconductor The transistor; File Size176KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

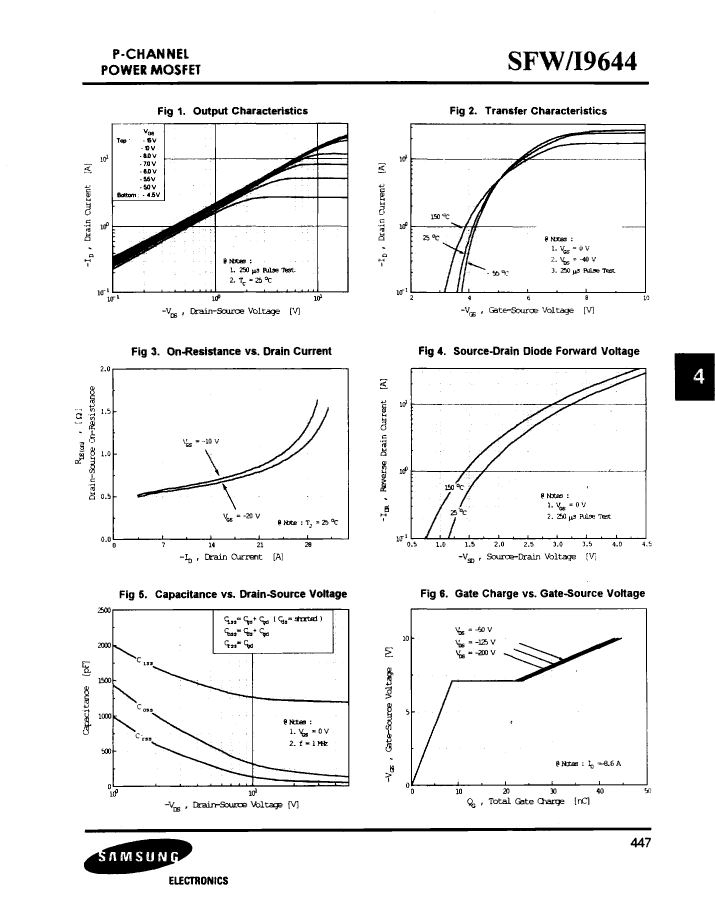

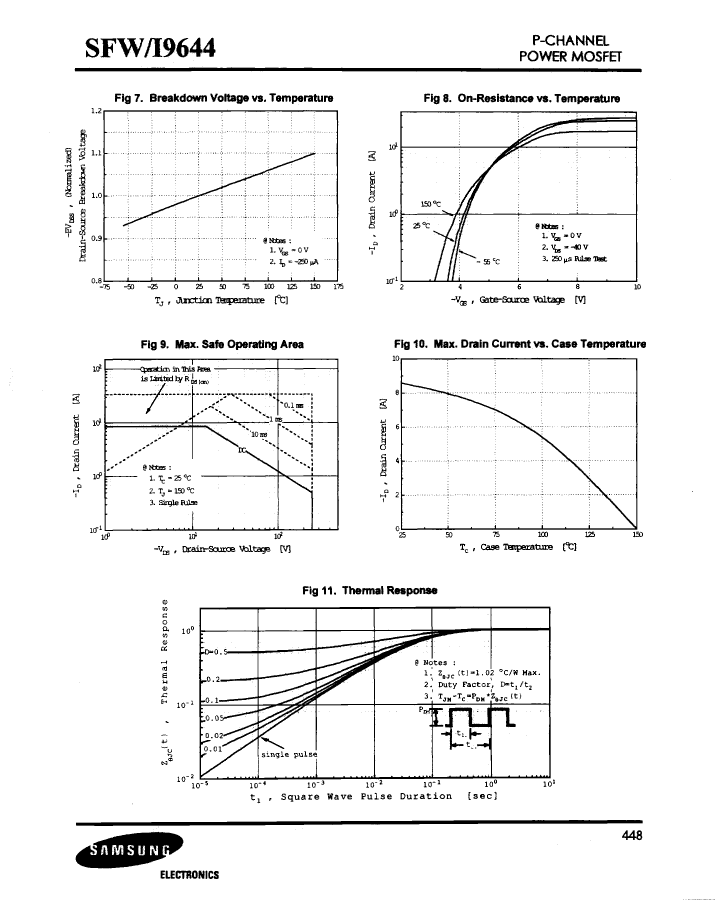

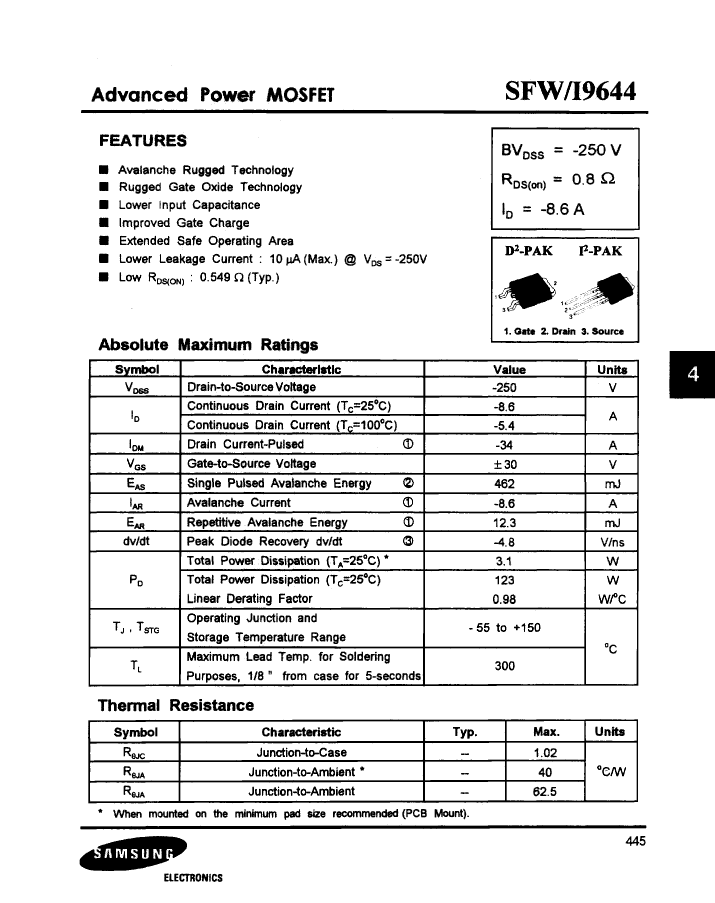

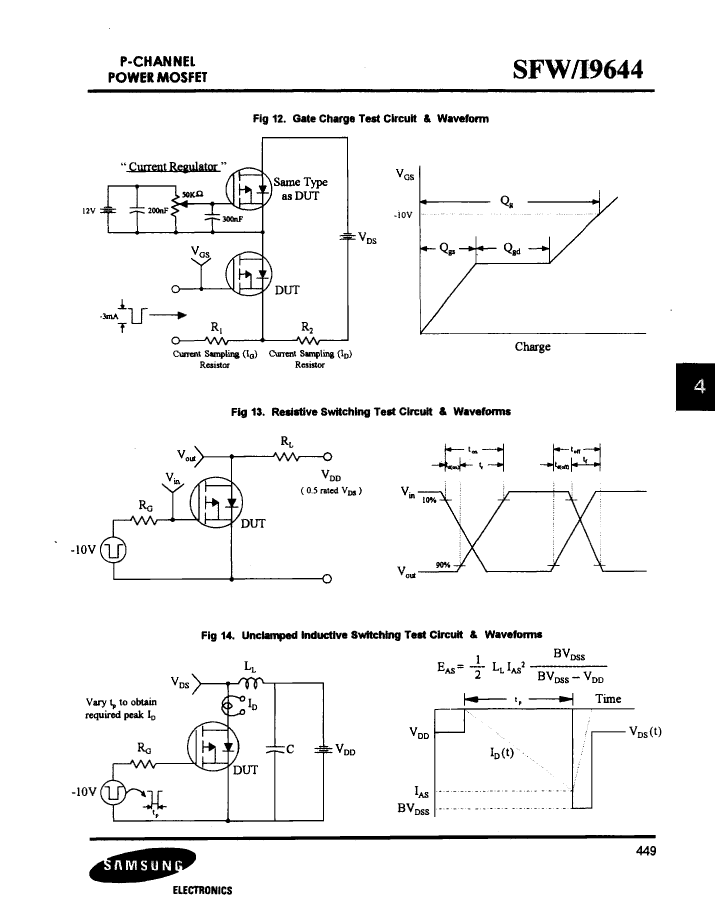

SFI9644 Overview

Power Field-Effect Transistor, 8.6A I(D), 250V, 0.8ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, I2PAK-3

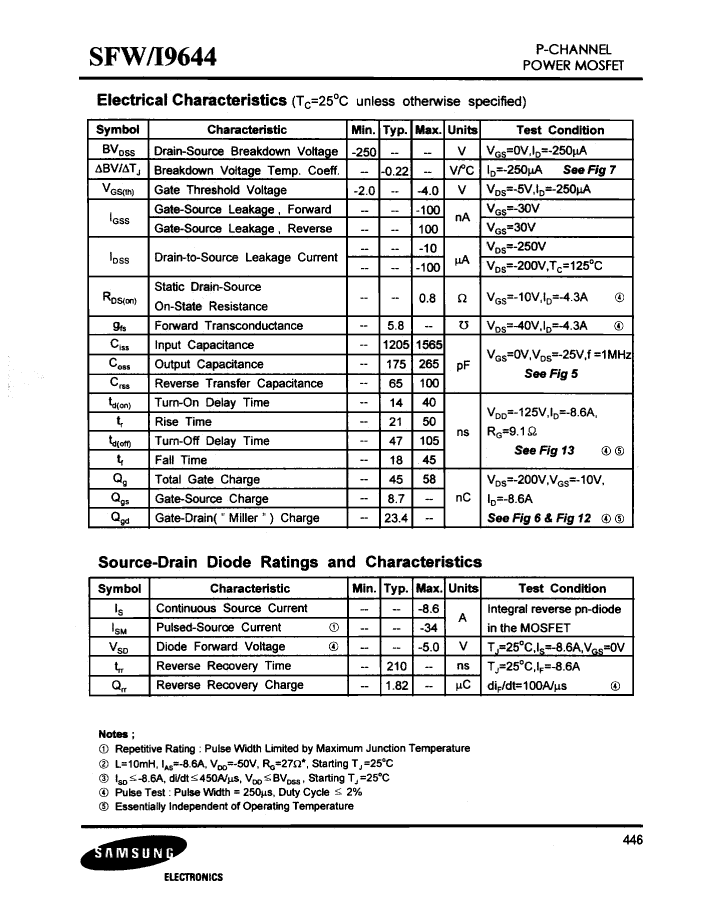

Parameter Name	Attribute value
Maker	SAMSUNG
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	462 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	250 V
Maximum drain current (Abs) (ID)	8.6 A
Maximum drain current (ID)	8.6 A
Maximum drain-source on-resistance	0.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	P-CHANNEL
Maximum power dissipation(Abs)	123 W
Maximum pulsed drain current (IDM)	34 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON

	SFI9644	SFW9644
Description	Power Field-Effect Transistor, 8.6A I(D), 250V, 0.8ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, I2PAK-3	Power Field-Effect Transistor, 8.6A I(D), 250V, 0.8ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, D2PAK-3
Maker	SAMSUNG	SAMSUNG
package instruction	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	462 mJ	462 mJ
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	250 V	250 V
Maximum drain current (Abs) (ID)	8.6 A	8.6 A
Maximum drain current (ID)	8.6 A	8.6 A
Maximum drain-source on-resistance	0.8 Ω	0.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSIP-T3	R-PSSO-G2
Number of components	1	1
Number of terminals	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Polarity/channel type	P-CHANNEL	P-CHANNEL
Maximum power dissipation(Abs)	123 W	123 W
Maximum pulsed drain current (IDM)	34 A	34 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Transistor component materials	SILICON	SILICON
