SR1857180B: DescriptionRF/Microwave Antenna, 1850 MHz - 1990 MHz BASE STATION/BROADCAST TRANSMISSION ANTENNA, 7 dBi GAIN, 177 deg 3dB BEAMWIDTH; CategoryWireless rf/communication Radio frequency and microwave; File Size191KB，1 Pages; ManufacturerLaird

Download Datasheet Parametric Compare View All

SR1857180B Overview

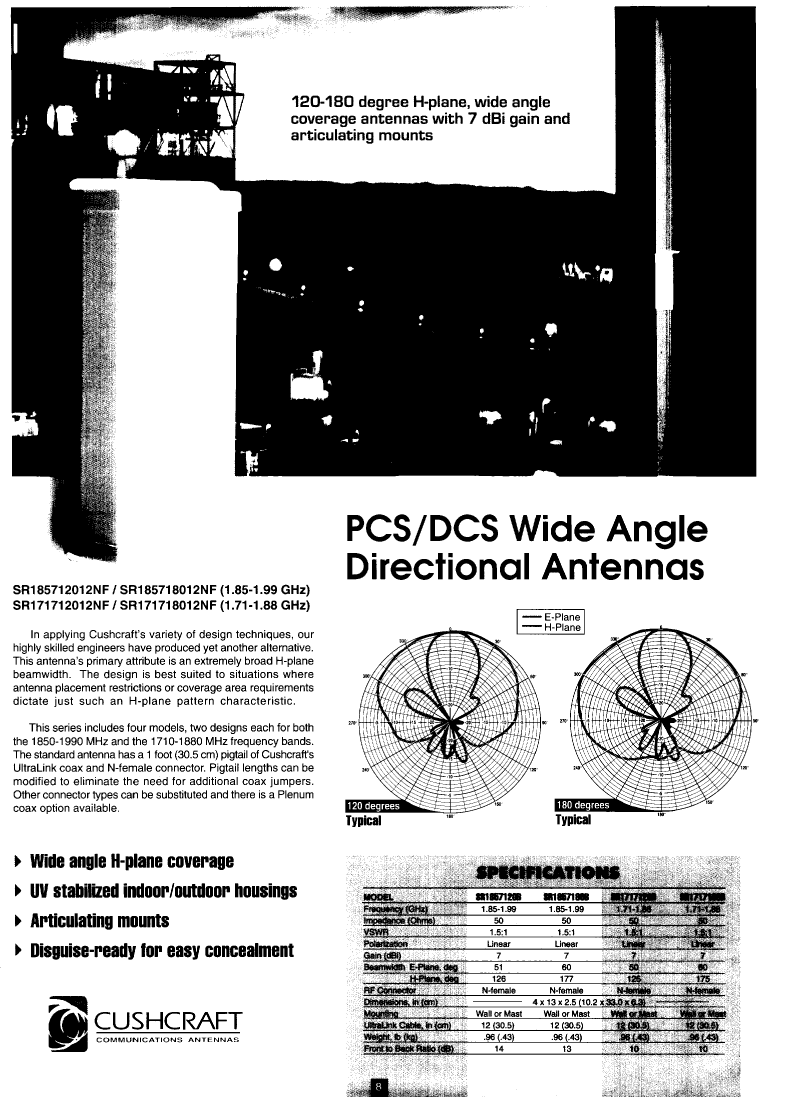

RF/Microwave Antenna, 1850 MHz - 1990 MHz BASE STATION/BROADCAST TRANSMISSION ANTENNA, 7 dBi GAIN, 177 deg 3dB BEAMWIDTH

Parameter Name	Attribute value
Maker	Laird
Reach Compliance Code	unknown
application	PCS
Beam Width-E	60 deg
Beamwidth-H	177 deg
Characteristic impedance	50 Ω
front to back ratio	13 dB
Gain	7 dB
Omnidirectional	NO
Maximum operating frequency	1990 MHz
Minimum operating frequency	1850 MHz
polarization	LINEAR
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum voltage standing wave ratio	1.5

	SR1857180B	SR171712012NF	BURNDY_YF1612ID	SR171718012NF
Description	RF/Microwave Antenna, 1850 MHz - 1990 MHz BASE STATION/BROADCAST TRANSMISSION ANTENNA, 7 dBi GAIN, 177 deg 3dB BEAMWIDTH	RF/Microwave Antenna, 1710 MHz - 1880 MHz BASE STATION/BROADCAST TRANSMISSION ANTENNA, 7 dBi GAIN, 126 deg 3dB BEAMWIDTH	Elect Cu Single Insul Wire Ferrules, Smooth Funnel Entry, 16 AWG, 0.71" L, Tin Plated, Black.	RF/Microwave Antenna, 1710 MHz - 1880 MHz BASE STATION/BROADCAST TRANSMISSION ANTENNA, 7 dBi GAIN, 175 deg 3dB BEAMWIDTH
Reach Compliance Code	unknown	unknown	-	unknown
application	PCS	PCS	-	PCS
Beam Width-E	60 deg	50 deg	-	80 deg
Beamwidth-H	177 deg	126 deg	-	175 deg
Characteristic impedance	50 Ω	50 Ω	-	50 Ω
front to back ratio	13 dB	10 dB	-	10 dB
Gain	7 dB	7 dB	-	7 dB
Omnidirectional	NO	NO	-	NO
Maximum operating frequency	1990 MHz	1880 MHz	-	1880 MHz
Minimum operating frequency	1850 MHz	1710 MHz	-	1710 MHz
polarization	LINEAR	LINEAR	-	LINEAR
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	-	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum voltage standing wave ratio	1.5	1.5	-	1.5
