LS-508A-AZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> LS-508A-AZ

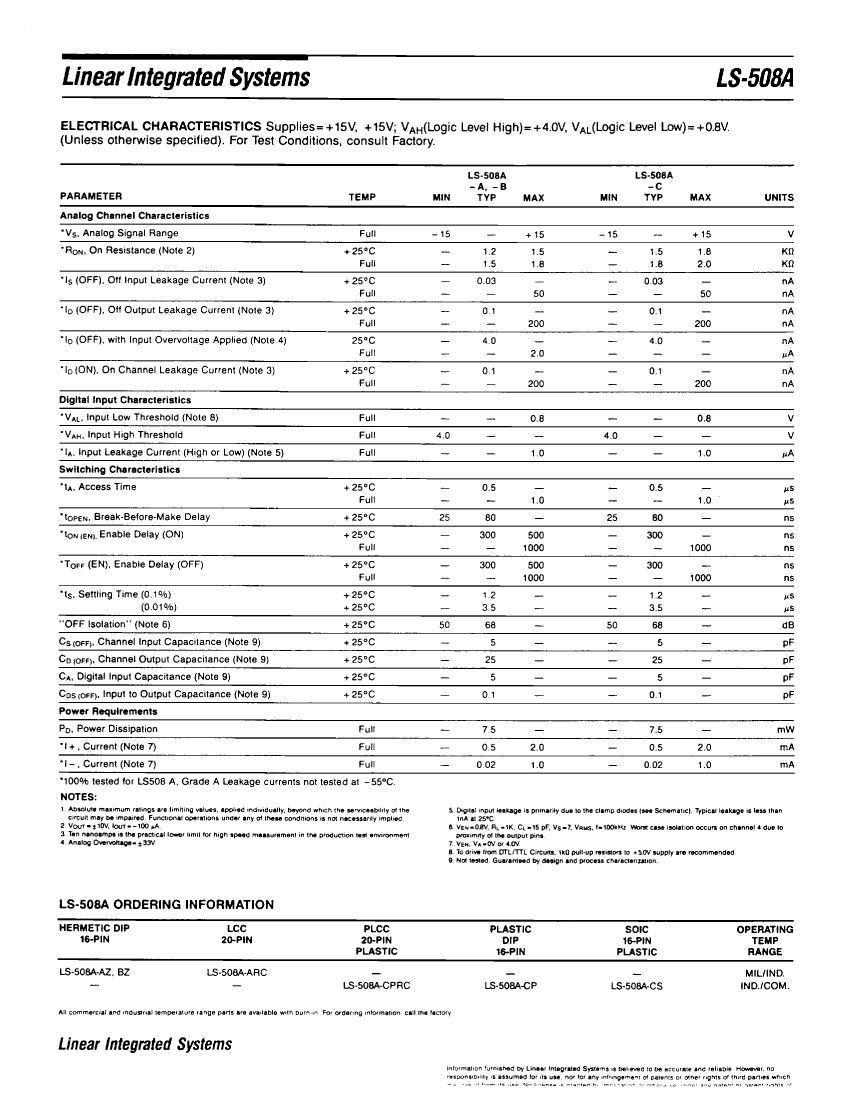

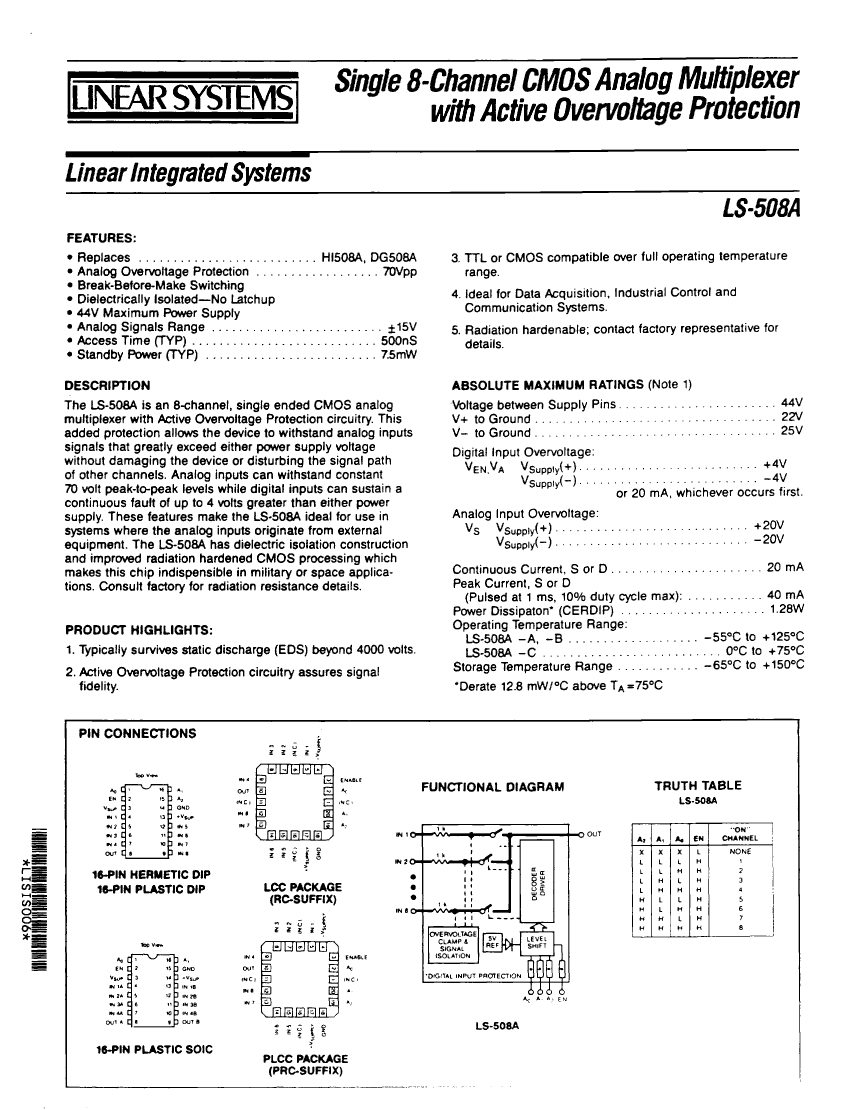

LS-508A-AZ: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, HERMATIC SEALED, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size102KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LS-508A-AZ Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, HERMATIC SEALED, DIP-16

LS-508A-AZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
Other features	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1500 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	500 ns
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

LS-508A-AZ Related Products

	LS-508A-AZ	LS-508A-BZ	LS-508A-CP	LS-508A-CPRC	LS-508A-ARC	LS-508A-CS
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, HERMATIC SEALED, DIP-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, HERMATIC SEALED, DIP-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16, PLASTIC, DIP-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PQCC20, PLASTIC, LCC-20	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CQCC20, LCC-20	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, PLASTIC, SOIC-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	QLCC	QLCC	SOIC
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	PLASTIC, DIP-16	QCCJ, LDCC20,.4SQ	QCCN, LCC20,.35SQ	SOP, SOP16,.25
Contacts	16	16	16	20	20	16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-PDIP-T16	S-PQCC-J20	S-CQCC-N20	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	20	20	16
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB
Maximum on-state resistance (Ron)	1500 Ω	1500 Ω	1800 Ω	1800 Ω	1500 Ω	1800 Ω
Maximum operating temperature	125 °C	125 °C	75 °C	75 °C	125 °C	75 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	QCCJ	QCCN	SOP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	LDCC20,.4SQ	LCC20,.35SQ	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES	YES	YES
Maximum disconnect time	500 ns	500 ns	1000 ns	1000 ns	500 ns	1000 ns
Maximum connection time	500 ns	500 ns	1000 ns	1000 ns	500 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	NO LEAD	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL
Maker	Linear ( ADI )	-	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
