40W Constant Voltage + Constant Current LED Driver
HLG-40H
series
110
M
M
SELV
IP65 IP67
(except for AB-type)
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
Type HL
■
Features
Constant Voltage + Constant Current mode output
Metal housing with class
I
design
■
Applications
LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type HL for use in Class
Ⅰ
, Division 2
hazardous (Classified) location.
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
•Function
options: output adjustable via potentiometer;
3 in 1 dimming; Timer dimming
Typical lifetime
> 62000 hours
7 years warranty
■
Description

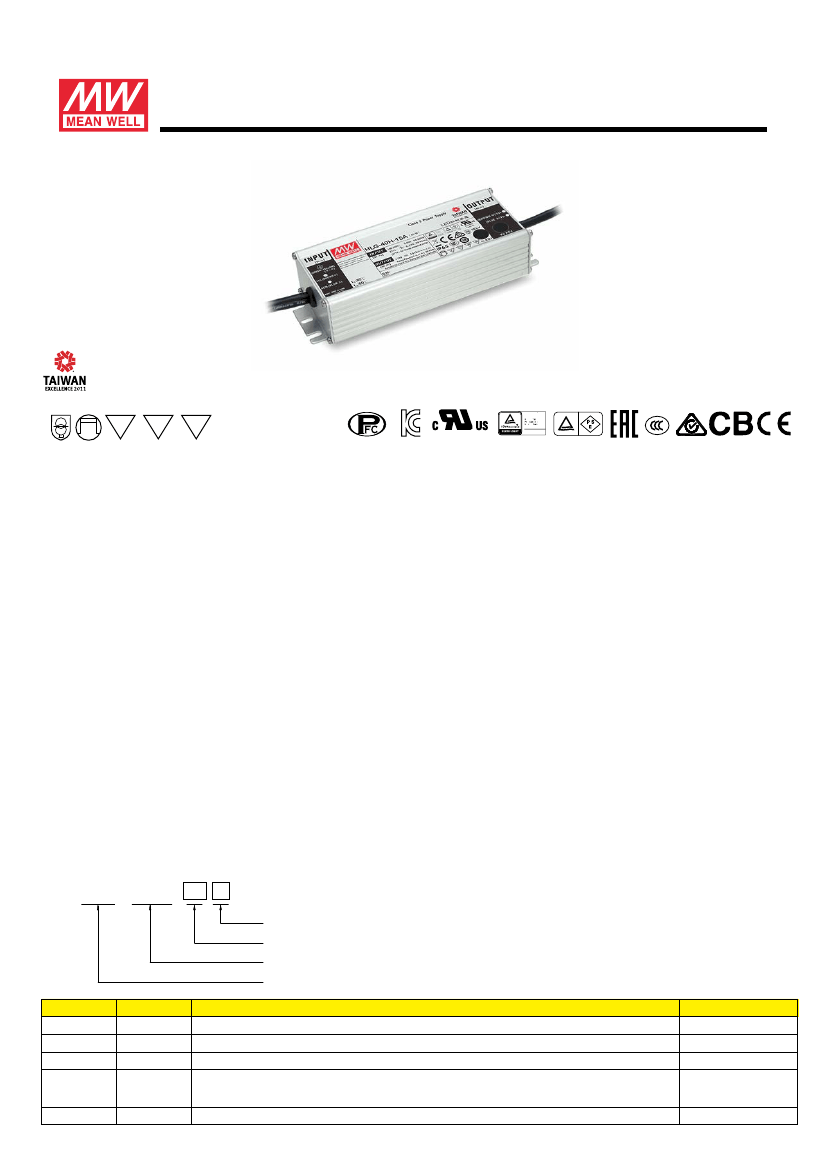

HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HLG-40H operates from 90
½
305VAC and offers models with different rated voltage ranging
between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is
able to operate for -40
℃
~ +80
℃
case temperature under free air convection. The design of metal housing
and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
HLG-40H
is equipped with various function options, such as
dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.
■
Model Encoding
HLG - 40H - 36 A
Function options
Rated output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
Rated wattage
Series name
Type
Blank
A
B
AB
D
IP Level
IP67
IP65
IP67
IP65
IP67
Io
and Vo fixed
Io
and Vo adjustable through built-in potentiometer
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance)
I
o and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)
Timer dimming function, contact MEAN WELL for details(safety pending).
Function
Note
In Stock
In Stock
In Stock
In Stock
By request
File Name:HLG-40H-SPEC 2018-09-30
40W Constant Voltage + Constant Current LED Driver
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLG-40H-12
12V
3.33A
39.96W
CONSTANT CURRENT REGION
Note.4
7.2 ~12V
HLG-40H-15
15V
9 ~ 15V
2.67A
40.05W
150mVp-p
HLG-40H-20
20V
12 ~ 20V
2A
40W
150mVp-p
17 ~ 22V
1.2 ~ 2A
±1.0%
±0.5%
±1.0%
HLG-40H-24
24V
14.4 ~ 24V
1.67A
40.08W
200mVp-p
22 ~ 27V
1 ~ 1.67A
±1.0%
±0.5%
±0.5%
HLG-40H-30
30V
18 ~ 30V
1.34A
40.2W
200mVp-p
27 ~ 33V
0.8 ~ 1.34A
±1.0%
±0.5%
±0.5%
HLG-40H
HLG-40H-36
36V
21.6 ~ 36V
1.12A
40.32W
200mVp-p
33 ~ 40V
HLG-40H-42
42V
25.2 ~ 42V
0.96A
40.32W
200mVp-p
40 ~ 46V
HLG-40H-48
48V
28.8 ~ 48V
0.84A
40.32W
300mVp-p
44 ~ 53V
series
HLG-40H-54
54V
32.4 ~ 54V
0.75A
40.5W
300mVp-p
49 ~ 58V
0.45 ~ 0.75A
±1.0%
±0.5%
±0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE ADJ. RANGE
OUTPUT
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
10.8 ~ 13.5V 13.5 ~ 17V
2 ~ 3.33A
±0.5%
1.6 ~ 2.67A
±2.0%
±0.5%
Adjustable for A/AB-Type only (via built-in potentiometer)
0.67 ~ 1.12A 0.58 ~ 0.96A 0.5 ~ 0.84A
±1.0%
±1.0%
±1.0%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
VOLTAGE TOLERANCE
Note.3
±2.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
TOTAL HARMONIC DISTORTION
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT(Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER CURRENT
PROTECTION
SHORT CIRCUIT
Note.5
±1.5%
±2.0%
Note.6
500ms,80ms/115VAC
16ms / 115VAC, 230VAC
500ms,80ms/230VAC
90 ~ 305VAC
127 ~ 431VDC
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF
≧
0.98/115VAC, PF
≧
0.95/230VAC, PF
≧
0.92/277VAC @ full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20% (@ load
≧
60% / 115VAC,230VAC; @ load
≧
75% / 277VAC)
INPUT
(Please refer to
"
TOTAL HARMONIC DISTORTION (THD)
"
section)
86.5%
88%
86.5%
0.43A / 115VAC
0.24A / 230VAC
88.5%
88%
0.23A / 277VAC
88.5%
88.5%
89.5%
89.5%
COLD START 50A(t
width
=210 s measured at 50% I
peak
) at 230VAC; Per NEMA 410
μ
12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
<0.75mA / 277VAC
95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
41 ~ 49V
15 ~ 21V
18 ~ 24V
23 ~ 30V
35 ~ 43V
28 ~ 35V
Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
Tcase=
-40 ~ +80℃
(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Tcase=
+80℃
20 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 60
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
MAX. CASE TEMP.
ENVIRONMENT
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
48 ~ 58V
54 ~ 65V
59 ~ 68V
UL8750(type”HL”), CSA C22.2 No. 250.0-08 , EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent ,
SAFETY STANDARDS
Note.8
GB19510.1,GB19510.14,EAC TP TC 004,KC KN61347 - 1 , KN61347 - 2 - 13 (except for AB-type), IP65 or IP67 approved ;
optional models for J61347-1 , J61347-2-13 ; design refer to UL60950-1, TUV EN60950-1, EN60335-1
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024,
light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
1131.9K hrs min. Telcordia SR-332 (Bellcore) ; 336.5K hrs min.
171*61.5*36.8mm (L*W*H)
0.73Kg; 20pcs/15.6Kg/0.9CUFT
MIL-HDBK-217F (25
℃
)
Note.8
Compliance to EN55015, EN61000-3-2 Class C (
@ load
≧
60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
1. All
parameters NOT specially mentioned are measured at 230VAC input, rated current and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently
connected to the mains.
9.This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75
℃
or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using.
https://www.meanwell.com/Upload/PDF/LED_EN.pdf
File Name:HLG-40H-SPEC 2018-09-30
40W Constant Voltage + Constant Current LED Driver
DIMMING OPERATION
HLG-40H
series
AC/L(Brown)
AC/N(Blue)
FG (Green/Yellow)
+V(Red)
-V(Black)
HLG-40H
DIM+(Blue)
DIM-(White)
※
3 in 1 dimming function (for B/AB-Type)

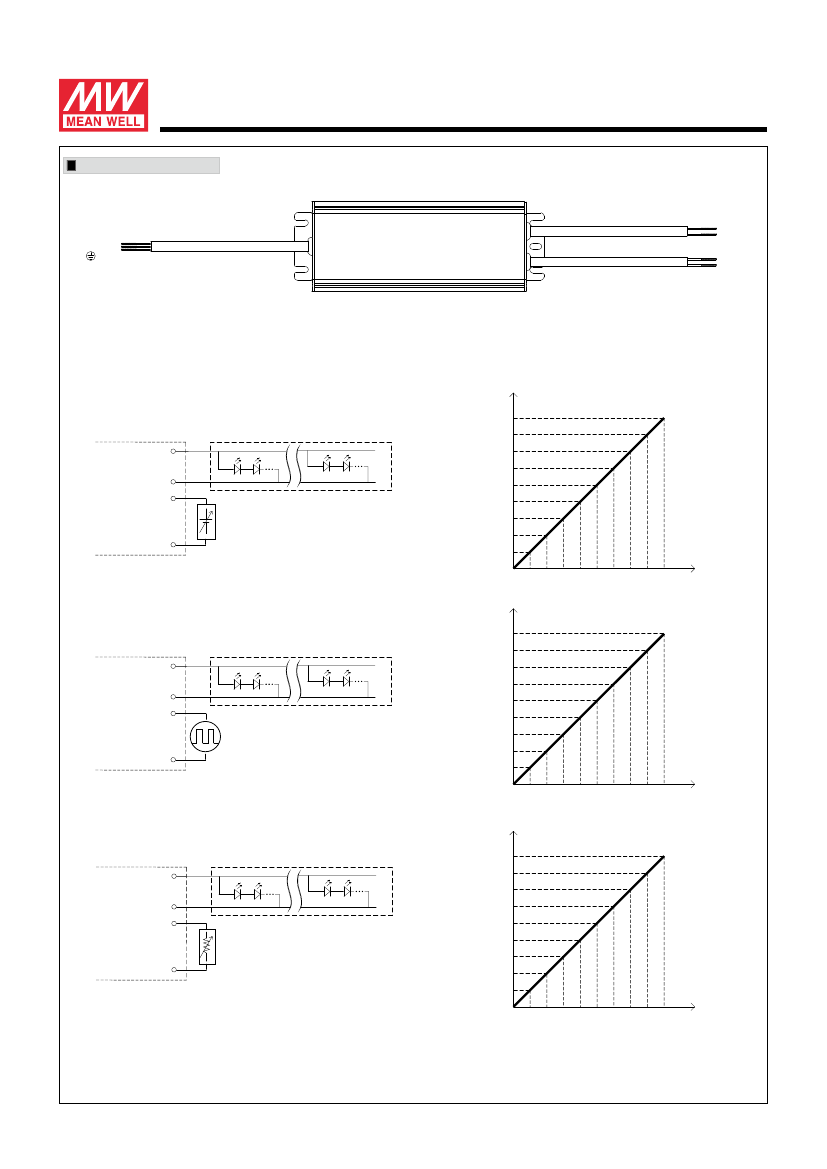

Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 1 0 0
μ
A (typ.)
◎
Applying additive 1 ~ 10VDC
100%
90%
Output current (%)
+V
-V
DIM+
+
-
+
Additive Voltage
-
+
-
80%
70%
60%
50%
40%
30%
20%
10%
1V
2V 3V 4V 5V 6V 7V 8V 9V 10V
Dimming input: Additive voltage
DIM-
“DO
NOT connect "DIM- to -V"
◎
Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
100%
90%
Output current (%)
Output current (%)
+V
-V
DIM+
+
-
+
-
80%
70%
60%
50%
40%
30%
Additive PWM signal
DIM-
“DO
NOT connect "DIM- to -V"
20%
10%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Duty cycle of additive 10V PWM signal dimming input
◎
Applying additive resistance:
100%
+V
-V
DIM+
+
-
+
-
90%
80%
70%
60%
50%
40%
Additive Resistance
DIM-
“DO
NOT connect "DIM- to -V"
30%
20%
10%
10K/N 20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
(N=driver quantity for synchronized dimming operation)
Dimming input: Additive resistance
File Name:HLG-40H-SPEC 2018-09-30
