PAL20R8-15/B3A datasheet, PDF - EEWORLD Datasheet

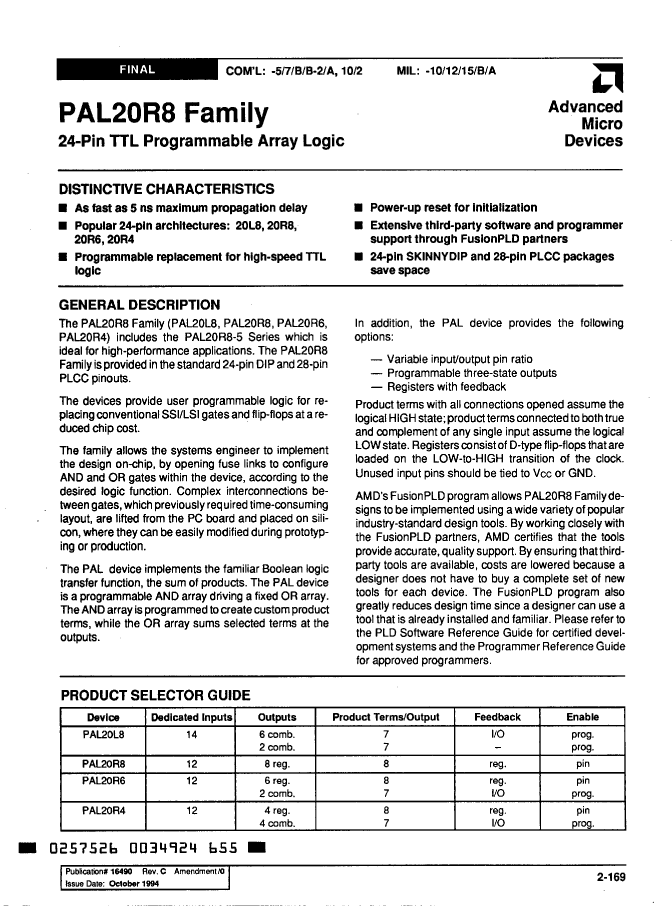

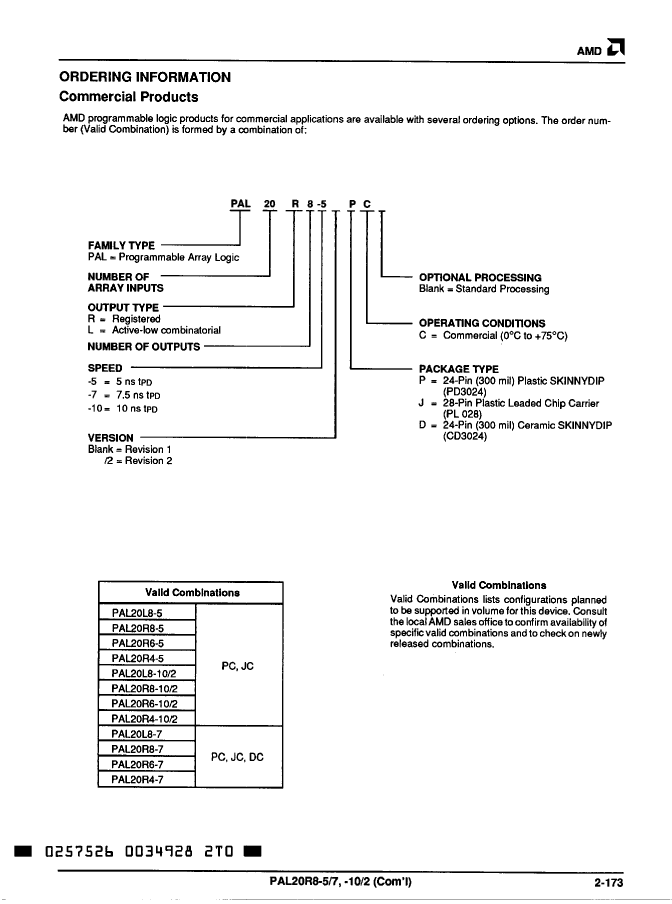

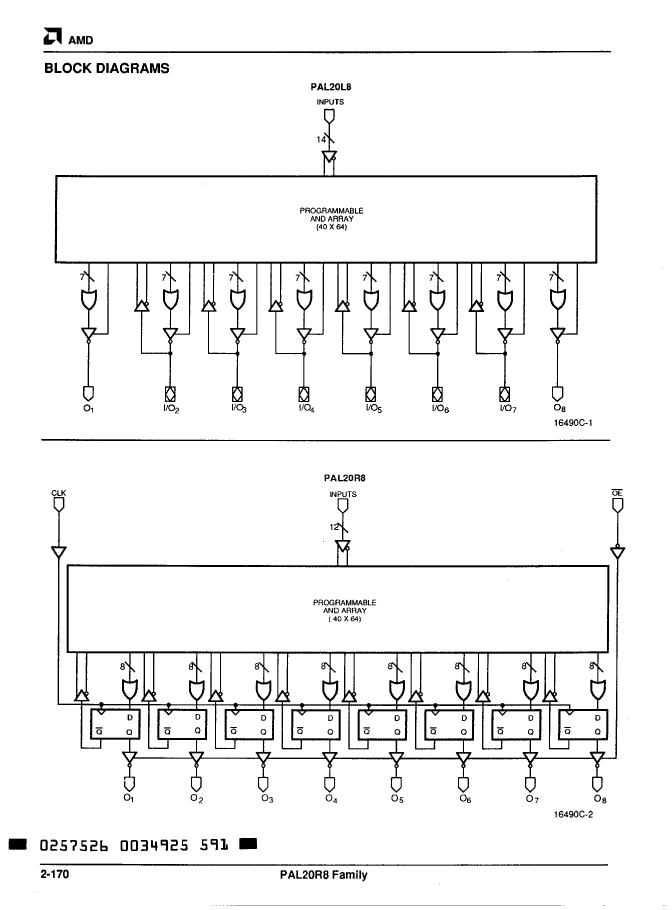

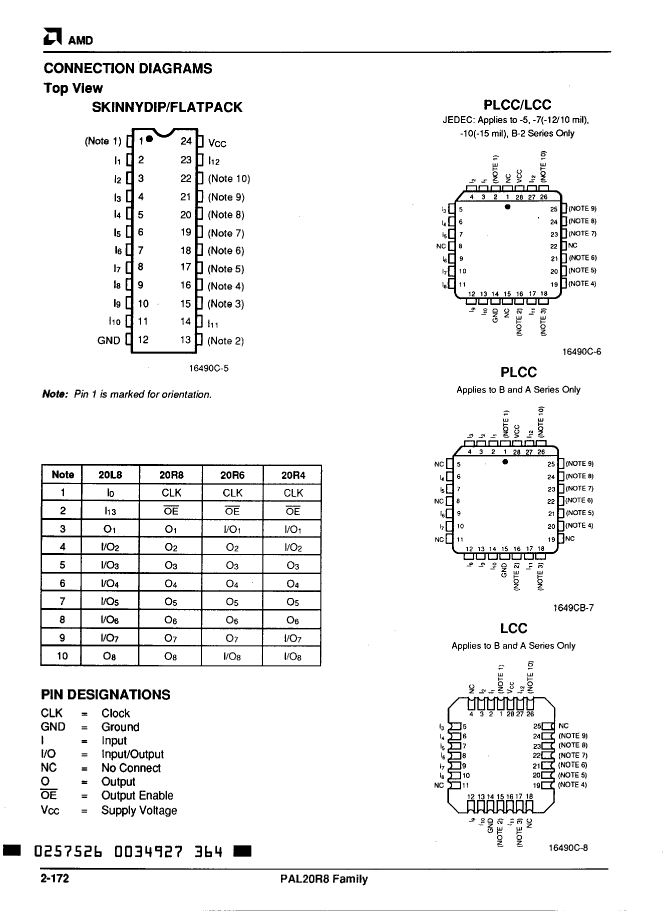

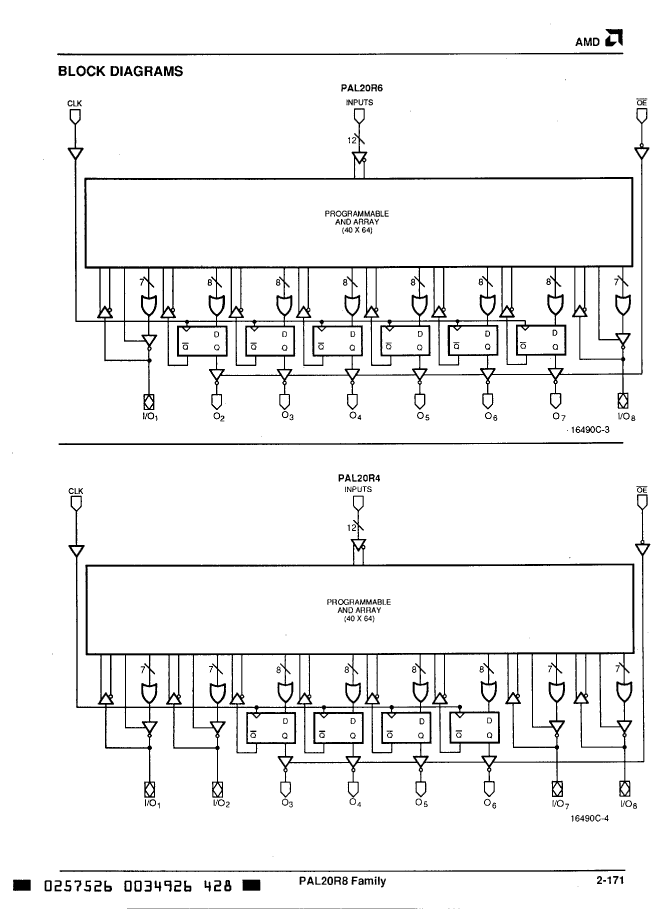

PAL20R8-15/B3A: DescriptionOT PLD, 15ns, TTL, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size2MB，41 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

PAL20R8-15/B3A Overview

OT PLD, 15ns, TTL, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	PAL; POWER-UP RESET
maximum clock frequency	35.7 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	12
Number of I/O lines
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	15 ns
Maximum seat height	2.54 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
