WPC-1608-5.6KT

Description
General Purpose Inductor, 0.0056uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP
CategoryPassive components    inductor
File Size107KB，2 Pages
ManufacturerWorld Produts Inc.
Websitehttp://www.worldproducts.com
Environmental Compliance
Download Datasheet Parametric Compare View All

WPC-1608-5.6KT Overview

General Purpose Inductor, 0.0056uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP

WPC-1608-5.6KT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerWorld Produts Inc.
package instruction0603
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes0603
structureChip
core materialCERAMIC
DC Resistance0.29 Ω
Nominal inductance(L)0.0056 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberWPC
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.8 mm
Package length1.6 mm
Package formSMT
Package width0.8 mm
method of packingTR, 7 Inch
Minimum quality factor (at nominal inductance)16
Maximum rated current0.3 A
self resonant frequency2700 MHz
seriesWPC-1608(S, K TOL)
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Tolerance10%

Preview

Download Datasheet
World Products Inc. 19654 8th St. East, Sonoma, CA, USA, 95476 . . Phone: (707) 996-5201 . . Fax: (707) 996-3380
page 31

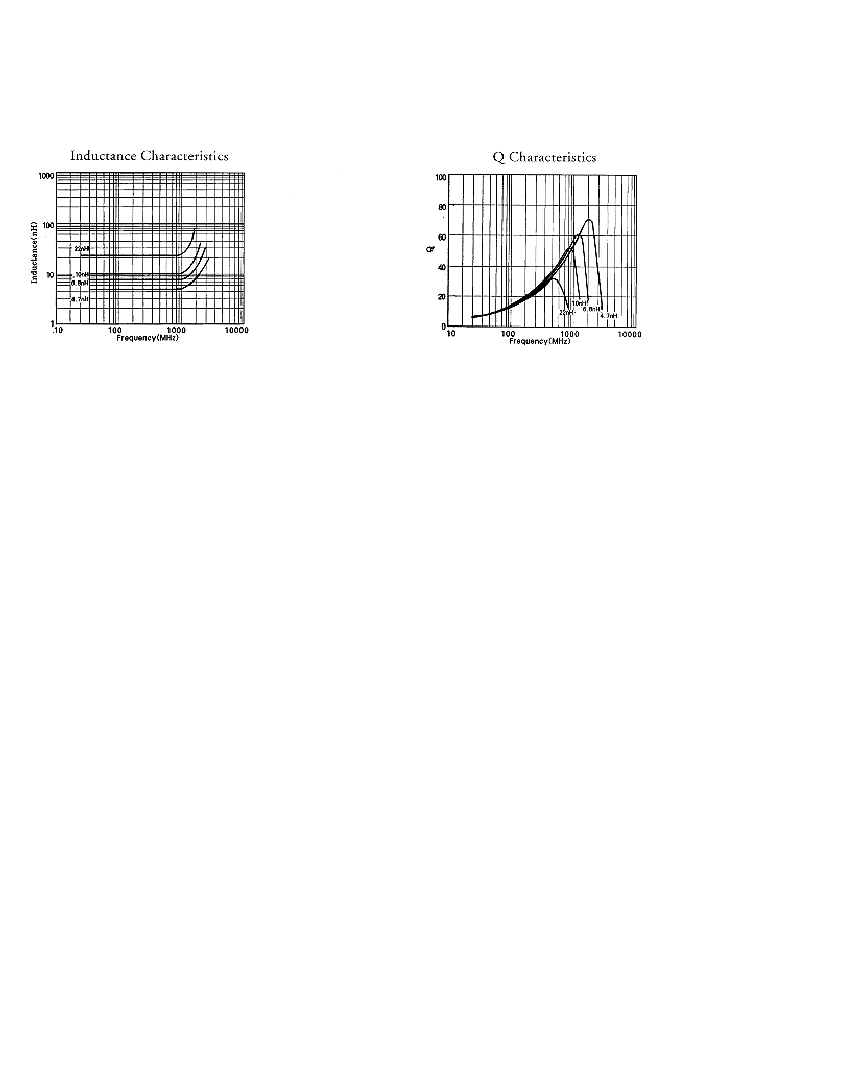

Chip Ceramic Inductors -
0603 Specifications
0603 is the U.S. inches equivalent for the 1608 millimeter series.
Rated
DC
Self-Resonant
DC
Frequency Resistance Current
(MHz)
(m ohms) (mA)
Typ
Max
100
100
100
120
160
200
220
250
280
290
300
330
350
400
450
500
550
600
650
700
900
1000
1200
1500
1700
2000
2400
2700
2800
3100
Max
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
250
200
200
200
200
180
180
130
130
78
78
84
79
85
62
68
61
45
33
25
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
4000 13000
4000 13000
4000 10000
3800 10000
3600 10000
3400
3200
3000
2800
2700
2600
2200
1800
1650
1350
1350
1100
1100
1000
900
800
700
650
600
550
500
500
400
400
350
8000
6000
6000
5000
5000
4000
4000
3000
2500
2000
2000
1800
1600
1400
1300
1300
1100
1000
850
750
650
600
500
500
450
Inductance
Part Number
WPC-1608-1.0 1.0
WPC-1608-1.2 1.2
WPC-1608-1.5 1.5
WPC-1608-1.8 1.8
WPC-1608-2.2 2.2
WPC-1608-2.7 2.7
WPC-1608-3.3 3.3
WPC-1608-3.9 3.9
WPC-1608-4.7 4.7
WPC-1608-5.6 5.6
WPC-1608-6.8 6.8 ±5%/±10%
WPC-1608-8.2 8.2 ±5%/±10%
WPC-1608-10
WPC-1608-12
WPC-1608-15
WPC-1608-18
WPC-1608-22
WPC-1608-27
WPC-1608-33
WPC-1608-39
WPC-1608-47
WPC-1608-56
WPC-1608-68
WPC-1608-82
10 ±5%/±10%
12 ±5%/±10%
15 ±5%/±10%
18 ±5%/±10%
22 ±5%/±10%
27 ±5%/±10%
33 ±5%/±10%
39 ±5%/±10%
47 ±5%/±10%
56 ±5%/±10%
68 ±5%/±10%
82 ±5%/±10%
±0.3nH
±10%
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
23
22
13
13
12
16
13
16
16
16
16
16
15
15
15
15
15
15
15
14
15
15
15
16
18
14
14
15
14
14
Q
Typical
80
80
47
45
38
57
44
47
51
46
47
48
48
40
39
37
35
36
30
27
26
22
17
--
--
--
--
--
--
--
nH Tolerance 100MHz 800MHz 1800MHz Min
WPC-1608-100 100 ±5%/±10%
WPC-1608-120 120 ±5%/±10%
WPC-1608-150 150 ±5%/±10%
WPC-1608-180 180 ±5%/±10%
WPC-1608-220 220 ±5%/±10%
WPC-1608-270 270 ±5%/±10%

WPC-1608-5.6KT Related Products

WPC-1608-5.6KT WPC-1608-3.9KT WPC-1608-3.3KT WPC-1608-4.7KT WPC-1608-3.9KB WPC-1608-4.7KB WPC-1608-3.3KB WPC-1608-5.6KB
Description General Purpose Inductor, 0.0056uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0039uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0033uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0047uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0039uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0047uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0033uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP General Purpose Inductor, 0.0056uH, 10%, 1 Element, Ceramic-Core, SMD, 0603, CHIP
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
package instruction 0603 0603 0603 0603 0603 0603 0603 0603
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknow unknow
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
uppercase and lowercase codes 0603 0603 0603 0603 0603 0603 0603 0603
structure Chip Chip Chip Chip Chip Chip Chi Chi
core material CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC
DC Resistance 0.29 Ω 0.25 Ω 0.22 Ω 0.28 Ω 0.25 Ω 0.28 Ω 0.22 Ω 0.29 Ω
Nominal inductance(L) 0.0056 µH 0.0039 µH 0.0033 µH 0.0047 µH 0.0039 µH 0.0047 µH 0.0033 µH 0.0056 µH
Inductor Applications RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
Manufacturer's serial number WPC WPC WPC WPC WPC WPC WPC WPC
Number of functions 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package height 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm
Package length 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm
Package form SMT SMT SMT SMT SMT SMT SMT SMT
Package width 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm
method of packing TR, 7 Inch TR, 7 Inch TR, 7 Inch TR, 7 Inch Bulk Cassette Bulk Cassette Bulk Cassette Bulk Cassette
Minimum quality factor (at nominal inductance) 16 16 13 16 16 16 13 16
Maximum rated current 0.3 A 0.3 A 0.3 A 0.3 A 0.3 A 0.3 A 0.3 A 0.3 A
self resonant frequency 2700 MHz 3000 MHz 3200 MHz 2800 MHz 3000 MHz 2800 MHz 3200 MHz 2700 MHz
series WPC-1608(S, K TOL) WPC-1608(S, K TOL) WPC-1608(S, K TOL) WPC-1608(S, K TOL) WPC-1608(S, K TOL) WPC-1608(S, K TOL) WPC-1608(S, K TOL) WPC-1608(S, K TOL)
Shape/Size Description RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
shield NO NO NO NO NO NO NO NO
surface mount YES YES YES YES YES YES YES YES
Terminal location DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED
Terminal shape WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND
Tolerance 10% 10% 10% 10% 10% 10% 10% 10%
Maker World Produts Inc. - World Produts Inc. World Produts Inc. World Produts Inc. World Produts Inc. World Produts Inc. World Produts Inc.
