LTAR2EM2R2: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 2.2uF; CategoryPassive components capacitor; File Size194KB，2 Pages; ManufacturerLuminous Town Electric Co., Ltd.

Download Datasheet Parametric Compare View All

LTAR2EM2R2 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 2.2uF

LTAR2EM2R2 Parametric

Parameter Name	Attribute value
Maker	Luminous Town Electric Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM
length	11 mm
Manufacturer's serial number	LTA(250V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
series	LTA(250V)
Terminal pitch	2.5 mm

Preview

Download Datasheet

View All

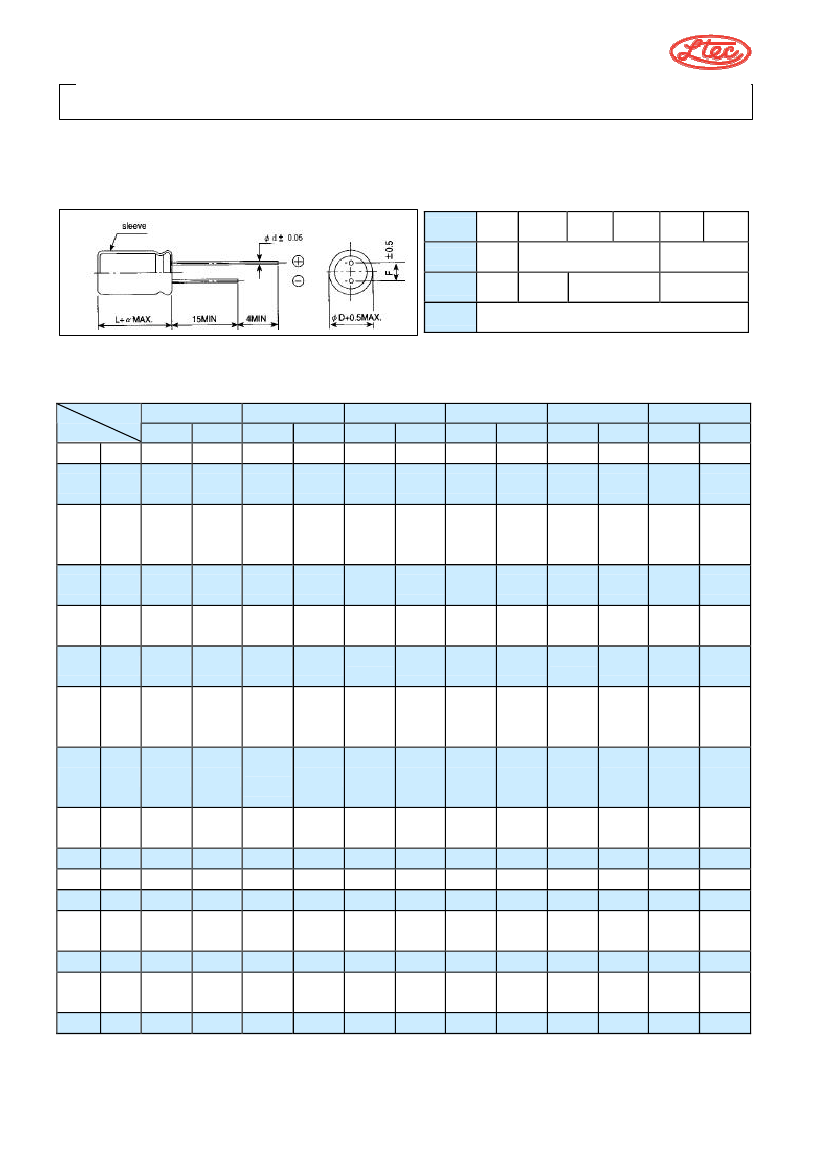

ALUMINUM ELECTROLYTIC CAPACITORS

LTA

Goback

series

105℃ LONG LIFE, HIGH RELIABILITY

■FEATURES

l

105℃ Long Life 3000~4000hours

l

High Reliability

l

High quality

■SPECIFICATIONS

Item

Operating Temperature

Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Performance Characteristics

－40℃∼＋105℃

160~450W.VV

0.47~330uF

±20%

(120Hz , 20℃)

CV≦1000

Leakage Current(MAX)

CV＞1000

I=0.04CV +100uA(1minutes)

I=0.02CV +25uA(5minutes)

250

0.20

250

3

4

350

0.24

350

6

8

400

0.24

400

6

8

450

0.24

450

6

10

MAX,

20℃

120Hz

I=0.1CV + 40uA(1minutes)

I=0.03CV + 15uA(5minutes)

Rated voltage (V)

Tan

δ

Rated Voltage(V)

I=Leakage Current(μA) , C=Nominal Capacitance(μF) , V=Rated Voltage(V)

Dissipation Factor

(tanδ)

Low Temperature Stability

Impedance Ratio(MAX)

160

0.20

160

3

4

200

0.20

200

3

4

Z(-25℃)/Z(+20℃)

Z(-40℃)/Z(+20℃)

MAX

120Hz

Load Life

After life test at conditions stated in the table below, the capacitors shall meet the

following requirement.

Leakage Current

Not more than the specified value

Case Dia

Life Time(hrs)

Capacitance Change Within ±25% of initial value.

φD≦8

3000

Not more than 200% of the specified

φD=10

3000

tan ä

value

φD≧12.5

4000

After leaving capacitors under no load at 105℃ for 1000 hours and applying voltage according to JIS

C-5102 4-3, they meet the specified value for load life characteristics listed above.

Shelf Life

Standard

Printed with black color letter on orange sleeve according to JIS C 5141

■MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency(Hz)

Cap(uF)

60(50)

120

1.0

55℃

2.41

65℃

2.12

500

1.25

1.10

75℃

2.00

1k

1.30

1.15

85℃

1.70

10k≦

1.50

1.20

105℃

1.00

0.47-4.7

0.8

100-330

0.8

Temperature coefficient

Temperature

40℃

Coefficient

2.41

LTA-0401

LTAR2EM2R2 Related Products

	LTAR2EM2R2	LTAR2DM680	LTAR2CM100	LTAR2VM330	LTAR2GM100	LTAR2DM4R7	LTAR2EM4R7	LTAR2DM330	LTAR2EM820
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 2.2uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 68uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 160V, 20% +Tol, 20% -Tol, 10uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 33uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 400V, 20% +Tol, 20% -Tol, 10uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 4.7uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 4.7uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 33uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 82uF
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2.2 µF	68 µF	10 µF	33 µF	10 µF	4.7 µF	4.7 µF	33 µF	82 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm	12.5 mm	8 mm	16 mm	10 mm	6.3 mm	8 mm	10 mm	16 mm
dielectric materials	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
length	11 mm	25 mm	11.5 mm	25 mm	16 mm	11 mm	11.5 mm	20 mm	25 mm
Manufacturer's serial number	LTA(250V)	LTA(200V)	LTA(160V)	LTA(350V)	LTA(400V)	LTA(200V)	LTA(250V)	LTA(200V)	LTA(250V)
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	250 V	200 V	160 V	350 V	400 V	200 V	250 V	200 V	250 V
series	LTA(250V)	LTA(200V)	LTA(160V)	LTA(350V)	LTA(400V)	LTA(200V)	LTA(250V)	LTA(200V)	LTA(250V)
Terminal pitch	2.5 mm	5 mm	3.5 mm	7.5 mm	5 mm	2.5 mm	3.5 mm	5 mm	7.5 mm
Maker	Luminous Town Electric Co., Ltd.	-	-	-	Luminous Town Electric Co., Ltd.	Luminous Town Electric Co., Ltd.	Luminous Town Electric Co., Ltd.	Luminous Town Electric Co., Ltd.	-
