PZA321H011A-37AU datasheet, PDF

Datasheet> All Categories > The connector> socket> PZA321H011A-37AU

PZA321H011A-37AU: DescriptionIC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch, Solder; CategoryThe connector socket; File Size100KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

PZA321H011A-37AU Overview

IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch, Solder

PZA321H011A-37AU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	1.95 inch
subject depth	0.165 inch
body length	1.95 inch
Contact structure	37X37
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	TIN (200)
Contact material	BERYLLIUM COPPER
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	PGA321
Shell material	POLYPHENYLENE SULFIDE
JESD-609 code	e3
Manufacturer's serial number	PZA321H
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	321
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	SOLDER

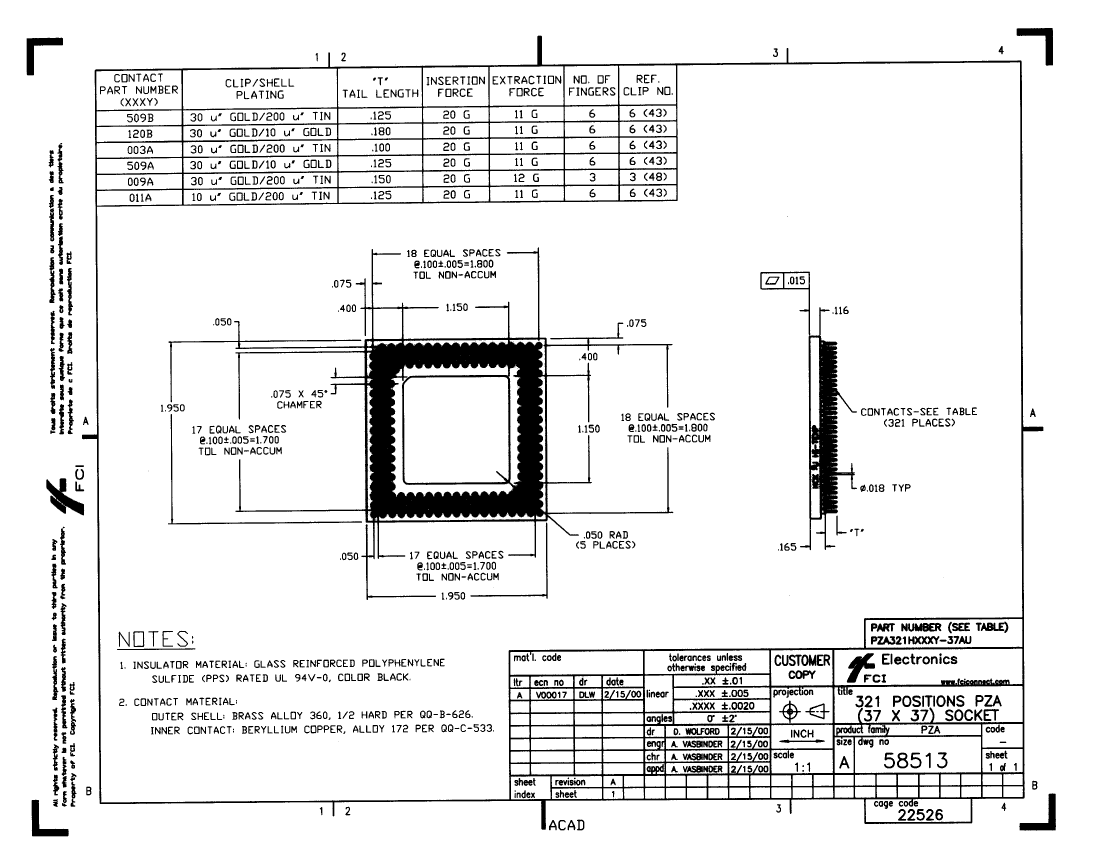

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Apr 24, 2002

PZA321H011A-37AU Related Products

	PZA321H011A-37AU	PZA321H003A-37AU	PZA321H120B-37AU	PZA321H509B-37AU	PZA321H509A-37AU	PZA321H009A-37AU
Description	IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch , Solder	IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch , Solder	IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch , Solder	IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch , Solder	IC Socket, PGA321, 321 Contact(s), 2.54mm Term Pitch , Solder
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	1.95 inch	1.95 inch	1.95 inch	1.95 inch	1.95 inch	1.95 inch
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
body length	1.95 inch	1.95 inch	1.95 inch	1.95 inch	1.95 inch	1.95 inch
Contact structure	37X37	37X37	37X37	37X37	37X37	37X37
Contact to complete cooperation	GOLD (10)	AU	AU	AU	AU	AU
Contact completed and terminated	TIN (200)	GOLD (30)	GOLD (30) OVER NICKEL	GOLD (30)	GOLD (30)	GOLD (30)
Contact material	BERYLLIUM COPPER	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA321	PGA321	PGA321	PGA321	PGA321	PGA321
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
JESD-609 code	e3	e4	e4	e4	e4	e4
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	321	321	321	321	321	321
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol
