XR-5533AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> XR-5533AP

XR-5533AP: DescriptionOperational Amplifier, 2 Func, BIPolar, PDIP14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size324KB，5 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

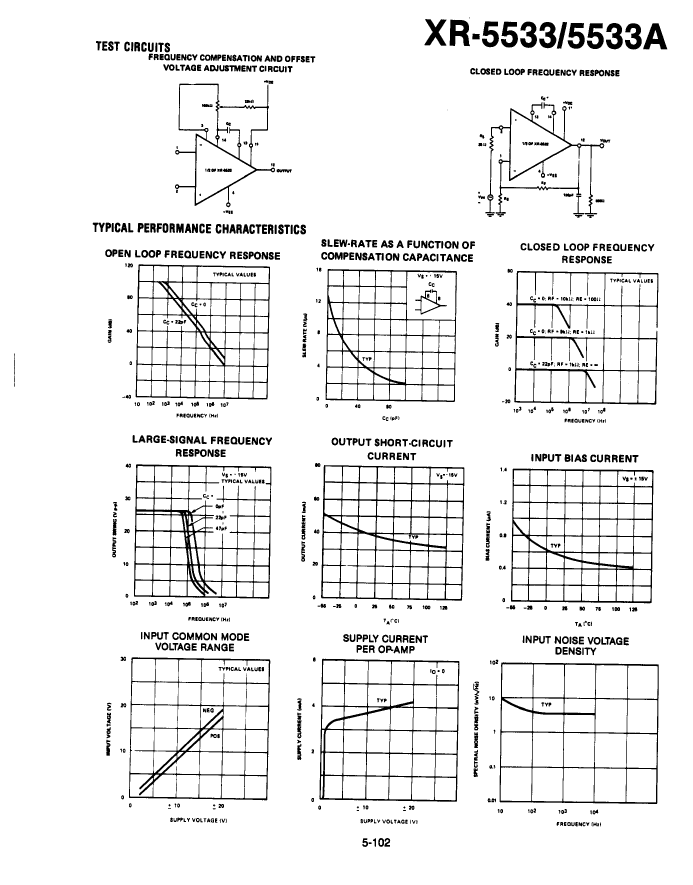

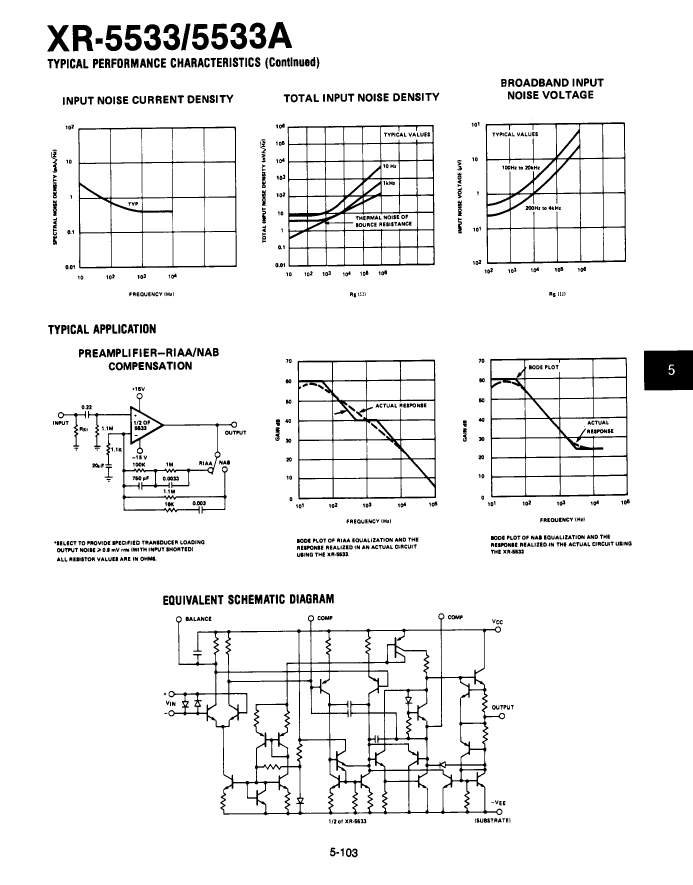

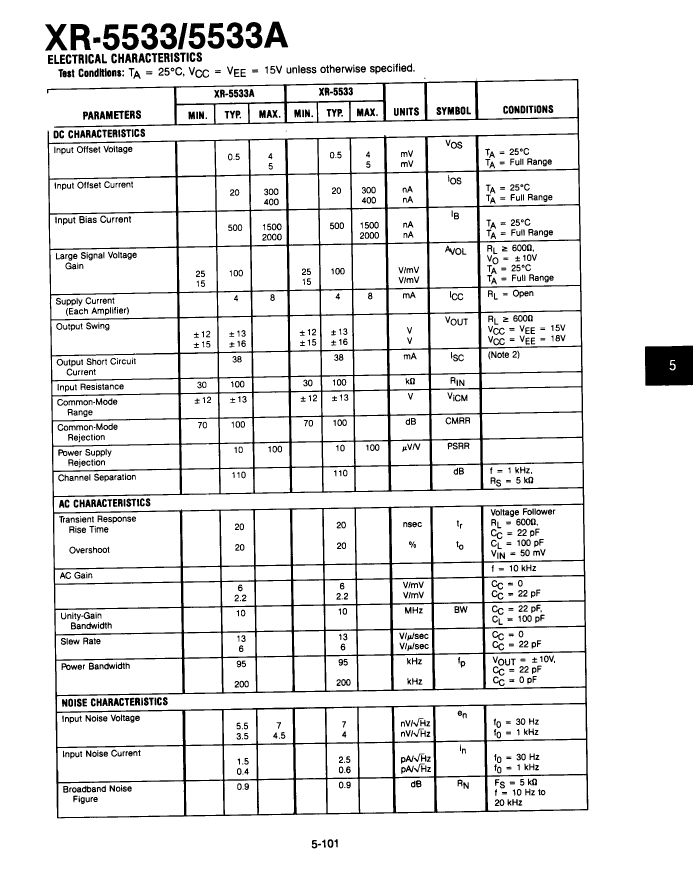

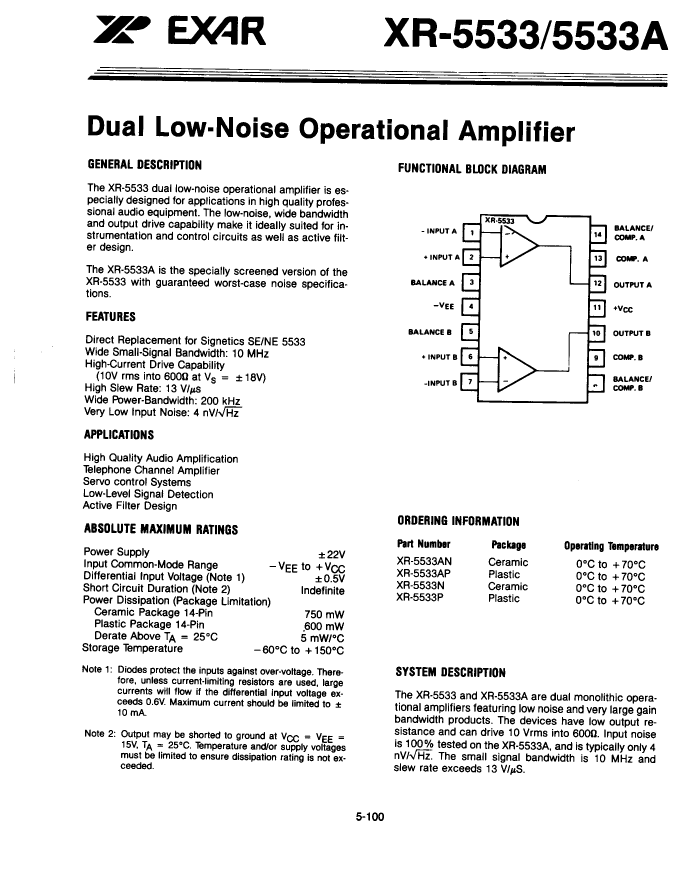

XR-5533AP Overview

Operational Amplifier, 2 Func, BIPolar, PDIP14

XR-5533AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES (AVCL>=3)
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

XR-5533AP Related Products

	XR-5533AP	XR-5533AN	XR-5533N	XR-5533P	5962-01-379-9569	XR-5533ACN
Description	Operational Amplifier, 2 Func, BIPolar, PDIP14	Operational Amplifier, 2 Func, BIPolar, CDIP14	Operational Amplifier, 2 Func, BIPolar, CDIP14	Operational Amplifier, 2 Func, BIPolar, PDIP14	Operational Amplifier, 2 Func, BIPolar, CDIP14,	Operational Amplifier, 2 Func, BIPolar, CDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	14	14	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)
JESD-30 code	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14
low-dissonance	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Exar	Exar	Exar	Exar	-	-
JESD-609 code	e0	e0	e0	e0	-	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
