NFI06M150TRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NFI06M150TRF

NFI06M150TRF: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT; CategoryPassive components inductor; File Size92KB，4 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NFI06M150TRF Overview

General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT

NFI06M150TRF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0603
structure	Rectangular
core material	FERRITE
DC Resistance	1.7 Ω
Nominal inductance(L)	15 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.8 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, PRESSED PAPER, 7 INCH
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.001 A
self resonant frequency	14 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

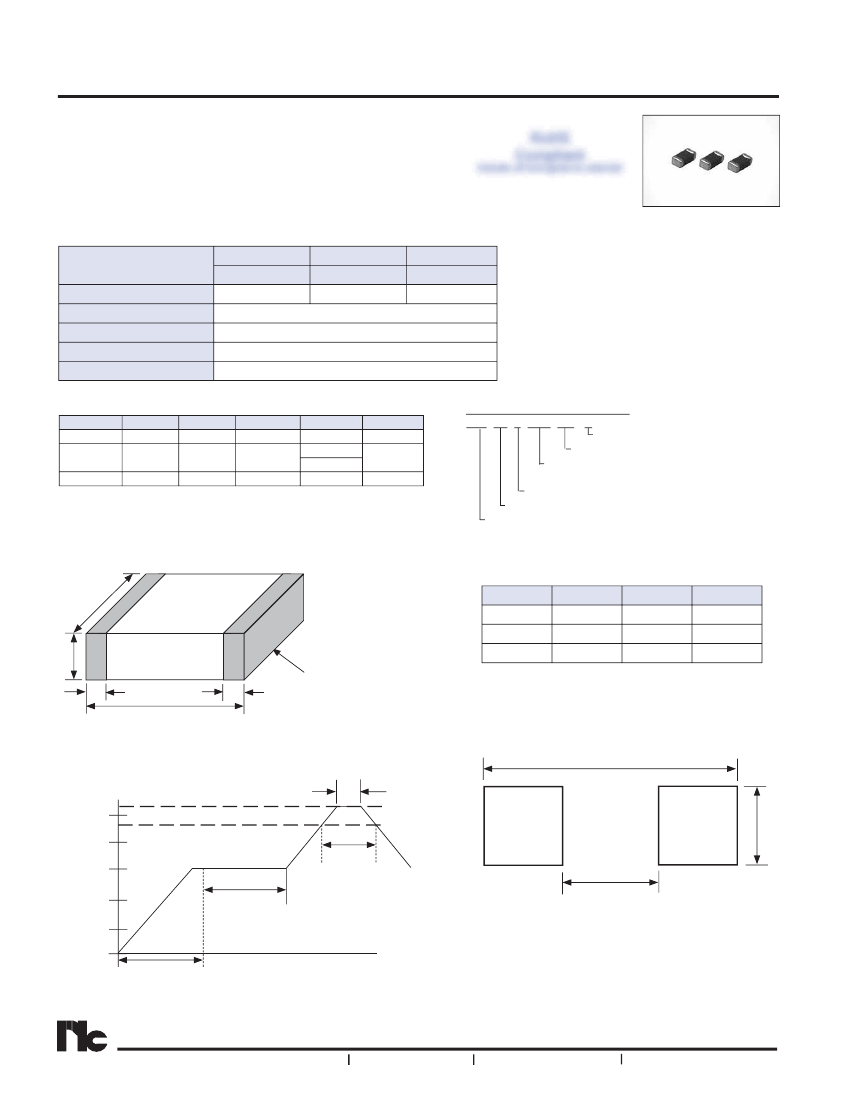

Ferrite Chip Inductor

FEATURES

• SURFACE MOUNT CASE SIZES (0603 ~ 1812)

• DURABLE MULTILAYER CONSTRUCTION

• MAGNETICALLY SHEILDED

• TAPE & REEL PACKAGING FOR AUTOMATIC INSERTION

• BOTH FLOW AND REFLOW SOLDERABLE

• Pb-FREE/RoHS COMPLIANT

SPECIFICATIONS

Case Size

Inductance Range

Available Tolerance

Temperature Range

Resistance to Solder Heat

Temperature Rise

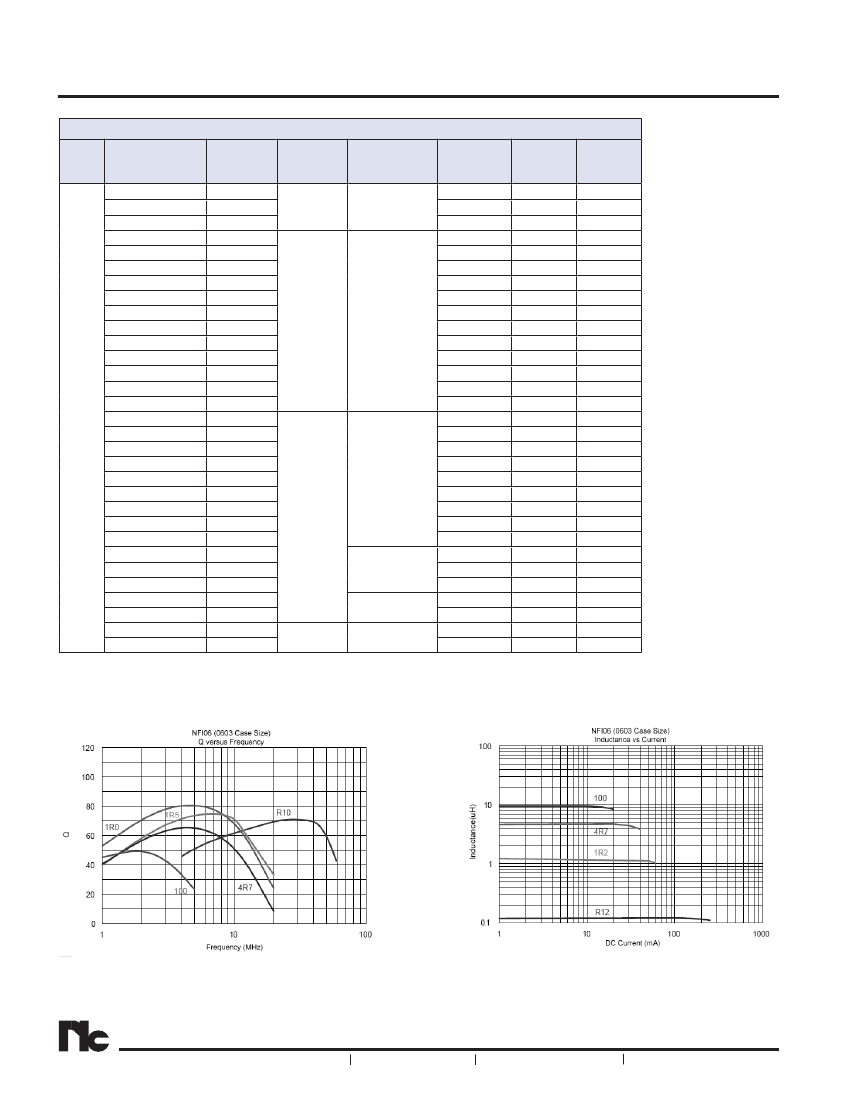

NFI06

0603

0.047µH ~ 18µH

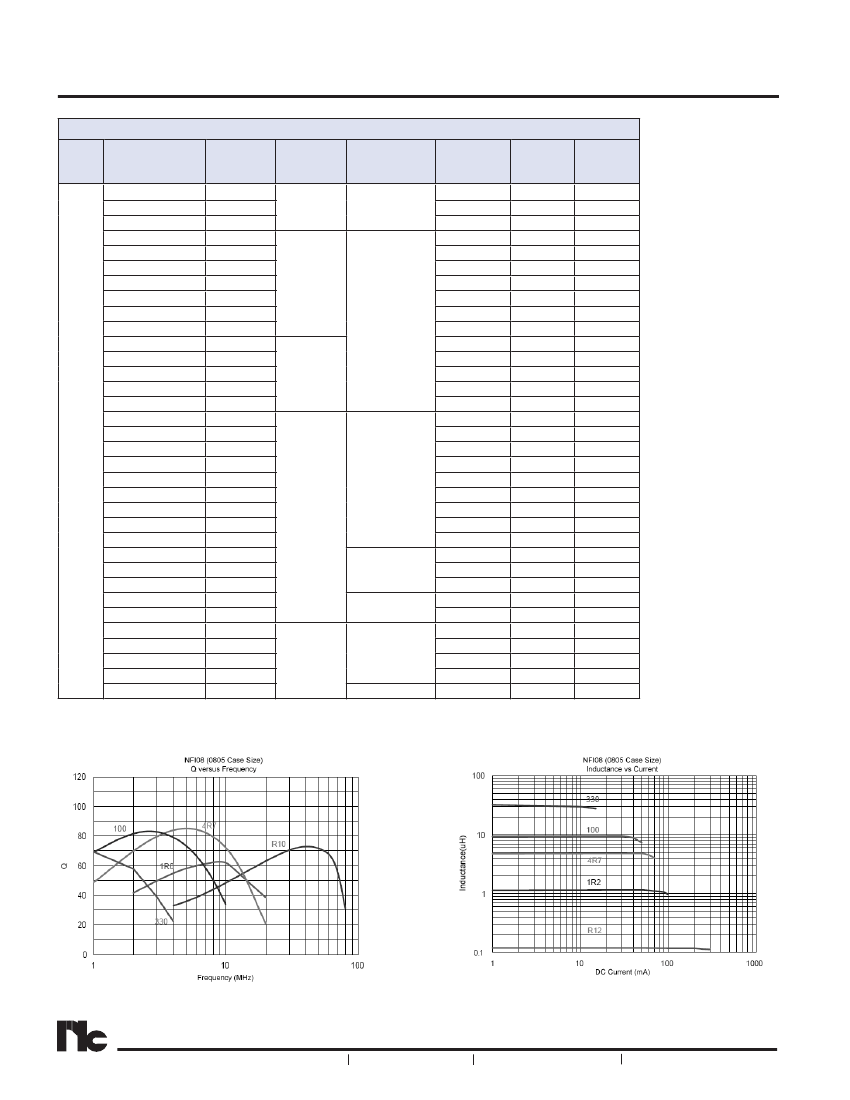

NFI08

0805

0.047µH ~ 33µH

NFI Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

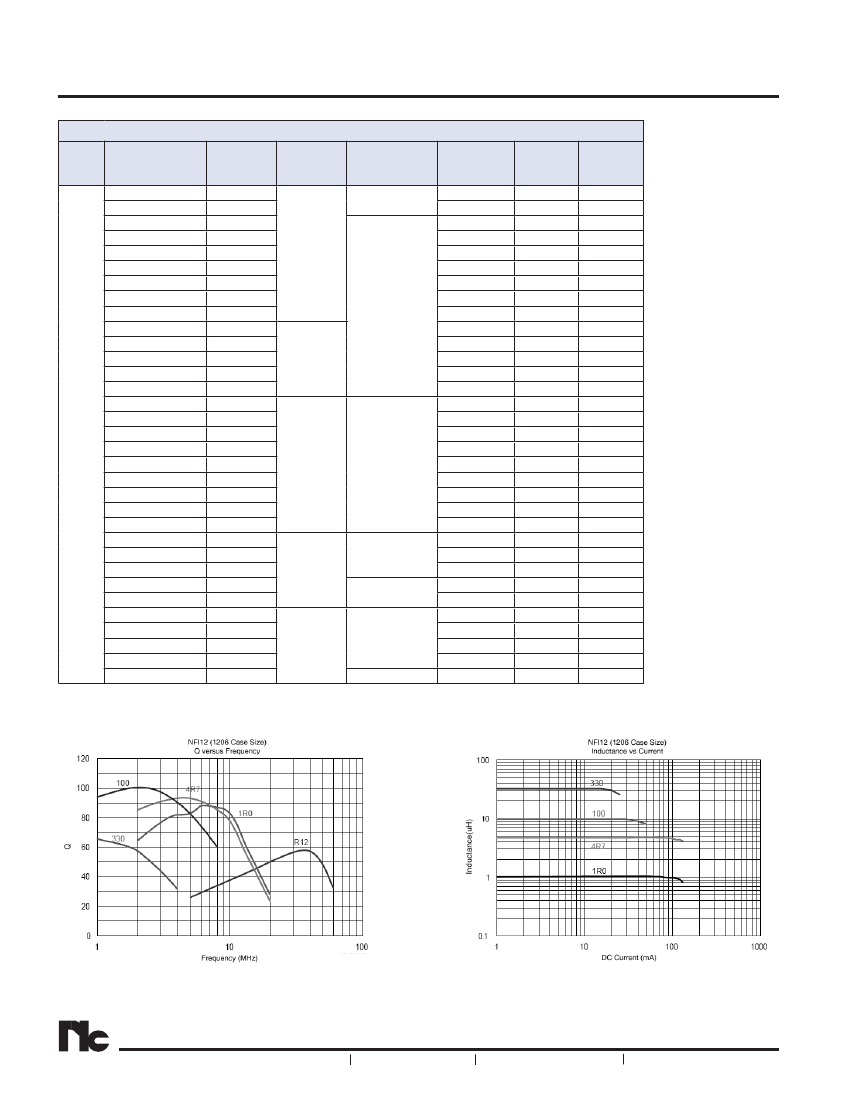

NFI12

1206

0.12µH ~ 33µH

5% (J), 10% (K), 15% (L), 20% (M), 25% (N)

-40°C ~ +85°C

260°C for 10 seconds

Delta T at IDC +30°C max.

CASE SIZE DIMENSIONS (mm)

Type

NFI06

NFI08

NFI12

Case Size

0603

1.6 ± 0.15 0.8 ± 0.15

0805

1206

0.8 ± 0.15

0.85 ± 0.20

2.0 ± 0.15 1.25 ± 0.15

1.25 ± 0.20

3.2 ± 0.20 1.6 ± 0.20 1.1 ± 0.30

0.3 ± 0.2

0.5 ± 0.3

PART NUMBER SYSTEM

NFI 06 J R22 TR F

Pb-free/RoHS Compliant

Tape & Reel Packaging

Inductance Code, value in µH,

R = decimal point

Tolerance Code (see speciﬁcations table)

Case Code (see available values tables)

Series

DIMENSIONS (mm)

LAND PATTERN DIMENSIONS (mm)

Case Size

0603

0805

TERMINATION:

(Nickel Barrier

with Sn Finish)

2.6

4.4

0.6

2.2

0.8

1.4

1206

RECOMMENDED REFLOW SOLDERING PROFILE

Peak Temperature

(260°C for 10 sec.)

Temperature - Deg. C

250

200

150

100

60 sec.

150°C 60 sec.

Time above 230°C

60 sec.

Time (Seconds)

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
