52-378-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 52-378-001

52-378-001: DescriptionSingle Phase EMI Filter, 240V, 60HzHz; CategoryAnalog mixed-signal IC filter; File Size80KB，1 Pages; ManufacturerMetuchen Capacitors Inc

Download Datasheet Parametric Compare View All

52-378-001 Overview

Single Phase EMI Filter, 240V, 60HzHz

52-378-001 Parametric

Parameter Name	Attribute value
Maker	Metuchen Capacitors Inc
Reach Compliance Code	unknown
filter type	SINGLE PHASE EMI FILTER
high	44.45 mm
Maximum leakage current	50 mA
length	63.5 mm
Installation type	PANEL MOUNT
working frequency	60Hz Hz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
physical size	L63.5XB63.5XH44.45 (mm)/L2.5XB2.5XH1.75 (inch)
Rated current	3 A
Rated voltage	240 V
width	63.5 mm

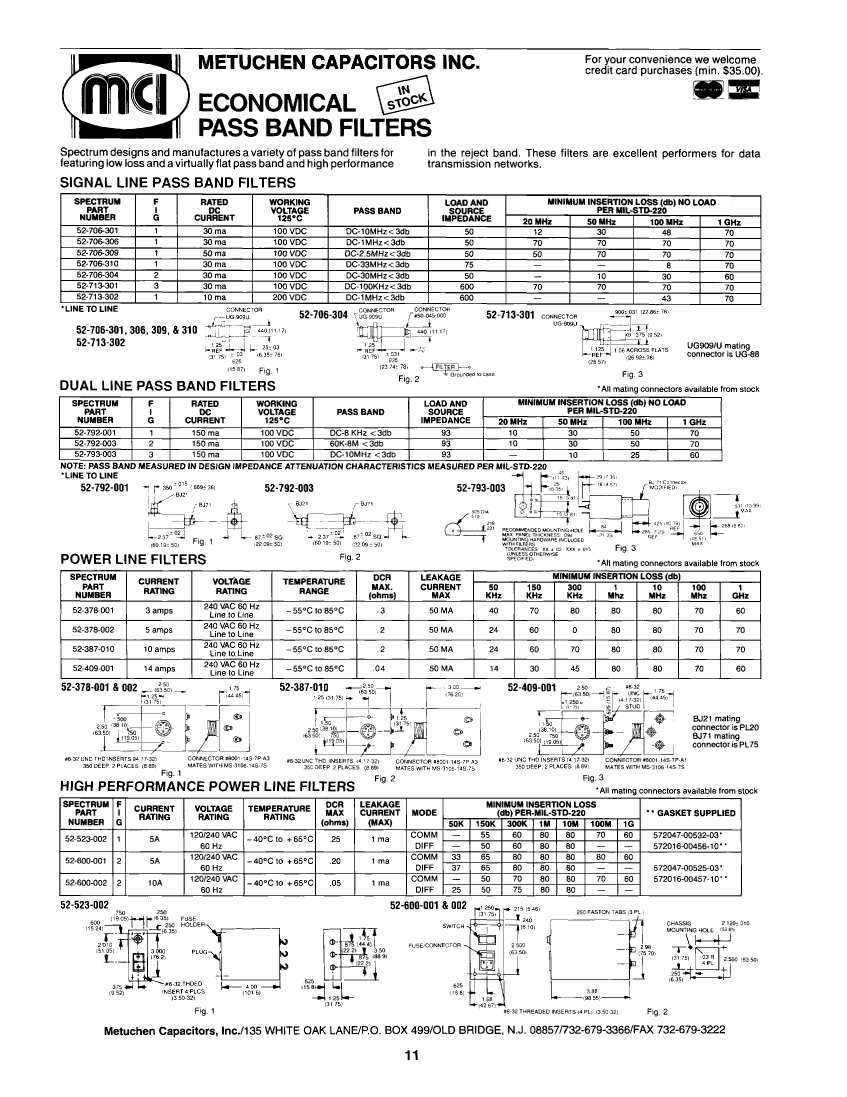

Preview

Download Datasheet

View All

52-378-001 Related Products

	52-378-001	52-378-002	52-387-010	52-409-001	52-523-002	52-600-001	52-600-002
Description	Single Phase EMI Filter, 240V, 60HzHz	Single Phase EMI Filter, 240V, 60HzHz	Single Phase EMI Filter, 240V, 60HzHz	Single Phase EMI Filter, 240V, 60HzHz	Single Phase EMI Filter, 240V, 60HzHz	Single Phase EMI Filter, 240V, 60HzHz	Single Phase EMI Filter, 240V, 60HzHz
Maker	Metuchen Capacitors Inc	Metuchen Capacitors Inc	Metuchen Capacitors Inc	Metuchen Capacitors Inc	Metuchen Capacitors Inc	Metuchen Capacitors Inc	Metuchen Capacitors Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	44.45 mm	44.45 mm	76.2 mm	44.45 mm	31.75 mm	42.67 mm	42.67 mm
Maximum leakage current	50 mA	50 mA	50 mA	50 mA	1 mA	1 mA	1 mA
length	63.5 mm	63.5 mm	63.5 mm	63.5 mm	101.6 mm	98.55 mm	98.55 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	L63.5XB63.5XH44.45 (mm)/L2.5XB2.5XH1.75 (inch)	L63.5XB63.5XH44.45 (mm)/L2.5XB2.5XH1.75 (inch)	L63.5XB63.5XH76.2 (mm)/L2.5XB2.5XH3.0 (inch)	L63.5XB63.5XH44.45 (mm)/L2.5XB2.5XH1.75 (inch)	L101.6XB88.9XH31.75 (mm)/L4.0XB3.5XH1.25 (inch)	L98.55XB75.7XH42.67 (mm)/L3.88XB2.98XH1.68 (inch)	L98.55XB75.7XH42.67 (mm)/L3.88XB2.98XH1.68 (inch)
Rated current	3 A	5 A	10 A	14 A	5 A	5 A	10 A
Rated voltage	240 V	240 V	240 V	240 V	240 V	240 V	240 V
maximum frequency	-	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz
minimum frequency	-	0.05 MHz	0.05 MHz	0.05 MHz	0.15 MHz	0.05 MHz	0.15 MHz
Insertion loss@maximum frequency	-	70 dB	70 dB	60 dB	60 dB	60 dB	60 dB
Insertion loss@frequency-min.	-	24 dB	24 dB	14 dB	55 dB	33 dB	50 dB
Manufacturer's serial number	-	52-378-002	52-387-010	52-409-001	52-523-002	52-600-001	52-600-002
