CY74FCT162373ATPAC datasheet, PDF

Datasheet> All Categories > logic> logic> CY74FCT162373ATPAC

CY74FCT162373ATPAC: DescriptionBus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48; Categorylogic logic; File Size239KB，6 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY74FCT162373ATPAC Overview

Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48

CY74FCT162373ATPAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	TSSOP
package instruction	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48
Contacts	48
Reach Compliance Code	not_compliant
series	FCT
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	12.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	220
power supply	5 V
Prop。Delay @ Nom-Sup	5.2 ns
propagation delay (tpd)	6.7 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm

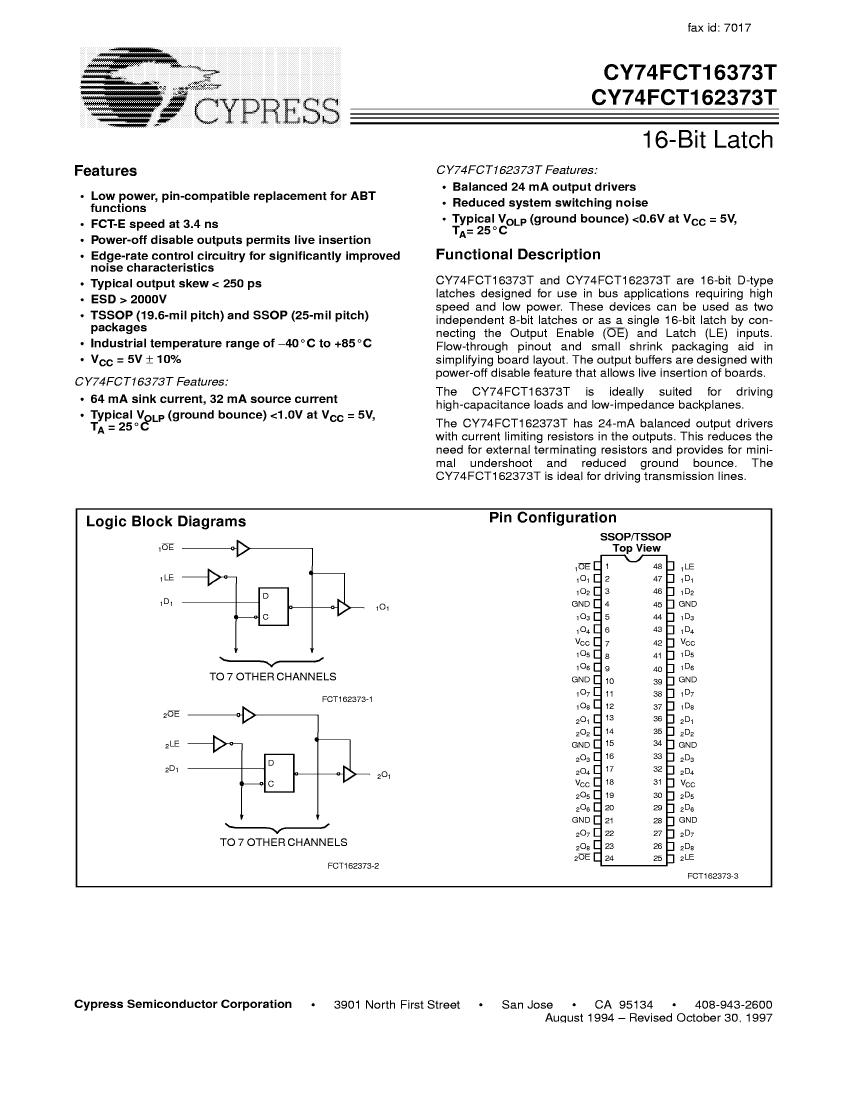

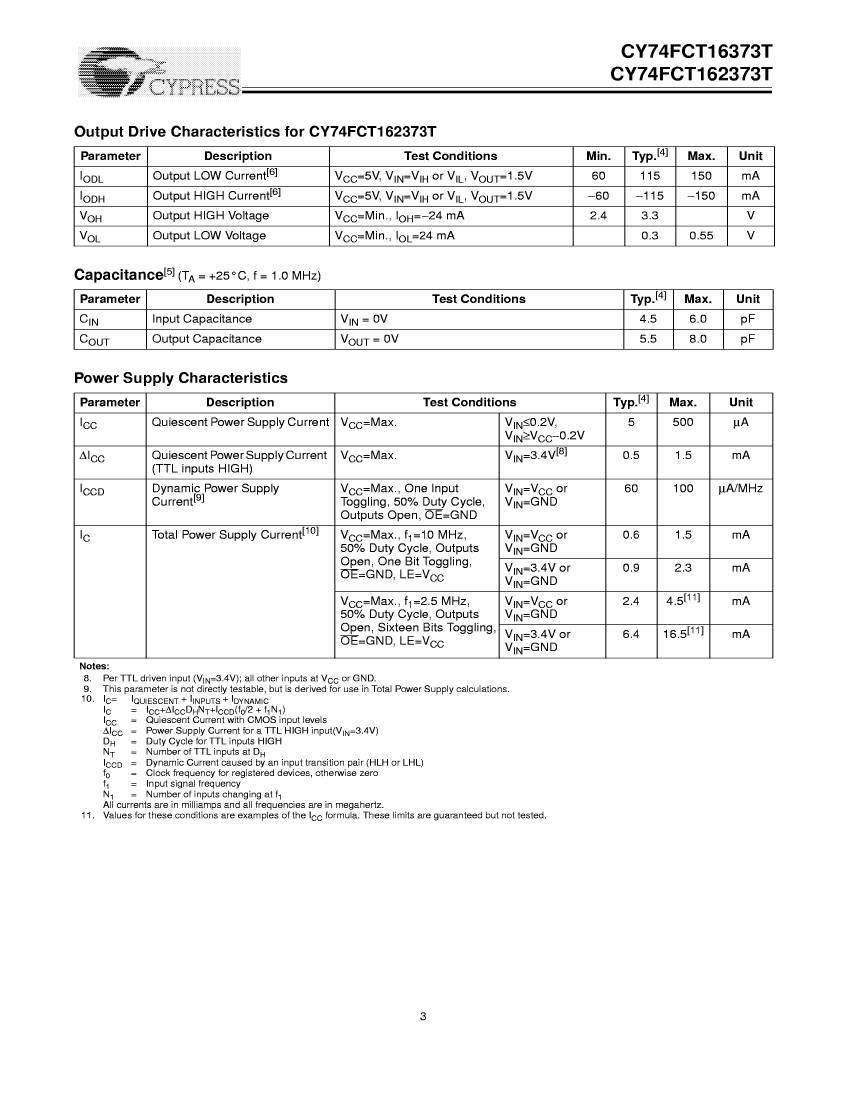

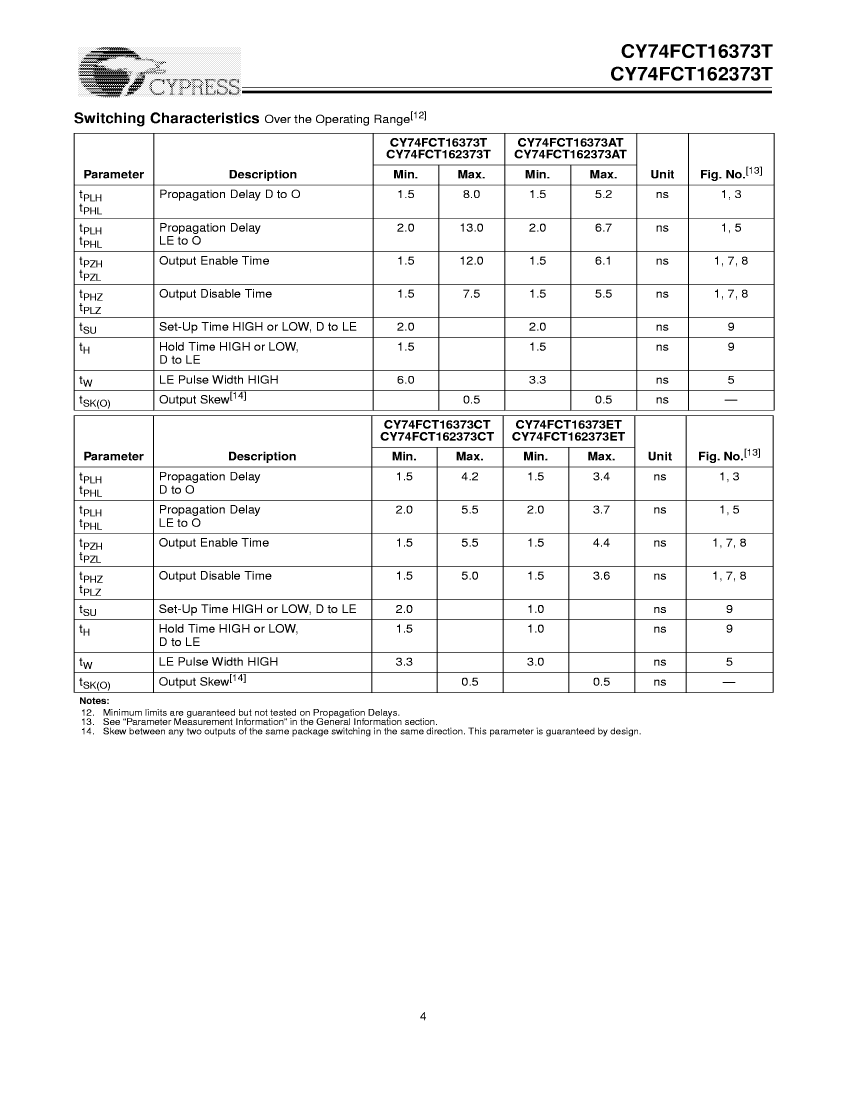

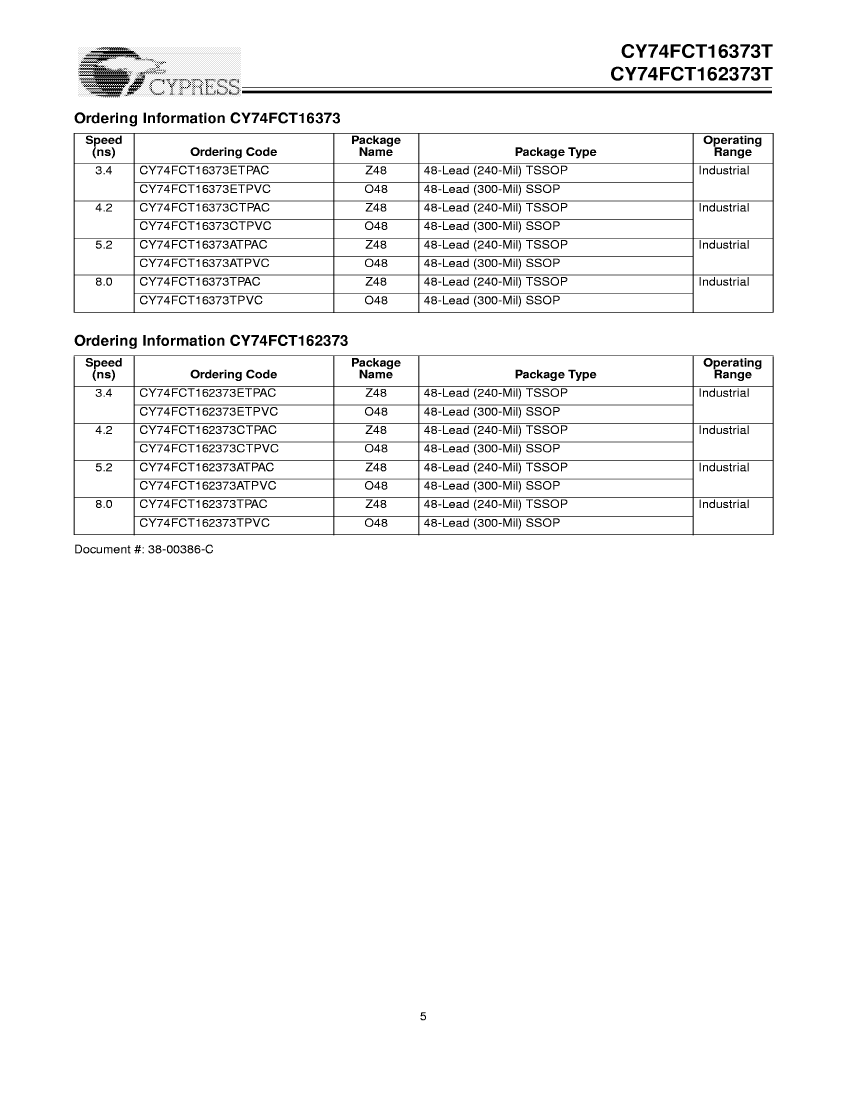

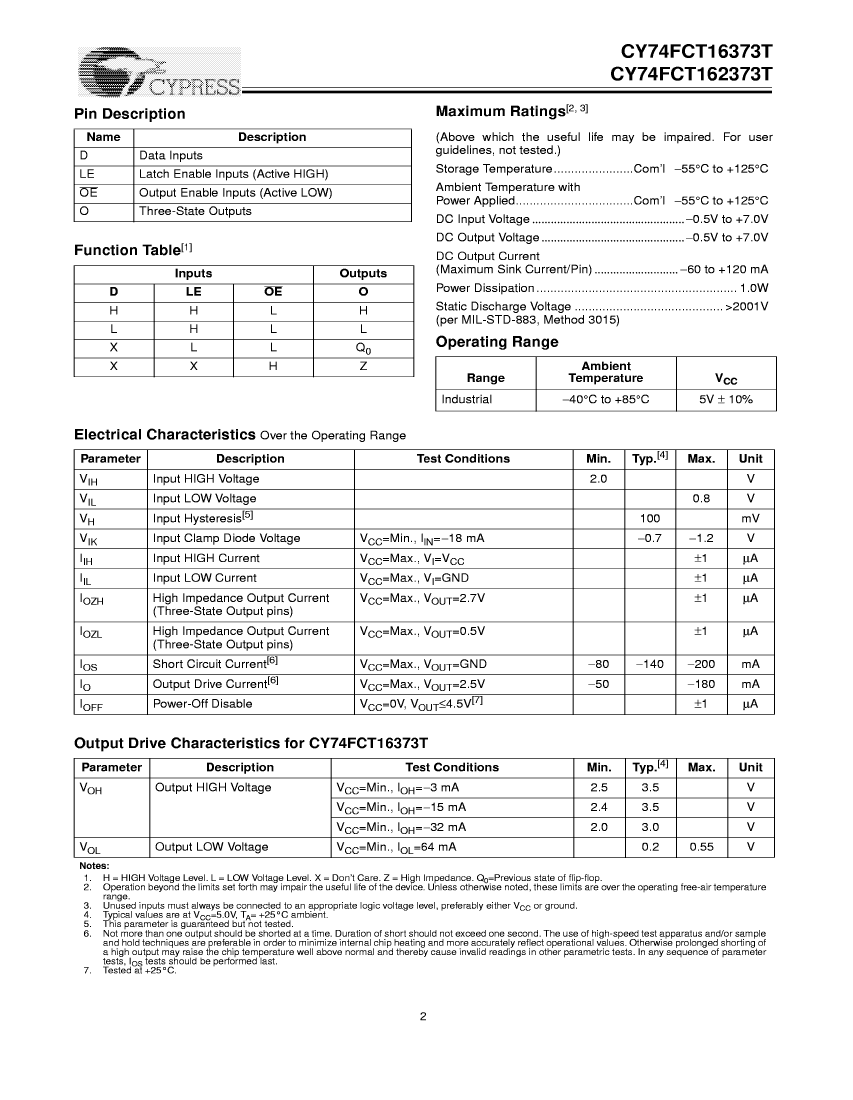

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CY74FCT162373ATPAC Related Products

	CY74FCT162373ATPAC	CY74FCT162373CTPAC	CY74FCT162373CTPVC	CY74FCT162373ETPAC	CY74FCT16373CTPAC	CY74FCT162373ATPVC	CY74FCT16373ATPAC	CY74FCT16373ETPAC
Description	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	TSSOP	TSSOP	SSOP	TSSOP	TSSOP	SSOP	TSSOP	TSSOP
package instruction	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	0.300 INCH, 0.025 INCH PITCH, SSOP-48	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	0.300 INCH, 0.025 INCH PITCH, SSOP-48	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	0.240 INCH, 0.0196 INCH PITCH, TSSOP-48
Contacts	48	48	48	48	48	48	48	48
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	12.5 mm	12.5 mm	15.875 mm	12.5 mm	12.5 mm	15.875 mm	12.5 mm	12.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.064 A	0.024 A	0.064 A	0.064 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	SSOP	TSSOP	TSSOP	SSOP	TSSOP	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20	TSSOP48,.3,20	SSOP48,.4	TSSOP48,.3,20	TSSOP48,.3,20	SSOP48,.4	TSSOP48,.3,20	TSSOP48,.3,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	5.2 ns	4.2 ns	4.2 ns	3.4 ns	4.2 ns	5.2 ns	5.2 ns	3.4 ns
propagation delay (tpd)	6.7 ns	5.5 ns	5.5 ns	3.7 ns	5.5 ns	6.7 ns	6.7 ns	3.7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	1.1 mm	2.794 mm	1.1 mm	1.1 mm	2.794 mm	1.1 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.635 mm	0.5 mm	0.5 mm	0.635 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	6.1 mm	7.5 mm	6.1 mm	6.1 mm	7.5 mm	6.1 mm	6.1 mm
